Tenmars TM-901N LAN Cable Tester Backlit LCD Screen Displays

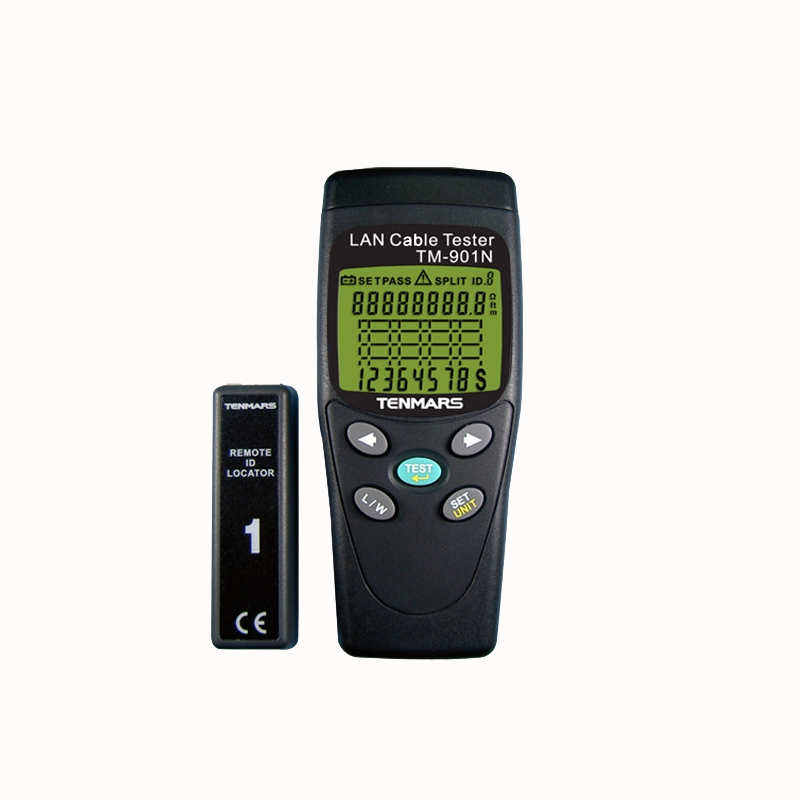

TM-901N LAN Cable Tester
- Detects opens, shorts, miswires and split pairs on the twisted pair cabling on the LAN cable.
- Measures length.
- Auto backlit.
- Auto power off.
APPLICATION
The backlit LCD screen displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen. Using multiple remote ID up to 8 locators to test on RJ-45 (UTP, STP) LAN cable
SPECIFICATION

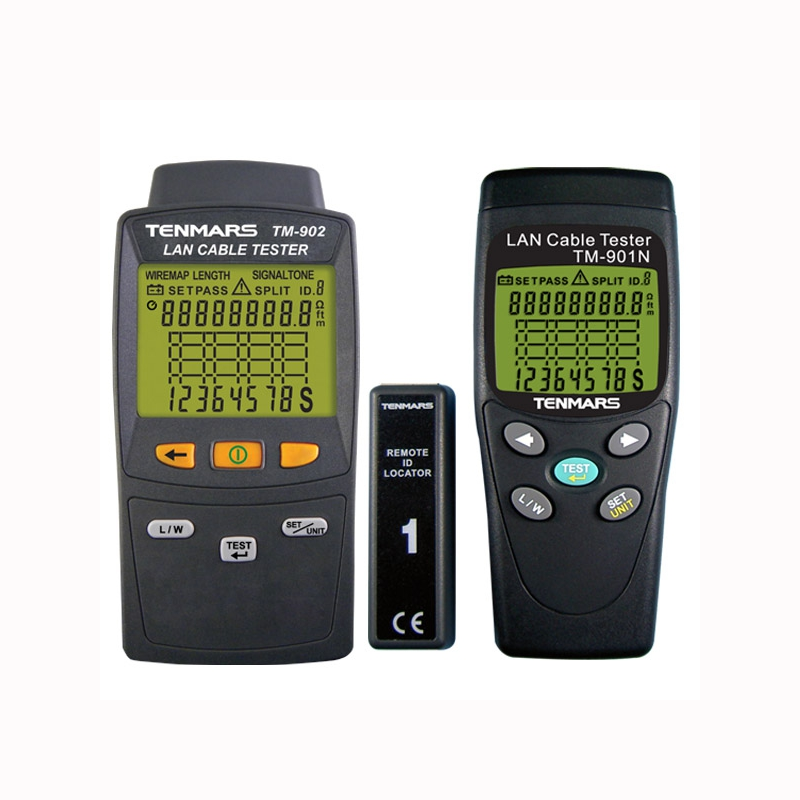

Model:
TM-901N

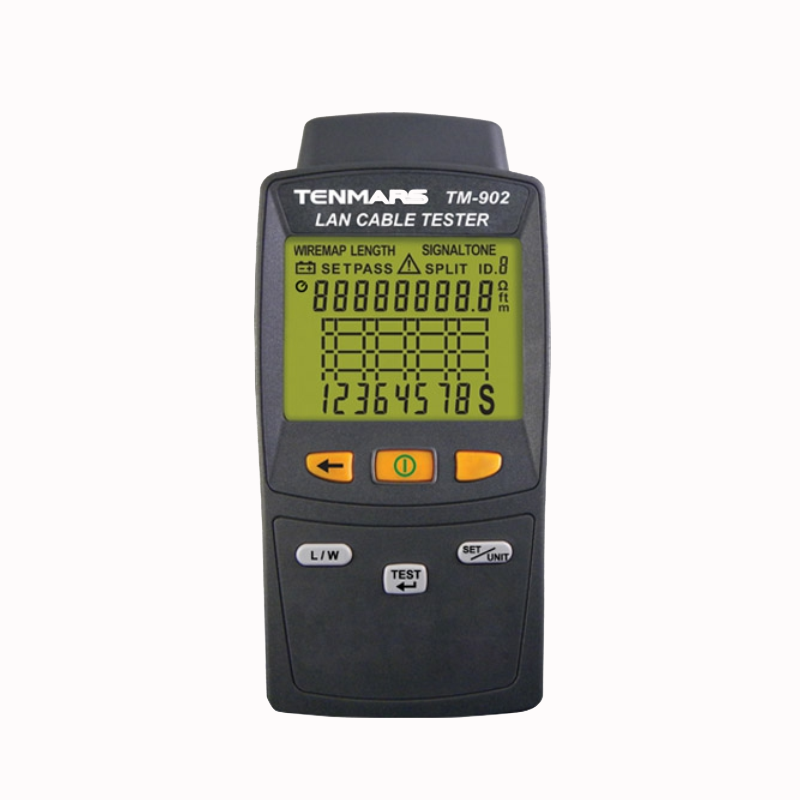

TM-902 (for OEM olny)
Connector type
RJ-45
Cable category
LAN cable (UTP, STP),cable.
Wire-map test
Detects opens, shorts, miswires, split pairs
Length test
up to 255 M (836 ft)
Length resolution
0.1 m (ft)
Length units
Meter and Foot
Accuracy
+/- 10% + 1.0M (3 ft)
Operating temp. and RH
5 to 40 ºC, below 80% RH.
Storage temp. and RH
-10 to 60ºC, below 70%.
Power
9V batteryx1
1.5V battery x 6
Dimensions (L x W x H)
130 x 56 x 38mm.
156 x 73 x 35mm
Weight
About 160g
About 170g
Accessories
User’s manual, battery, Carrying case,
Test Cable x1, Remote ID (1) x1
