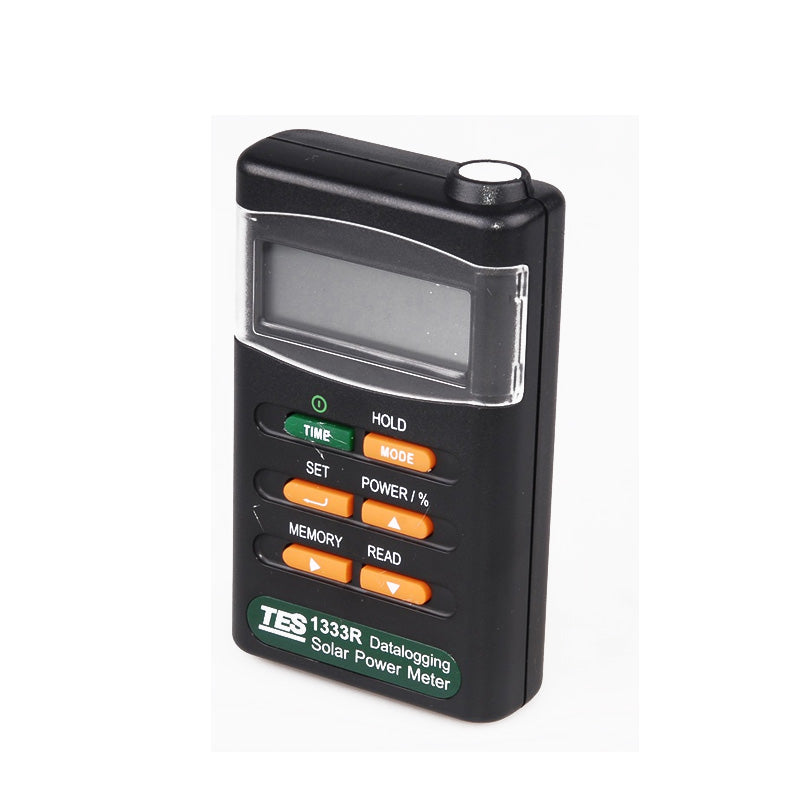

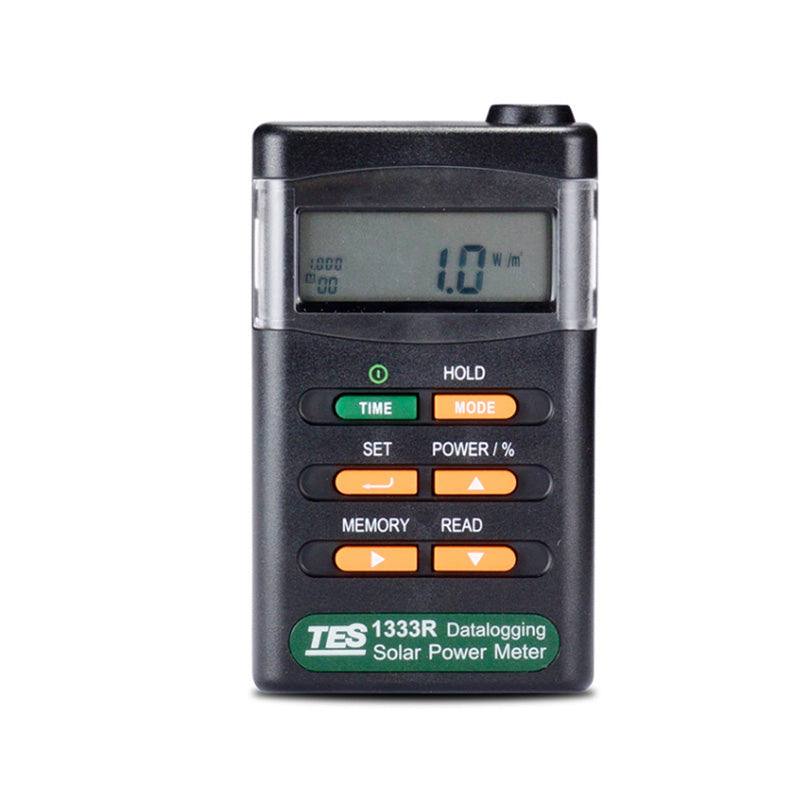

TES-1333R RS-232 Interface Datalogging Solar Power Meter
FEATURES
Wide spectral range.
Excellent long term stability.
Cosine corrected.
Automatic transmission measurements.
Select either power or transmission.
Solar energy power or transmission.
Current time setting function.
User calibration factor setting function.
End-mount light sensor.
Select either W/m2 or Btu / (ft2*h) unitsData Hold / MAX / AVG modes.
Data Memory and Read function. (99 sets.)
RS232 interface to PC
Meteorology
agriculture
solar radiation measurement
solar power research
physics and optical laboratories
solar transmission measurement
identify high performance windows
Display
3-1/2 digits.Max.indication1999
Range
2000W/m 2 634Btu/(ft 2 * h)
Resolution
1W/m21Btu/(ft2*h)
Spectral response
400-1100nm
Accuracy
Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / [ ±0.12 Btu / (ft2*h)/ ] from 25
Angular accuracy
Cosine corrected <5% for angles <60 °
Drift
<±2% / per year
Calibration
User recalibration available
Over-input
Display shows" "
Sampling Time
Approx. 0.4 second
Manu data memory and read
99 sets
Auto data memory
32000 sets

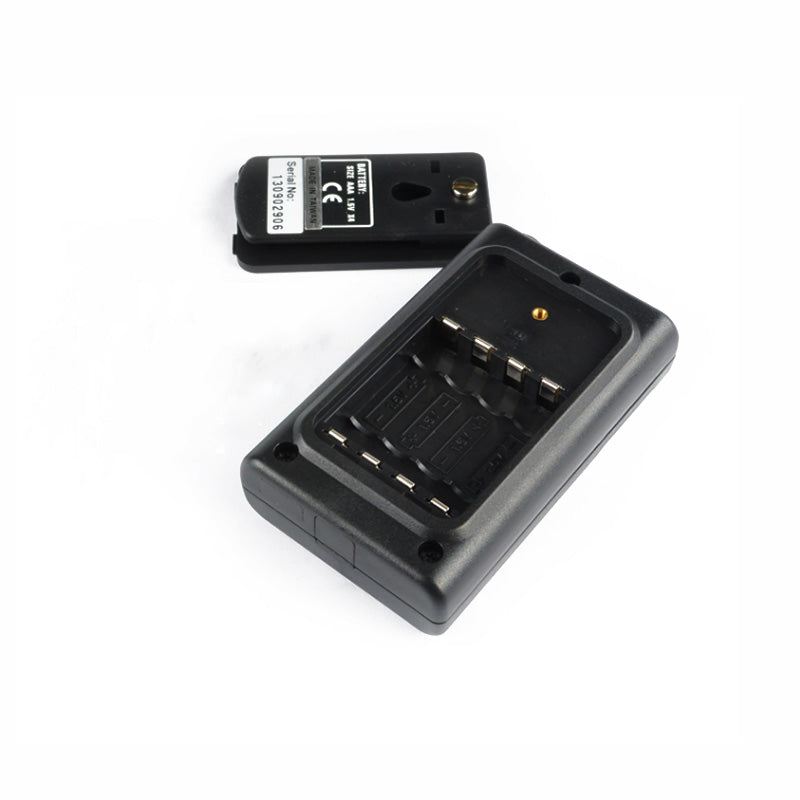

Battery
4pcs size AAA
Battery Life
Approx. 100 hours
Operating temp and humidity
0 to 50 below 80%RH
Storage temp and Humidity
-10 to 60 below 70% RH
Weight
Approx. 165g
Dimension
111(L)*64(W)*34(H)mm

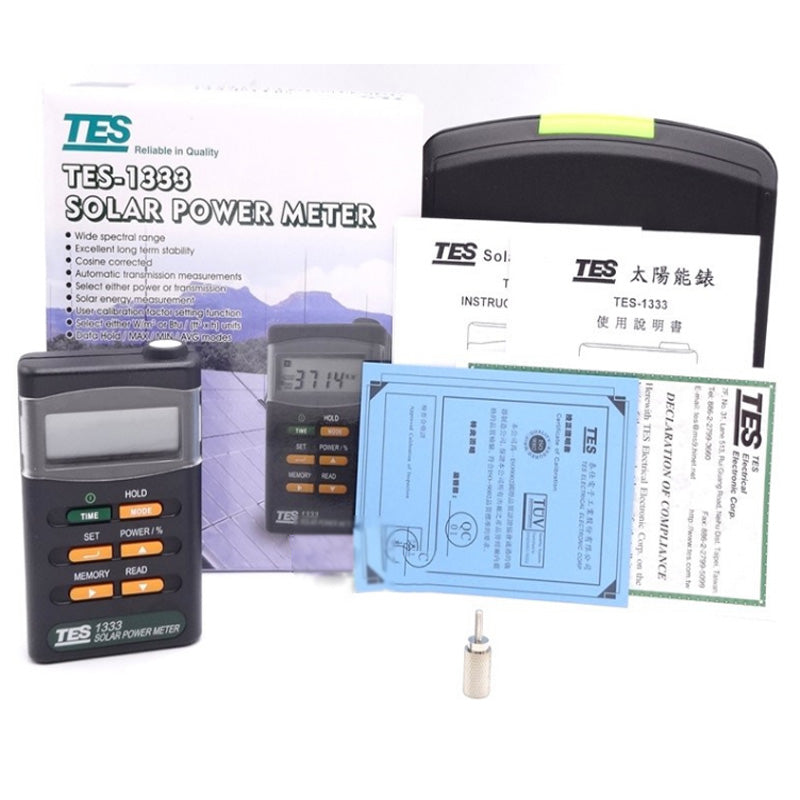

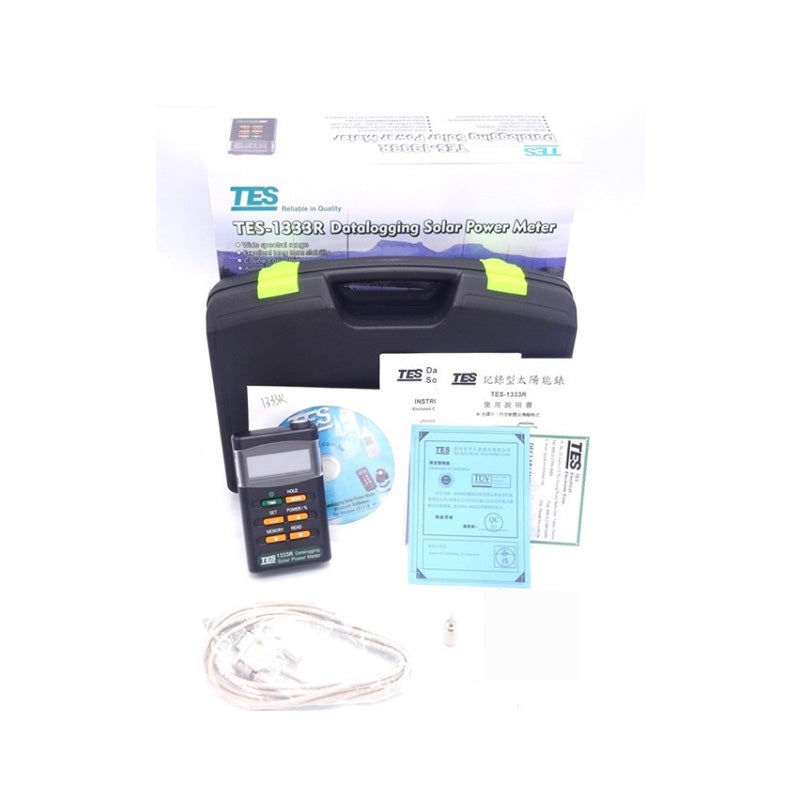

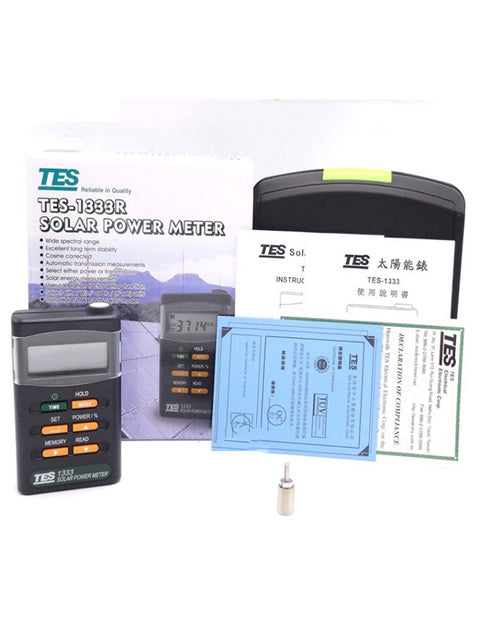

Accessories
Carrying Case, Operation Manual, 4 pcs size AAA, RS-232 cable , CD software
The batteries not included package
