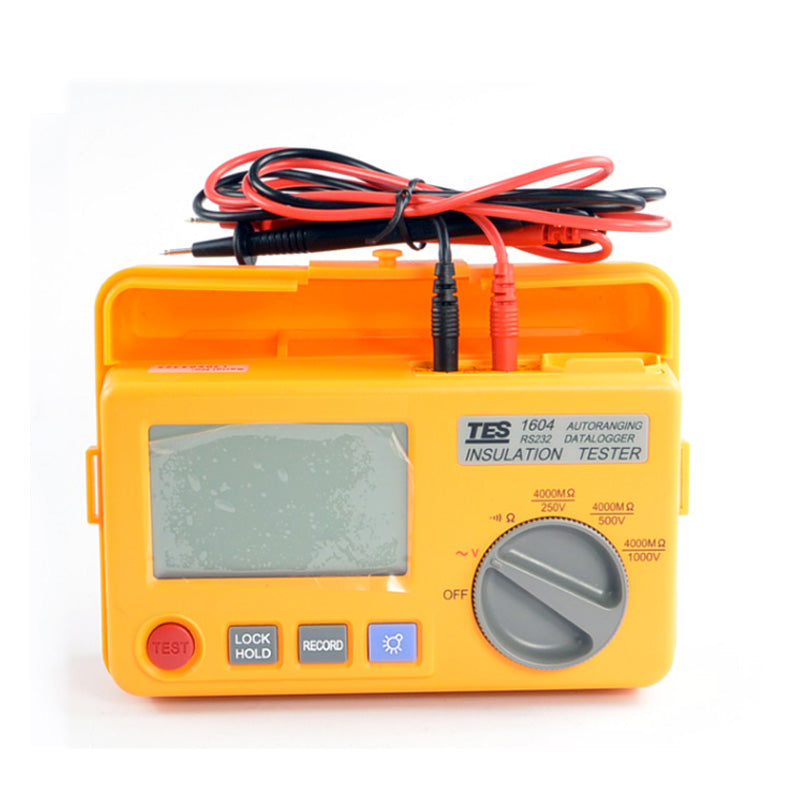

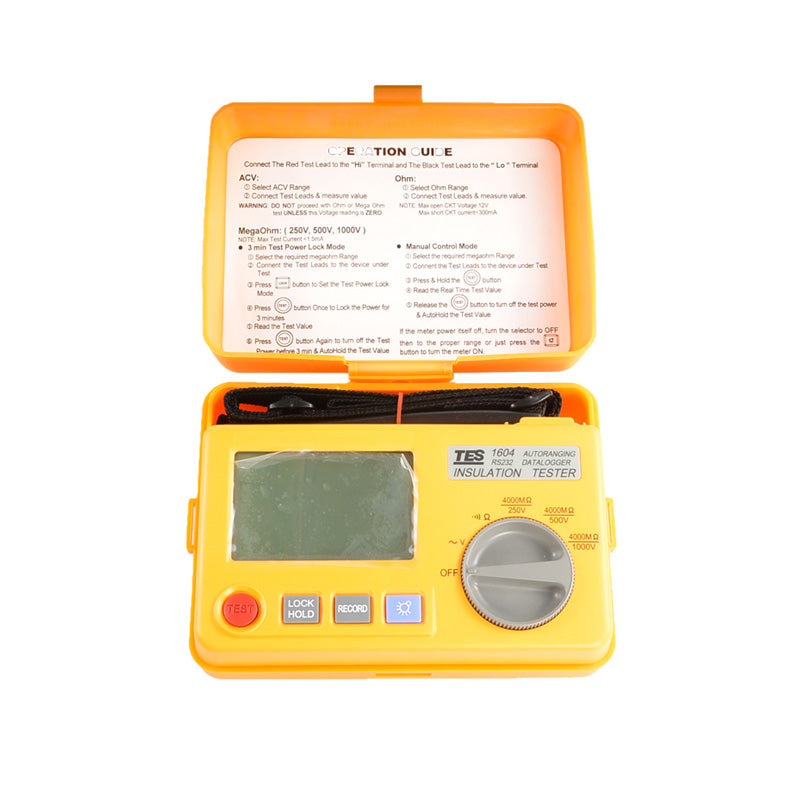

TES-1604 Datalogging Insulation Tester TES1604(RS-232)
Innovational logging feature (7000) to memorize all of measurements from the work place
RS-232 interface with valued software
4,000M W /V Reding/10,000M W analog indication
Backlight illumination
3-3/4 Digital LCD, 4000Count
Auto Range for Mega Ohm range
50 segments Log Scaled Analog Display
Easy to carry testing package
Tests insulation at rated voltage into a 1mA load
200mA short circuit continuity current
Meet VED0413
Auto discharge
CAT II pollution 2 1000V
CAT III pollution 2 600V
AC Voltage
Range
Resolution
Accuracy
600V ACV
0.1Volt
1.5%rdg+3dgt (1V600V)
Continuity
Range
Resolution
Accuracy
40 Ohm (Ish>200mA )
0.01 W
1%rdg+30dgt
Mega Ohm
Range
Resolution
Accuracy
4000M W /250V w/ autorange 4000M/400M/40M/4M
4000M W /500V w/ autorange 4000M/400M/40M/4M
4000M W /1000V w/ autorange 4000M/400M/40M/4M
4000M W /250V, 1count/1K W
4000M W /500V, 1count/1K W
4000M W /1000V, 1count/1K W
3%rdg+5Count
(under 1G W )
5%rdg+3Count
(under 4G W )
GENERAL SPECIFICATIONS
Display
80 x 50mm Big LCD penal with 50 segments analog
display Max Reading 4000
Over range Indication
"OL" will be shown on the LCD penal when out of
range measurement is made.
Low Battery Indication
The will be shown when the battery need to be changed
Sampling Rate
2.5 times/sec Digital Display
10 times/sec Bar Graph
Power Source
Eight 1.5Volt AA size Battery
Operating Temperature and Humidity
0 to 40 (32 to 104 ), below 80% RH
Storage Temperature
-10 to 60 ( 14 to 140 )
Dimension
200(L)x140(W)x95(H)mm
Weight
Approx. 900g (with battery)
Accessories

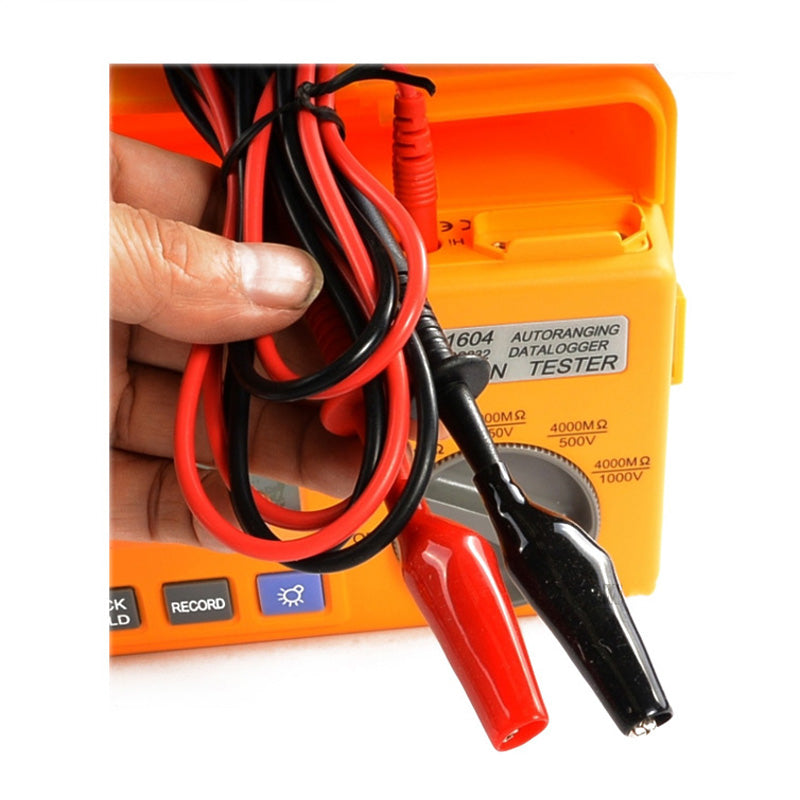

Test Lead, Battery(not included package), Instruction Manual, RS-232 interface,Software for Windows
