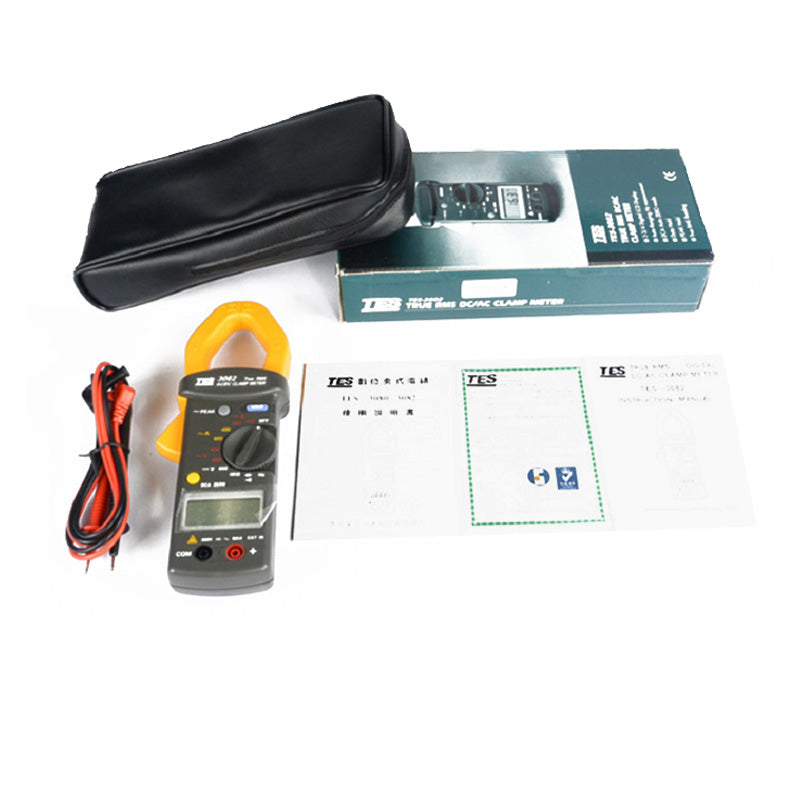

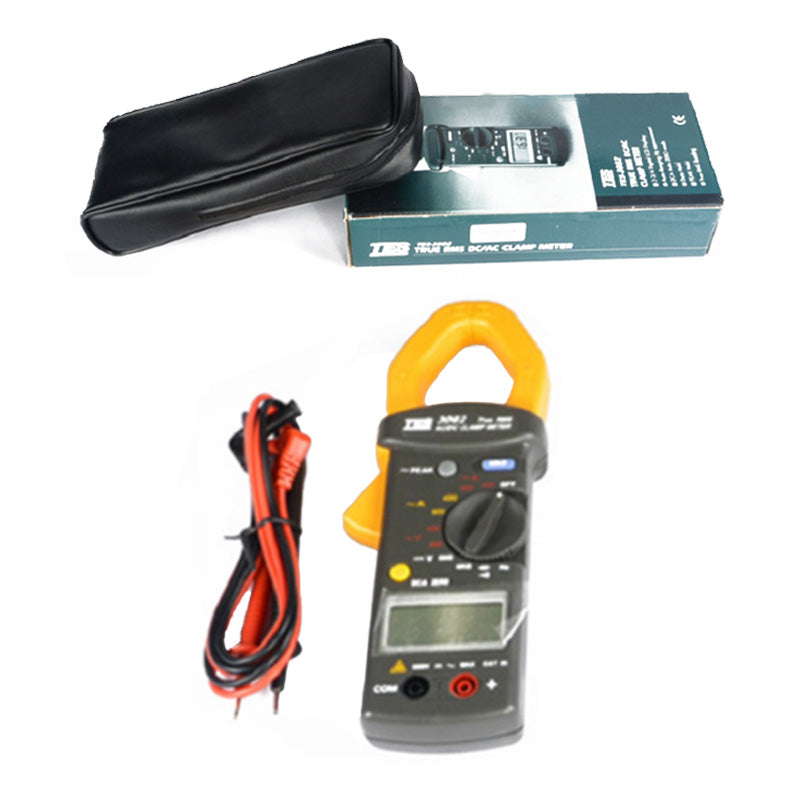

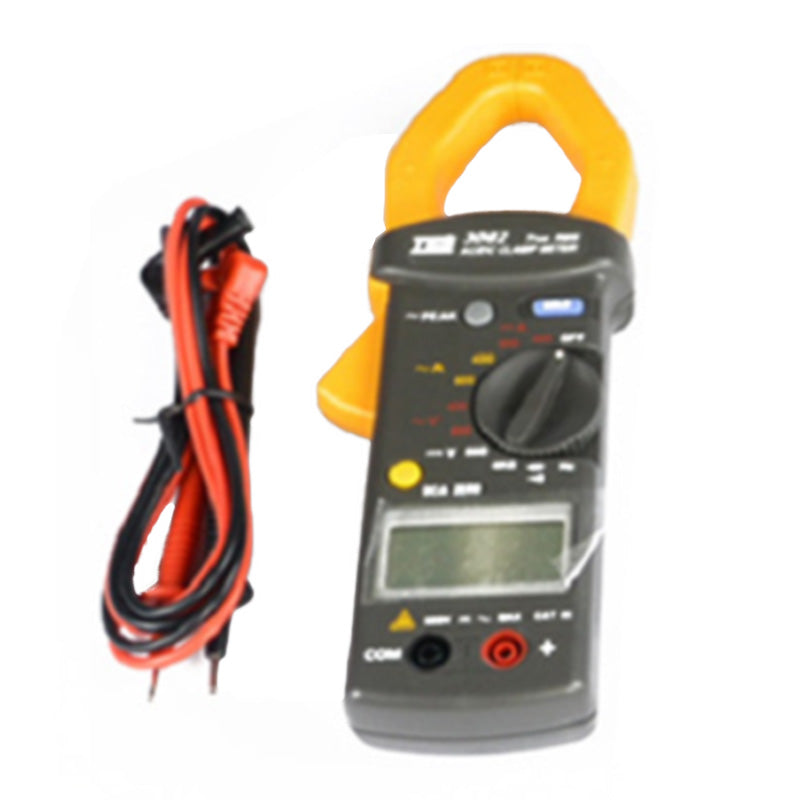

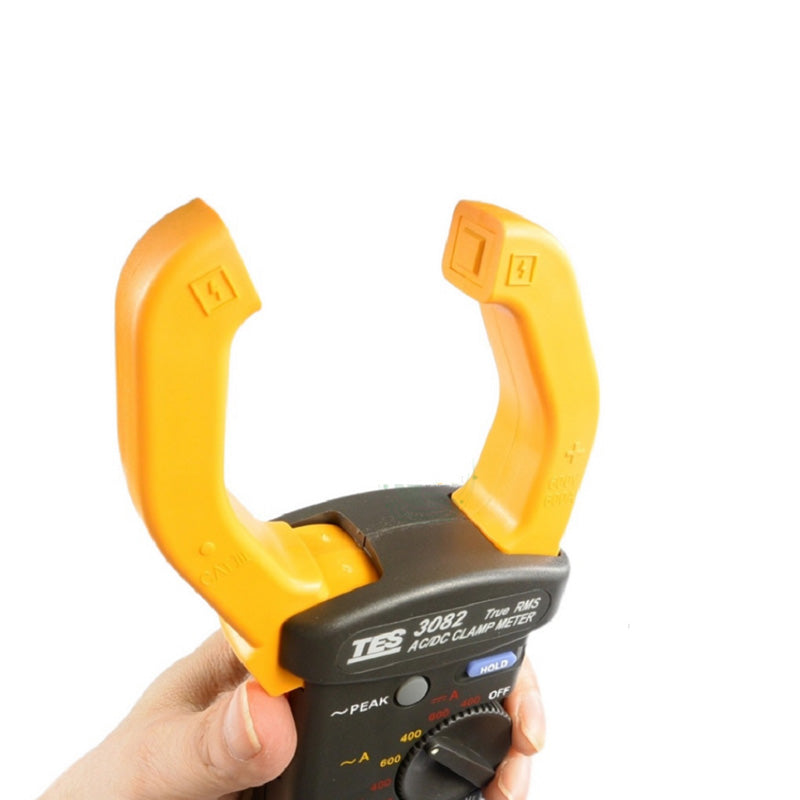

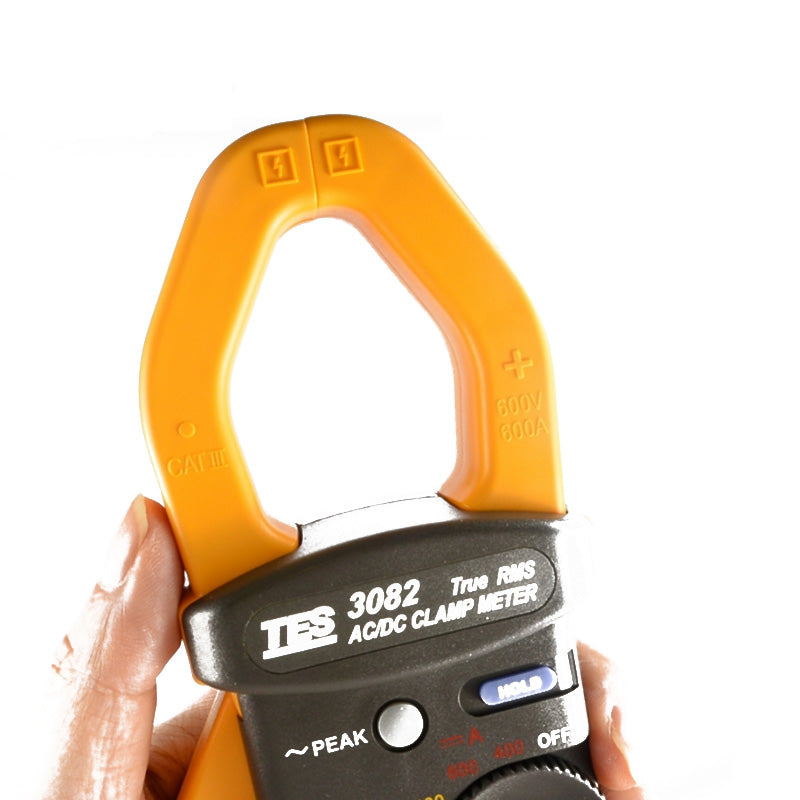

TES-3082 True RMS Clamp Meter Communication Hook Table
Features:
1.EN61010-1 600V INSTALLATION VAT III POLLUTION DEGREE2
2.Auto-Ranging Frequency measurements
3.Auto ZERO mode
4.Data Hold mode
5.PEAK Hold mode
6.True RMS Reading
Specification:
A: General Measurement
Voltage (AC/DC)
Range
DC - 600V
AC - 400V/ 600V
Accuracy
DC - 0.75% rdg + 2 dgts
AC - 1.2%rdg + 5dgts
Input Impedance
10M
Overload Protection
DC 1000V & AC 750V
Frequency (Hz)
Range
4KHz/40KHz
Accuracy
0.5% rdg + 5dgts
Resolution
0.1Hz/1Hz
Max Input Sensitivity
5A/1V
Overload Protection
800A/750V
Audible Continuity
Continuity beeper
below 40
Accuracy Max Open Circuit Voltage
3.2V
Overload Protection
660Vrms
Ohms (Resistance)
Range
4K
Accuracy
1% rdg + 5dgts
Resolution
0.001K
Max Open Circuit Voltage
0.5VDC
Overload Protection
660Vrms
Current (DC/AC)
Range
400/600A
Accuracy
2% rdg + 5 dgts
Resolution
0.1/1A
Overload Protection
800A
Diode Test
Resolution
0.001V
Accuracy
1% rdg + 2 dgts
Overload Protection
660Vrms
B: Peak Hold Measurement
Current (AC)
Range
400/600A
Accuracy
2% rdg + 10 dgts
Resolution
0.1A/1A
Overload Protection
800A
Voltage (AC)
Range
400/600V
Accuracy
1.5% rdg + 10 dgts
Resolution
0.1V/1V
Input Impedance
10M
Overload Protection
DC 1000V & AC 750V
Numerical Display:
3 3/4 digit liquid crystal display (LCD) maximum
reading 3999.
Sampling Rate: 2 times/sec
Power Source:
one 006p 9V or IEC 6F22 or NEDA 1604 Battery
Dimensions: 239(L) x 66(W) x 34(H) mm
Weight: Approx. 465g
Notes:the batteries not included package
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
