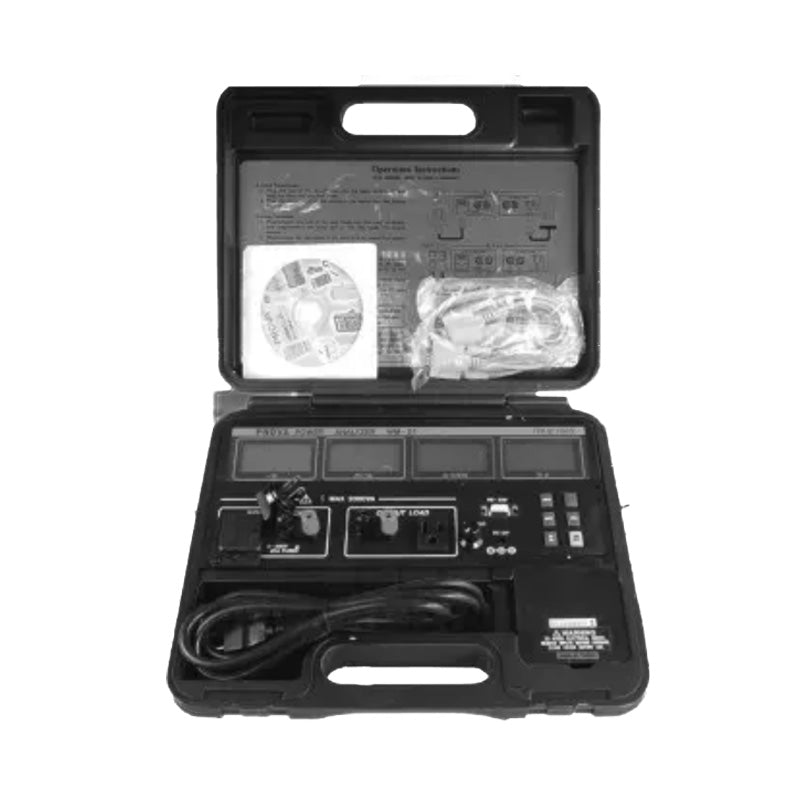

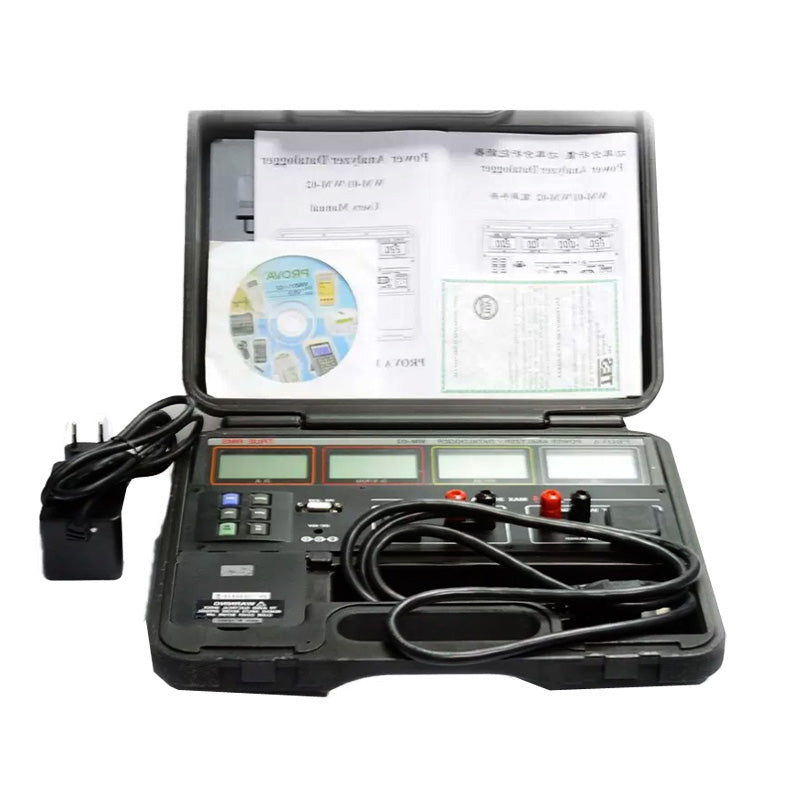

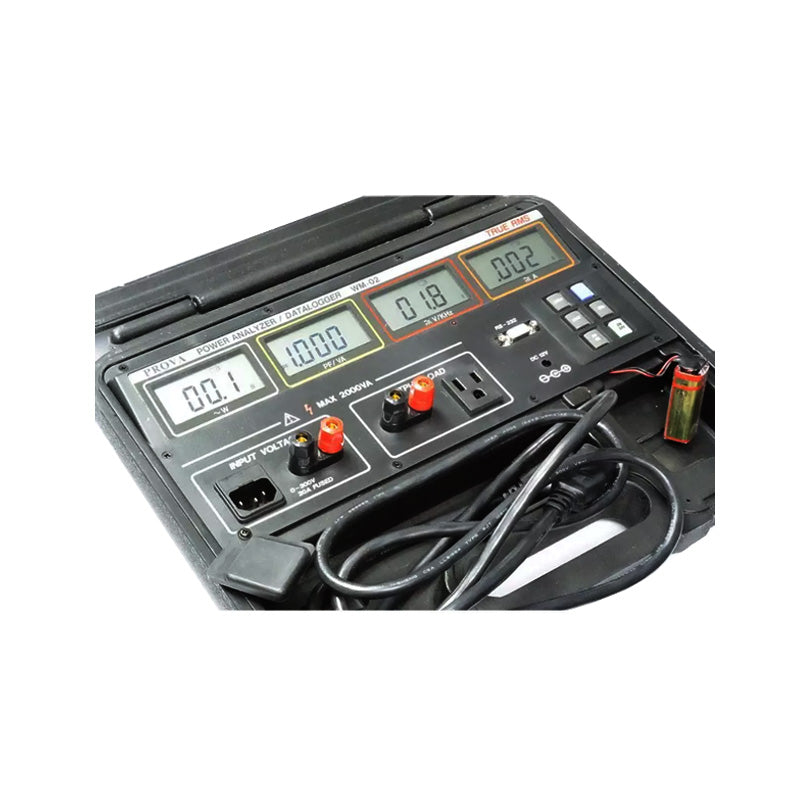

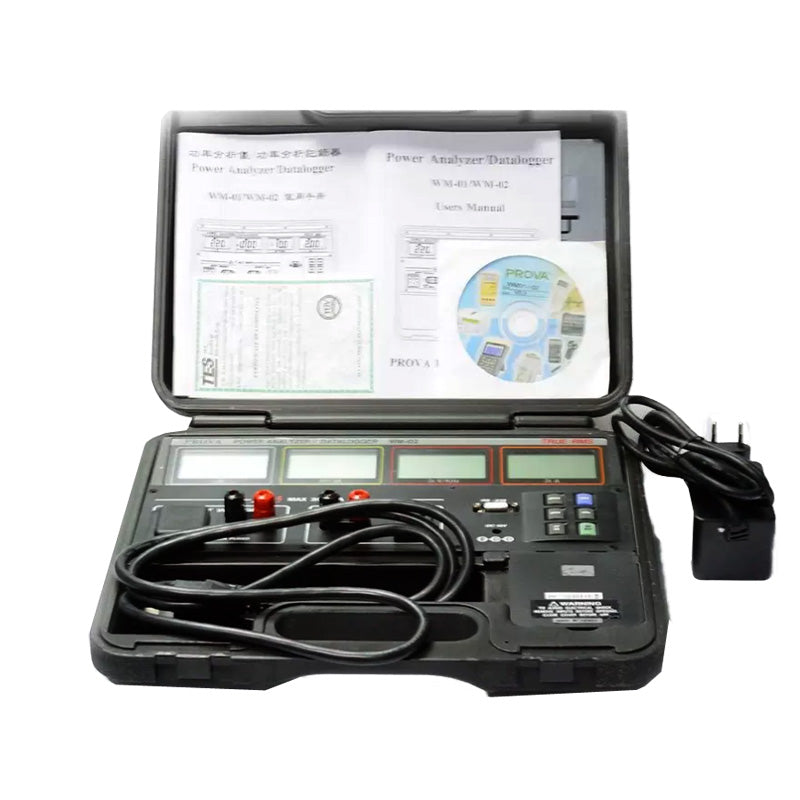

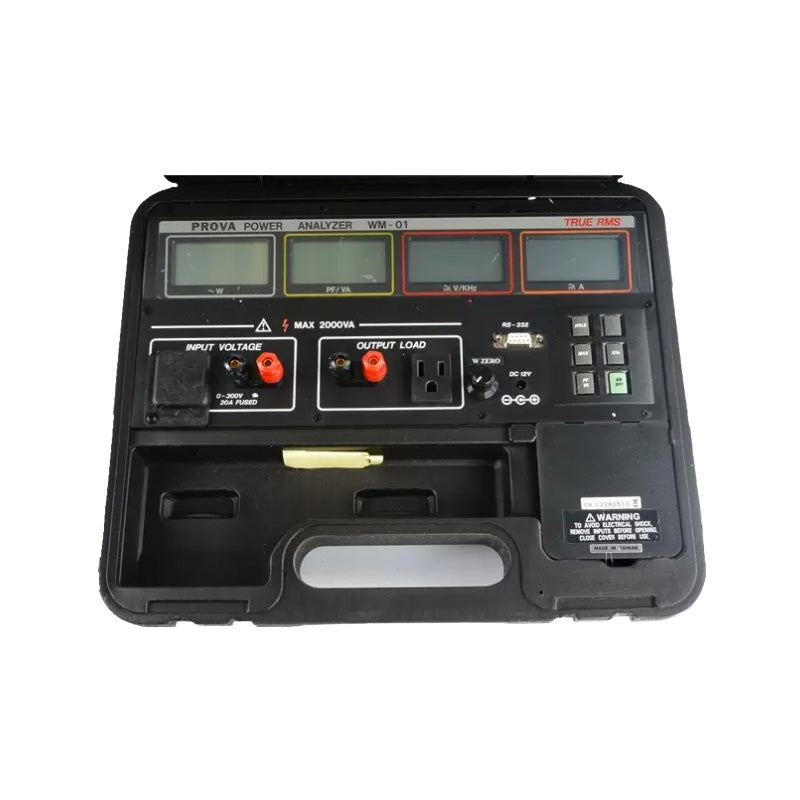

TES WM-01 WM01 Power Analyzer Datalogger, Ture Arm AC & DC W/PF/ V/A Data
logging with RS232 interface
Features:
4 Group LCD ShowW,PF,V,A
Easy to measure ease of use
Watt(WATT;Auto Range,AC & DC)
Fan Wai Resolution Accuracy(0-400Hz) Input
200W 0.1W 0.5%Reading±5The median 0-300V,0-20A,0-400Hz,PF=0-1
2000W 1W 0.5%Reading±5The median 0-300V,0-20A,0-400Hz,PF=0-1
Voltage(VOLTAGE;True RMS,Auto Range,AC & DC)
Fan Wai Resolution Accuracy(0-400Hz) Overload protection
200V 0.1V 0.5%Reading±4The median 1000VDC/750VAC
750V 1V 0.5%Reading±4The median 1000VDC/750VAC
Current(CURRENT;True RMS,AC & DC)
Range Resolution Accuracy(0-400Hz) Overload protection
2A 0.001A 0.5%Reading±4The median 2A
20A 0.01A 0.5%Reading±4The median 20A
Frequency(FREQUENCY; A sense of degrees >5V)
Fan Wai Resolution Accuracy
2K-20MHz 1Hz-10KHz 0.5%Reading±2The median
Power factor ( directly from the watt value, current value , voltage value )
Power factor value = watts / ( current * voltage )
Other specifications:
Display:3 1/2 LCDThe maximum indicated , with functions , units, decimal point , said
Overflow indicates :OL
Sampling rate:2.5Times / sec
Power:1.5V(UM3)*2Battery
Current consumption : approx.22mA
Operating ambient temperature :0~40
Working humidity:80%Relative humidity below
Size:352mm(L)*300mm(W)*100mm(H)
13.9"(L)*11.8"(W)*3.9"(H)
Weight: Approx.1.637kg
Approximately 3.6 Pound
