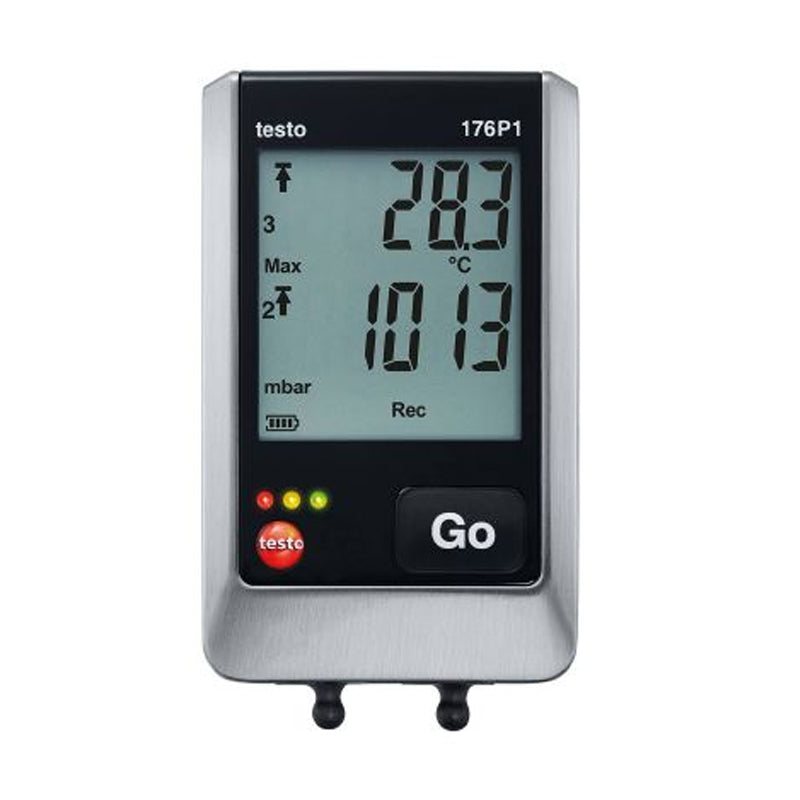

Testo 176 P1 - Absolute Pressure, Temperature and Humidity Data Logger 0572 1767
Product Description

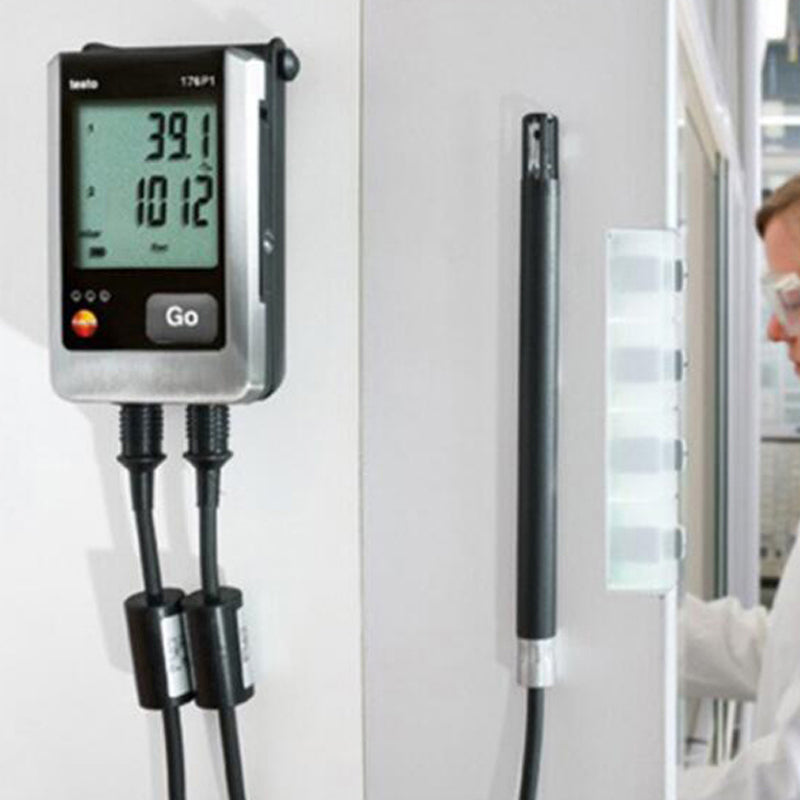

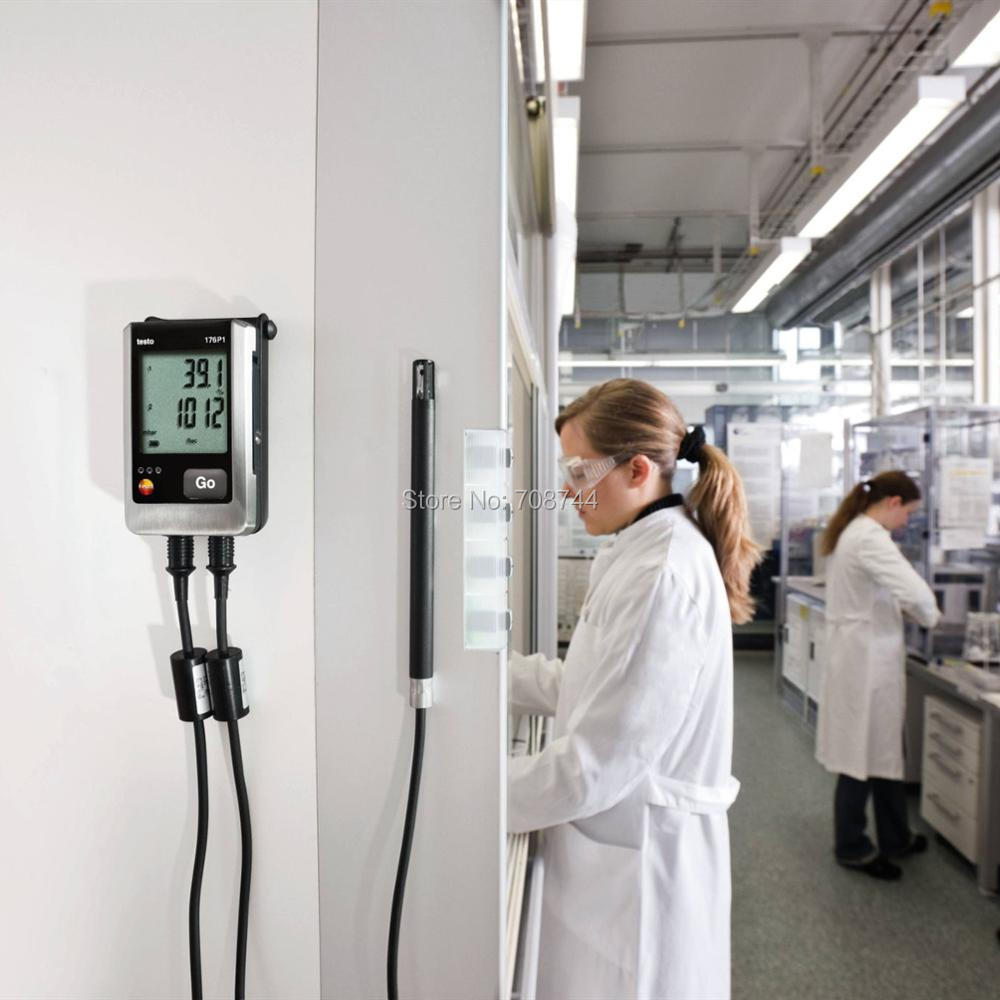

When ambient conditions, for example in a laboratory, need to be documented securely and highly accurately, choose the data logger testo 176 P1. It has an integrated sensor which measures absolute pressure precisely in the range from 600 mbar up to 1100 mbar.
Up to two temperature/humidity probes can be additionally connected to the 5-channel data logger testo 176 P1. A wide selection of probes is available to you for this purpose.

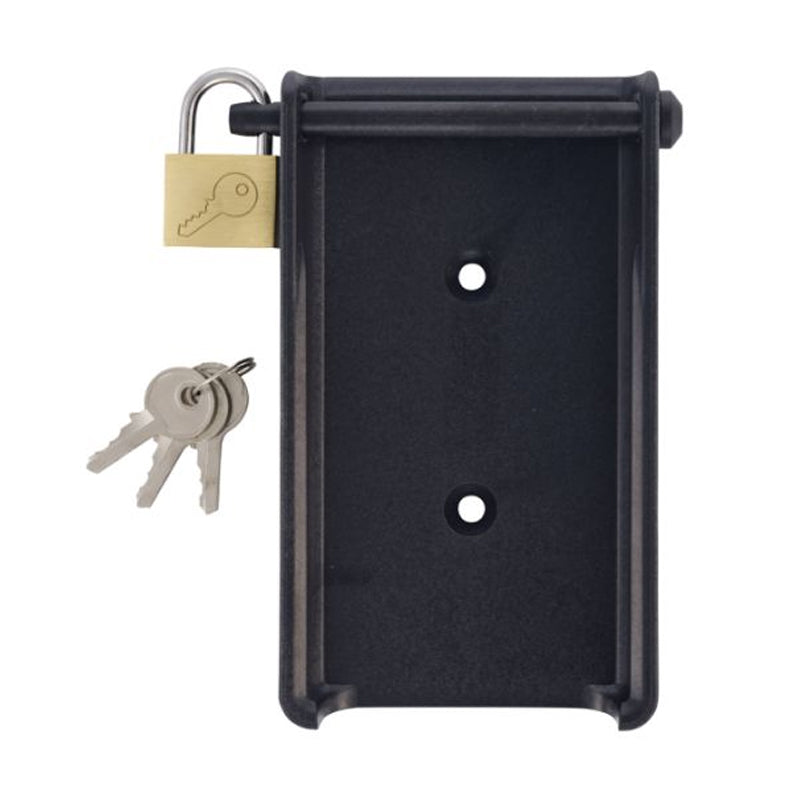

The lock included in delivery protects your loggers from unauthorized access.
Temperature - NTC
Measuring range
-20 to +70 °C
Accuracy
±0.2 °C (-20 to +70 °C) ±1 Digit
±0.4 °C (Remaining Range) ±1 Digit
Resolution
0.1 °C
Humidity - Capacitive
Measuring range
0 to 100 %RH*
Accuracy
dependent on probe selected
Resolution
0.1 %RH
* Not for condensing atmospheres.
Absolute Pressure
Measuring range
600 to 1100 mbar
Accuracy
±3 mbar (0 to +50 °C) ±1 Digit
Resolution
0.1 mbar
General technical data
Weight
218 g
Dimensions
103 x 63 x 33 mm
Operating temperature
-20 to +70 °C
Product-/housing material
Plastic
Protection class
IP54
Channels
4 external; 1 internal
Product colour
Black
Connectable probes

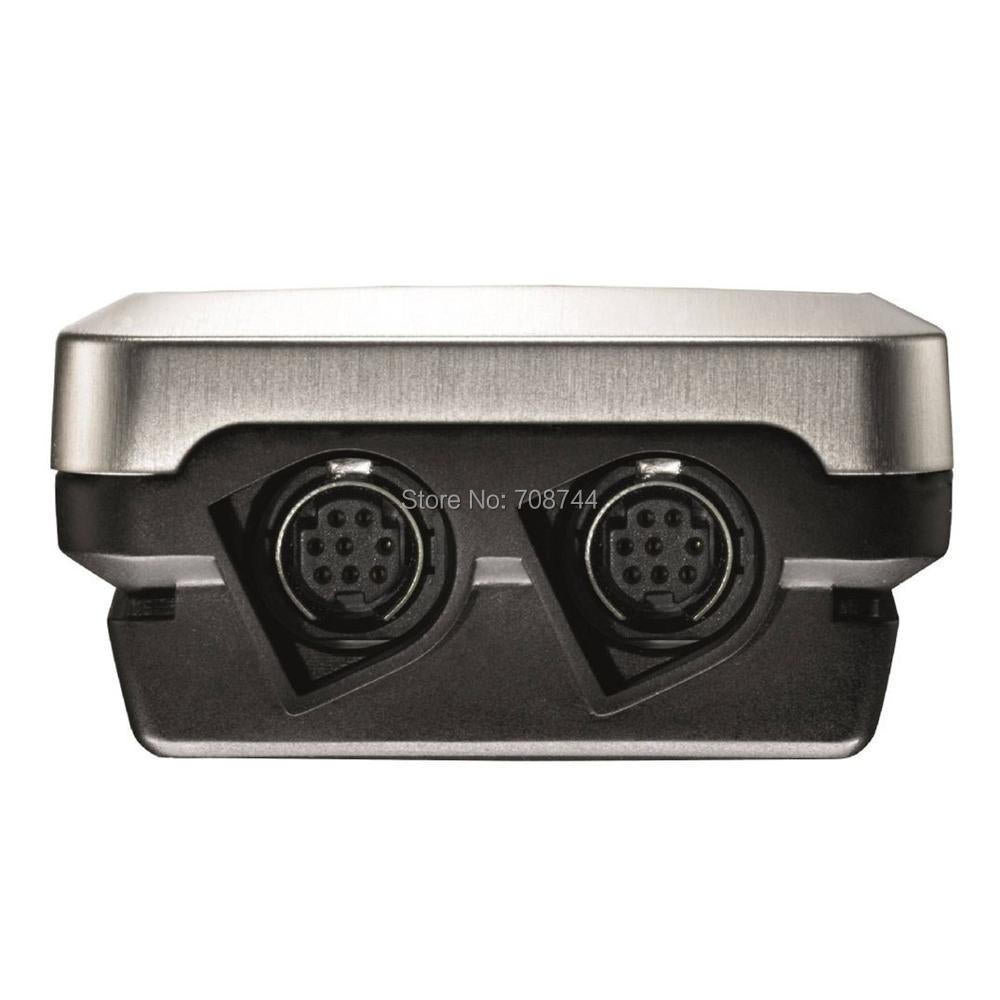

2 x NTC temperature probe or 2 x humidity probe
Standards
EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate
1 s to 24 h; 2 s to 24 h (online measurement)
Battery type
1 x Lithium (TL-5903)
Battery life
8 years at 15 min. meas. rate, +25 °C
Interface
mini usb, SD card slot
Memory
2,000,000 measuring values
Storage temperature
-40 to +85 °C
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
