Testo 310 Set With Printer 0563 3110 Residential Combustion Analyzer Kit

  Introduction

Robust and light instrument for daily use

   30 seconds sensor zeroing

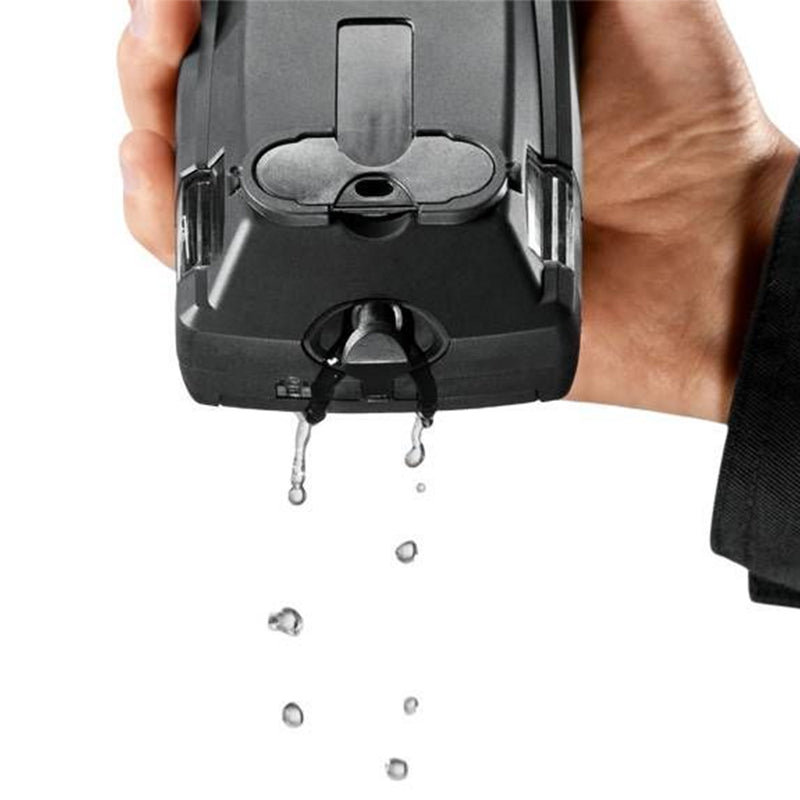

   Integrated condensate trap

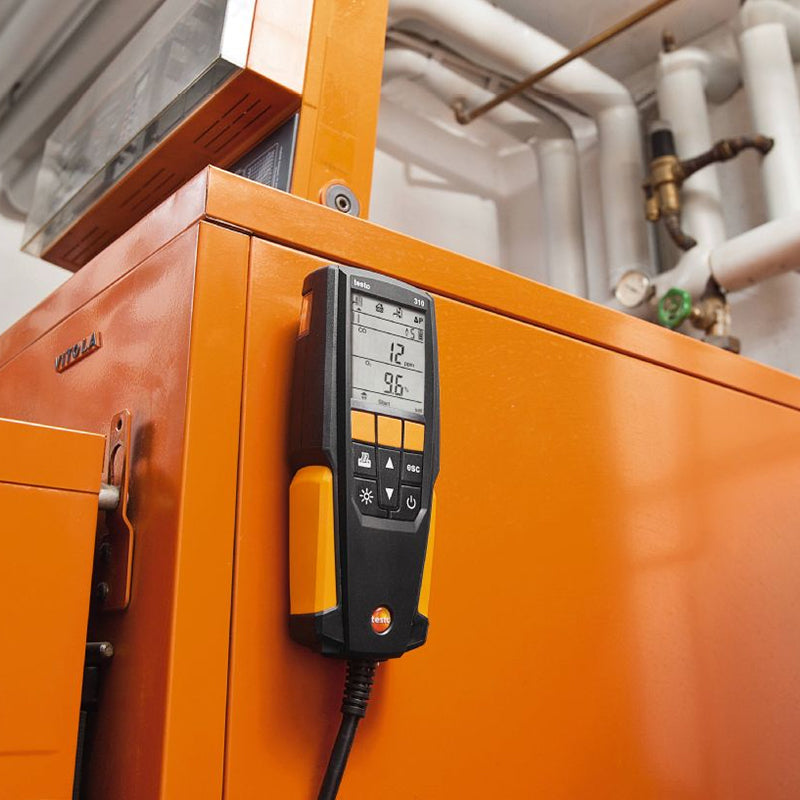

   Integrated magnets for easy fixing to burner

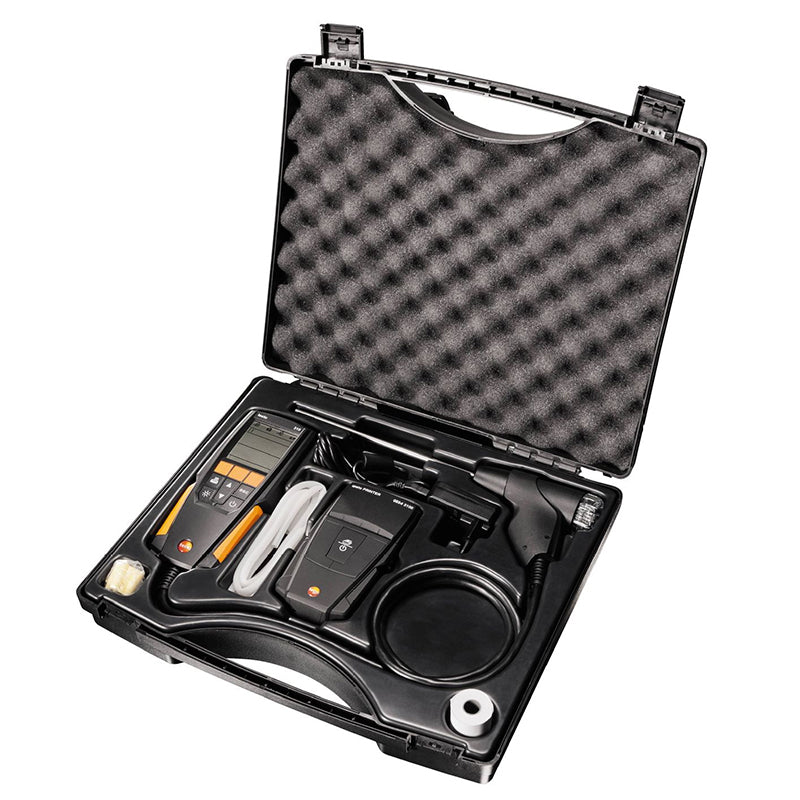

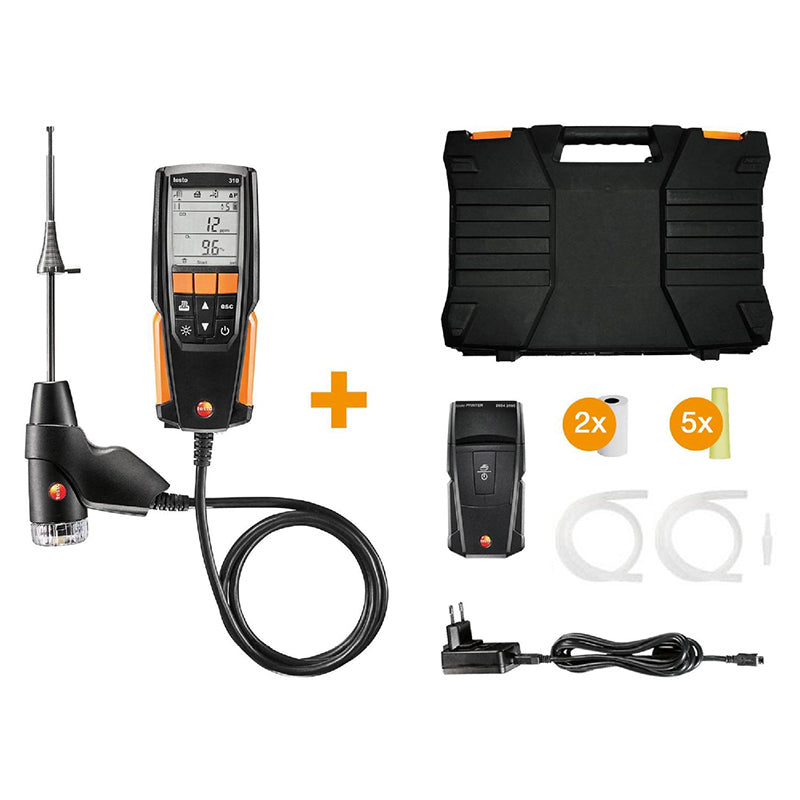

 testo 310 incl. battery and calibration protocol for the measurement of O2, CO, hPa and °C; IR printer (0554 3100); probe 180 mm with cone; case; mains unit incl. cable; silicon hose for pressure measurement; particle filter 5 off; 2 rolls spare thermal paper for printer.

   Product Description

 The testo 310 has two measurement cells for O2 and CO, and a temperature sensor integrated into the flue gas probe. The gas sensors measure the exact oxygen and carbon monoxide content as well as the flue gas and ambient temperature. From these data, all relevant measurement parameters such as CO2 value, degree of effectivity and flue gas loss are calculated. The instrument stands out thanks to its easy handling and simple menu structure. You can read off the measurement values confidently and conveniently from the well-lit display, even in bad light conditions. The fuels are stored not just as numbers, but are each described. At the top edge of the clear display, the symbols for the different measurement menus are always in view. The display and the dirt-insensitive keypad are clearly structured. Operation is very easy – even if you only have one hand free.

      Applications

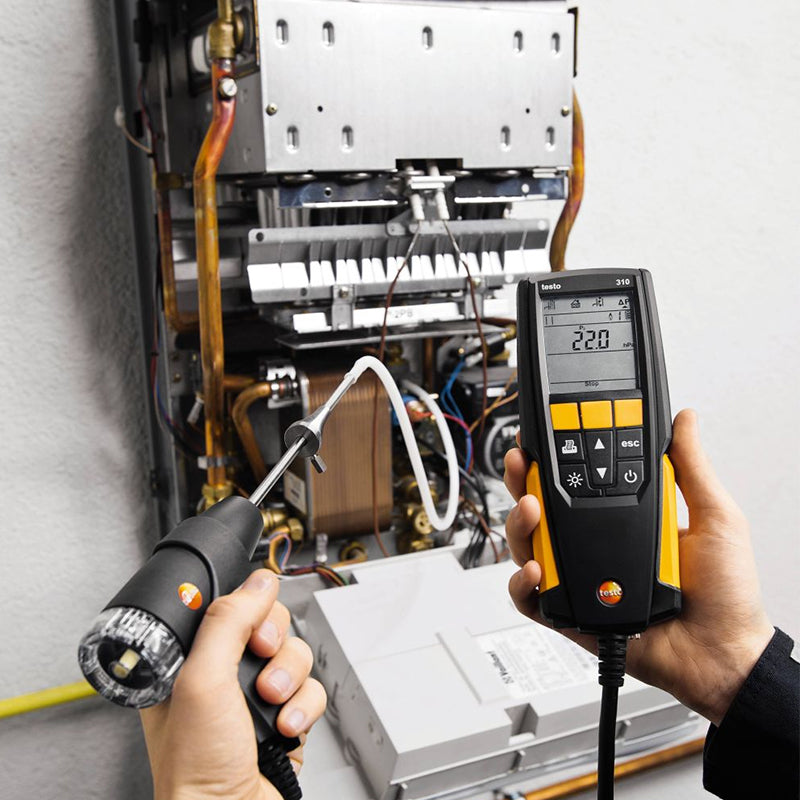

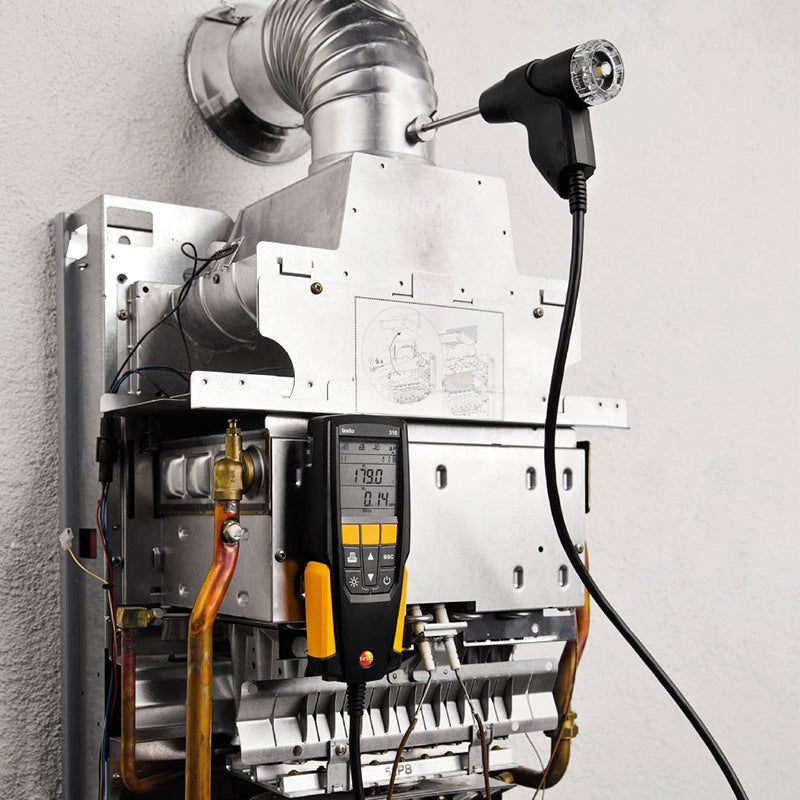

• Flue gas measurement

• Draught measurement

• Ambient CO measurement

• Pressure measurement

                     Technical Data

                  General

technical data

                        Weight

      (with probe)

Approx. 700 g

                Dimensions

      201 x 83 x 44

mm

                Operating

temperature

      -5 to +45 °C

                Display type

      LCD (Liquid

Crystal Display)

                Display

function

      Backlit 2-line

display

                Power supply

      Battery: 1500

mAh, mains unit 5V/1A

                Storage

temperature

      -20 to +50 °C

                  Temperature -

TC Type K (NiCr-Ni)

                        Measuring

range

      -20 to +100 °C

                Accuracy

      ±1 °C

                Resolution

      0.1 °C

                Reaction time

      < 50 s

   Temperature

(ambient temperature)

                  Temperature -

TC Type J (Fe-CuNi)

                        Measuring

range

      0 to +400 °C

                Accuracy

      ±1 °C (0 to

+100 °C)

±1.5 % of mv

(> 100 °C)

                Resolution

      0.1 °C

                Reaction time

      < 50 s

   Temperature

(flue gas)

                  Flue gas O₂

                        Measuring

range

      0 to 21 Vol.%

                Accuracy

      ±0.2 Vol.%

                Resolution

      0.1 Vol.%

                Reaction time

t₉₀

      30 s

                  Differential

Pressure flue gas Draught - Piezoresistive

                        Measuring

range

      -20 to +20 hPa

±0.03 hPa (-3

to +3 hPa)

                Accuracy

      ±1.5 % of mv

(Remaining Range)

                Resolution

      0.01 hPa

                  Flue gas

degree of effectivity, Eta (calculated)

                        Measuring

range

      0 to 120 %

                Resolution

      0.1 %

                  Flue gas loss

(calculated)

                        Measuring

range

      0 to 99.0 %

                Resolution

      0.1 %

                  Flue gas CO₂ calculation (calculated from O₂)

                        Measuring

range

      0 to CO₂ max (Display range)

                Accuracy

      ±0.2 Vol.%

                Resolution

      0.1 Vol.%

                Reaction time

t₉₀

      < 40 s

                  Pressure

measurement

                        Measuring

range

      -40 to +40 hPa

                Accuracy

      ±0.5 hPa

                Resolution

      0.1 hPa

                  Flue gas CO

(without H₂-compensation)

                        Measuring

range

      0 to 4000 ppm

                Accuracy

      ±20 ppm (0 to

400 ppm)

±5 % of mv

(401 to 2000 ppm)

±10 % of mv

(2001 to 4000 ppm)

                Resolution

      1 ppm

                Reaction time

t₉₀

      60 s

                  Ambient CO

                        Measuring

range

      0 to 4000 ppm

                Accuracy

      ±20 ppm (0 to

400 ppm)

±5 % of mv

(401 to 2000 ppm)

±10 % of mv

(2001 to 4000 ppm)

                Resolution

      1 ppm

                Reaction time

      60 s
