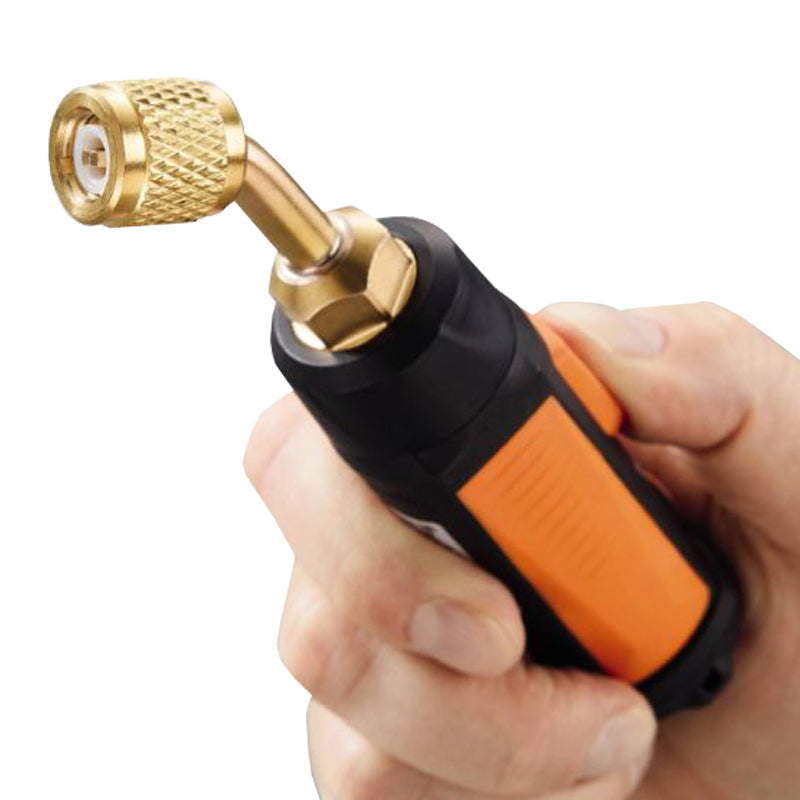

Testo 549i High-pressure Gauge (Bluetooth-compatible) Smart and Wireless

Probe Refrigeration Pressure Gauge Meter 0560 1549

 Product Description:

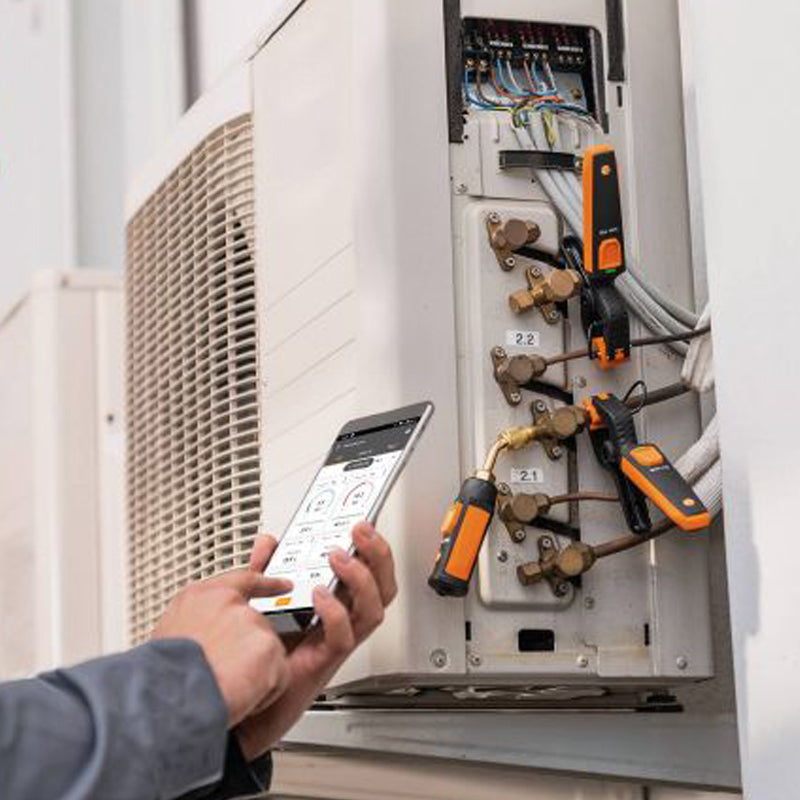

Testo offers you greater mobility when measuring: used in conjunction with your smartphone or tablet, the handy testo 549i high-pressure measuring instrument is suitable for carrying out wireless servicing and troubleshooting on air conditioning and refrigeration systems, as well as for installing them. The measuring instrument can be set up quickly and easily, directly at the pressure connection. The testo 549i makes working on widely spaced pressure connections considerably easier thanks to wireless connection to a smartphone or tablet. Also practical: no hoses are required for measurements, meaning that no or only very little refrigerant is lost. When used in conjunction with the testo 115i clamp thermometer, individual refrigeration system parameters can also be calculated.

 More measuring convenience thanks to the App

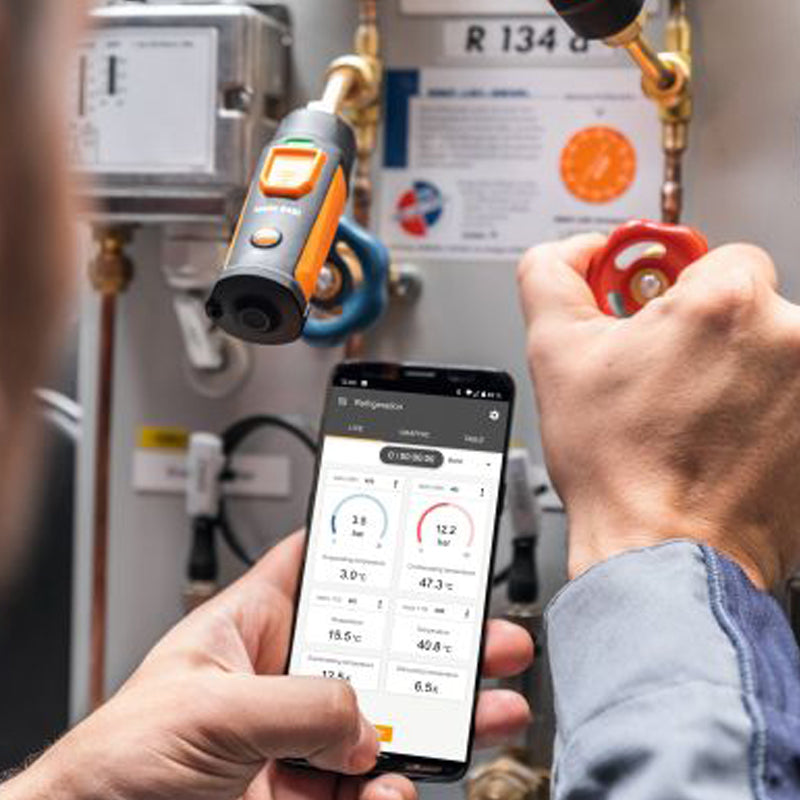

 Readings can be viewed conveniently on your terminal device via the testo Smart Probes App. The App also enables evaporation and condensation temperatures to be calculated automatically. All measurement data is displayed either as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.

System requirements:

   iOS 8.3 or later

  Android 4.3 or later

  Bluetooth-compatible 4.0

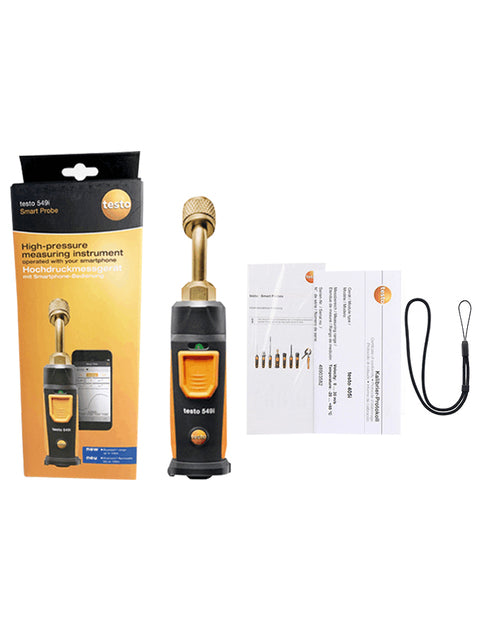

Delivery Scope

testo 549i high-pressure measuring instrument with smartphone operation, including batteries and calibration protocol.

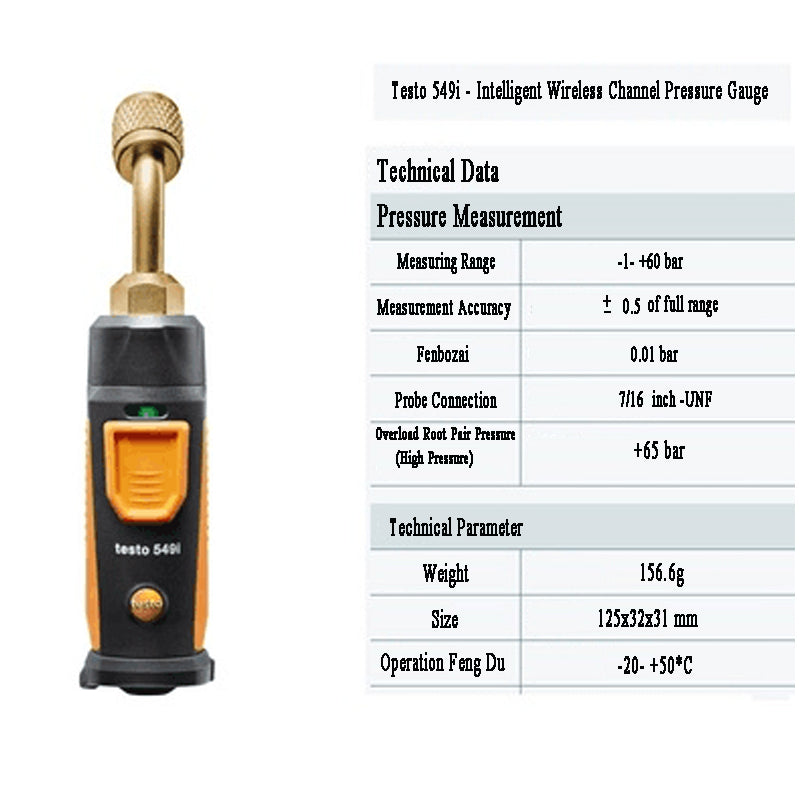

               Pressure measurement

                   Measuring range

     -1 to +60 bar

             Accuracy

     ±0.5 % of fsv

             Resolution

     0.01 bar

             Probe connection

     7 / 16 " - UNF

             Overload rel. (high pressure)

     +65 bar

              General technical data

                   Weight

     156.6 g

             Dimensions

     125 x 32 x 31 mm

             Operating temperature

     -20 to +50 °C

             Product-/housing material

     Plastic

             System requirements

     requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with

 Bluetooth-compatible 4.0

             Product colour

     black/orange

             Battery type

     3 AAA micro batteries

             Battery life

     150 h

             Pressure media

     CFC, HFC, HCFC, N, H₂O, CO₂

             Storage temperature

     -20 to +60 °C

Notice:

The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
