Testo 560i - Digital Refrigerant Scale with Bluetooth-compatible 0564 1560 Testo-560i

#1：Testo 560i - Digital Refrigerant Scale with Bluetooth-compatible

Product Description：

1.Wireless measurement of refrigerant weight and operation with Testo manifolds and testo Smart App via Bluetooth-compatible

2.Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with intelligent valve (sold separately)

3.All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App

4.Particularly handy thanks to compact housing, low weight, practical carrying handle and a robust shoulder bag

With the testo 560i Digital Refrigerant Scale, you can measure refrigerant weight quickly, precisely and conveniently. Use a Testo Digital Manifold and the testo Smart App on your smartphone/tablet for operation and measured value display after the scale has automatically connected to both via Bluetooth-compatible. Especially practical: with the Digital Refrigerant Scale and Intelligent Valve (available separately, you can charge refrigeration systems, ductless mini-splits, and heat pumps - automatically and precisely.

Measuring refrigerant weight quickly, precisely and conveniently - that's only possible with the testo 560i digital refrigerant scale.

Operation and display of measured values are completely wireless using a Testo manifold and the testo Smart App. For this purpose, the scale automatically connects via Bluetooth-compatible with a manifold and a smartphone or tablet

Versatile in all situations: Bluetooth-compatible range of up to 100 ft

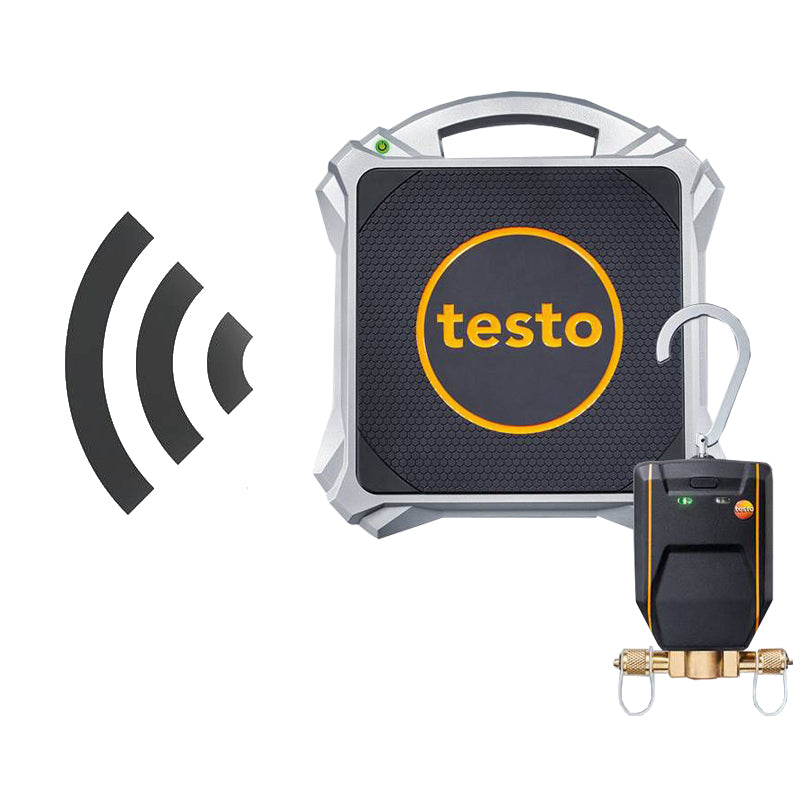

And best of all: with the testo 560i Intelligent Valve (available separately), you can charge refrigeration systems, ductless mini-splits, and heat pumps automatically according to target refrigerant weight, superheat, subcooling, and even Target superheat

Compatible with testo Smart Digital Manifolds (550s / 557s / 550i), testo Digital Manifolds with Bluetooth-compatible (550bt / 557bt) as well as testo Smart Probes (115i/ 549i/605i), all connecting to the testo Smart App for Android and iOS

Advantages of the testo 560i refrigerant scale

High measurement accuracy with resolution .02 lbs and output in lbs or kg

Maximum load of 220 lbs for all common refrigerant containers

High Bluetooth-compatible range of up to 100 ft

Fully automatic charging according to target value (with testo Intelligent Valve sold separately)

Safe handling: 3D corners for accurate positioning of the refrigerant container and textured rubber surface for stable grip

High robustness due to dust and splash water protection (IP44)

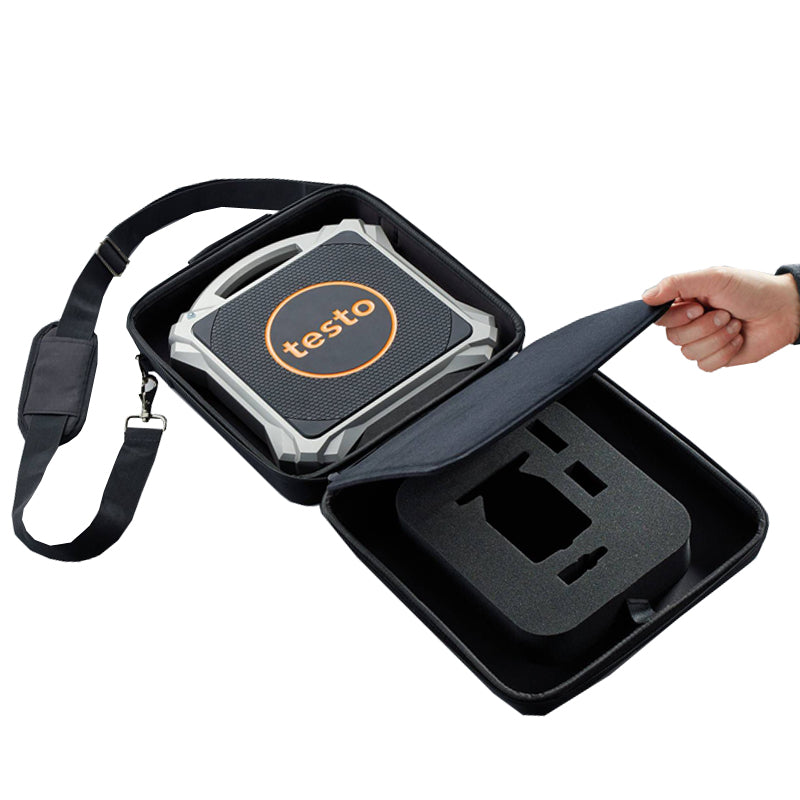

Especially handy thanks to compact housing, low weight, practical carrying handle and sturdy shoulder bag

Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-off function

High flexibility in outdoor use at temperatures from 14 to 122° F

            General technical data

       Operating humidity

   0 to 80 %rH

       Weight

   4.36 kg (incl. bag)

       Measuring range

   0 to 100 kg

       Accuracy

   Operating temperature +72 °F: / Operating temperature +22 °C:≤ ±(0 oz.+ 0.03 %rdg) (0 to 30 kg) / ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg)≤ ±(0 oz.+ 0.05 %rdg) (30 to 100 kg) / ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)

       Resolution

   0.01 kg

       Dimensions

   12.21 x 11.30 x 2.28 in. / 310 x 287 x 58 mm (LxWxH)

       Operating temperature

   14° to 122 °F / -10 to +50 °C

       Protection class

   IP44

       Battery type

   4 x AA batteries

       Battery life

   > 70 h at +25 °C

       Interface

   Bluetooth-compatible 4.2

       Radio range

   98.424 ft. / 30 m

       Storage temperature

   14° to 122 °F / -10 to +50 °C

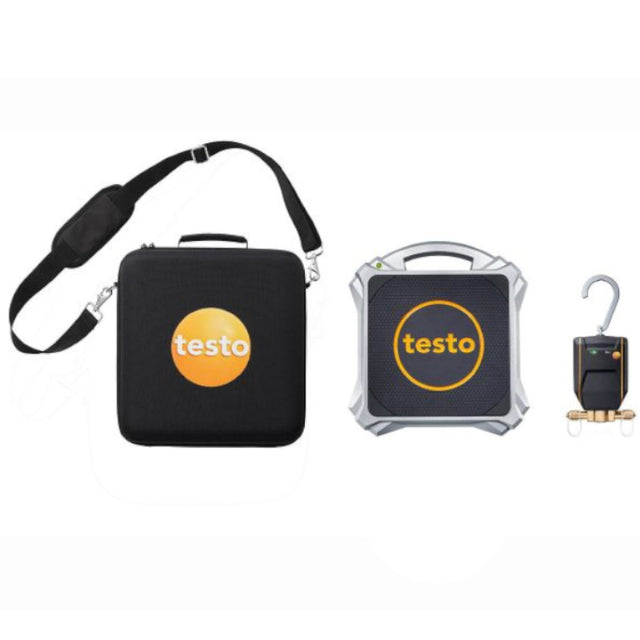

#:2：Testo 560i Kit - Digital Refrigerant Scale and Intelligent Valve with Bluetooth-compatible

Product Description：

Charge refrigeration systems, ductless mini-splits, and heat pumps faster, more precisely, and automatically with the testo 560i Digital Refrigerant Scale with Intelligent Valve, a testo Digital Manifold and/or the testo Smart App. Simply enter the charging program, target value for superheating, subcooling, weight, and even target superheat in the manifold or App and the scale and valve will do the rest for you. Your benefits: Saving time and precise charging of the system

1.Automatic and precise refrigerant charging according to target superheat, supheat, subcooling or weight with the intelligent valve

2.Wireless connection and operation with Testo Smart and Digital Manifolds (Bluetooth-compatible) and testo Smart App via Bluetooth-compatible

3.All measured values for the charging process at a glance with storage of the measured data in the testo Smart App

4.Sturdy construction, compact housing, built-in carrying handle, and lightweight (Kit: 12.7 lbs)
