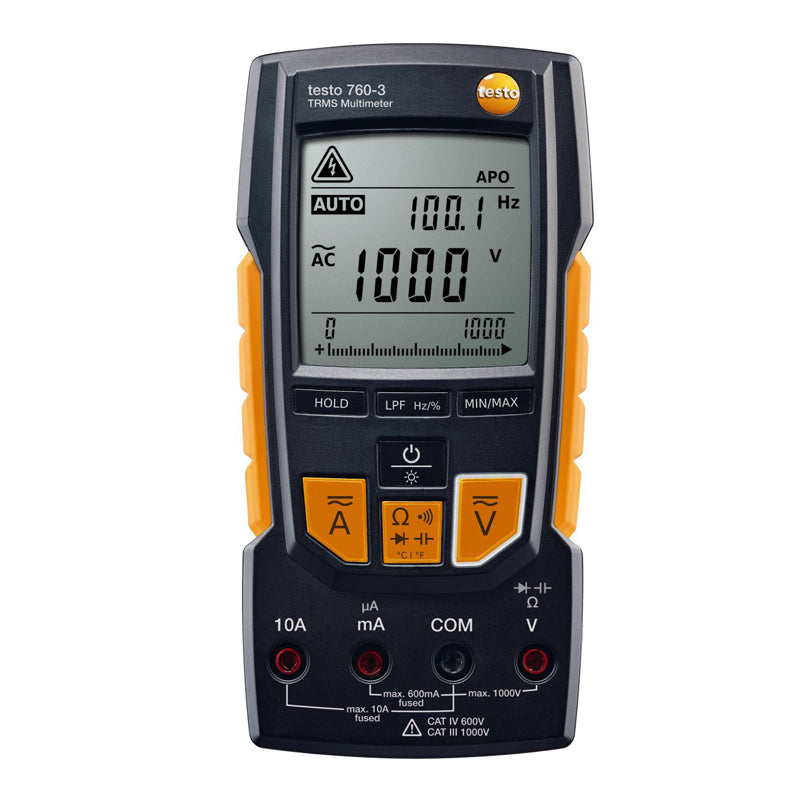

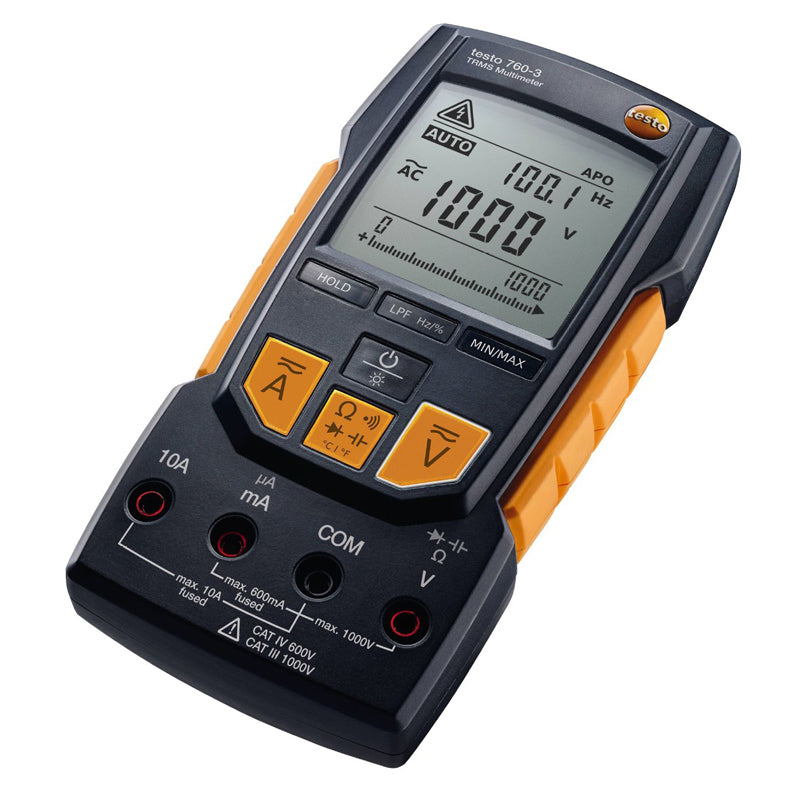

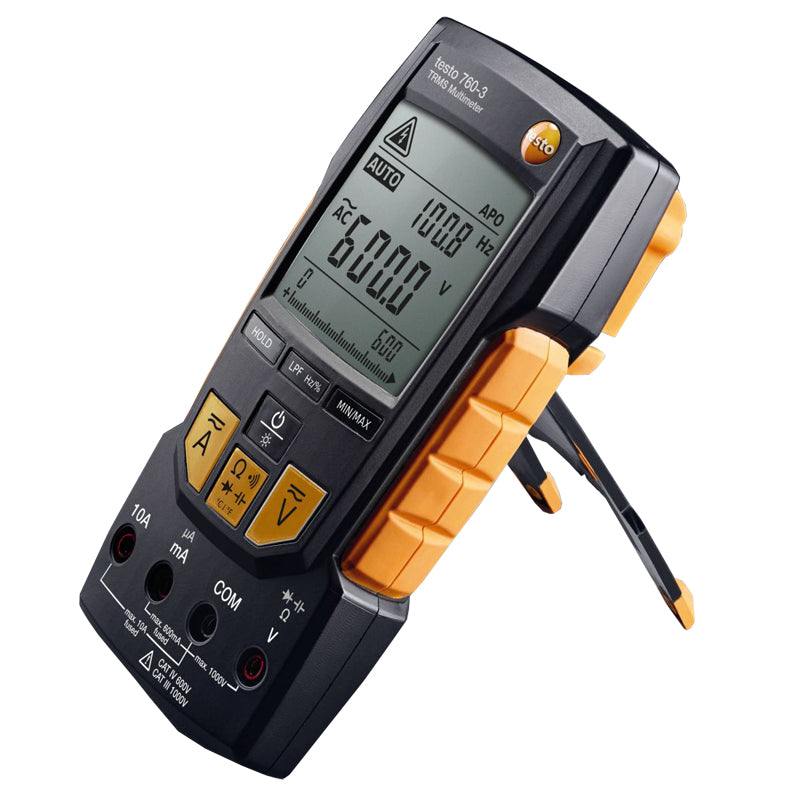

Testo 760-3 Digital Multimeter DMM 0590 7603

Product Description：

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.

A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.

Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).

      Temperature - TC Type K (NiCr-Ni)

         Measuring range

   -20 to +500 °C

       Accuracy

   ±1 °C (0 to +100 °C)

       Resolution

   0.2 °C

            DC voltage

         Measuring range

   0.1 to 1000 V

       Resolution

   max. 0.1 mV

       Accuracy

   ± (0.8 % of mv + 3 Digit)

            AC voltage

         Measuring range

   0.1 mV to 1000 V

       Resolution

   max. 0.1 mV

       Accuracy

   ± (1.0 % of mv + 3 Digit)

            DC current

         Measuring range

   0.1 μA to 10 A

       Resolution

   max. 0.1

       Accuracy

   ± (1.5 % of mv + 5 Digit)

            AC current

         Measuring range

   0.1 μA to 10 A

       Resolution

   max. 0.1 μA

       Accuracy

   ± (1.5 % of mv + 5 Digit)

            Resistance

         Resolution

   max. 0.01 Ohm

       Measuring range

   0.01 to 60.00 MOhm

       Accuracy

   ± (1.5 % of mv + 3 Digit)

            Capacitance

         Resolution

   max. 0.01 nF

       Measuring range

   2 nF to 30.00 mF

       Accuracy

   ± (1.5 % of mv + 5 Digit)

            Frequency

         Resolution

   max. 0.1 Hz

       Measuring range

   2 Hz to 60.00 MHz

       Accuracy

   ± (0.1 % of mv + 1 Digit)

            General technical data

         Operating humidity

   0 to 80 %RH

       Weight

   340 g

       Dimensions

   167 x 85 x 45 mm

       Operating temperature

   -10 to +50 °C

       Product colour

   Black

       Connectable probes

   1 x temperature probe (adapter required for type K thermocouples)

       Protection class

   IP64

       Standards

   EN 61326-1; EN 61010-2-033; EN 61140

       Battery type

   3 AAA micro batteries(not included package)

       Display type

   LCD (Liquid Crystal Display)

       Display size

   2 lines

       Interface

   4 measuring jacks

       Storage temperature

   -15 to +60 °C

       Overvoltage Category

   CAT IV 600V; CAT III 1000V

       Authorizations

   CE; CSA

       Internal_resistance

   11 MOhm (AC / DC)

            Instrument Measurement Functions

         Diode test

   yes

       Continuity testing

   yes

       Current probe measurement with adapter

   yes

       Display ligthing

   yes

       Hold

   yes

       MinMax

   yes

       Temperature measurement with adapter

   yes

       True RMS

   yes

       Low-pass filter

   yes

       Duty cycle measurement

   yes

       Display (counts)

   6,000

       μA current measuring range

   yes

       Autom. measurement parameter detection

   yes
