Product Description：

The top-of-the-range testo 816-1 sound level meter complies with all requirements with regard to the execution of non-conform noise level measurements according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2. This makes it suitable for carrying out noise level measurements in the workplace as well as in public places, industry and production.

The testo 816-1 has all the features which its little brother, the testo 816, has but also comes with a built-in data logger that can save up to 31 000 readings and dedicated PC software.

 The sound level meter for pros: measure, save, analyse

 The testo 816-1 also comes with a practical all-in-one carry bag and a whole host of technical features and benefits designed to allow you to carry out professional noise level measurements as a part of health and safety inspections and immission controls. Benefits include being able to change the measuring rate from slow (one measurement per second) to fast (one measurement every 125 milliseconds) depending on the type of measurement, and being able to select between two frequency measurement types: the characteristic curve A corresponds to the way the human ear perceives sound pressure while the characteristic curve C measures the low frequency percentage of the noise.

 In addition, you can also use the optional sound calibrator and the screwdriver included in the scope of delivery to recalibrate your testo 816-1 sound level meter on site wherever you are.

 The sound level meter also has a backlit display for use in all lighting conditions.

 But that is by no means all: the testo 816-1 sound level meter has an internal data logger that can save up to 31 000 measurements and comes with a USB cable which allows you to hook your meter up to a PC and transfer the data directly, and dedicated PC software designed to help you manage and analyse the data you have collected.

 Technical Data

Sound Pressure

         Measuring range

   30 to 130 dB

       Frequence range

   20 Hz to 8 kHz

       Accuracy

   ±1.4 dB (under reference conditions: 94 dB, 1 kHz)

       Resolution

   0.1 dB

       Measuring rate

   0.5 s

      General technical data

         Weight

   390 g

       Dimensions

   272 x 83 x 42 mm

       Operating temperature

   0 to +40 °C

       Frequency weighting

   A / C

       Microphone

   0.5 "

       Dynamic range

   100 dB

       Time weighting

   FAST 125 ms / SLOW 1 sec

       Battery type

   4 x type AA batteries

       Storage temperature

   -10 to +60 °C

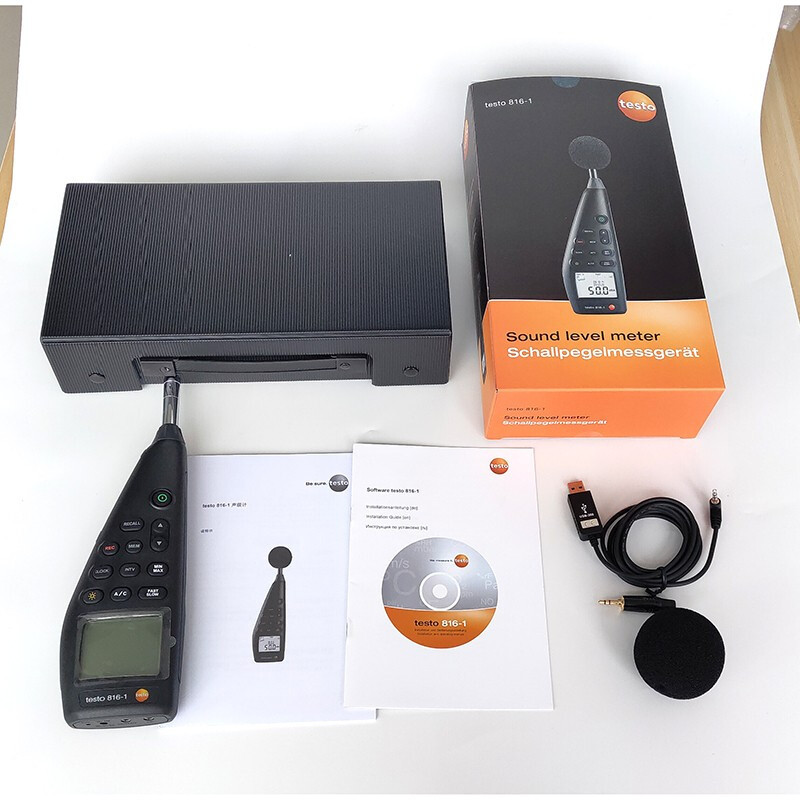

Delivery Scope

testo 816-1 sound level meter, according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2. Includes transport bag, wind protection, PC software (as a download) and USB connection cable, screwdriver for calibration, batteries and instruction manual.
