Product Description

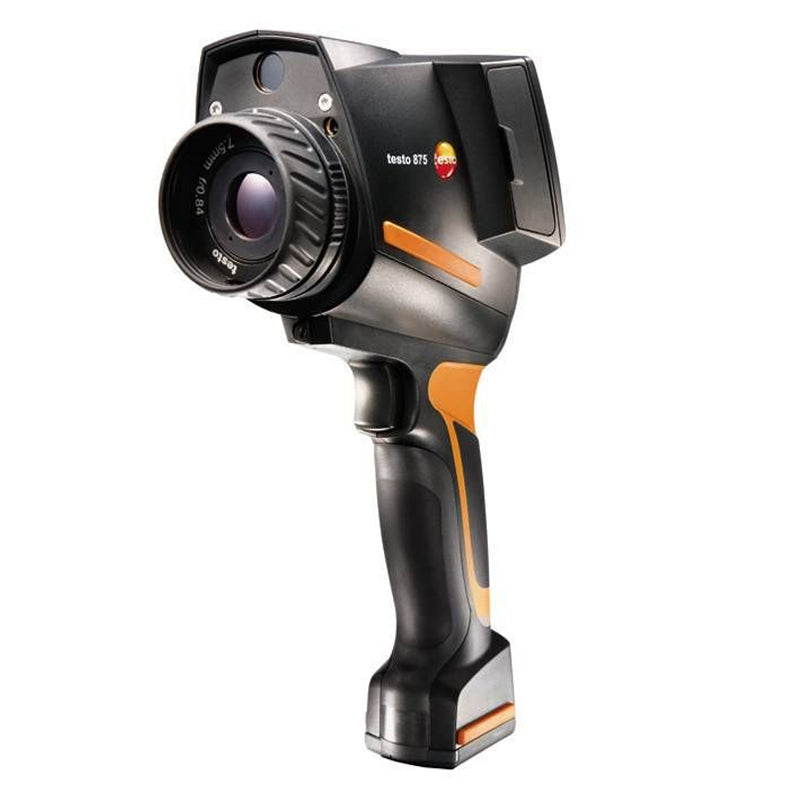

 Make sure you get the testo 875-1i thermal imager with built-in digital camera for professional industrial and building thermography!

You can carry out completely non-destructive tests on materials and components in industrial thermography with the testo 875-1i. This allows you to reveal problems in industrial maintenance and production monitoring before a malfunction occurs or fire risks develop. And for good measure, you can create a real image in parallel to the thermal image thanks to the built-in digital camera. This makes documentation and assignment easier for you.

You can detect possible structural defects with the testo 875-1i thermal imager in building thermography. With the excellent thermal sensitivity of < 50 mK, you can quickly and efficiently track down energy losses and so help your customers to save expensive heating costs and plan refurbishments.

In the “Applications” tab, you can find out more about the thermal imager's fields of application.

          Infrared image output

              Focus

    manual

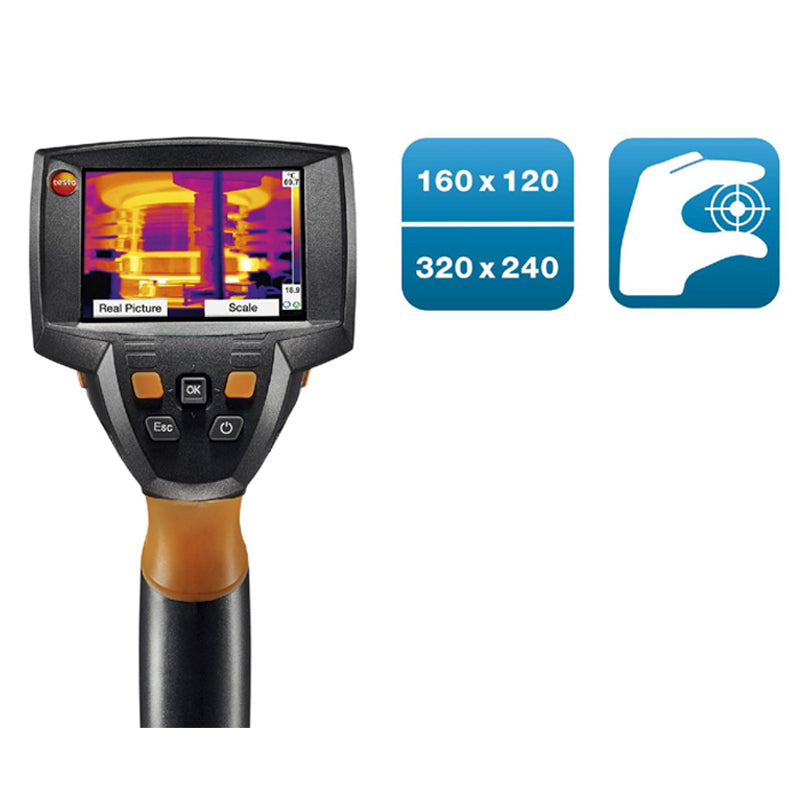

          Infrared resolution

    160 x 120 pixels

          Image refresh rate

    33 Hz

          SuperResolution (IFOV)

    2.1 mrad (Standard lens)

          SuperResolution (Pixel)

    320 x 240 pixels

          Geometric resolution (IFOV)

    3.3 mrad (Standard lens)

          Minimum focus distance

    0.1 m (Standard lens)

          Field of view

    32° x 23°

          Thermal sensitivity

    ˂ 50 mK at +30 °C

                    Image output visual

              Minimum focus distance

    0.4 m

          Image size

    640 x 480 pixels

                    Image presentation

              Display option

    IR image only; real image only; IR image / real image

          Number of colours

    10

          Colours

    10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

          Display type

    3.5" LCD with 320 x 240 pixels

          Video output

    USB 2.0

                    Measurement

              Reflected temperature

    manual

          Measuring range

    -30 to +100°C; 0 to +350 °C (switchable)

          Accuracy

    ±2 °C, ±2 % of m.v. (±3 °C of m.v. at -30 to -22 °C)

                    Measuring function

              Surface moisture distribution

    Not included

          Humidity measurement

    Not included

          Solar mode – manual

    Included

          Analysis function

    Up to 2 measurement points, hot/cold spot recognition

                    Imager equipment

              Digital camera

    Included

          Video streaming

    Included

          Laser

    Included

          Standard lens

    32° x 23°

          Power-LED

    Not included

                    Imager storage

              File format image

    .bmt; export option in .bmp; .jpg; .png; .csv; .xls

          Storage device

    SD card 2GB (approx. 2.000 images)

                    Power supply

              Battery type

    Fast-charging, Li-ion battery can be changed on-site

          Operating time

    4 h

          Charging options

    In instrument / charger (optional)

          Mains operation

    yes

                    Ambient Condition

              Storage temperature

    -30 °C; 60 °C

          Operating temperature

    -15 °C; 40 °C

          Housing protection class

    IP54

          Vibration

    2G

          Air humidity

    20 to 80 %RH non-condensing

                    Physical specification

              Weight

    900 g

          Tripod mounting

    M6

          Housing

    ABS

          Dimensions

    152 x 108 x 262

                    PC software

              System requirements

    Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0

                    Standards, tests, warrenty

              EU-/EG-guidelines

    2004/108/EG
