T2 -T3 WiFi Temperature Data Recorder with NTC Temperature Sensor Operating Temperature -30~+50C

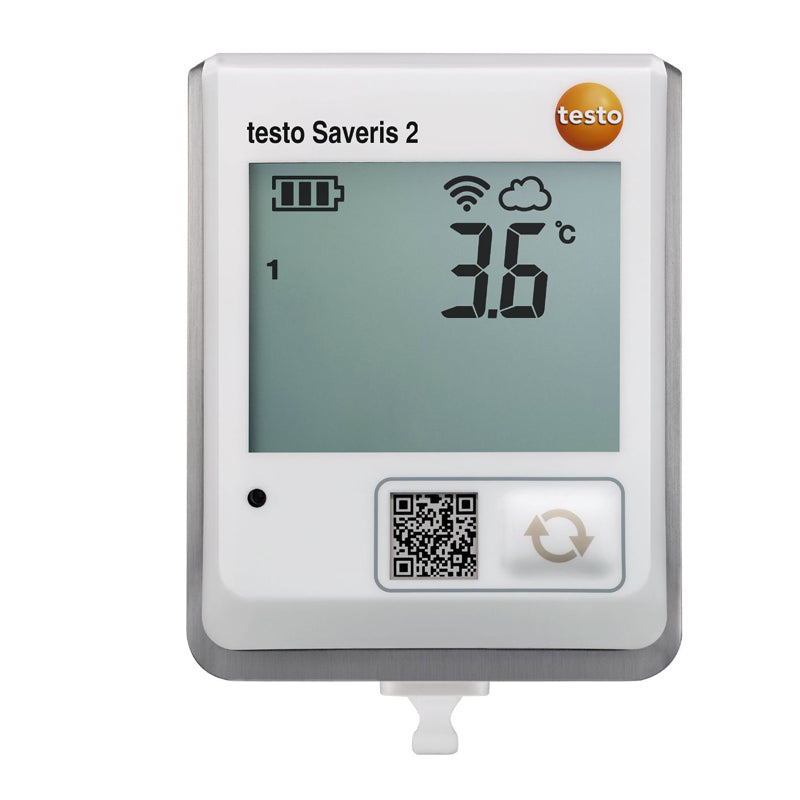

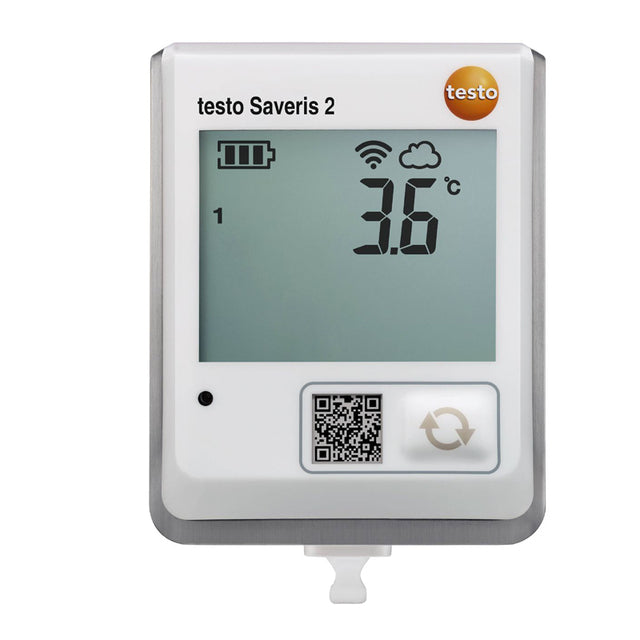

#1:Testo Saveris 2-T1 - Wi-Fi temperature data logger with internal NTC temperature sensor

Product Description:

The testo Saveris 2-T1 Wi-Fi data logger system is an easy, versatile, and secure solution for the measurement and monitoring of temperatures. The system consists of at least one Wi-Fi data logger and testo Cloud access (online data storage). As a component of this data logger system, the testo Saveris 2-T1 stores all measured temperature values, and transmits them directly by Wi-Fi to the testo Cloud. The measurement rate is adjustable from 1 minute to 24 hours. You can use the alarm function to receive immediate alarms by e-mail or SMS text message (optional), when limit values are exceeded.

Installation, readout, and analysis of Wi-Fi data loggers

The testo Saveris 2-T1 Wi-Fi data logger can be easily installed and registered (no software installation necessary). For the commissioning, as well as the evaluation and analysis of measurement data, the Cloud functionality is available to you upon registration at www.saveris2.net. You can access all measurement values and analysis functions anywhere, and at any time, with an internet-capable smartphone, tablet, or PC.

Current measurement values, limit value violations, and remaining battery life are visible in the data logger's display. The standard batteries (AA) have a lifetime of 24 months, and can be exchanged at any time by the user. The internal data storage capacity of the Wi-Fi data logger is 10,000 measurement values per channel/measurement type. The rugged IP65 housing is suitable for any type of environment.

            Temperature - NTC

       Measuring range

   -22° to 122 °F / -30 to +50 °C

       Accuracy

   ±0.9 °F / ±0.5 °C

       Resolution

   0.1 °F / 0.1 °C

       General technical data

       Weight

   8 oz. / 240 g

       Dimensions

   4 x 3 x 1.2 in. / 95 x 75 x 30.5 mm

       Operating temperature

   -22° to 122 °F / -30 to +50 °C

       Protection class

   IP65

       Measuring rate

   Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

       Door contact

   no

       Communication rate

   Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

       WLAN Connectivity

   Signal transmission: wireless, frequency band: 2.4 GHz, supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable.

       Standards

   EN 12830

       Power supply

   4 x AA AlMn batteries; mains unit optional; for temperatures below -10 °C please use Energizer batteries 0515 0572

       Memory

   10,000 measurement values / channel

       Battery life

   12 months (typical value, depending on the wireless LAN infrastructure) at +25 °C, 15-minute measuring cycle and standard communication cycle at -30 °C, 15-minute measuring cycle and standard communication cycle with Energizer batteries 0515 0572

       Storage temperature

   -40° to 158 °F (without batteries) / -40 to +70 °C (without batteries)

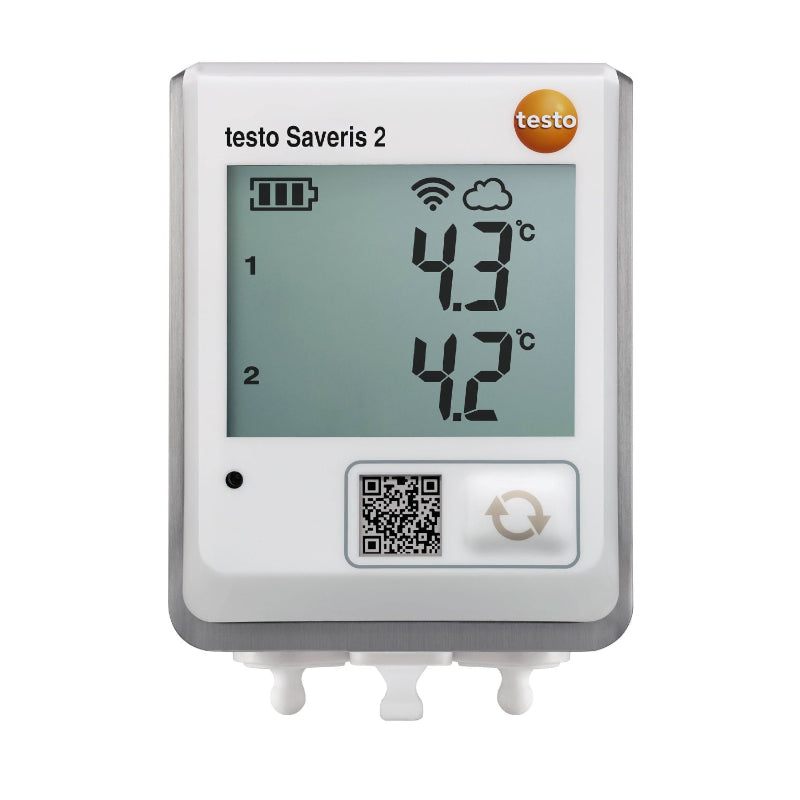

#2:Testo Saveris 2-T2 - Wi-Fi data logger with 2 external NTC temperature probe connectors

Product Description:

The testo Saveris 2-T2 Wi-Fi data logger system is an easy, versatile, and secure solution for the measurement and monitoring of temperature and door contact values. The system consists of at least one Wi-Fi data logger and a testo Cloud license (online data storage). As a component of this data logger system, the testo Saveris 2-T2 stores all measured temperature values and door openings, and transmits them directly by Wi-Fi to the testo Cloud. The measurement rate is adjustable from 1 minute to 24 hours. You can use the alarm function to receive immediate alarms by e-mail or SMS text message (optional), when user set limit values are exceeded.

Installation, readout, and analysis of Wi-Fi data loggers

The testo Saveris 2-T2 Wi-Fi data logger is easily installed. Select the appropriate testo Cloud license to fit your company’s needs, connect through your WLAN network, then log in to the testo Cloud to configure the logger and begin collecting measurements. Logger and system settings, alarm settings, and outputs are quickly set. Now relax, because Saveris 2 is on the job, and will alert you if a limit or problem is detected.

The logger itself displays current measurement values, alarm conditions, and remaining battery life. The standard batteries (AA) have a life expectancy of 24 months, and can be replaced as needed. The internal data storage of the Wi-Fi data logger has a capacity of 10,000 measurement values per channel/measurement type. The rugged IP65 housing is suitable for any type of environment. Note: This logger requires a connectable probe or door contact.

            Temperature - NTC

       Measuring range

   -58° to 302 °F / -50 to +150 °C

       Accuracy

   ±0.5 °F / ±0.3 °C

       Resolution

   0.1 °F / 0.1 °C

       General technical data

       Weight

   8 oz. / 240 g

       Dimensions

   4 x 3 x 1.2 in. / 95 x 75 x 30.5 mm

       Operating temperature

   -22° to 122 °F / -30 to +50 °C

       Protection class

   IP65

       Measuring rate

   Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

       Door contact

   yes

       Communication rate

   Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

       WLAN Connectivity

   Signal transmission: wireless, frequency band: 2.4 GHz, supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable.

       Standards

   DIN EN 12830

       Connection external

   External temperature probes

       Power supply

   4 x AA AlMn batteries; mains unit optional; for temperatures below -10 °C please use Energizer batteries 0515 0572

       Memory

   10,000 measurement values / channel

       Battery life

   12 months (typical value, depending on the wireless LAN infrastructure) at +25 °C, 15-minute measuring cycle and standard communication cycle at -30 °C, 15-minute measuring cycle and standard communication cycle with Energizer batteries 0515 0572

       Storage temperature

   -40° to 158 °F (without batteries) / -40 to +70 °C (without batteries)

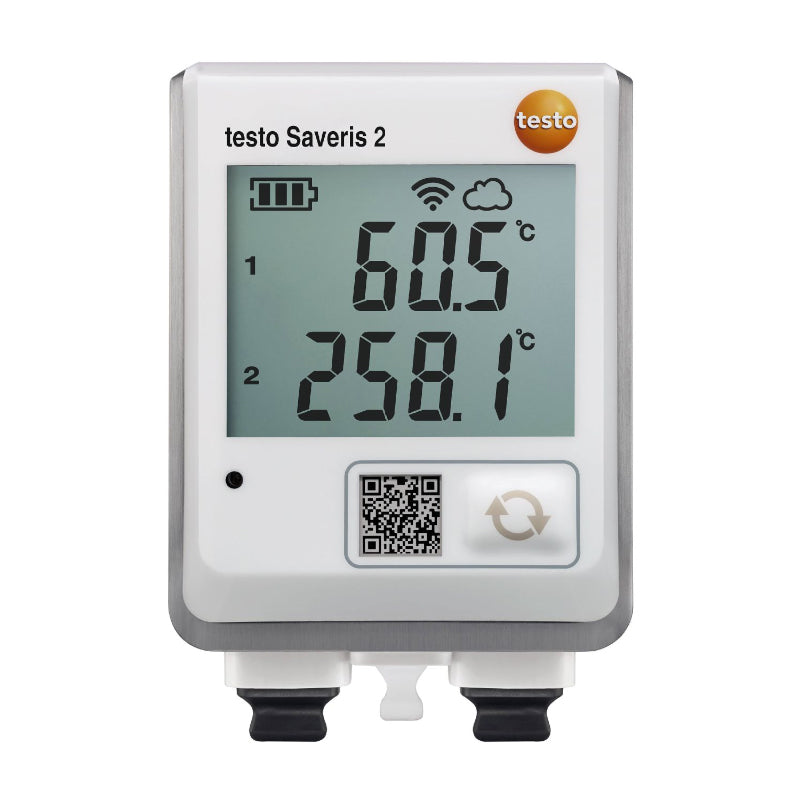

#3:：Testo Saveris 2-T3 - Wi-Fi data logger with 2 external TC temperature probe connections

Product Description:

The testo Saveris 2-T3 Wi-Fi data logger system is an easy, versatile, and secure solution for the measurement and monitoring of temperature values. The system consists of at least one Wi-Fi data logger and a testo Cloud license (online data storage). As a component of this data logger system, the testo Saveris 2-T3 with up to 2 connectable TC temperature probes (types K, T, J), stores all measured temperature values, and transmits them directly by Wi-Fi to the testo Cloud. Supported by an extensive offering of thermocouple probe choices, the testo Saveris 2-T3 Wi-Fi logger handles a broad range of applications. The measurement rate is adjustable from 1 minute to 24 hours. You can use the alarm function to receive immediate alarms by e-mail or SMS text message (optional), when user set limit values are exceeded.

Installation, readout, and analysis of Wi-Fi data loggers

The testo Saveris 2-T3 Wi-Fi data logger is easily installed. Select the appropriate testo Cloud license to fit your company’s needs, connect through your WLAN network, then log in to the testo Cloud to configure the logger and begin collecting measurements. Logger and system settings, alarm settings, and outputs are quickly set. Now relax, because Saveris 2 is on the job, and will alert you if a limit or problem is detected.

The logger itself displays the current measurement values, alarm conditions, and the remaining battery life. The standard batteries (AA) have a life expectancy of 24 months, and can be replaced as needed. The internal data storage of the Wi-Fi data logger has a capacity of 10,000 measurement values per channel/measurement type.

            Temperature - Type K TC

       Measuring range

   -319° to 2462 °F / -195 to +1350 °C

       Accuracy

   ±(0.9 + 0.5 % of mv) °F / ±(0.5 + 0.5 % of mv) °C

       Resolution

   0.1 °F / 0.1 °C

       Temperature - TC Type T (Cu-CuNi)

       Measuring range

   -328° to 752 °F / -200 to +400 °C

       Accuracy

   ±(0.9 + 0.5 % of mv) °F / ±(0.5 + 0.5 % of mv) °C

       Resolution

   0.1 °F / 0.1 °C

       Temperature - Type J TC

       Measuring range

   -148° to 1382 °F / -100 to +750 °C

       Accuracy

   ±(0.9 + 0.5 % of mv) °F / ±(0.5 + 0.5 % of mv) °C

       Resolution

   0.1 °F / 0.1 °C

       General technical data

       Weight

   240

       Dimensions

   4 x 3 x 1.2 in. / 95 x 75 x 30.5 mm

       Operating temperature

   -22° to 122 °F / -30 to +50 °C

       Protection class

   IP54

       Measuring rate

   Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

       Door contact

   no

       Communication rate

   Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

       WLAN Connectivity

   Signal transmission: wireless, frequency band: 2.4 GHz, supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable.

       Connection external

   External temperature probes

       Power supply

   4 x AA AlMn batteries; mains unit optional; for temperatures below -10 °C please use Energizer batteries 0515 0572

       Memory

   10,000 measurement values / channel

       Battery life

   12 months (typical value, depending on the wireless LAN infrastructure) at +25 °C, 15-minute measuring cycle and standard communication cycle at -30 °C, 15-minute measuring cycle and standard communication cycle with Energizer batteries 0515 0572

       Storage temperature

   -40° to 158 °F (without batteries) / -40 to +70 °C (without batteries)
