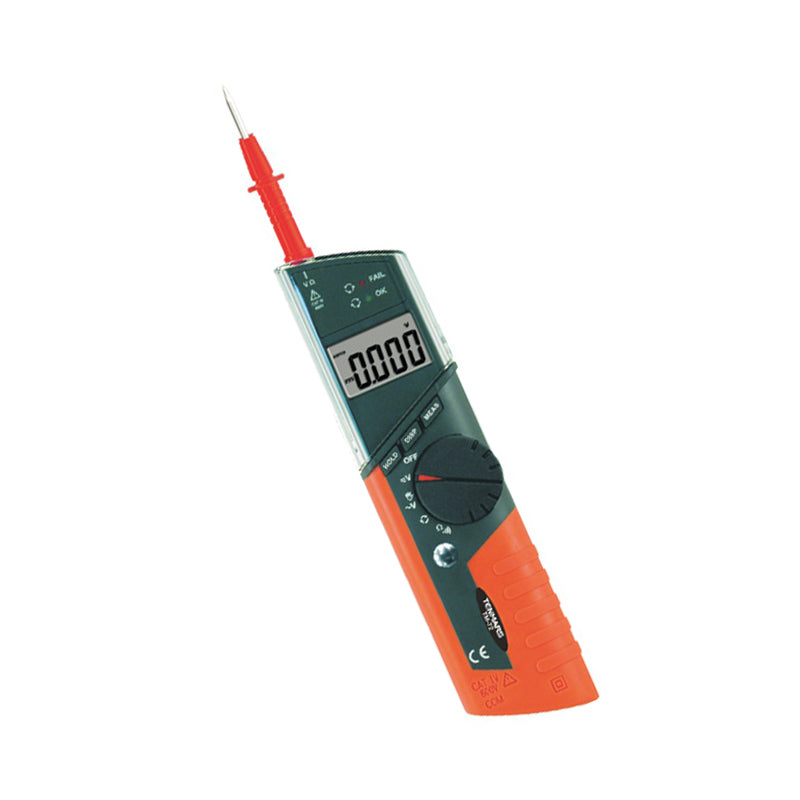

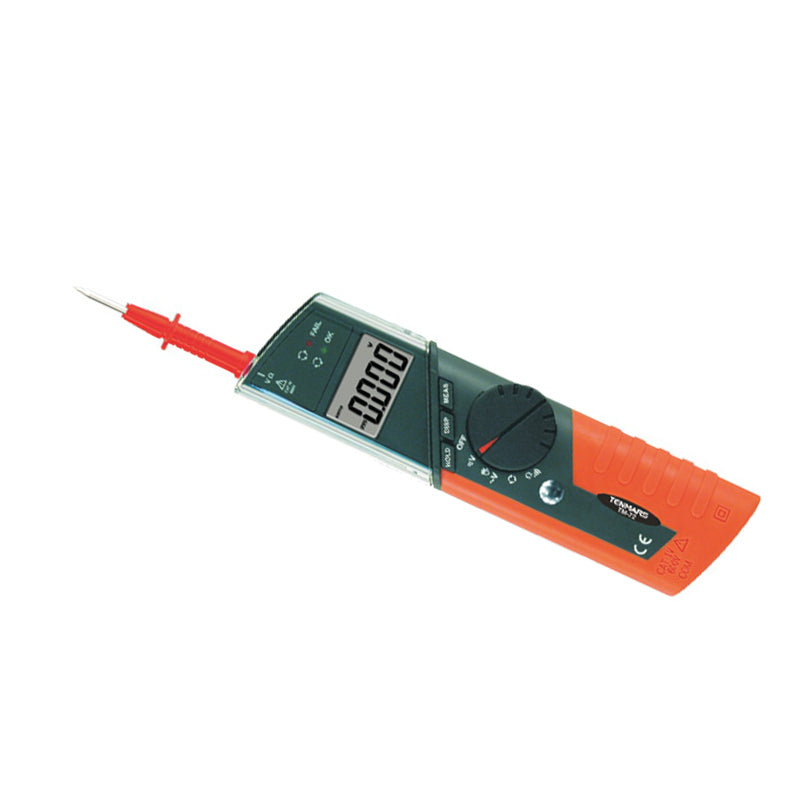

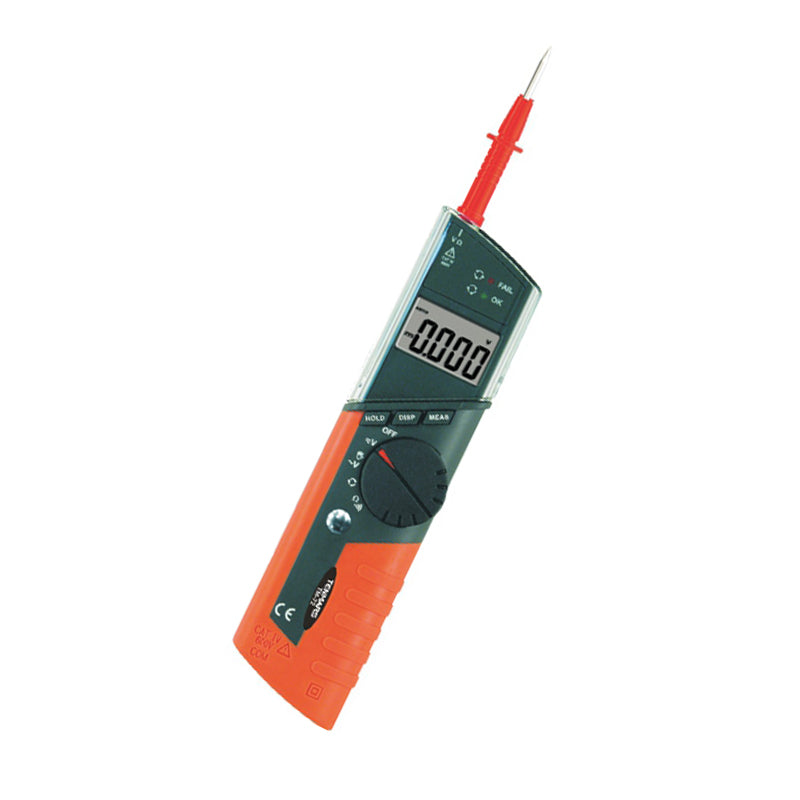

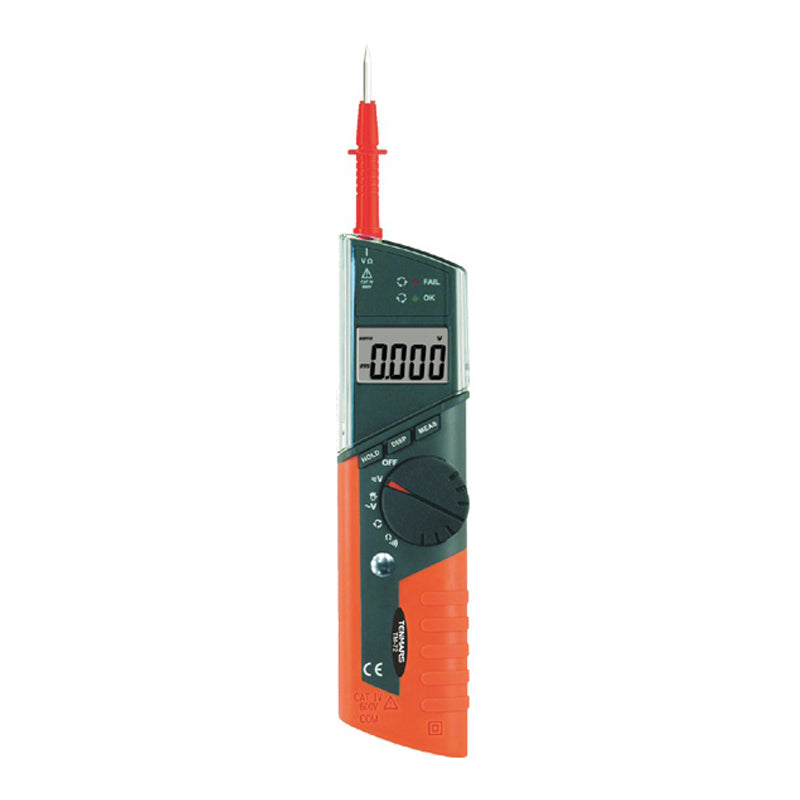

TM-72 Pen Type Pocket Multimeter Phase Rotation Tester
Product Description
CAT IV 600V
LCD display with maximum reading of 6000, plus decimal point.
Analog Bargraph.
AC voltage range: 0 to 600V.
DC voltage range: 0 to 600V.
Auto power off (15 minutes).
Frequency measurement.
AC and Frequency measurement with only one test lead.
Phase sequence test.
Phase conformity test.
Continuity test.
Double injection outer case.
SPECIFICATION
Display
6000 counts
Overvoltage Category
CAT IV 600V
AC Voltage
1.5V to 600V ±(1.5% of rdg + 5 dgts)
DC Voltage
1.5V to 600V ±(0.8% of rdg + 1 dgt)
Resistance
1Ω to 1499Ω ±(1.0% of rdg + 5 dgts)
Continuity Buzzer
Yes
Phase Test
Test voltage 100 to 600 volts
Frequency
0.1Hz to 69.9Hz ±(1.0% of rdg + 2 dgts)
Autoranging
Yes
Auto Power Off
Yes
Data Hold
Yes
Auto Power Off
Yes
Dimensions
200mm (L) x 51mm (W) x 30mm (D)
Weight
150g approx.
