Features:

* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo-Echo mode (used for measurements eliminating paint or coating thickness).

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Principle：

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back travel path, and then multiplied by the velocity of sound in the material.

Specifications:

               Unit System

            Metric system or British system (optional)

                Display

            LCD with backlight

                Range

            Pulse-Echo mode: (0.65~600)mm (in Steel)

                Echo-Echo mode: (3~60)mm

                Resolution

            0.1mm / 0.01mm / 0.001inch

                Accuracy

            ±(0.5%n + 0.05mm), depends on materials and conditions

                Measurement Period

            4 times per second for single point mode and 10 times per second for scan mode

                Sound Velocity

            1000m/s~9999 m/s

                Memory for up to 20 files(99 values for each file)of stored values

                Working Mode

            There are two working modes of thickness measurement: single mode and scan mode

                Operating Conditions

            Temperature:0ºC~40ºC   Humidity:<85%RH

                Power Supply

            4x1.5V AAA(UM-4)Battery

                Dimensions

            142mmx72mmx34mm

                Weight

            175g(Not Including Batteries)

                Standard Accessories

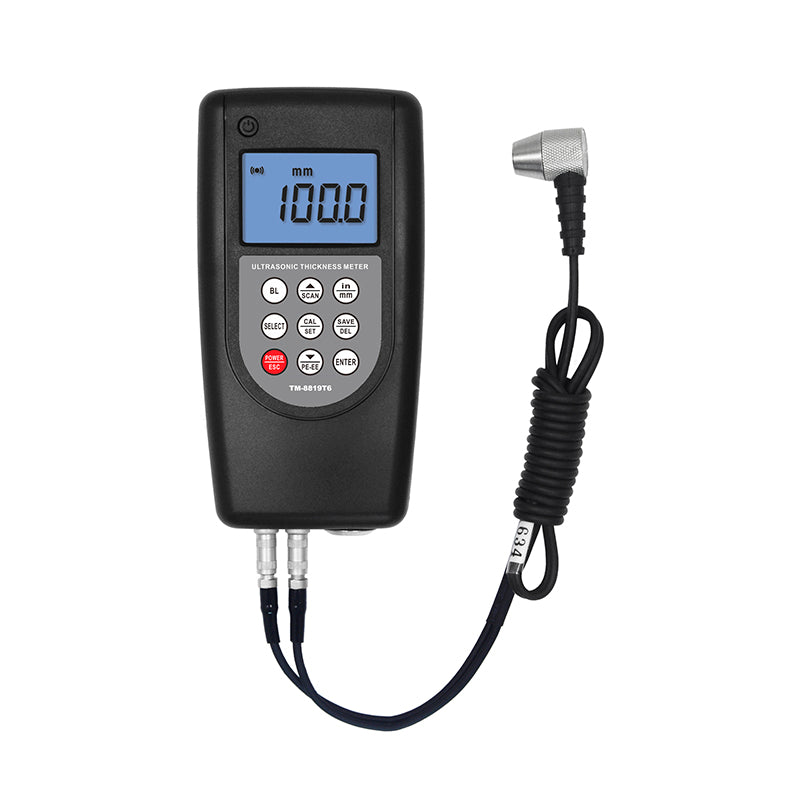

            Main Unit

                Standard Probe

                Coupling Agent

                Carrying Case(B04)

                Operation Manual

                Optional Accessories

            Other Special-purpose Probe

                RS-232C Data Cable with Software

                Bluetooth Data Adapter with Software
