Color: black
Material: PCB+ metal

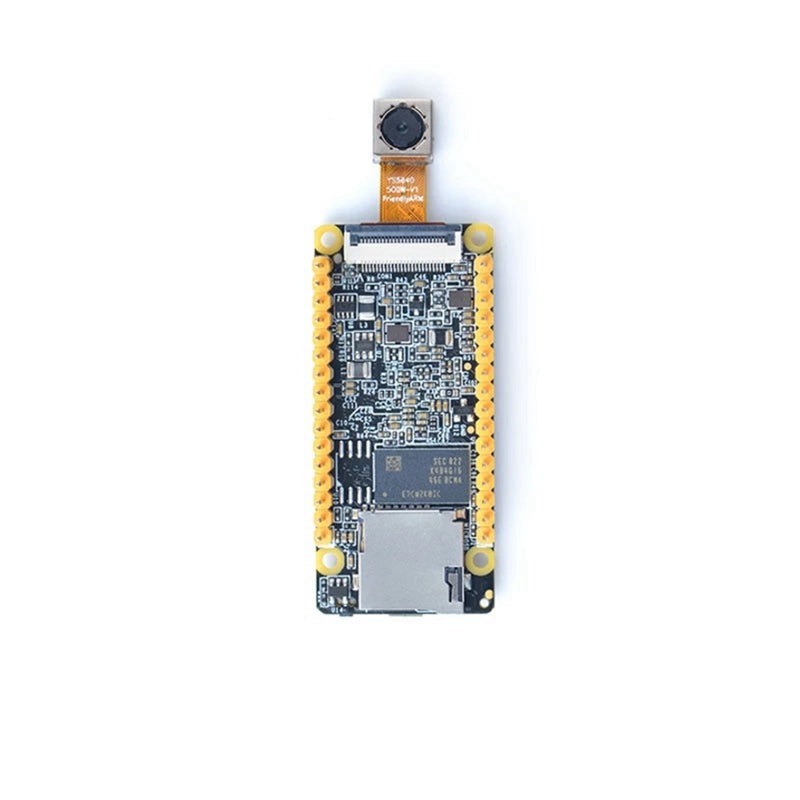

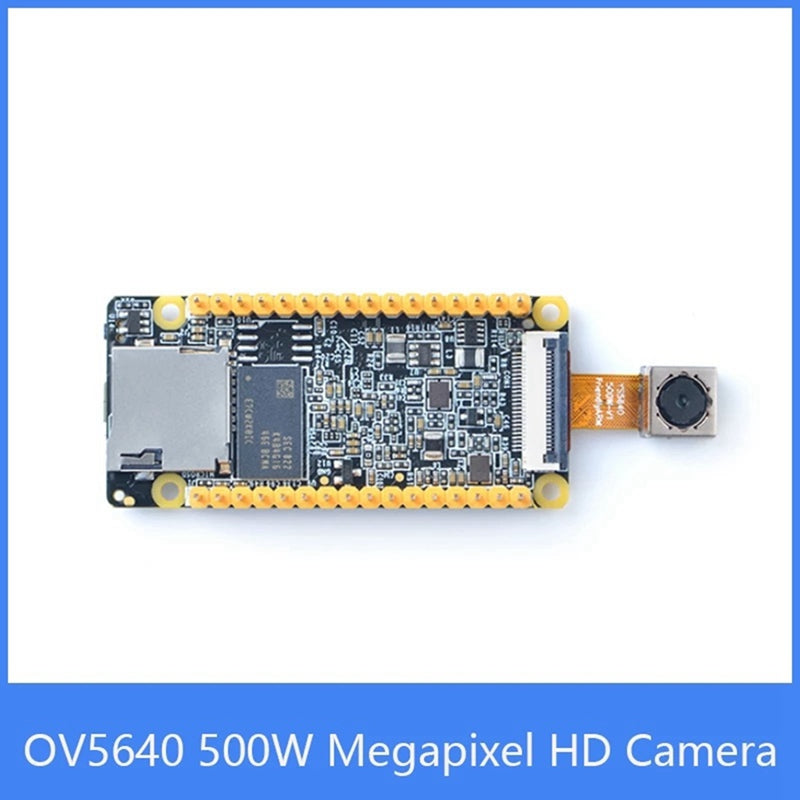

Camera: OV5640
Key: GPIO Key
USB Host: 2.54mm pin x2, exposed in 2.54mm pitch pin header
MicroSD Slot x 1
MicroUSB: OTG and power input
Debug Serial Interface: exposed in 2.54mm pitch pin header
Audio input/output Interface: exposed in 2.54mm pitch pin header

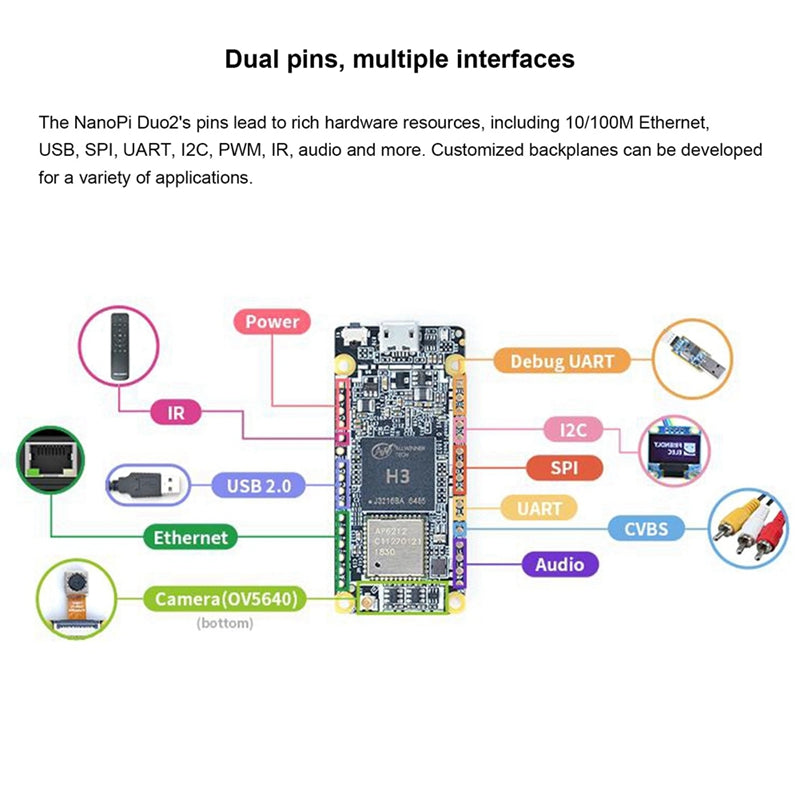

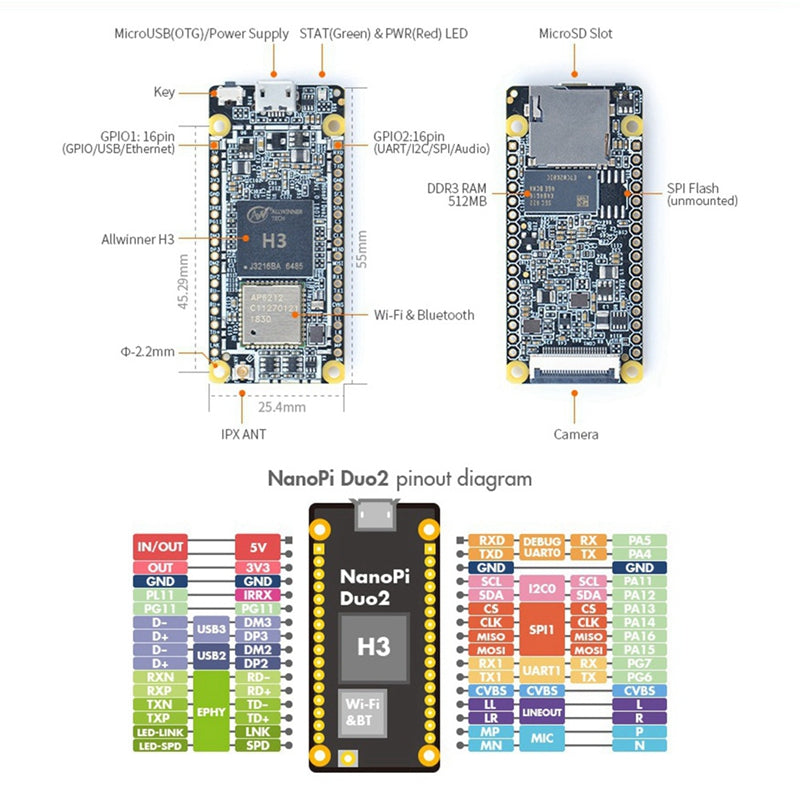

GPIO1: 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2: 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc
PCB Dimension: 25.4 x 55mm
Power Supply: DC 5V/2A
Temperature measuring range: -40℃ to 80℃
OS/Software: U-boot,Linux Kernel 4.11.2 (mainline) , Ubuntu 16.04.2 LTS (Xenial)

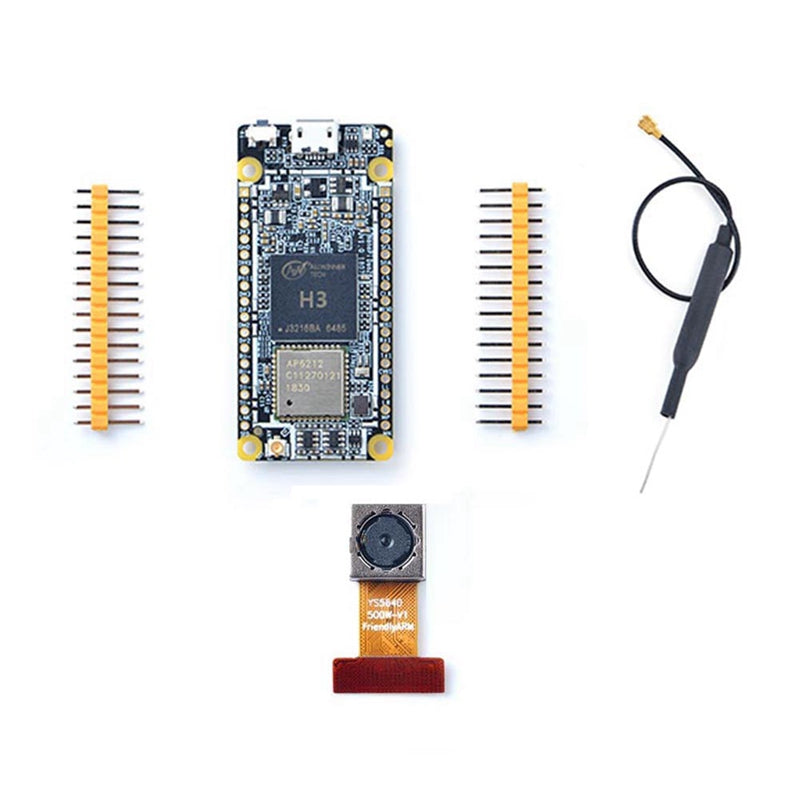

Package Contents:
1 x Development Board
2 x 16pin single-row pin header
1 x Antenna
1 x OV5640 camera
