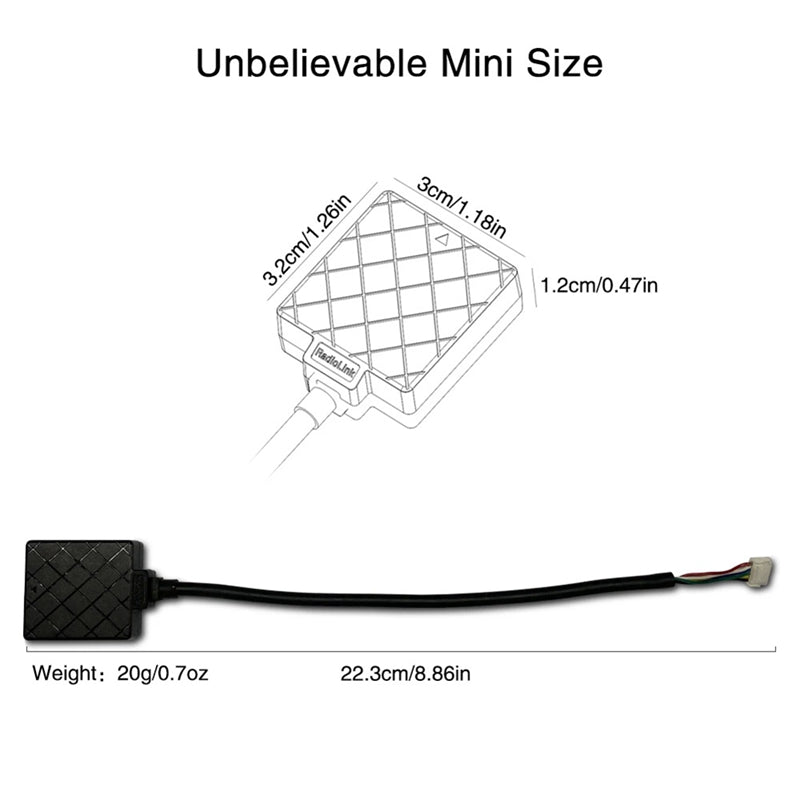

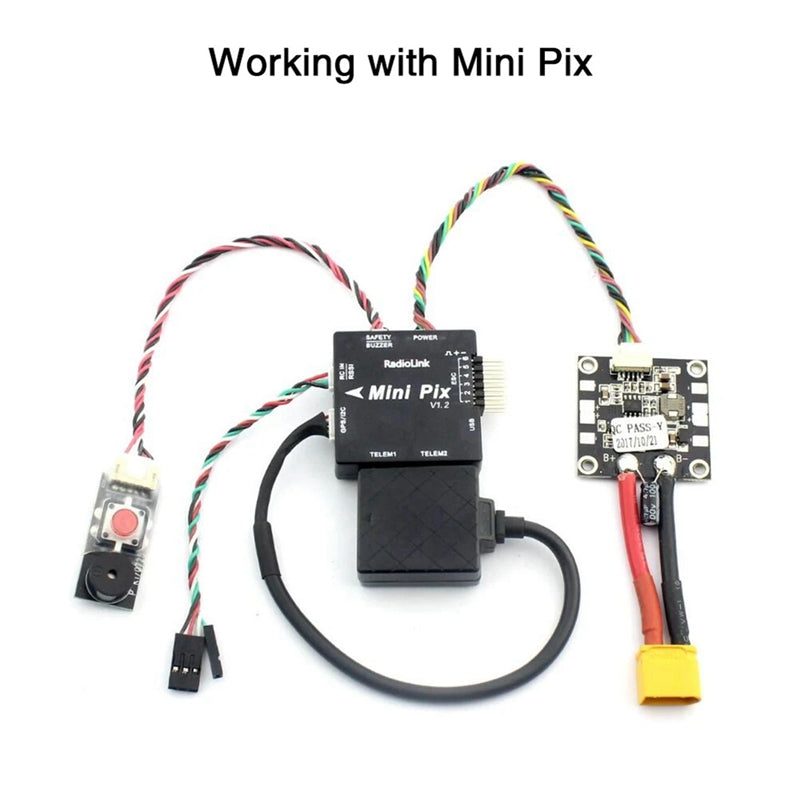

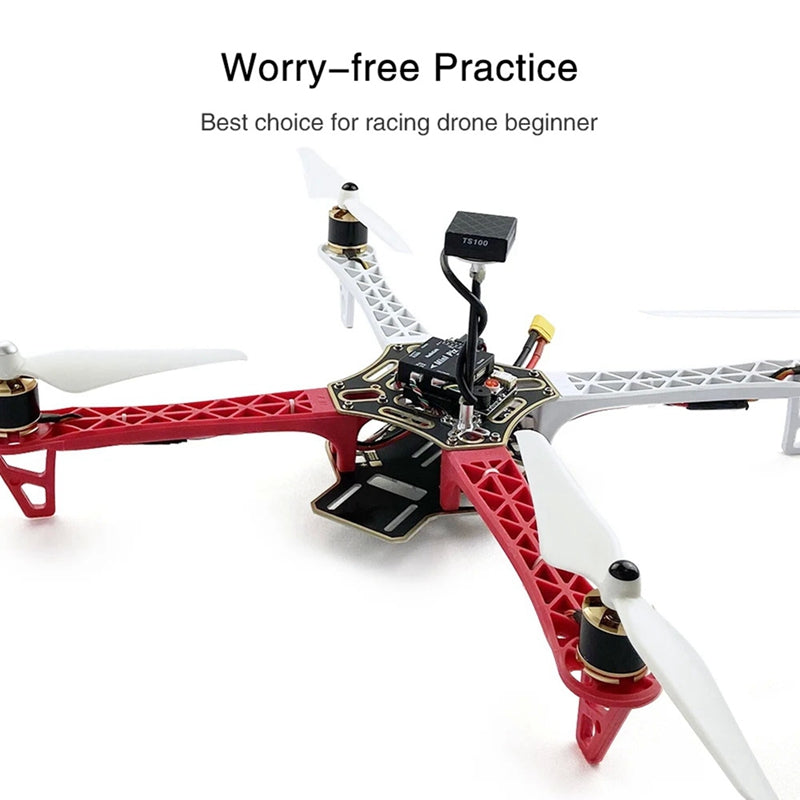

Super mini: The size is for 1.25 x 1.18 x 0.47in and the weight is 0.044Lb; Pilot can practice with super simple models when TS100 work with Radiolink mini flight controller Mini PIX( Buying this product does not include Mini Pix ), best choice for racing drone beginner.
Top Configuration
GPS decoder chip: Radiolink M10N GPS, with u-blox UBX-M10050(M10), 72-channel, is much better than single GNSS 7N. Geomagnetic: QMC5883L which with same technology as HMX5983 from Honeywell. Antenna: 2.5dbi high gain and selectivity ceramic antenna. Double Filter: SAWF(surface acoustic wave filter) from Murata.

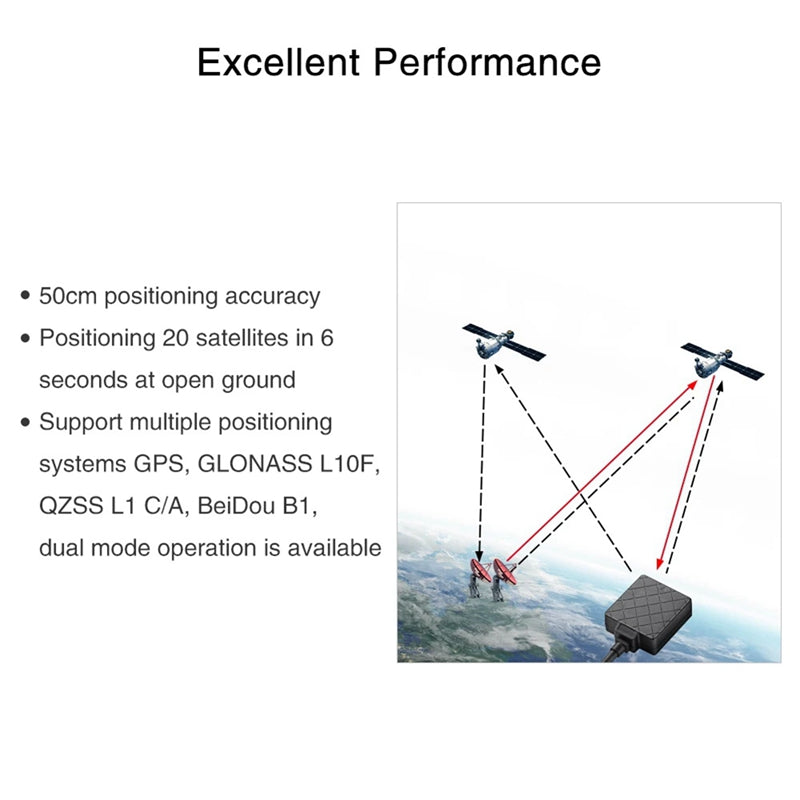

Excellent Performance
The pre-LNA low loss design that exact match the ceramic antenna have enhances the ability to capture extremely weak signals even though interference by perfect filter.
Optimized circuit layout make sure TS100 can seizing very weal signals and effective suppression of input interference at the same time.

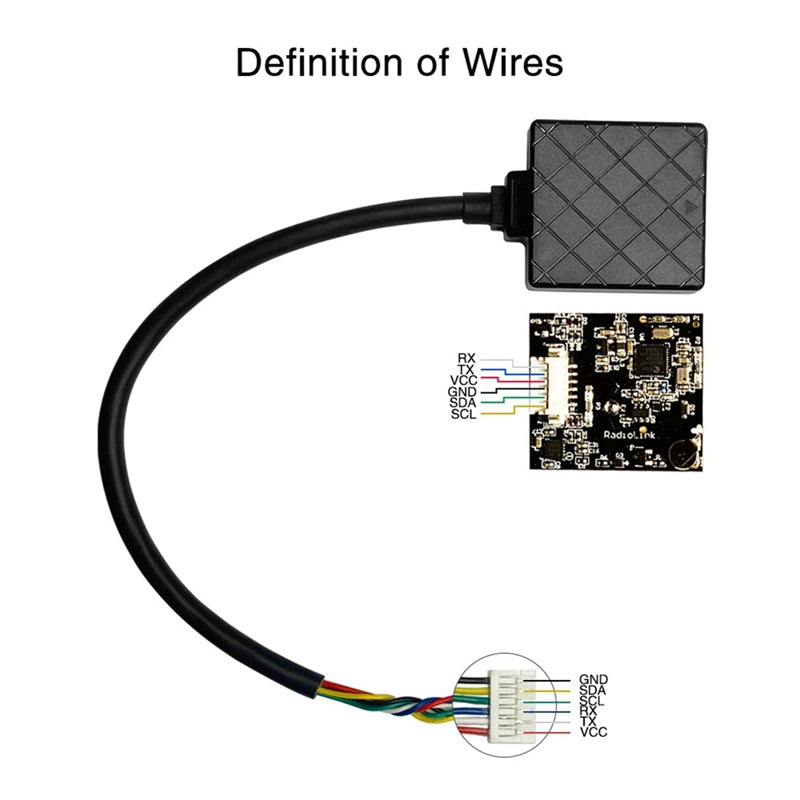

Definition of Wire
Please check the Wire definition for Radiolink Mini PIX, Turbo PIX and GPS, easy to use and connect, you can use the mini GPS with your F3 or F4 flight controller, maybe need to change the connect port ( depend on your FC connect port ).
TS100 Parameter
1) Positional Accuracy: 50 centimeters precision when working with concurrent GNSS.
2) Velocity precision: 0.1m/s
3) Max height: 50000m
4) Max speed: 515m/s
5) Max acceleration: 4G
6) Max update rate: up to 10Hz
7) Sensitivity
Tracking & Nav.: -167dBm; Reacquisition: -163dBm; Cold start: -151dBm; Hot start: -159dBm.
8)Time to first fix: Cold start: 26s, Hot start: 1s.
9)Connect ports
Power supply: voltage 5±5%V DC, current 50~55mA
10) Ports
A. GPS UART interface, baud rate: 9.6K
B. Geomagnetic I2C interface
color: Black
material: plastic
Package Contents:
1 x Module(label random Not accepting designation)
