Specification

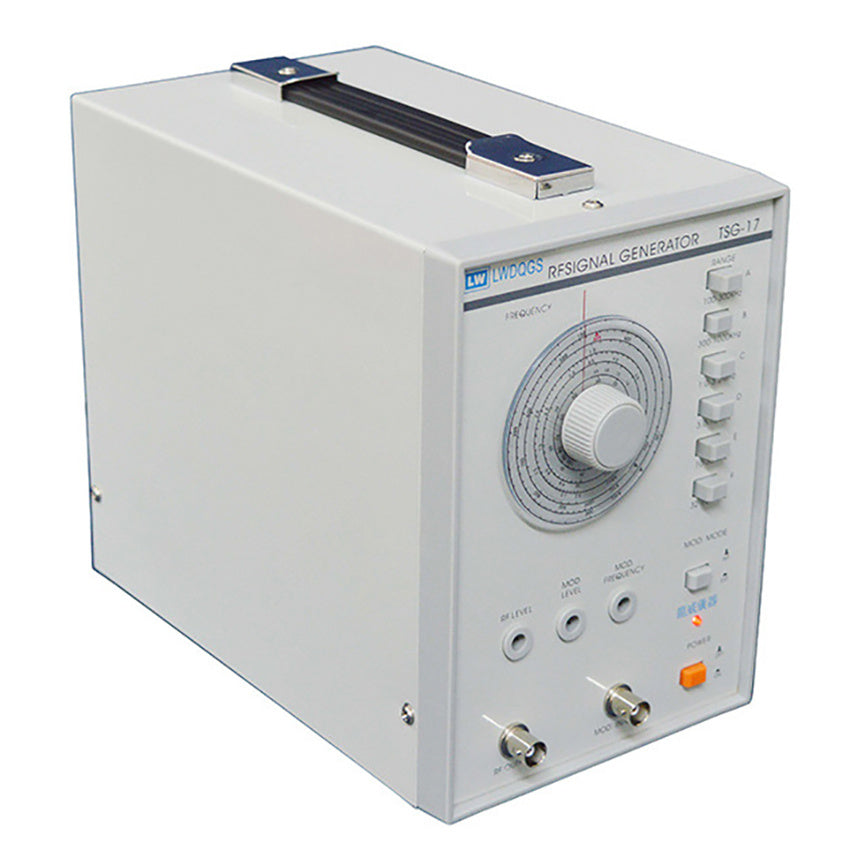

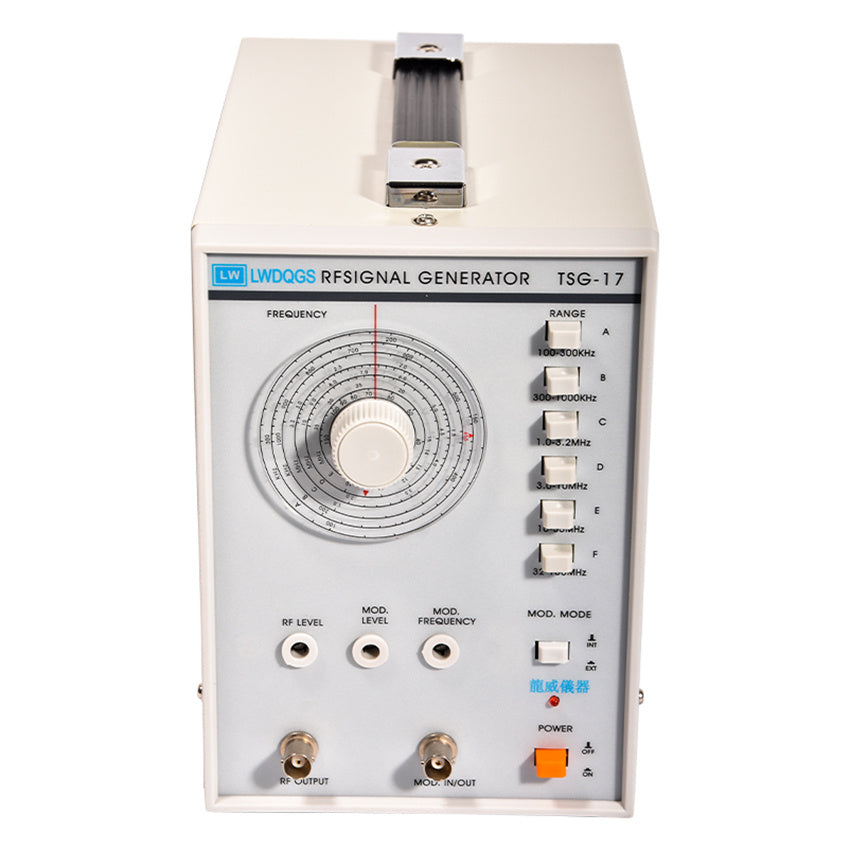

Name: High-Frequency Signal Generator
Model: TSG-17
Power supply: 220V/110V±10% 50Hz/60Hz
Frequency band:
A: 100KHz ~ 300KHz
B: 300KHz ~ 1MHz
C: 1MHZ ~ 3.2MHz
D: 3MHz to 10MHz
E: 10MHz to 35MHz
F: 32MHz to 150MHz
Frequency range: 100KHz ~ 150MHz
Frequency accuracy: ±5%
Output waveform: RF/AM signal waveform
Output impedance: 600Ω
Rf output: 100Mvrms (frequency ≤35MHz)
Level control: 1mV~100mV
External modulation: 150HZ~1.5KHz amplitude modulation about 0-30% adjustable
Working environment: 50Hz~20KHz
Weight: 2.5kg
Size: 239 * 140 * 200 mm
Package Included:
High Frequency Signal Generator*1
Power Adapter*1

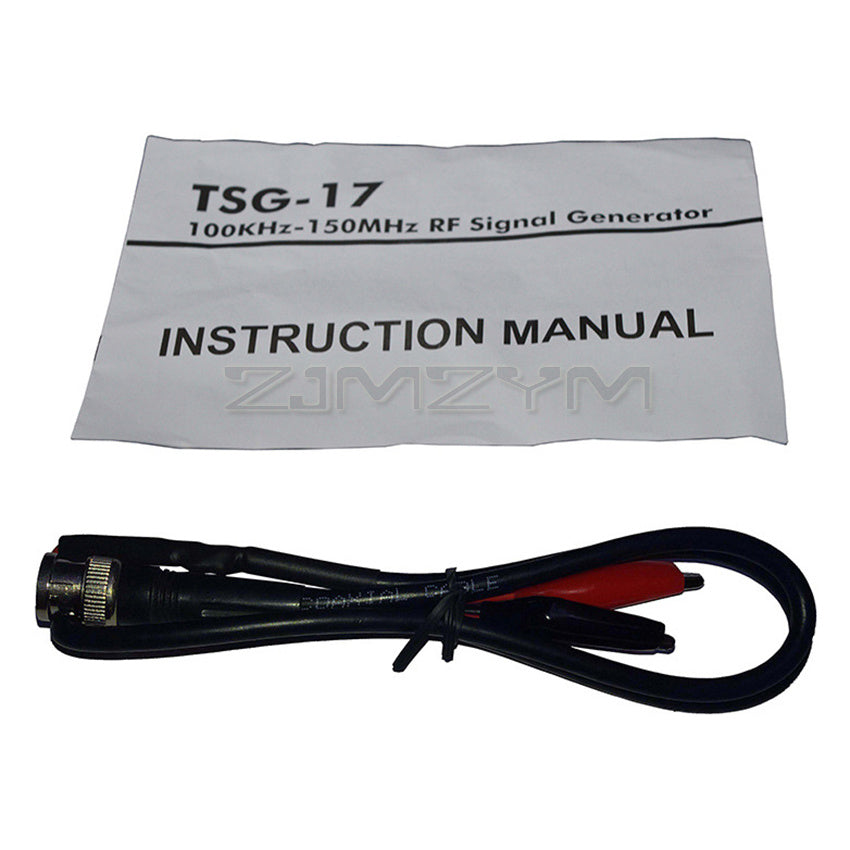

Manual*1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
