Features:
VHF 136-174MHz & UHF 400-480MHz DOT-MATRIX LCD display A/B band storage and scanning FM radio and 24 station memory Wide/Middle/Narrow band selectable VOX 0-7 grade setting Shortcut menu operation mode Emergency alert ANI Function DTMF encoding and decoding Multiple types of keys lock setting Multi-display mode Remote stun/Kill/active Dual Band, Dual wait, Dual standby 200 Channels Battery Saving 8 groups of Scrambler 1750Hz tone 2 Tone/ 5 Tone CTCSS/DCS
Specifications:
General
Frequency Range
136-174MHz & 400-480MHz
Frequency Stability
±2.5PPm
Operating Voltage
DC7.4V (Rechargeable Li-ion battery)
Channel Number
200
Antenna
SMA-Male High gain antenna
Antenna Impedance
50 ohm
Mode of Operation
Simplex or semi-duplex
Battery Capacity
1400mAh
Receiver
RF Sensitivity
-122dBm(12dB SINAD)
Audio power
>0.5W
Audio distortion
<10%
Blocking
≥85dB
Intermediation
≥55dB
Selectivity
≥60dB
Spurious rejection
≥65dB
Transmitter
Output Power
≤5W
Modulation Mode
16KØ F3E/11KØ F3E
Maximum deviation
<5KHz/<2.5KHz
Adjacent Ch.Power
≤-65dB
Spurious radiation
<7µW
Pre-emphasis characteristics
6dB
Current
≤2.8A(10W) ≤1.4A(5W)
CTCSS/DCS deviation
0.55KHz± 0.15KHz, 0.4KHz± 0.1KHz
Intermediation sensitivity
8-12mV
Intermediation distortion
<5%

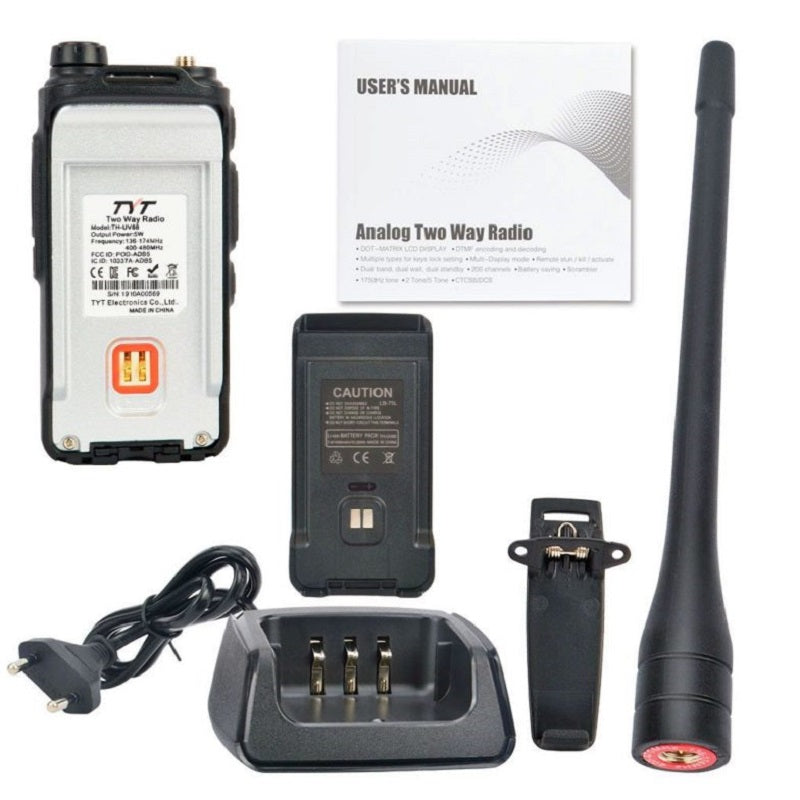

Package Contains:

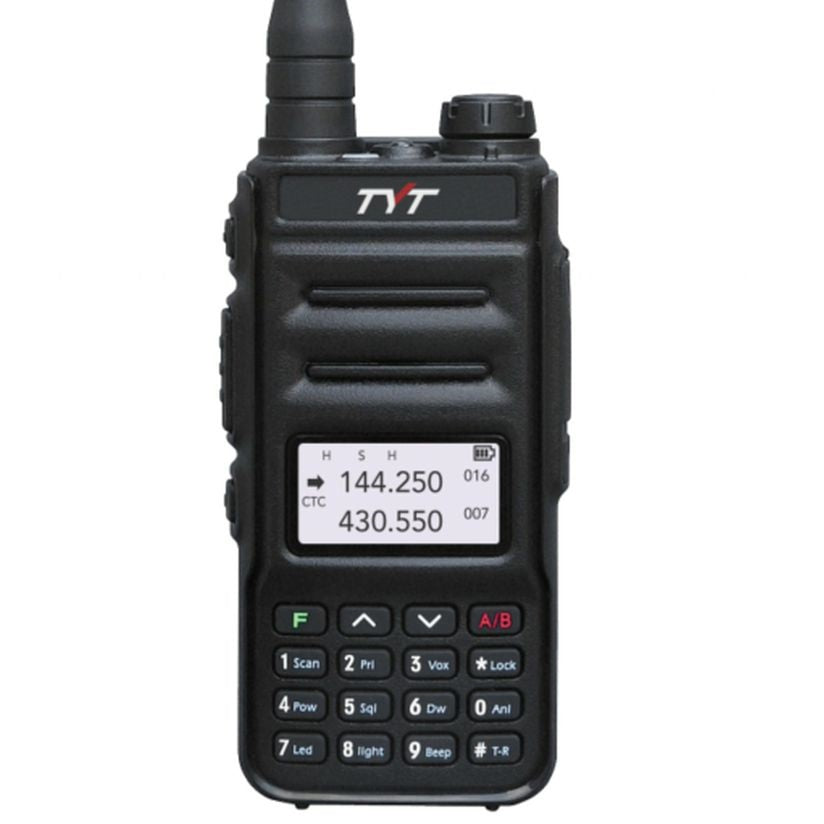

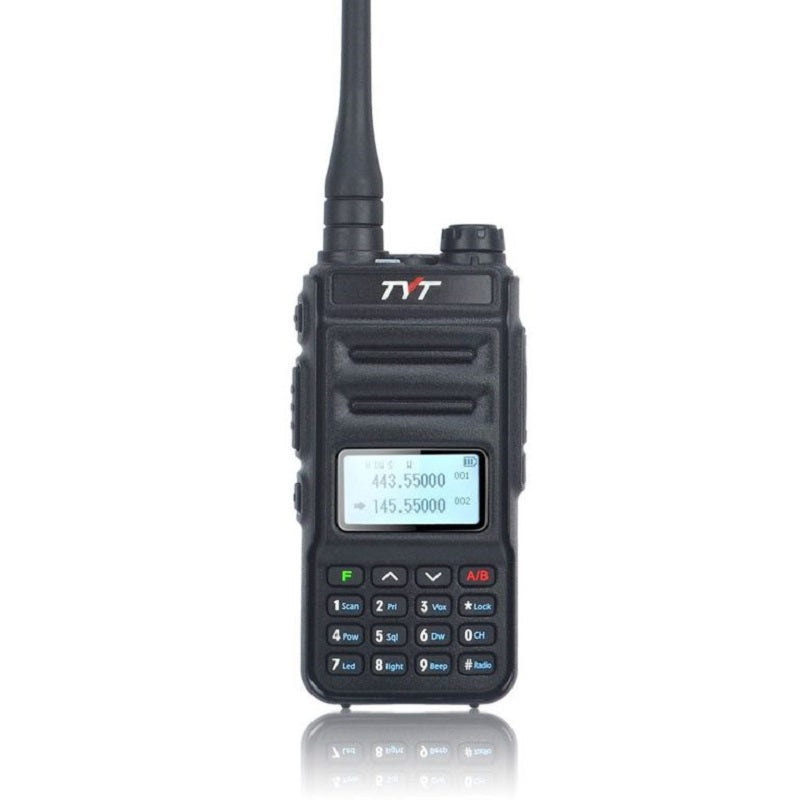

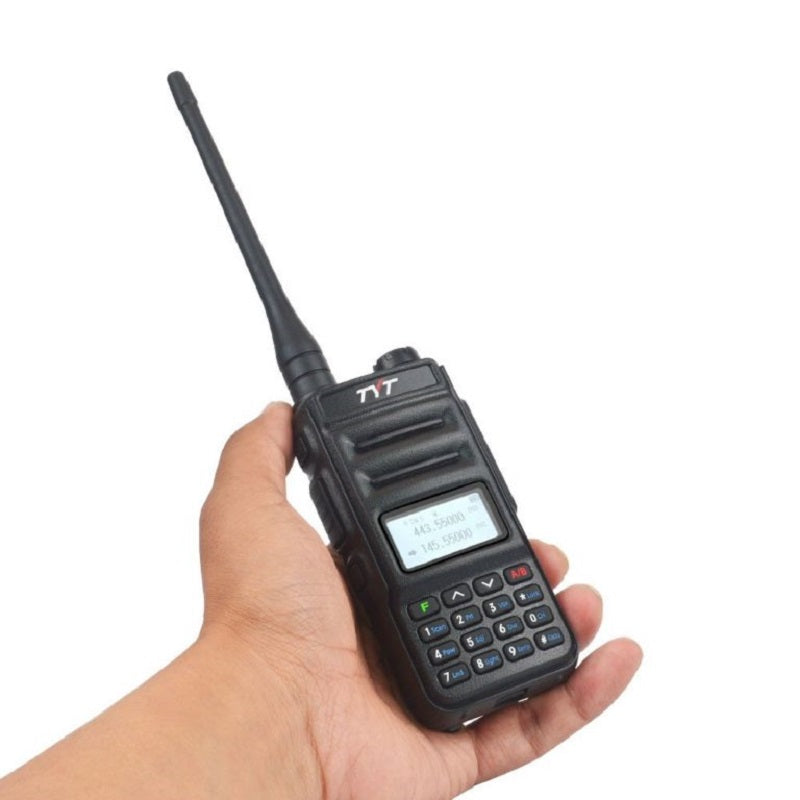

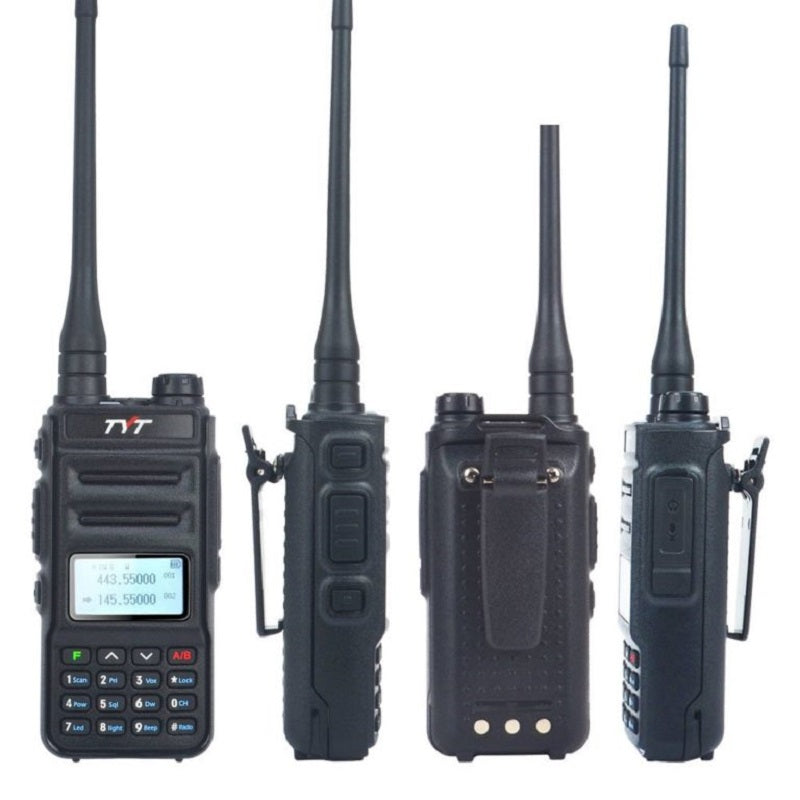

1× TYT TH-UV88 Dual band radio
1× 7.4V 1400mah Li-ion Battery Pack
1× SMA-Male Standard Antenna
1× Battery belt clip
1× Charger
1× ENG Manual
