Ultrasonic Thickness Meter ETC-098 Range 0.75-300.0 mm(Determined By Probe) High Accurate Ultrasonic Thickness Gauge
Features:
The instruments based on the principle of ultrasonic measurement. It can measure thickness of material which allows the ultrasonic wave penetrating with constant speed and reflecting from the back side. With used in many areas of industry, ETC-098 has precise measurement, eg petroleum, metallurgy, shipbuilding, aviation, space flight and so on. It can measure on various type of raw material and component parts. Applicable to monitor pipe and pressure vessel.
Specifications:
Range: 0.75-300.0mm(determined by probe)
Accuracy: ±(1%H+0.1)mm
Lower limit of pipe (steel): φ20mm×3.0mm(5MHz)
φ15mm×2.0mm(10MHz)
sound velocity range: 1000m/s-9999m/s
To measure velocity by thickness:
Range: 1000m/s-9999m/s
Thickness of the measured sample: ≥20mm(Accuracy: ±5%)
Temperature: 0°C-40°C
Power supply: DC1.5V×2 (Not Included)
Dimensions: 150mm×73mm×32mm
Weight: 400g
Color: Blue

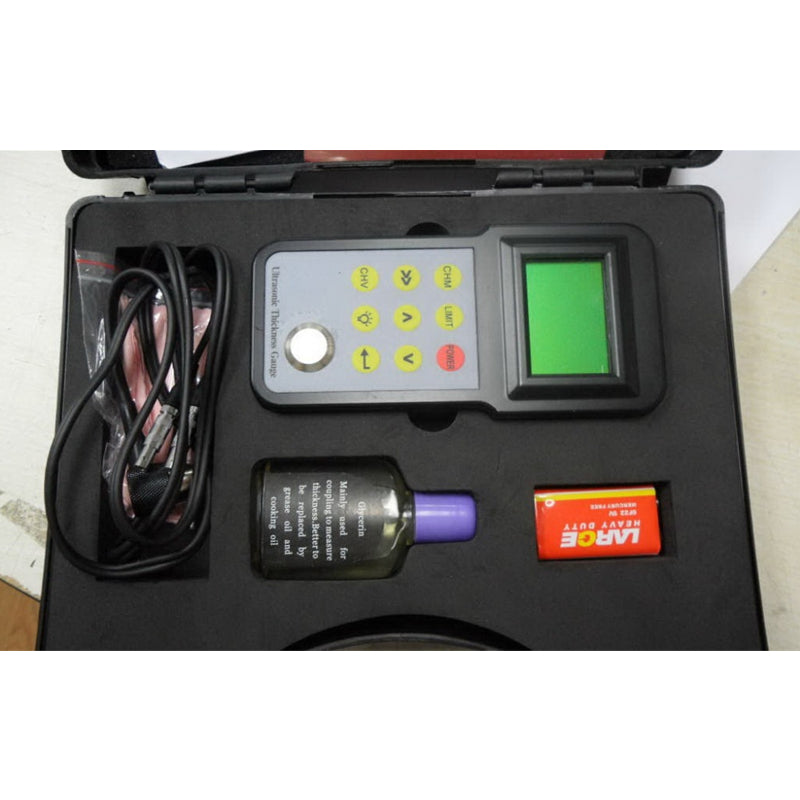

Package Content:
Carrying case...............1pc
Main unit........................1pc
Manual...........................1pc
5 MHz probe.................1pc
Cleaning cloth...............1pc
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
