Feature:
1. Parameters: Effective pixels are NTSC: 720 (H) X480 (V); Minimum illumination of 0.0001 Lx / F12; Horizontal definition: CVBS: 340,000 pixels.

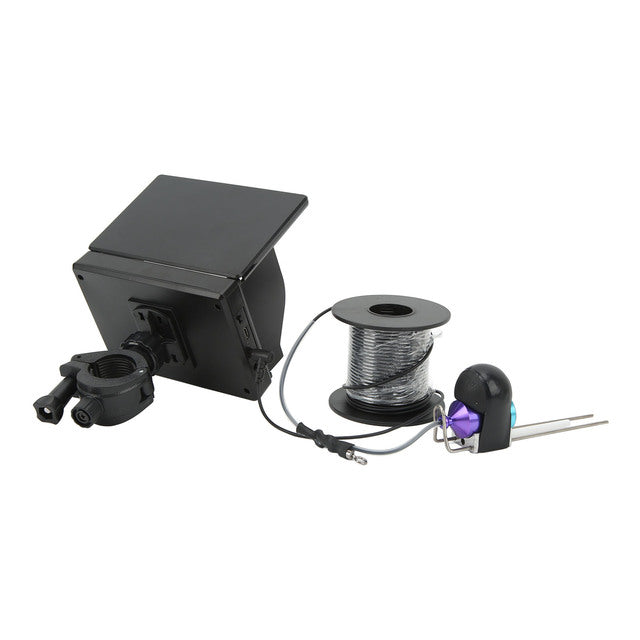

2. With Fishing Rod Bracket: Video fish finder is plug and play, equipped with fishing rod bracket, which can effectively fix the display screen on the fishing rod.
3. Improve Success Rate: Underwater camera set helps you grasp the underwater situation at any time and greatly improves the success rate of fishing.

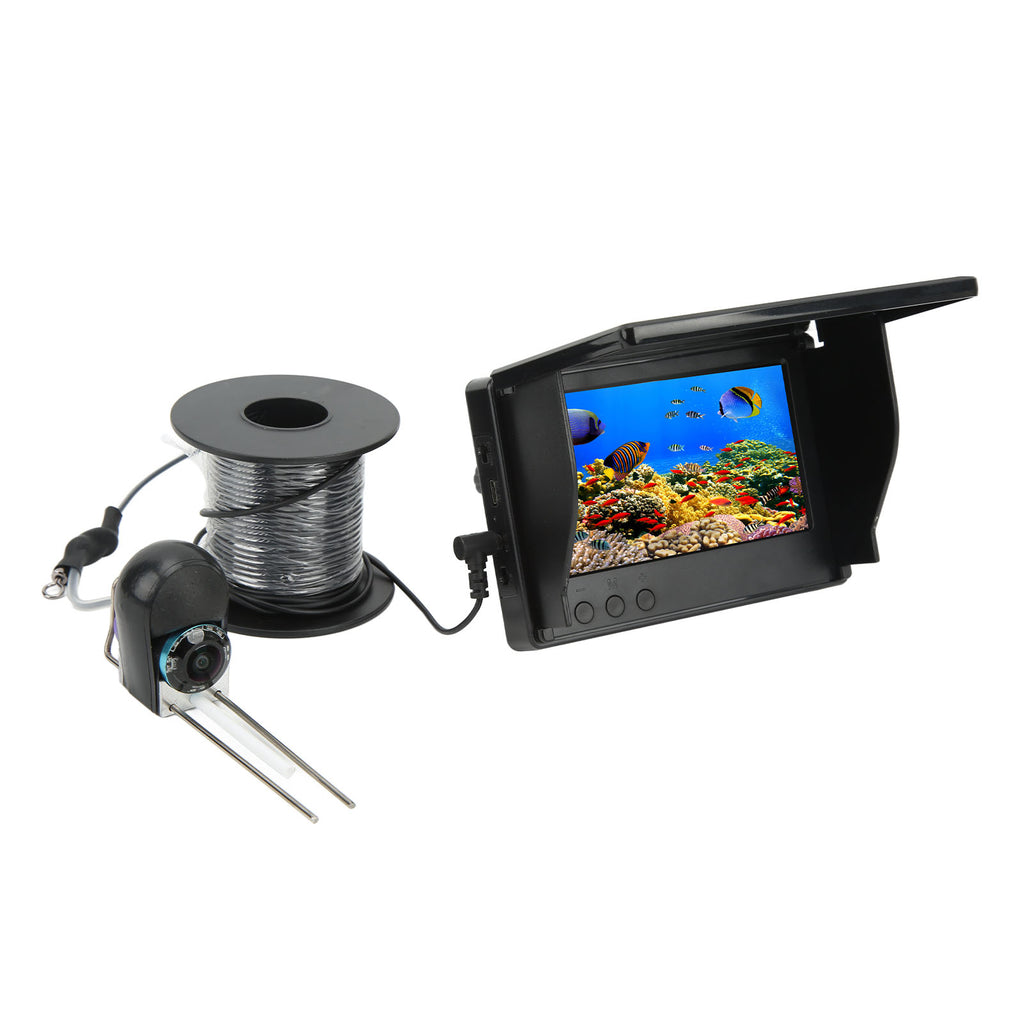

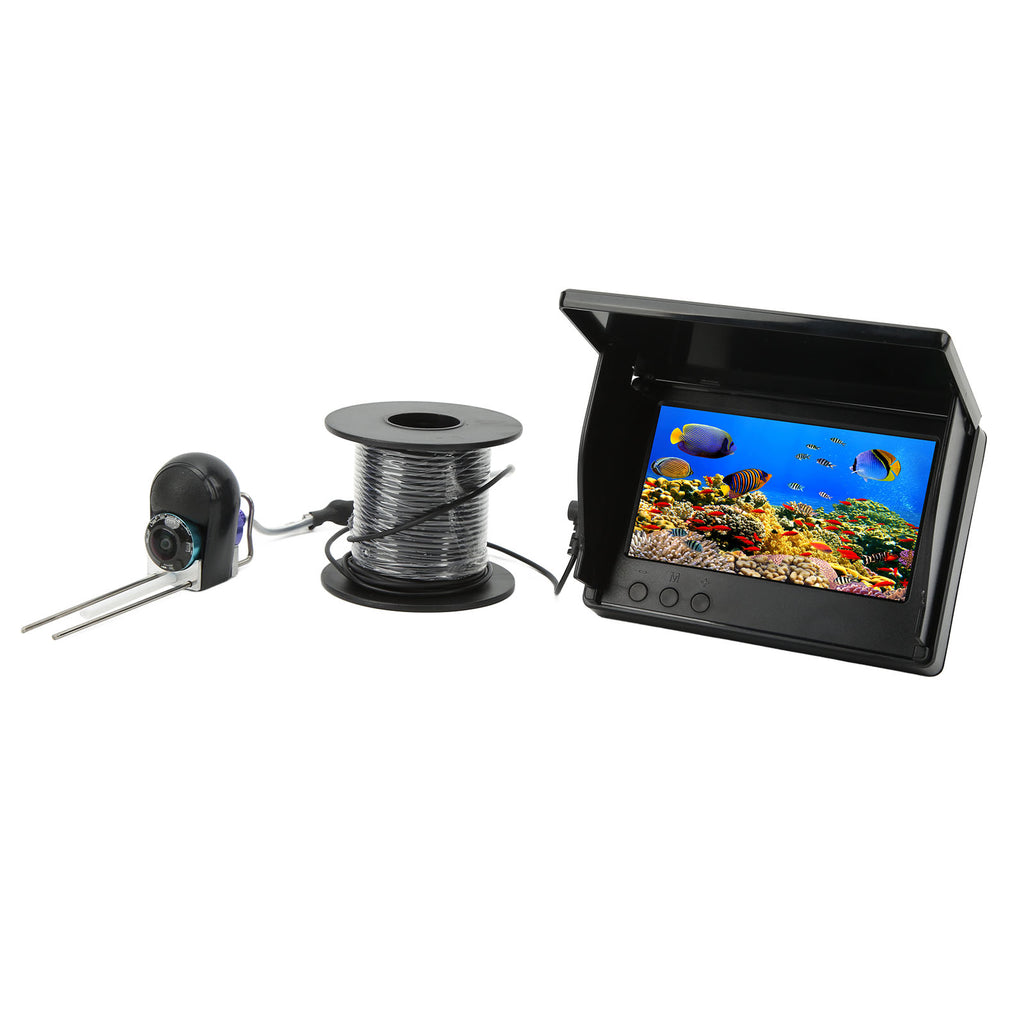

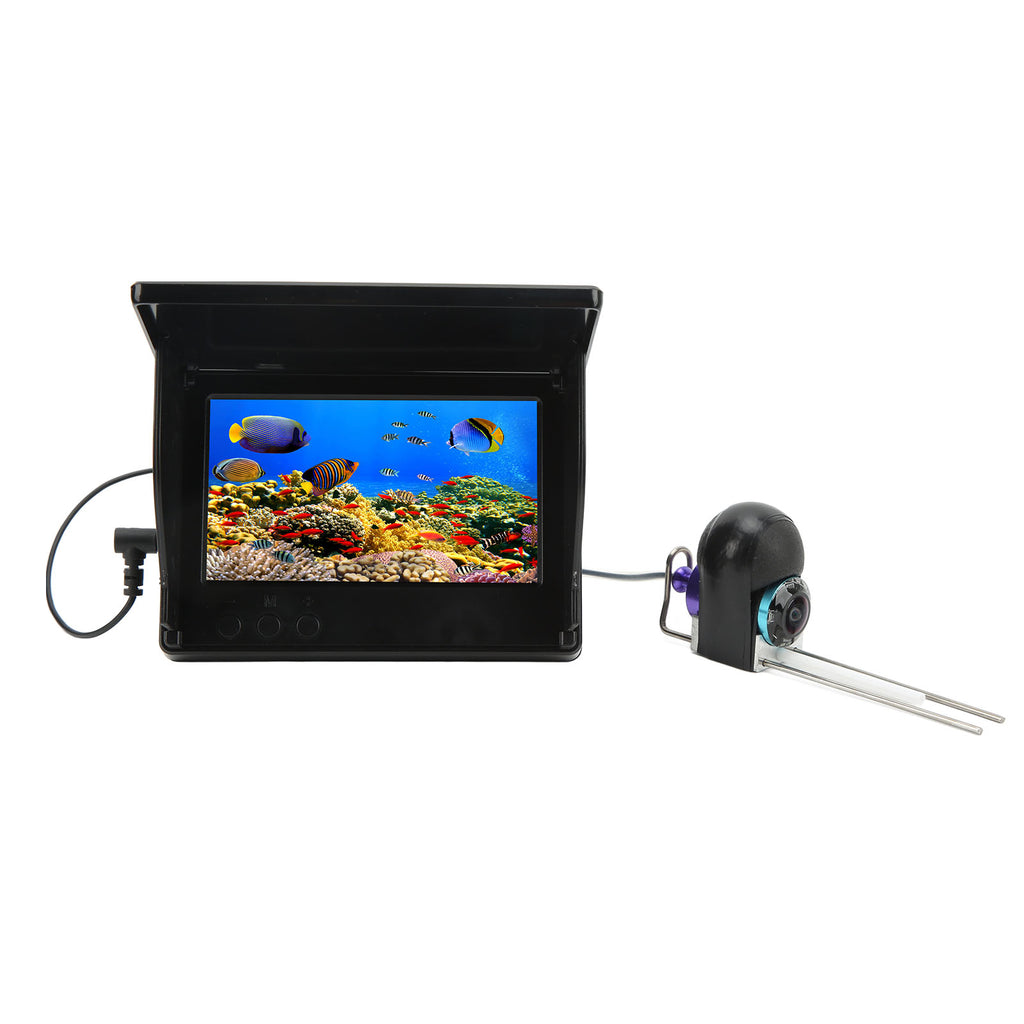

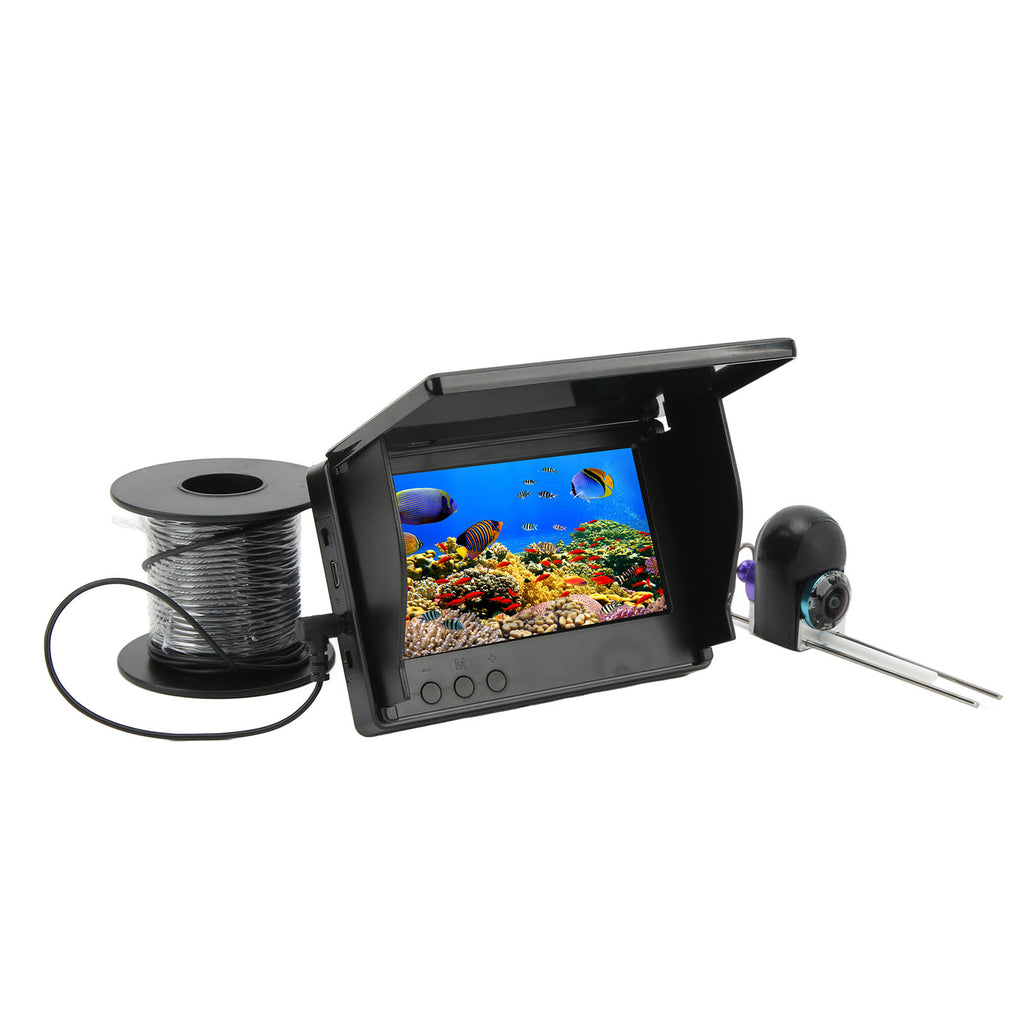

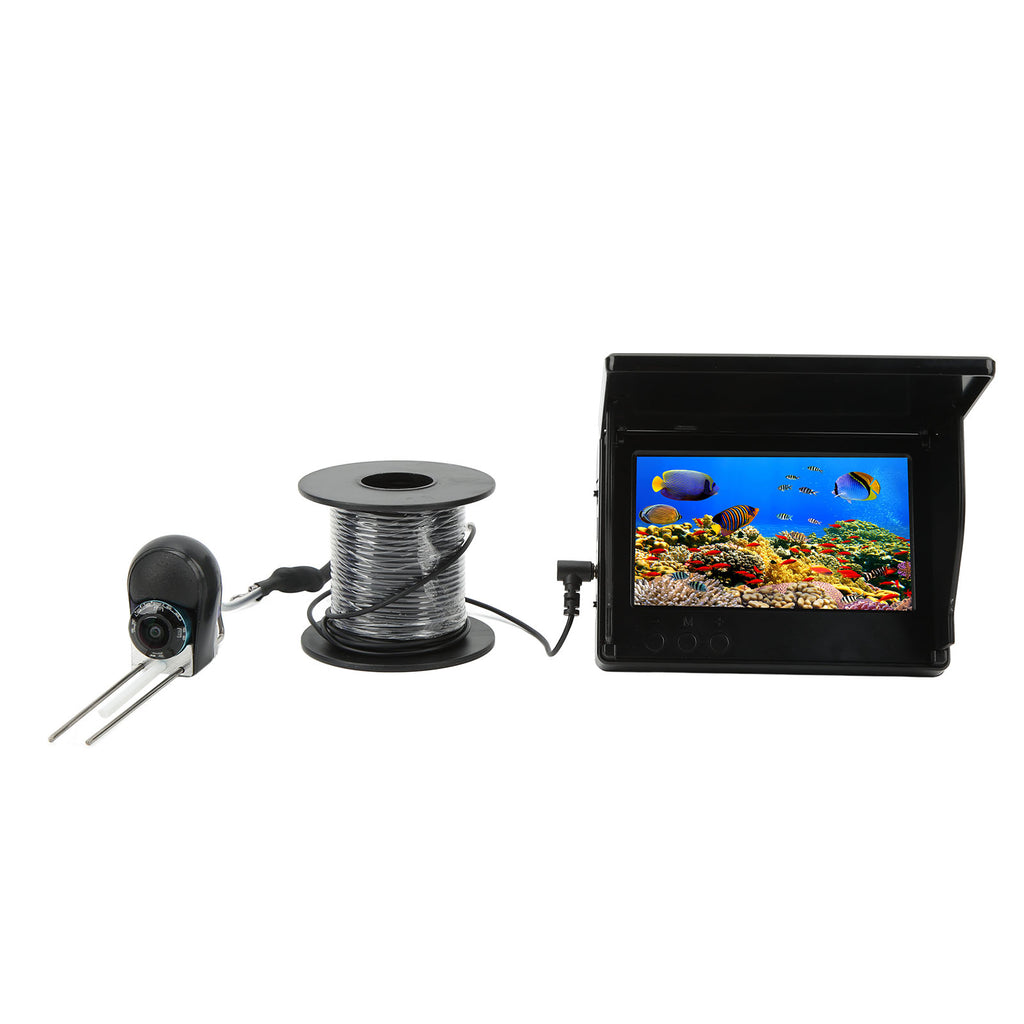

4. Essential Tools: Video fish finder kit has a 4.3inch high definition display screen and can last up to 12 hours. it is a necessary tool for outdoor fishing.
5. Premium Material: Fish finder camera is made of premium ABS, which is durable, corrosion resistant and has a long service life.
Specification:
Item Type: Underwater Fishing Camera
Material: ABS
Screen Size: 4.3inch
Screen Angle: IPS Full Viewing Angle
Screen Brightness: 1500cd/cm²
Screen Resolution: 800x480xRGB
Battery Model: Lithium Battery (with Built in Battery Shipped)
Battery Capacity: 8000mAh
Battery Voltage: 7.4V Parallel
Working Time: 8-12H (Fully Charged)
Output Voltage: 12V
Input Voltage: 5V
Headphone Head Model: 3.5mm, 1.4cm/0.6in
System Standard: NTSC
Effective Pixels: NTSC: 720 (H) X480 (V)
Minimum Illumination: 0.0001 Lx / F12
Horizontal Definition: CVBS: 340,000 Pixels
Angle: 195 Degree Wide Angle
Scanning Frequency: 60Hz
SNR: 46dB
Video Output: 1.0V p p
Operating Temperature: -10°C to 70°C
Power Supply: DC 5V-28C (±10%)
Led Light: 940 Light
Interface Signals:
Positive: VCC Voltage Range: DC 5V-28V (±10%)
Negative: GND
Video: VIDEO
Light Control: LED

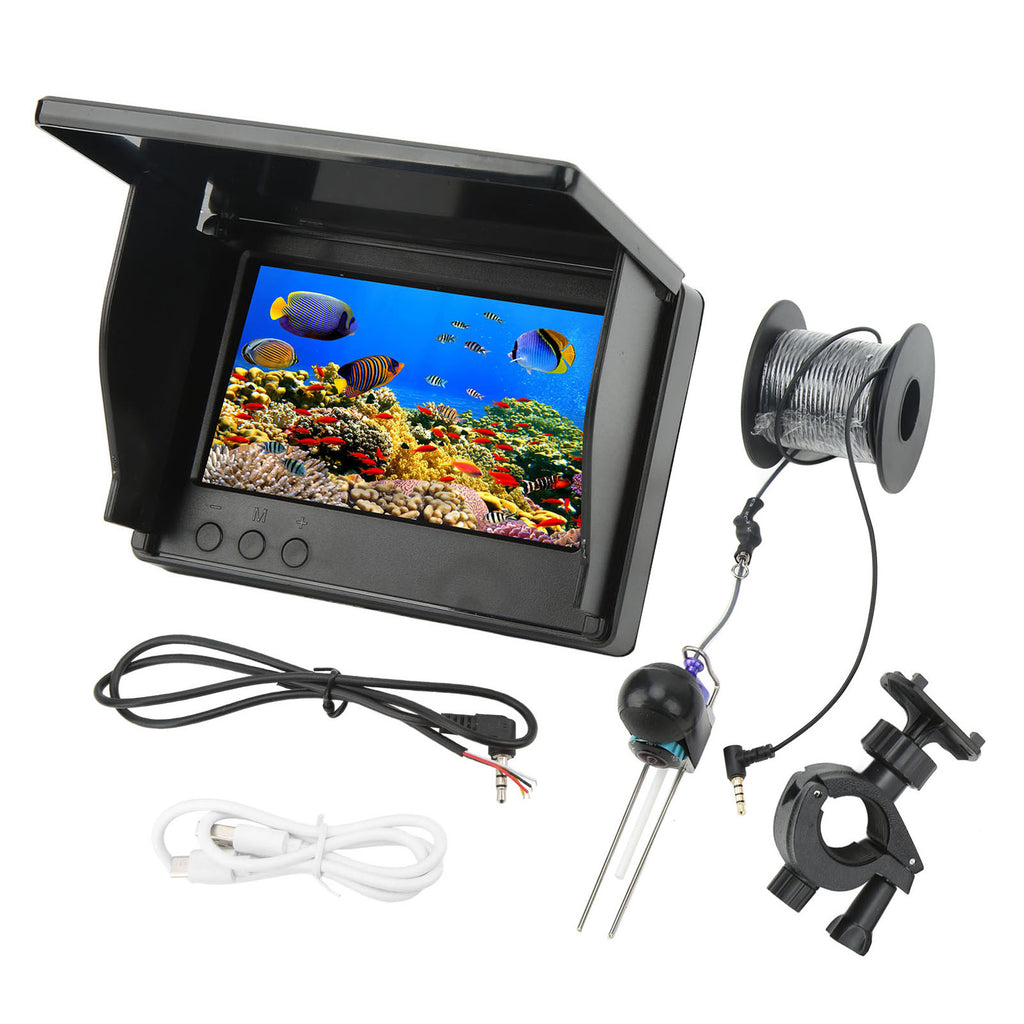

Package List:
1 x Display 2 x Wiring Harness
1 x Bracket
1 x Fishing Line Camera Kit
