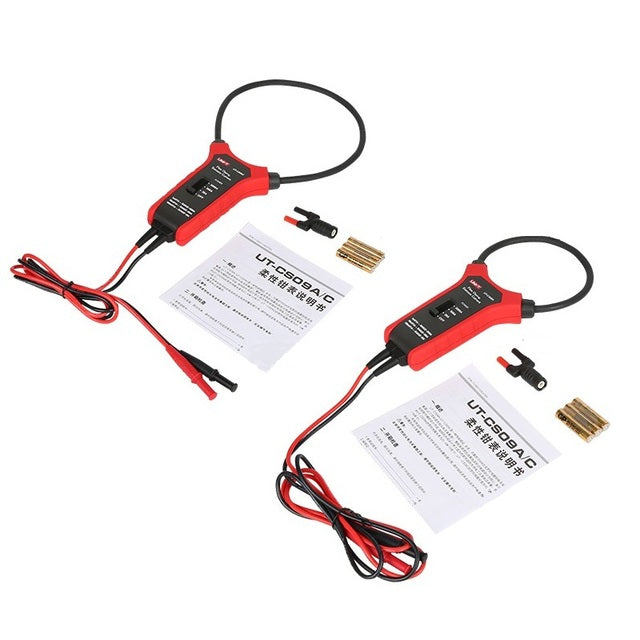

UNI-T UT-CS09A/UT-CS09C/UT-CS09D Flex Clamp Sensor 3000A Flexible AC
Ammeter Oscilloscope Multimeter Current Probe
UT-CS09A Flex Clamp Sensor (Discontinued)

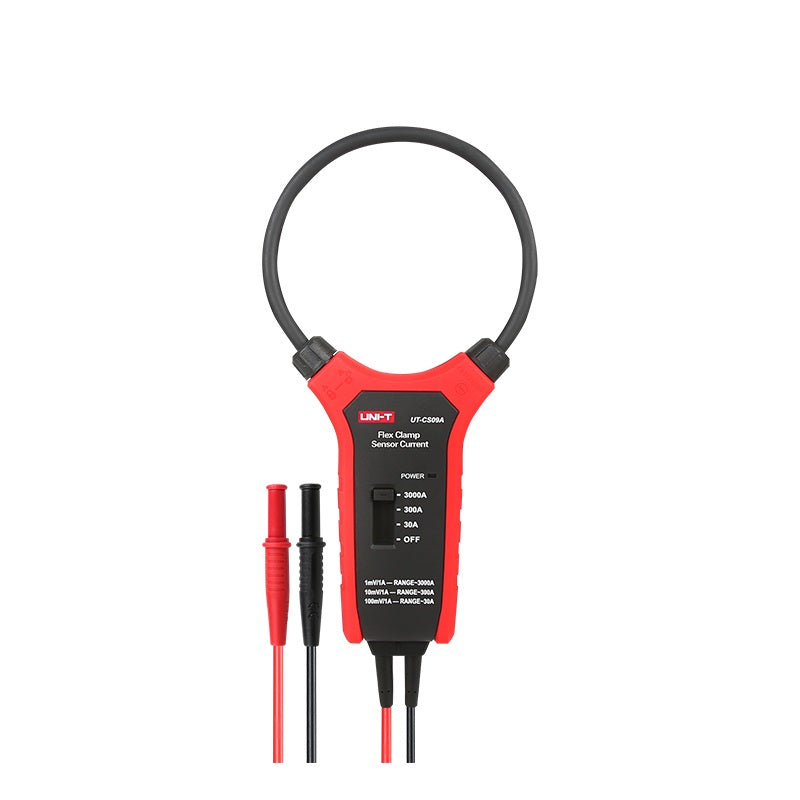

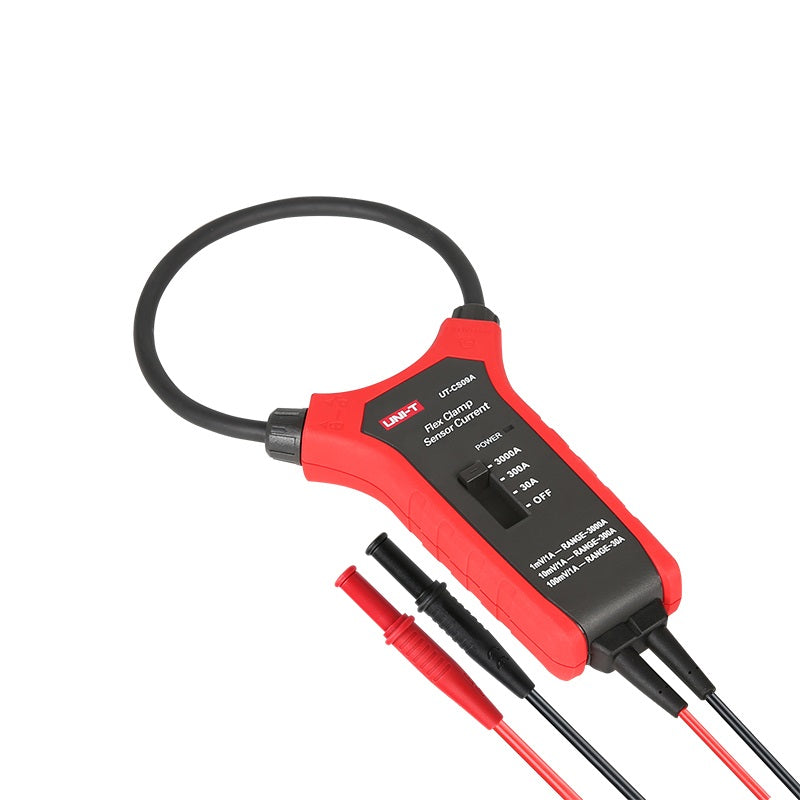

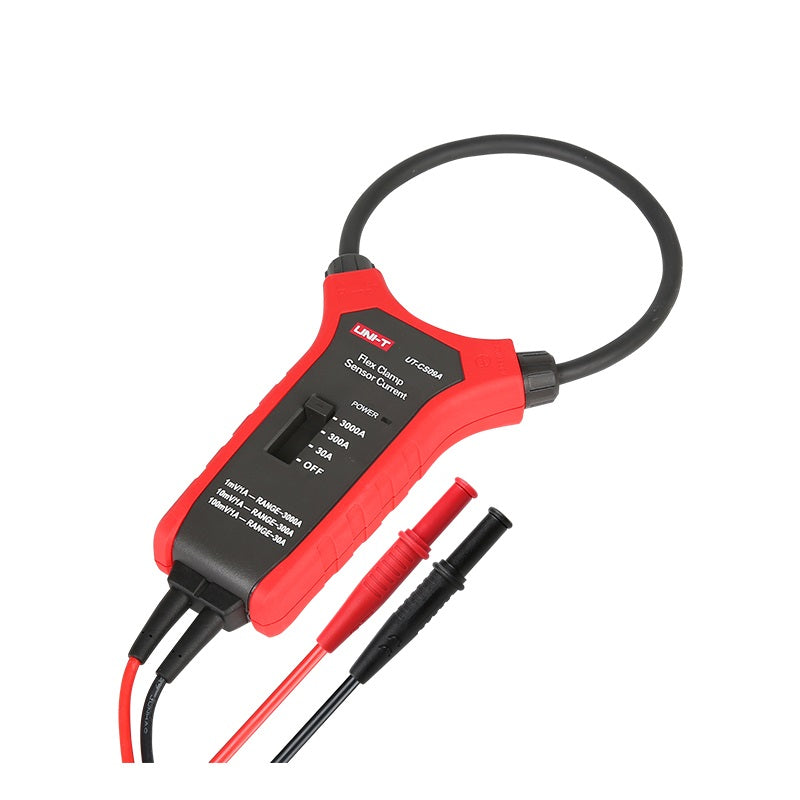

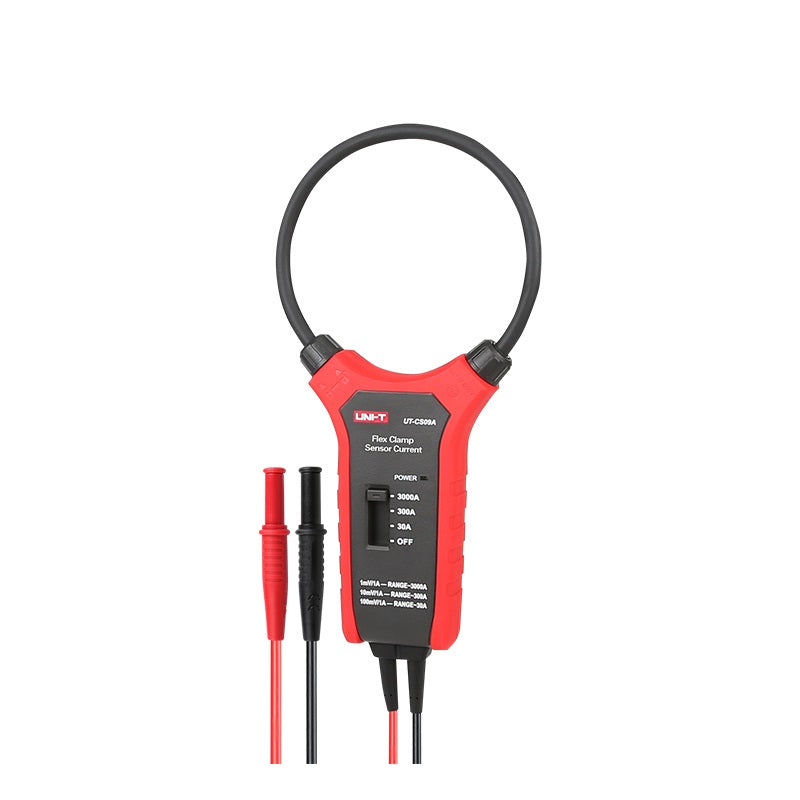

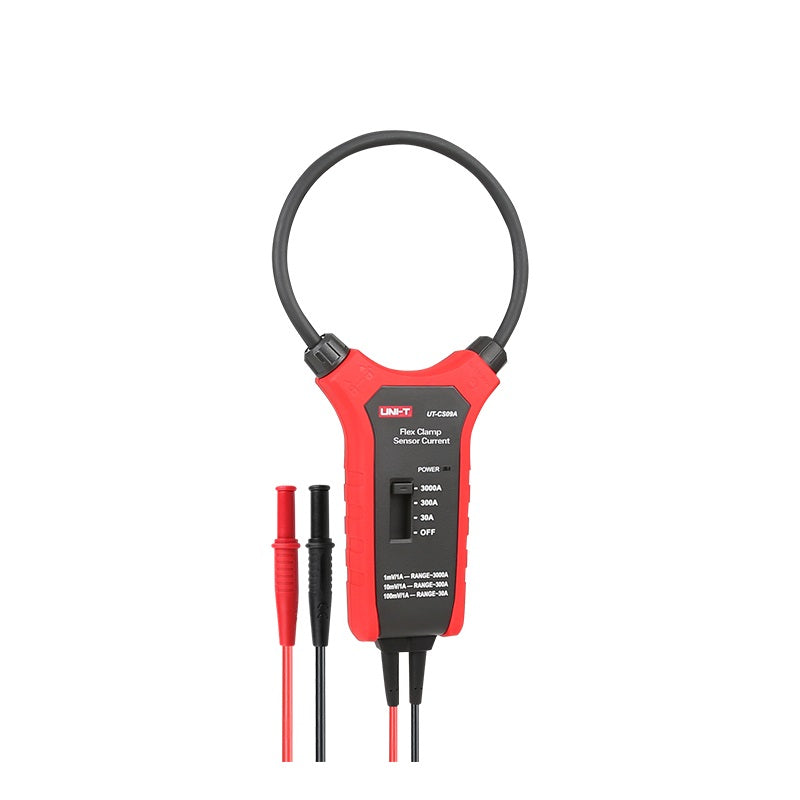

UT-CS09 series flex clamp sensor solves problems in measuring high current conductors in tight spaces. Its Rogowski coil based current sensor provides stable, safe, and high reliable measurements up to 3000A. This series’unique design and light weight feature make it a great choice for professional electricians. The UT-CS09A coil length is 25.4cm (10 inches), and UT-CS09C coil length is 45.7cm (18 inches).
1. Flex clamp can measure from 1.5A to 3000A current
2. 1m drop proof
3. Robust terminal connection
Specifications
Range
UT-CS09A
UT-CS09C
UT-CS09D
AC current (A)
30A/300A/3000A
±(3%+5)
±(3%+5)
±(3%+5)
Frequency response (Hz)
45Hz~500Hz
√
√
√
Features
Flex clamp size
UT-CS09A: 25.4cm (10 inches); UT-CS09C/D: 45.7cm (18 inches)
Operating temperature
0℃~50℃
Storage temperature
-20°C~60°C
Storage humidity
≤80%RH
Low battery indication
About 3.3V
Range selection
Manual
General Characterisitics
Power
1.5V battery (R03) x 3 (Not Included)
Product color
Red and grey
Product net weight
260g
Product size
267mm x 119.4mm x 34mm

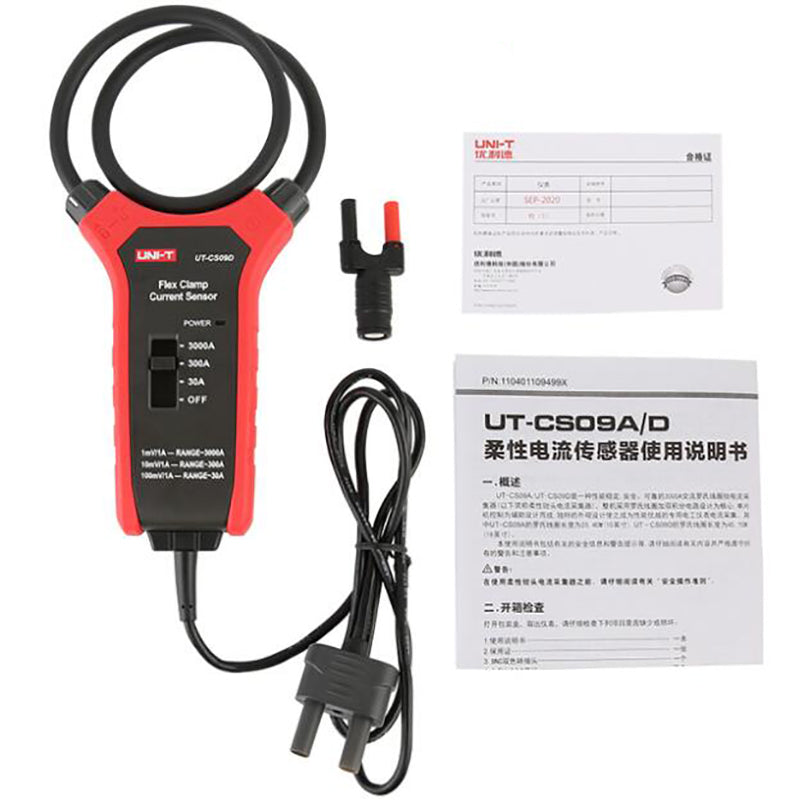

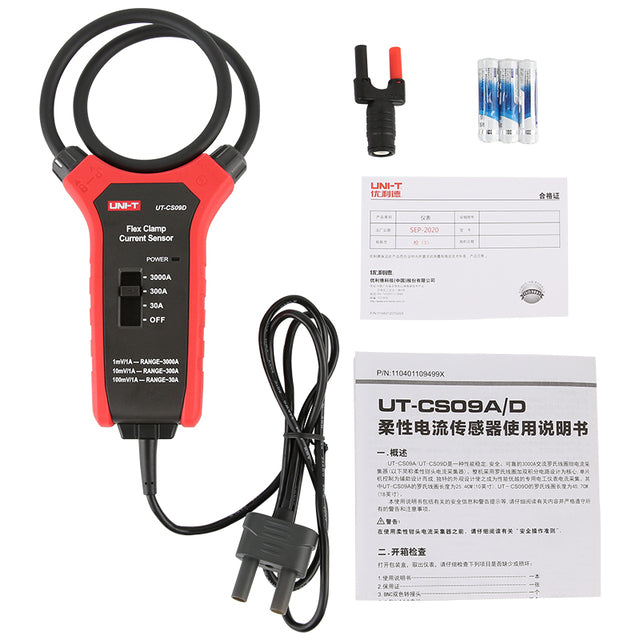

Standard accessories
Batteries, BNC adapter
Standard individual packing
Blister, English manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
