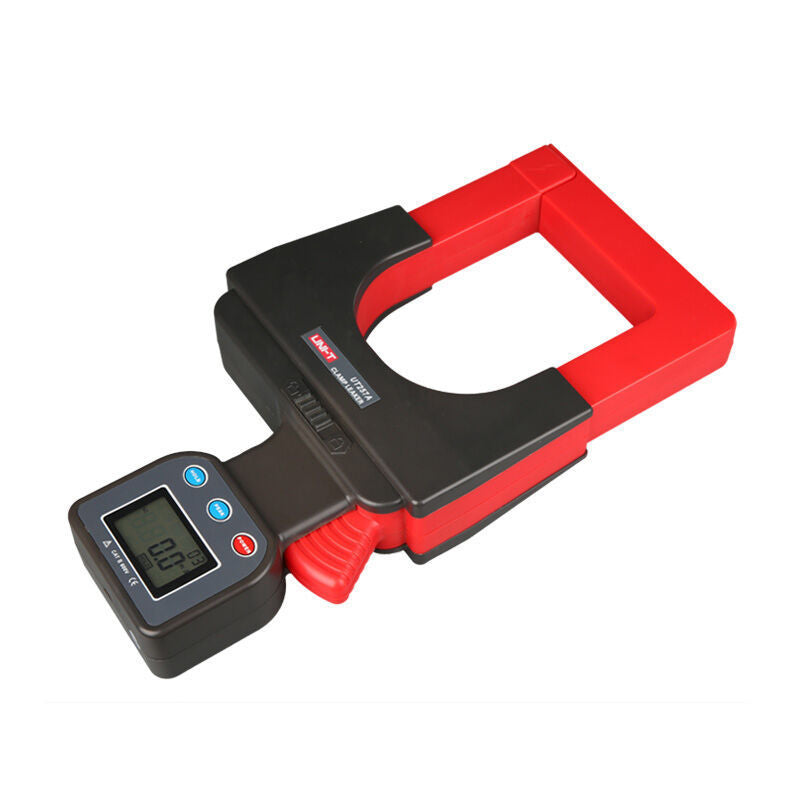

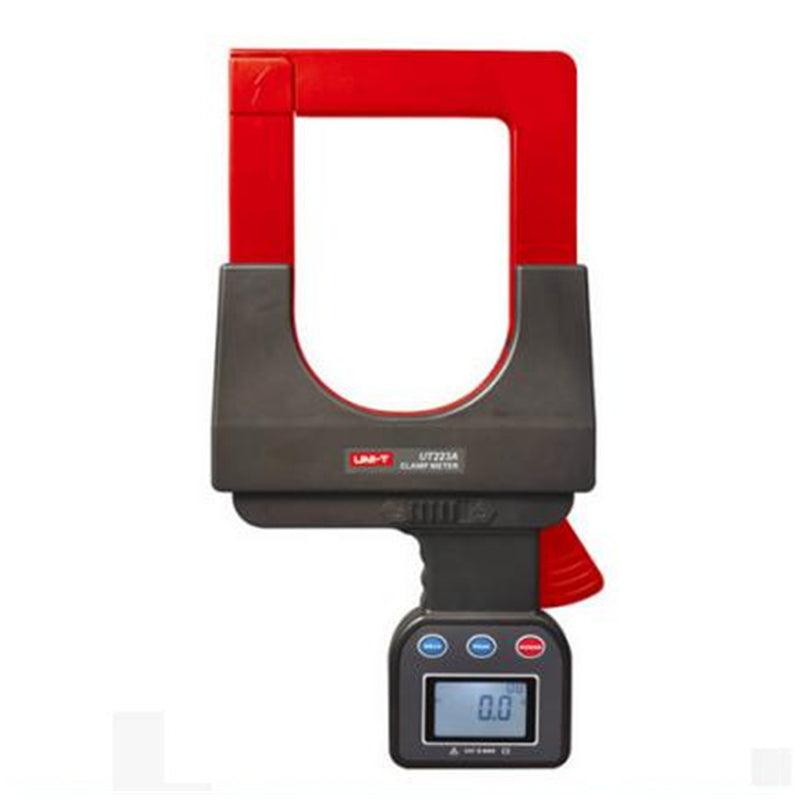

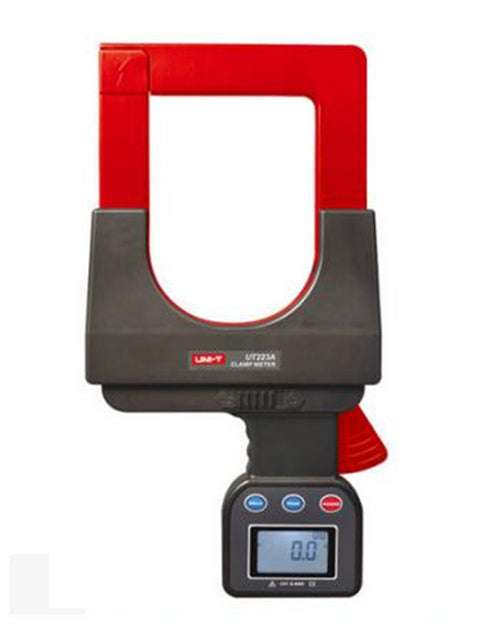

UNI-T UT223A Large Diameter Clamp Ammeter Meter Current Measurement Data Storage RS-232 LCD Backlight Overload Protection

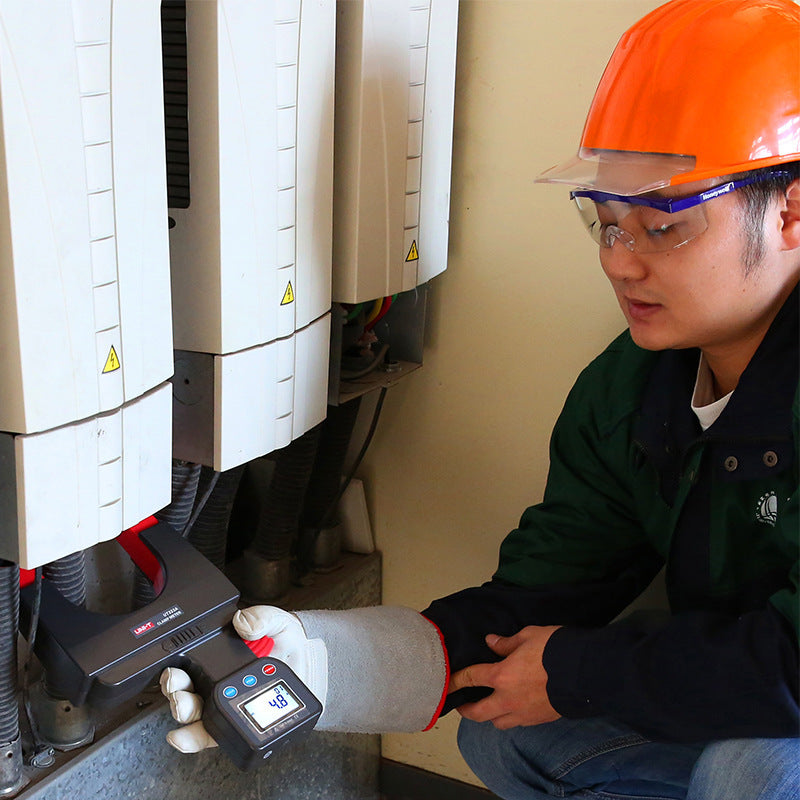

UT223A Large diameter clamp ammeters is well designed and manufactured for measuring AC leakage current, current, voltage, adopt the latest CT technology and digital integrated technology. Its large caliber 108mm×148mm can clamp electric.
Specification
Range
Best Accuracy
Model
UT223A
Current (A)
Range
0.0A~499A
±(2%+5)
500A~999A
±(3%+5)
1000A~2999A
±(4%+5)
3000A~4000A
±(5%+5)
Resolution
0.1A
Test Range
AC 0.A~4000A
√
Special Functions
Display Mode
Four Digits LCD Display
√
Clapm Size
108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires)
√
Auto Range
√
RS-232
√
Data Storage
99Groups
LCD Backlight
√
Date Hold
√
Overload Protection
OL
√
Auto Power Off
5Minutes
√
Low Battery Indication
≤5.2V
√
Test Model
Clamp CT, integral mode
√
General Characteristics
Power Supply

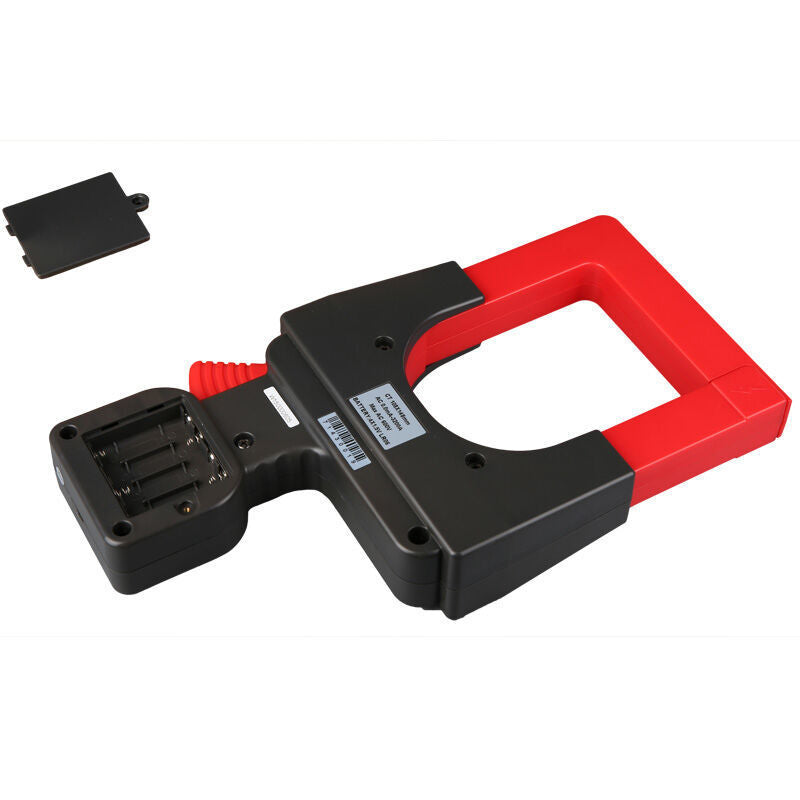

6V DC(LR6×4 alkaline dry batteries not included package)
LCD Size
47mm×28.5mm
Product Color
Red + Grey
Product Weight
1.5Kg(Included Batteries)
Product Size
350mm×180mm×55mm
Standard Accessaries

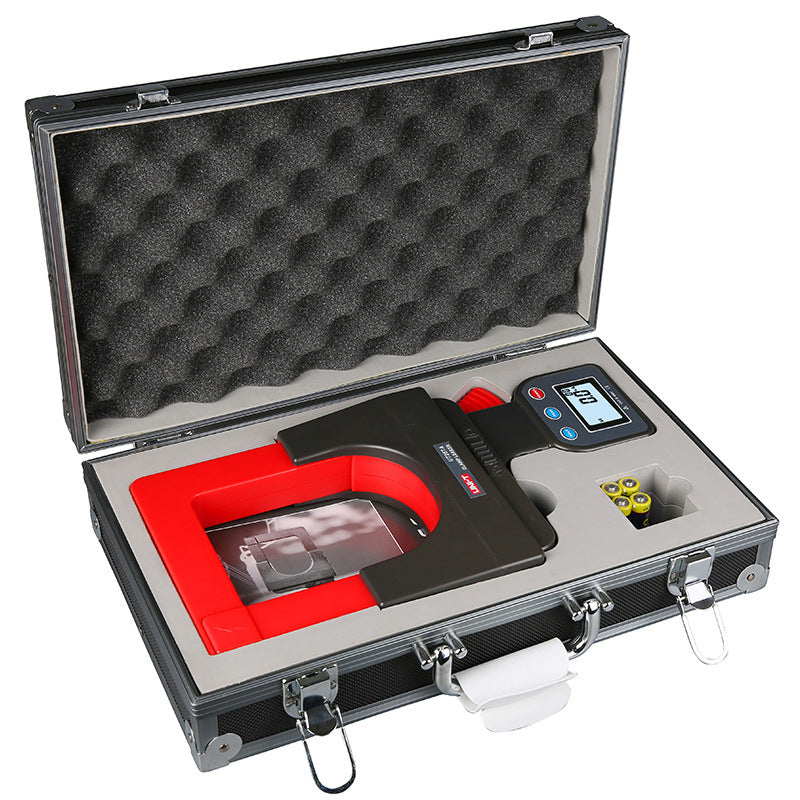

RS232 Interface Cable, Software CD, Toolbox
Standard Individual Packing
Gif Box, English Manual, Warranty Card
Standard Quatity Per Carton
4PCs
Standard Carton Measurement
564mm×428mm×270mm
Standard Carton Gross Weight
23.3Kg
