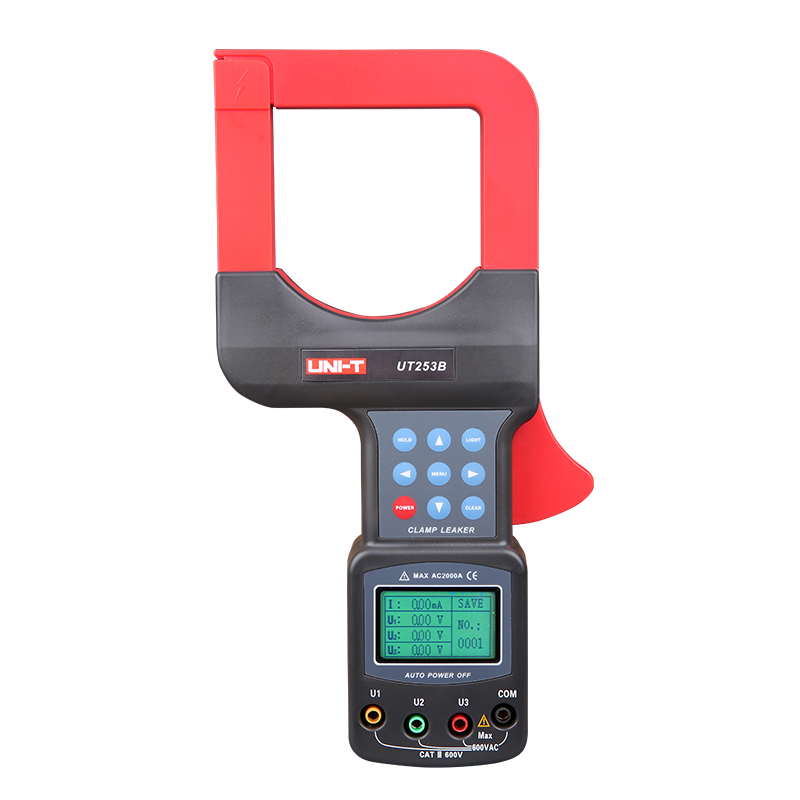

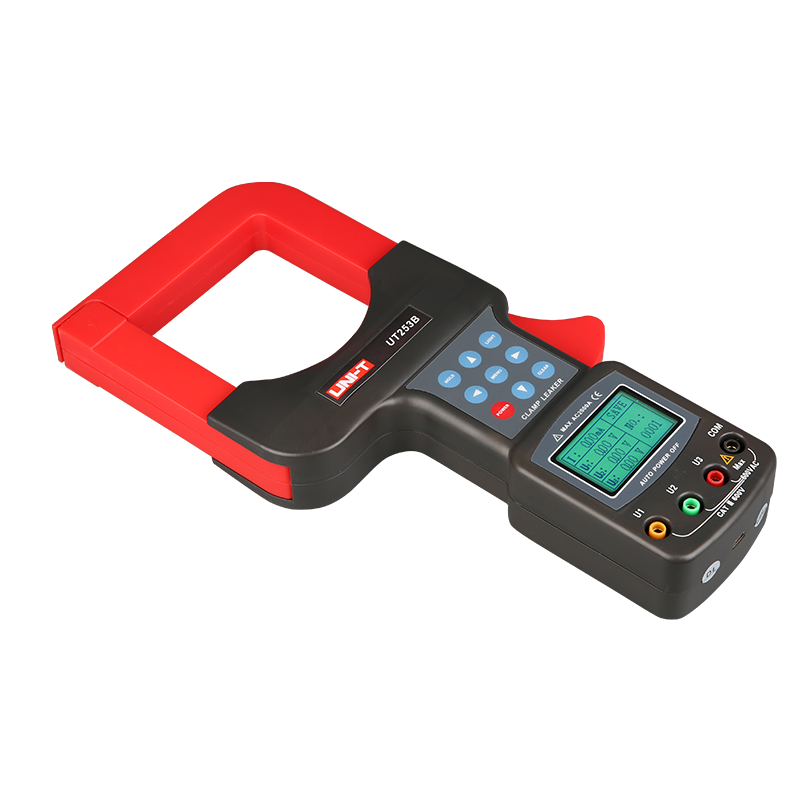

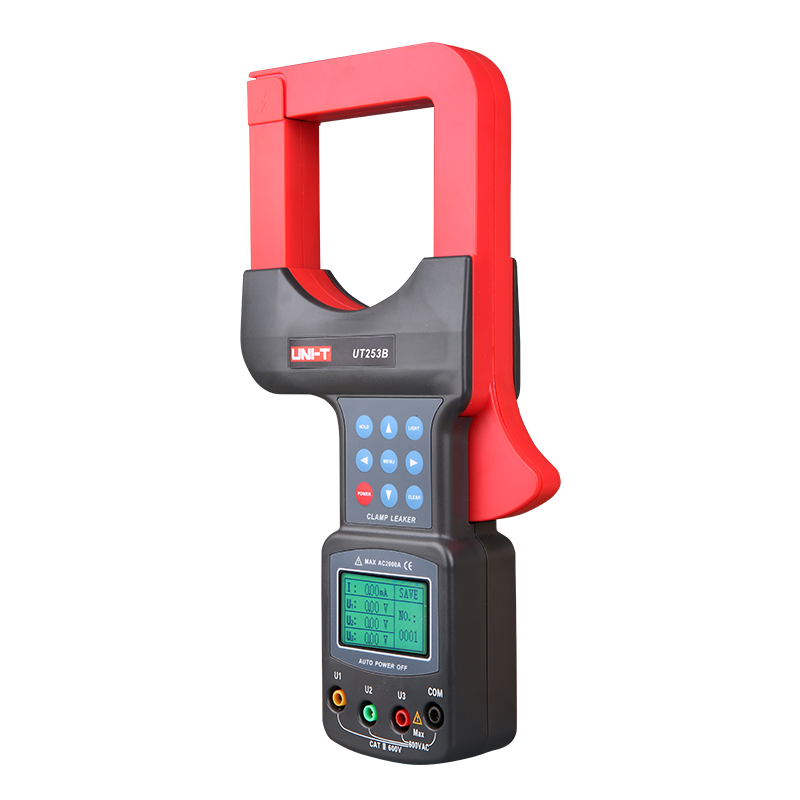

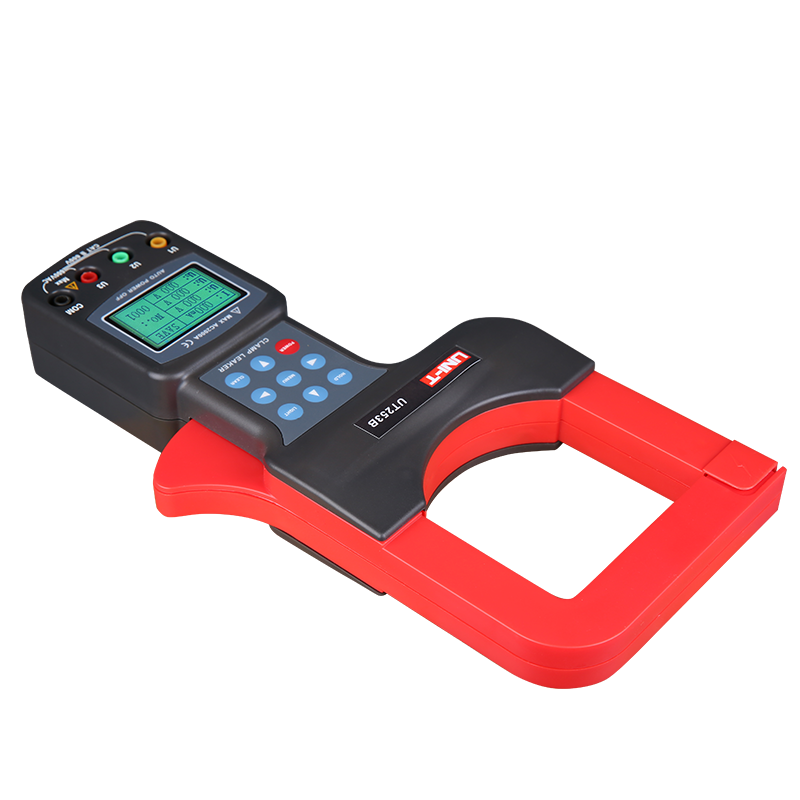

UNI-T UT253B Digital Handheld Large Jaws Leakage Current Clamp Tester
Parameter:
Specifications
Range
Best Accuracy
Model
UT253B
Leakage Current(A)
0.00mA-300A
(1.5%+3)
300A-1200A
(2%+3)
1200A-2000A
(3%+3)
Voltage(Freq.)
Resolution
0.1mA
AC Voltage (V)
Range
0.00V-600V
(1.5%+3)
Frequency
50Hz/60Hz
Resolution
0.01V
Features
Display Mode
LCD:128dots×64dots
Clamp Size
80mm×80mm
Auto Range
RS-232
Data Logging
200
LCD Backlight
Data Hold
Over-Range Display
OL
Auto Power Off
Around 15 Minutes
Low Battery Indication
5.2V
Test Mode
Clamp CT, Integral Approach
General Characteristic
Power
1.5V Alkaline Batteries(LR6)×4
LCD Size
43mm X 29mm
Product Color
Red and Grey
Product Net Weight
1000g
Product Size
275mm X 145mm X 40mm
Standard Accessories
Test Line: 4 pcs(3 red, 1 black),RS-232 Interface Cable,PC Software CD
Standard Individual Packing
Gift Box, English Manual,Tool Box
Standard Quantity Per Carton
6 PCs
Standard Carton Measurement
610mm X 375mm X 320mm (0.073CBM Per Standard Carton)
Standard Carton Gross Weight
25Kg
Contrast:
Specifications
Range
Best Accuracy
Model
UT253A
UT253B
Leakage Current(A)
0.00mA-300A
(1.5%+3)
(1.5%+3)
300A-1200A
(2%+3)
(2%+3)
1200A-2000A
(3%+3)
Voltage(Freq.)
Resolution
0.01mA
0.1mA
AC Voltage (V)
Range
0.00V-600V
(1.5%+3)
(1.5%+3)
Frequency
50Hz/60Hz
Resolution
0.01V
Features
Display Mode
LCD:128dots×64dots
Clamp Size
80mm×80mm
Auto Range
RS-232
Data Logging
200
200
LCD Backlight
Data Hold
Over-Range Display
OL
Auto Power Off
Around 15 Minutes
Low Battery Indication
5.2V
Test Mode
Clamp CT, Integral Approach
General Characteristic
Power
1.5V Alkaline Batteries(LR6)×4
LCD Size
43mm X 29mm
Product Color
Red and Grey
Product Net Weight
1000g
Product Size
275mm X 145mm X 40mm
Standard Accessories
Test Line: 4 pcs(3 red, 1 black),RS-232 Interface Cable,PC Software CD
Standard Individual Packing
Gift Box, English Manual,Tool Box
Standard Quantity Per Carton
6 PCs
Standard Carton Measurement
610mm X 375mm X 320mm (0.073CBM Per Standard Carton)
Standard Carton Gross Weight
25Kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
