Function
Range
Accuracy
Model UT265B
AC Current (A)
0.0mA~20.0A
±(1.5%+3)
AC Coltage (V)
0.00V~600V
±(1.5%+3)
Frequency (Hz)
45HZ~65HZ
±(2%+3)
Active Power (W)
0.0W~12kW
±(3%+3)
Apparent Power (VAr)
0.0VA~12kVA
±(3%+3)
Reactive Power (VA)
0.0VAR~12kVAR
±(3%+3)
Power Factor
-1~+1
±0.03
Phase Angle (°)
0.0°~360°
±1°
Current Vector Sum
0mA - 60.0A
√
Phase Sequence Measurement
U1 → U2 → U3 or I1 → I2 → I3 positive sequency; U3→ U2 → U1 or I3 → I2 → I1, reverse sequence
√
Special Features :
Display Mode
LCD: 240dots×160dots
√
Jaw Size
Tip-shaped current clamp: 7.5mm × 13mm (selection)
√
Round-shaped current clamp:35mm×40mm (selection)
Auto Range
√
RS-232 Data Transmission
√
Date Sorage
99
LCD Backlight
√
Data Hold
√
Input Impedance
≥2MΩ
√
Auto Power-Off
15 minutes
√
Low Battery Display
√
Sampling Rate
≥2 Seconds / Times
GENERAL CHARACTERISTICS :
Power
1.5V Alkaline Battery (5#)×6
Product Color
Red + Grey
Product Weight
550g
Product Size
196mm X 92mm X 54mm

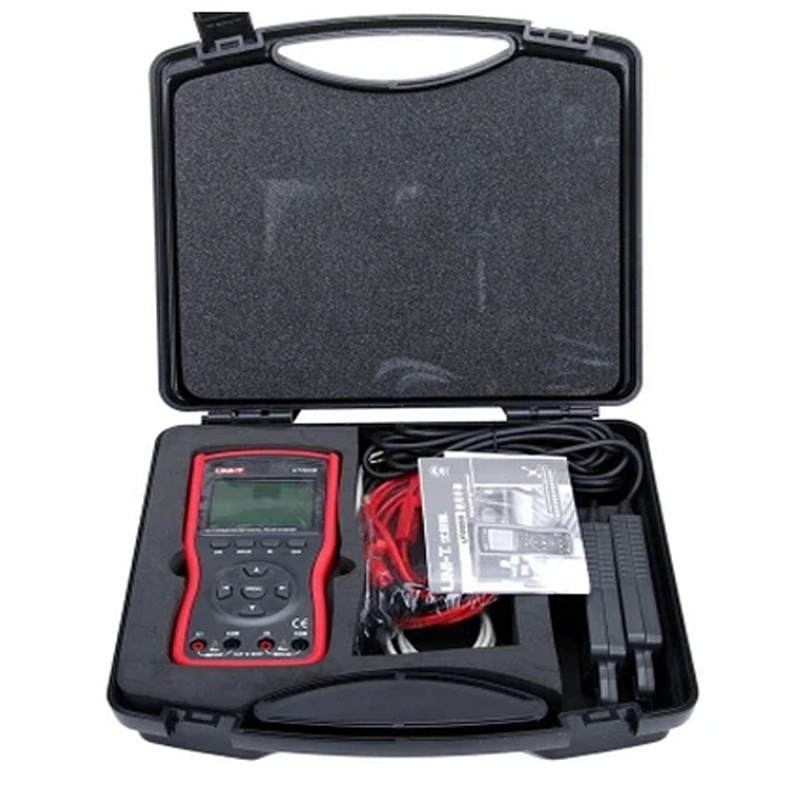

Standard Accessories
Battery, 3pcs x current clamp, 4pcs x test lead, CD, RS232 cable
Conform to:
CAT III 600V, CE, IEC:61010-1, IEC:61010-031, IEC:61326
The batteries not included package
