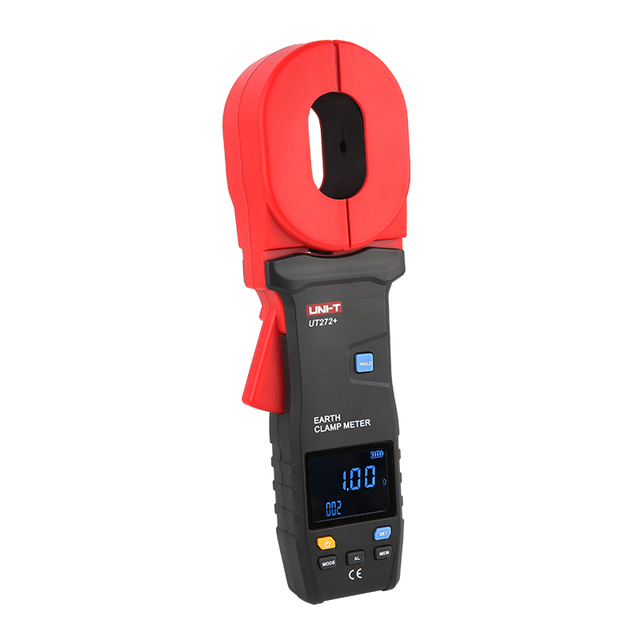

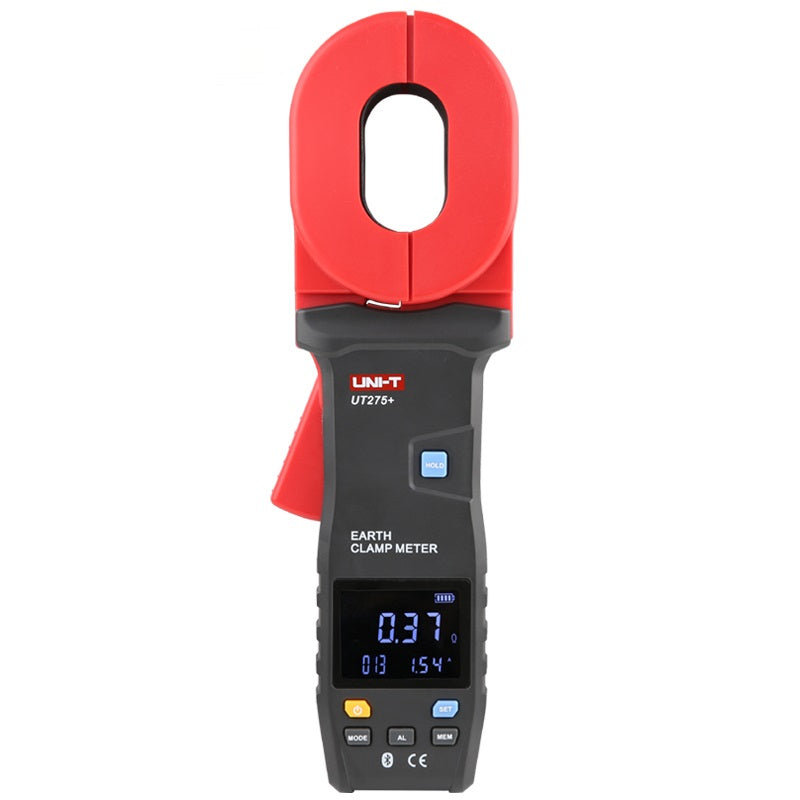

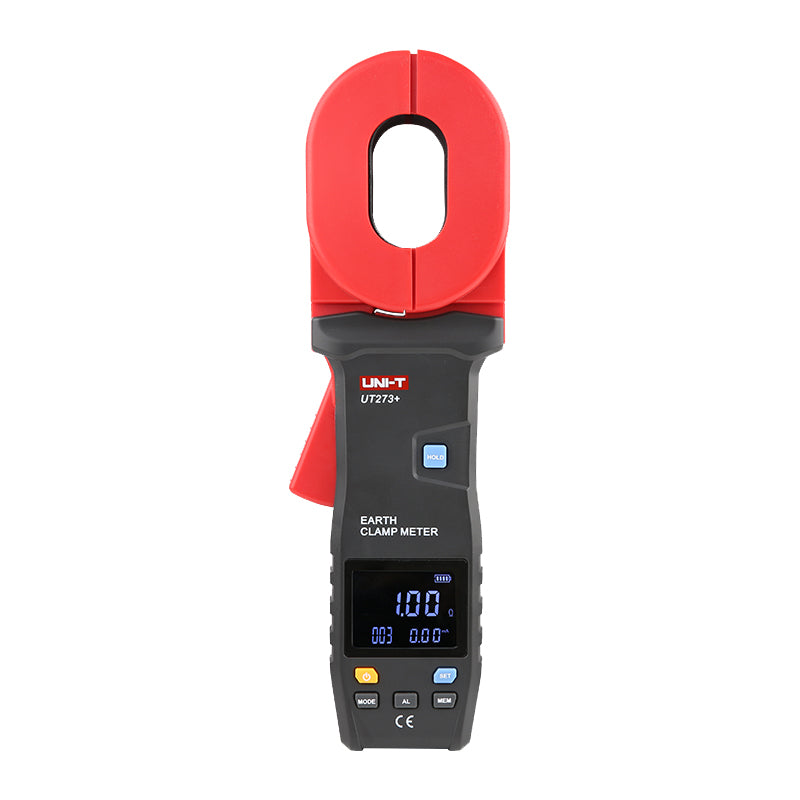

Tester/Clamp Ammeter USB Communication
Features：
Brand new black screen design, high-end luxury
55mm×32mm large jaws can test various grounding and busbars
Quick self-check function, no need to wait
Using fast filtering technology, strong anti-interference ability
Buzzer alarm function (settable)
500 sets of data storage

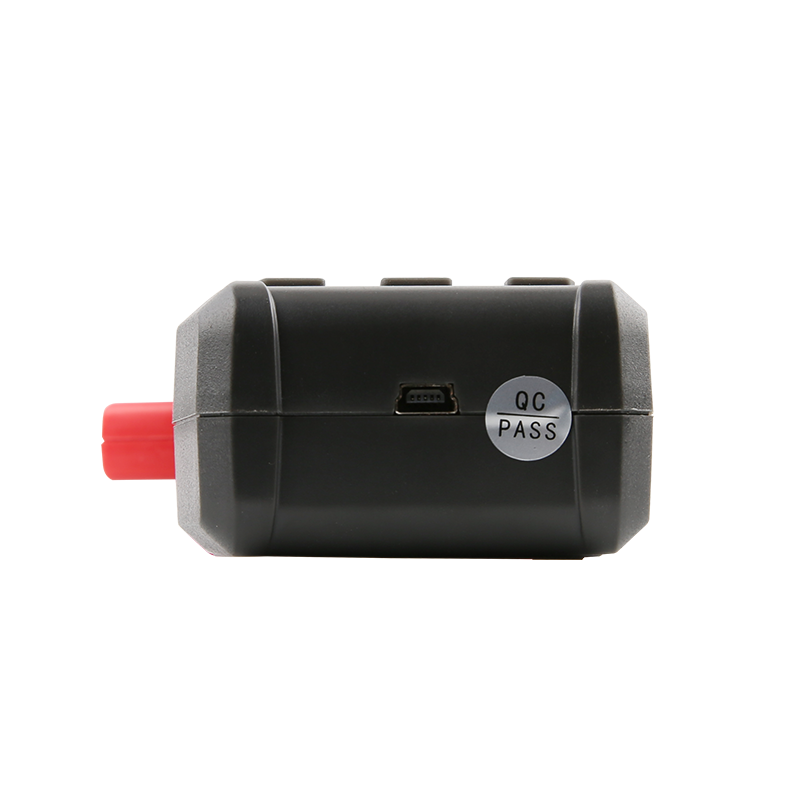

USB data transfer
Limit alarm function: quick measurement and evaluation
Specifications：
Function
Range
UT272+
UT273+
UT275+
Resistance
0.010-200Ω
0.010Ω-0.199Ω
±（1%＋0.02Ω）
±（1%＋0.02Ω）
±（1%＋0.02Ω）
0.20Ω-1.99Ω
±（1%＋0.05Ω）
±（1%＋0.05Ω）
±（1%＋0.05Ω）
2.0Ω-49.9Ω
±（1%＋0.5Ω）
±（1%＋0.5Ω）
±（1%＋0.5Ω）
50.0Ω-99.5Ω
±（1.5%＋1Ω）
±（1.5%＋1Ω）
±（1.5%＋1Ω）
100Ω-199Ω
±（2%＋2Ω）
±（2%＋2Ω）
±（2%＋2Ω）
200Ω-395Ω
±（5%＋5Ω）
±（5%＋5Ω）
400-590Ω
±（10%＋10Ω）
±（10%＋10Ω）
600Ω-880Ω
±（20%＋20Ω）
900Ω-1000Ω
±（25%＋30Ω）
Current
1.00mA -9.99mA
±（2.5%＋1mA）
±（2.5%＋1mA）
10.0mA -99.9mA
±（2.5%＋5mA）
±（2.5%＋5mA）
100mA -999mA
±（2.5%＋10mA）
±（2.5%＋10mA）
1.00A-9.99A
±（2.5%＋0.2A）
±（2.5%＋0.2A）
10.0A-20.0A
±（2.5%＋0.5A）
±（2.5%＋0.5A）
Bluetooth
Have
USB Interface Data Transmission USB
√
Work Ability
Ground Resistance Test, Loop Resistance Test、
Ground Resistance Test, Loop Resistance Test,
Leakage Current Test
Ground Resistance Test, Loop Resistance Test, Leakage Current Test
Electricity
Source

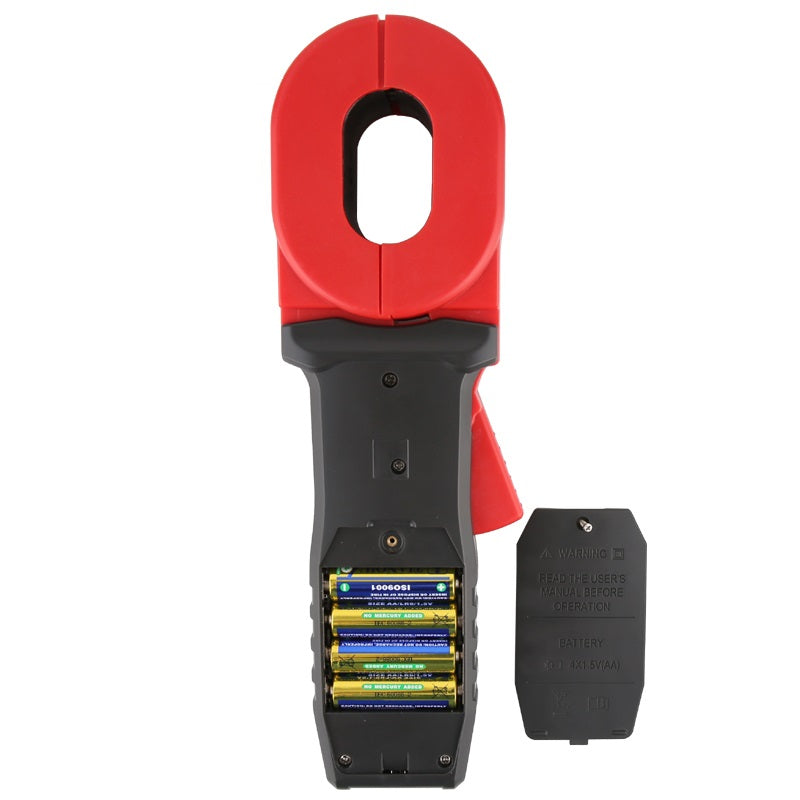

DC 6V (4 AA Alkaline Batteries)
Jaw size
55mm×32mm
Display mode
4-digit LCD Display, Black Screen Design
LCD Size
46mm×36mm
Instrument
Size
Length, Width and Height: 285mm×85mm×58mm
Communication Line
USB Communication Line 1
Data
Storage
500 Groups,
Alarm
Function
When the Measured Value Exceeds the Alarm Setting Value, An Alarm will be Issued
Battery
Voltage
Real-time Battery Level Display
Automatic
Shutdown
Can be Set to 5, 10, 15, 20 Minutes,
