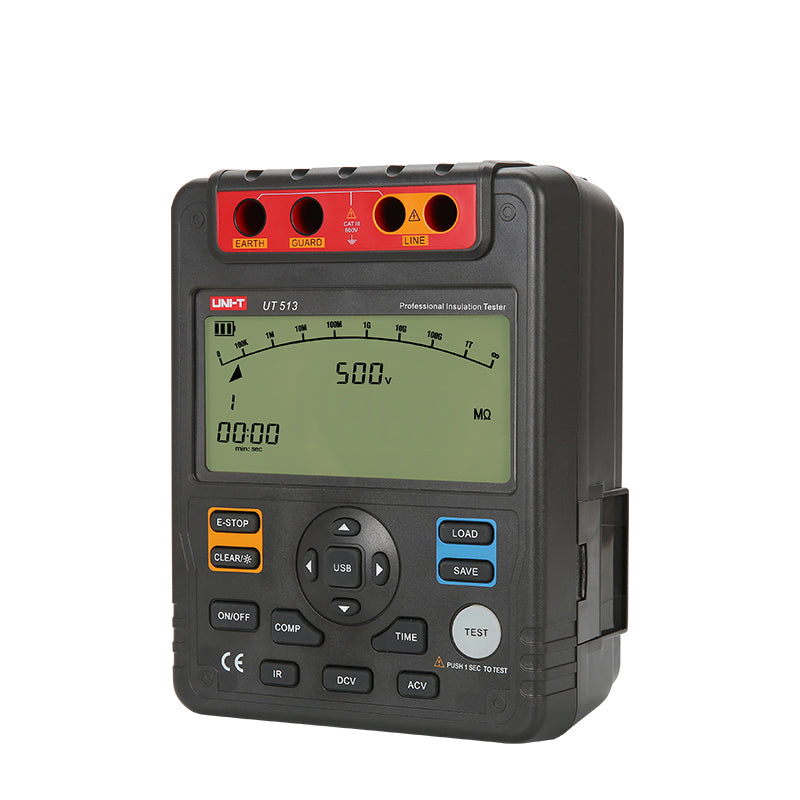

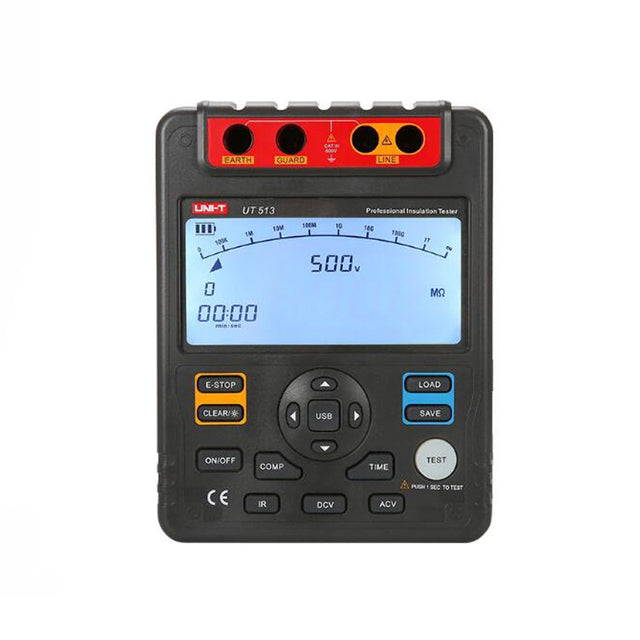

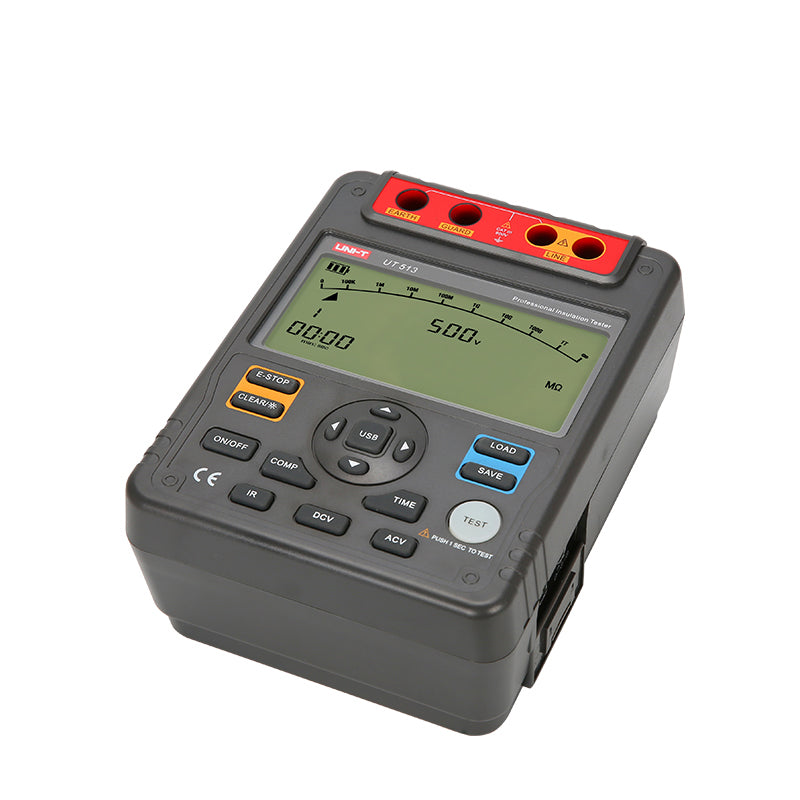

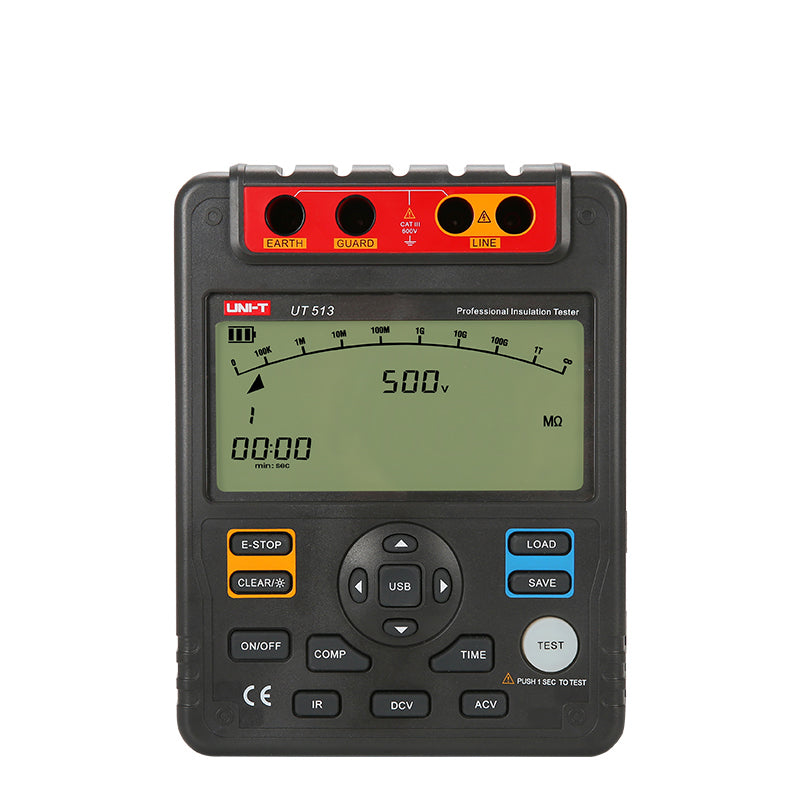

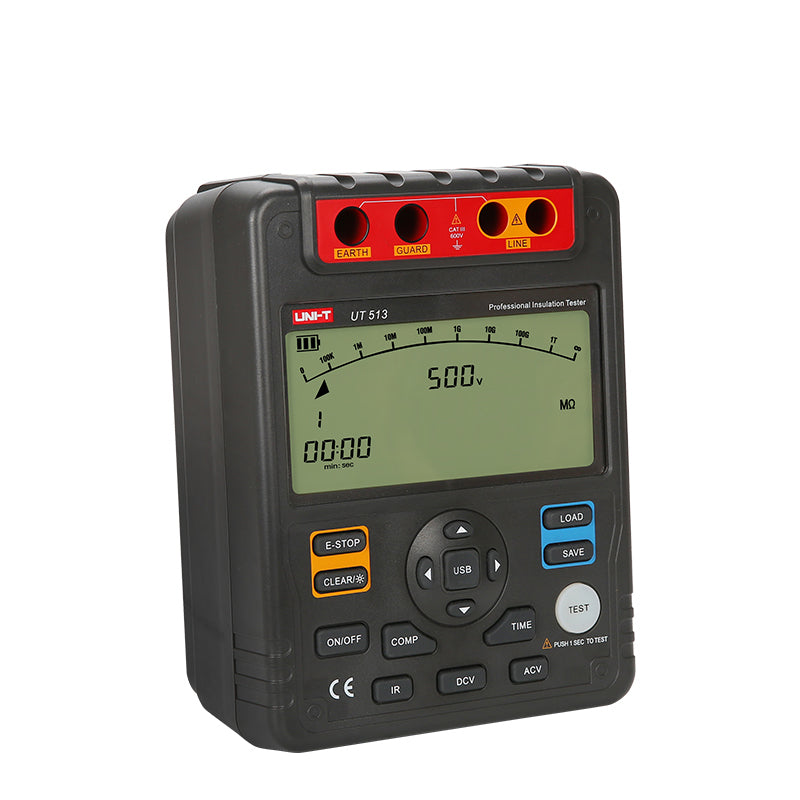

UNI-T UT513 Digital Insulation Resistance Tester Test Meter Megger 1M-1000G OHM
5000V USB Interface
Features:
1. PI/DAR measurements
2. Comparison, upper and lower limit functions
3. Continuous measurement mode
4. Auto power off
5. 18-group data storage
6. Backlight
7. Auto current discharge and high-voltage output
8. Power adapter
9. Time measurement mode, auto measure within 15 minutes
10. USB interface and PC software
11. Low battery and over range indications
Specifications:
Specifications
Range
UT511
UT512
UT512A
UT513
UT513A
Insulation Resistance (Ω)
Test voltages
100V~1000V
0%~10%
500V~2500V
0%~20%
500V~5000V
0%~20%
0%~20%
100V
0.1MΩ~500MΩ
±(3%+5)
250V
0.5MΩ~2GΩ
±(3%+5)
500V
1MΩ~4GΩ
±(3%+5)
0.5MΩ~5GΩ
±(3%+5)
0.5MΩ~20GΩ
±(3%+5)
±(3%+5)
1000V
2MΩ~10GΩ
±(3%+5)
±(3%+5)
1MΩ~40GΩ
±(3%+5)
±(3%+5)
1500V
5MΩ~20GΩ
±(3%+5)
2500V
2.5MΩ~100GΩ
±(3%+5)
±(3%+5)
10MΩ~100GΩ
±(3%+5)
5000V
5MΩ~1000GΩ
±(3%+5)
±(3%+5)
DC Voltage (V)
1000V
±(2%+3)
600V
±(2%+5)
±(2%+3)
±(2%+3)
AC Voltage (V)
750V
±(2%+3)
600V
±(2%+5)
±(2%+3)
±(2%+3)
Short-circuit Current
<2mA
<1.8mA
>2mA
>3mA
Low Resistance (Ω)
0.1Ω~999.9Ω
±(1%+3)
General Characterisitics
Power
1.5V battery (LR14) x 8 (Battery Not Included )
Display
123mm x 58mm
The batteries not included package
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
