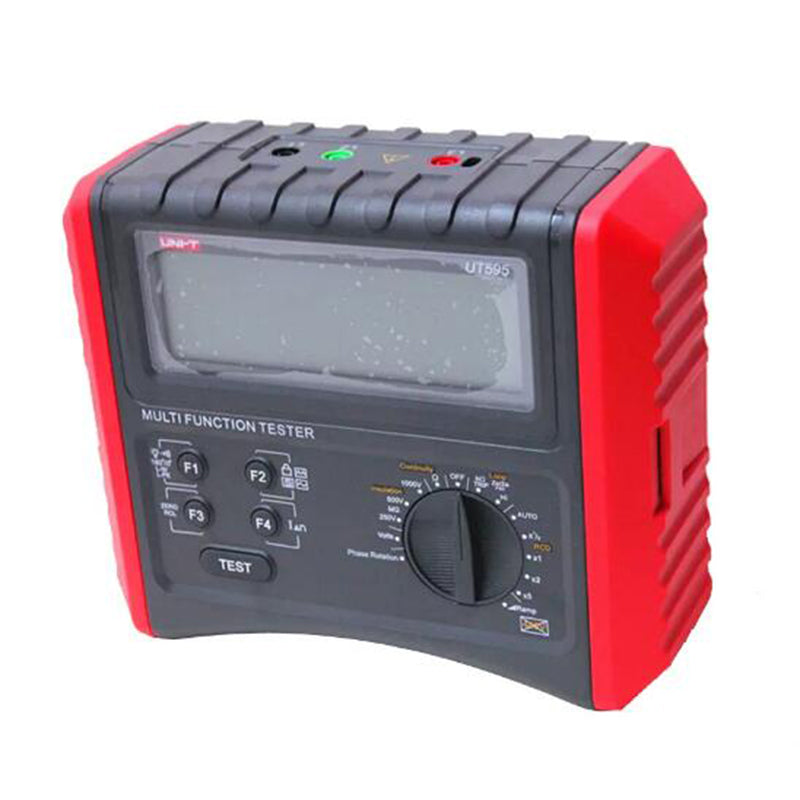

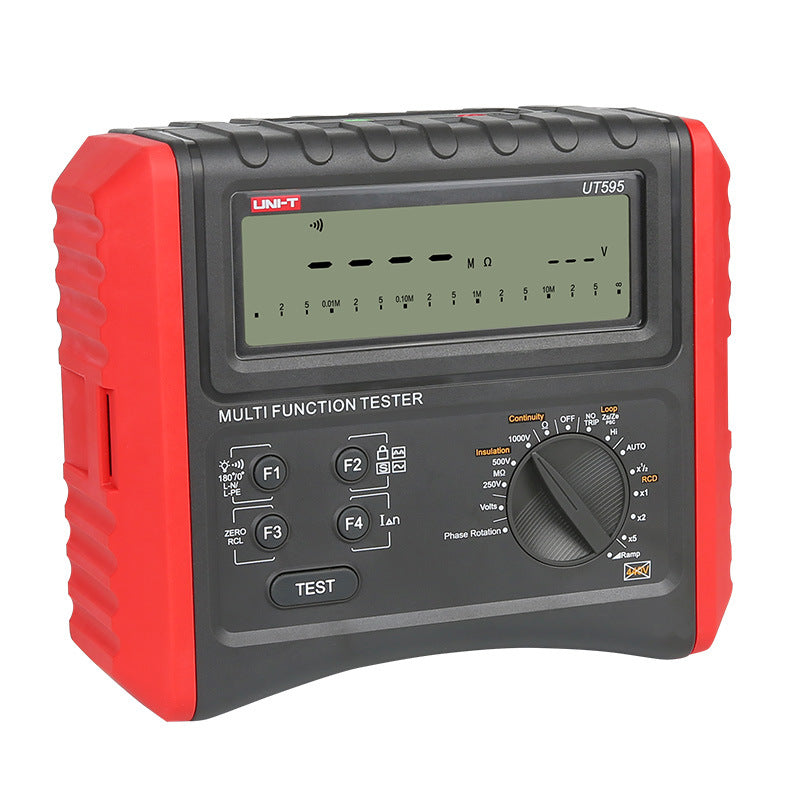

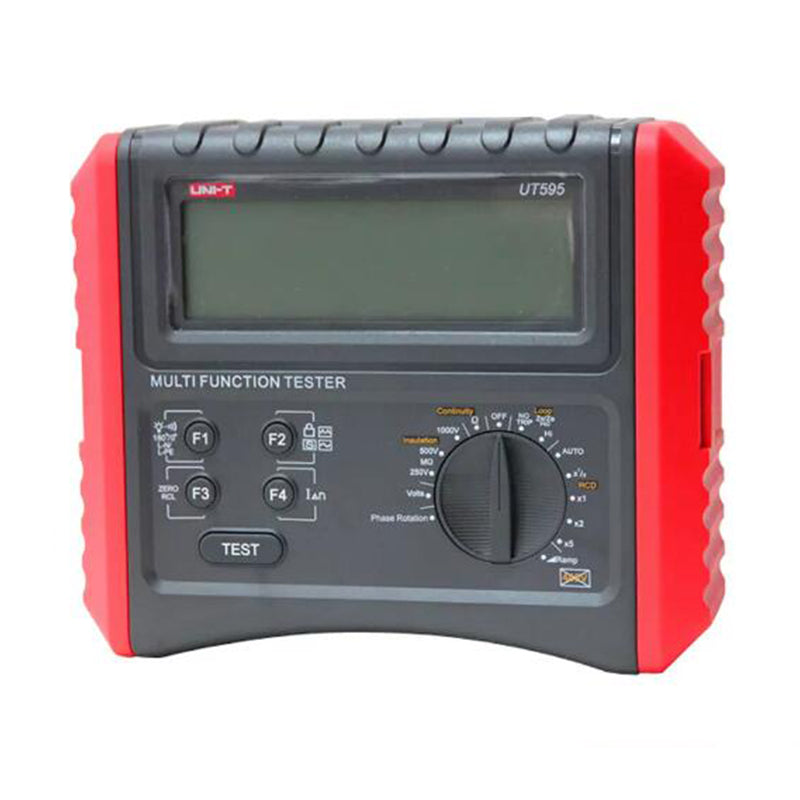

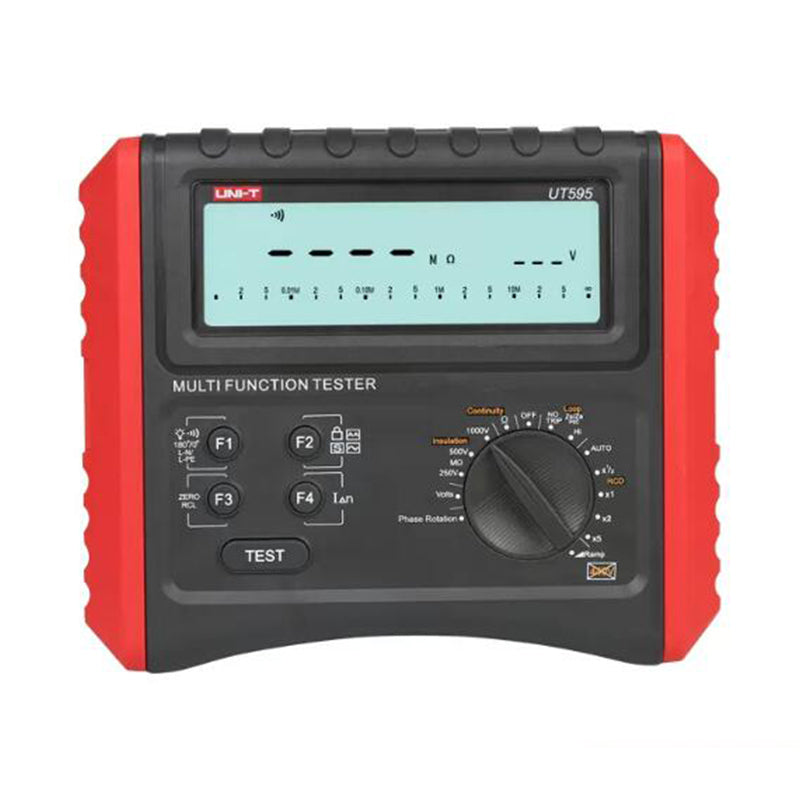

UNI-T UT595 Multifunction Loop Testers Earth Ground Line Loop Impedance

Tester Insulation Resistance Meter w/RCD Protection

   Description:

   UT595 is a kind of comprehensive digital multifunctional electrical safety test instrument. The overall instrument adopts new design as well as large-scale integrated analogy circuits, digital circuits and microcomputer chip combination. It is mainly used to complete measurement of parameters including (RCD) electric leakage protector, loop circuit/line impedance, grounding continuity test, test insulation resistance, DC voltage, AC voltage and phase sequence judgment; it has more functions, higher accuracy and stable performance as well as it is reliable and convenient for operation. It is applicable to measuring (RCD) electric leakage protector, measuring insulation of various electrical equipment and grounding continuity test. UT593/UT595 is your ideal choice for maintenance, test and inspection on electric protector of various electrical equipment.

 Specifications:

          Functions

    Range

    Accuracy

          Open circuit output

voltage

    250V

    +-10%

          500V

          1000V

          Short circuit current

    2mA

          Insulation Resistance

Measurement

    250V

    0.01M ohm

    0.05M ohm to 1000M ohm: 5%+5

          0.1M ohm

          1M ohm

          500V

    0.01M ohm

          0.1M ohm

          1M ohm

          1000V

    0.01M ohm

          0.1M ohm

          1M ohm

          Grounding (Earthing)

continuity measurement

    Range

    0.00 ohm-199 ohm;+-2%+5

          0.00-2 ohm, testing current is more than 200mA

          Line impedance

    Applied

voltage

    195V-440V,Frequency: 45Hz-65Hz;

Testing current:20A

          Range

    0.01 ohm-2000 ohm: 5%+5;

PSC: 0KA-26KA.

          Loop impedance

    Applied

voltage

    195V-253V,Frequency: 45Hz-65Hz;

Testing current: 20A

          Range

    0.01 ohm-2000 ohm: 5%+5;

PFC: 0KA-26KA.

          Loop impedance without

tripping

    Applied

voltage

    195V-253V,Frequency: 45Hz-65Hz;

Testing current: 20A

          Range

    1.00 ohm-2000 ohm: 5%+5;

PFC: 0KA-26KA.

          Testing current

    15mA

          RCD measurement

    Applied

voltage

    195V-253V,Frequency: 45Hz-65Hz;

          Testing current

    10mA,30mA,100mA,300mA,500mA

          Accuracy of

testing current

    +-10%

          Tripping time

    0ms--2000ms, 1/2 delta n

          0ms--300ms, I delta n General

          0ms--500ms, I delta n Selective

          0ms--300ms, 2I delta n Selective

          0ms--40ms, 5I delta n

          Accuracy of

tripping timee

    +-5%+5

          RAMP Slope RCD

measurement

    Test current

range

    10mA,30mA,100mA,300mA,500mA

          Accuracy of test current

    +-10%

          Phase consequence

measurement

    Display:

    As per the sequency: L1→ L2→ L3 foreward; L1→ L3→ L2 reserved.

          Applied

voltage

    100V-440V,frequency: 45Hz-65Hz.

          Voltage measurement

    Range and

frequency

    Resolution: 1V

    0V--440V/45Hz-60Hz

          Accuracy

    +-5%+2

          Special functions

          AUTO half-wave test

    √

          RCD Coundown test

    30 seconds

          RCD half-wave test

    √

          RCD 0°& 180°

measurement

    √

          Data storage

    √

          Back light

    √

          Power off automatically

    √

          Low voltage display

    √

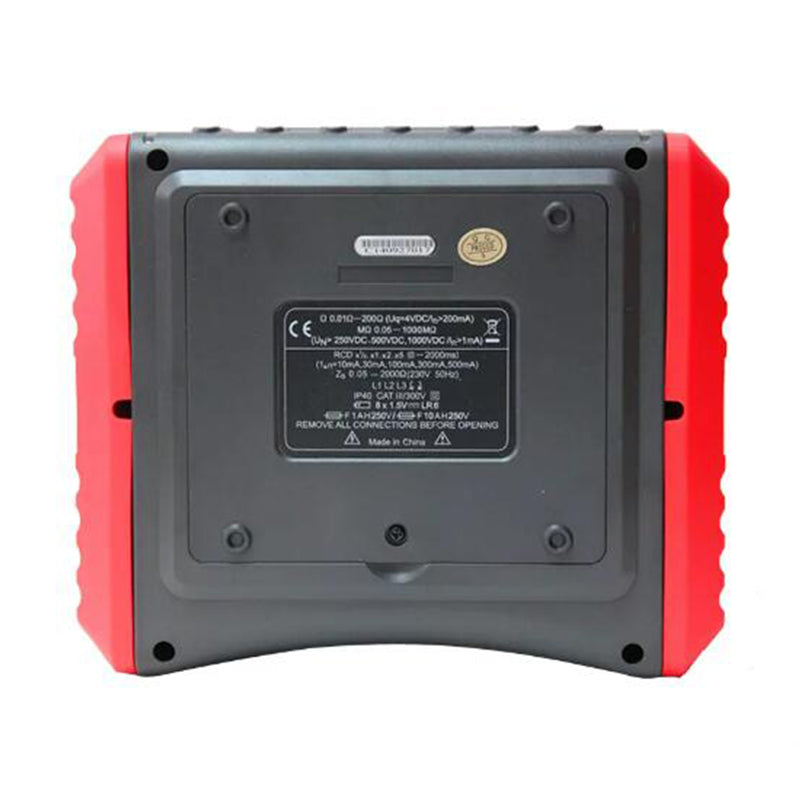

          General

          Power supply

    1.5V battery x 8(not included)

          LCD size

    125mm x37mm

          Color

    red and grey

          Weight

    4kg

          Meter size

    210mm x 175mm x 90 mm

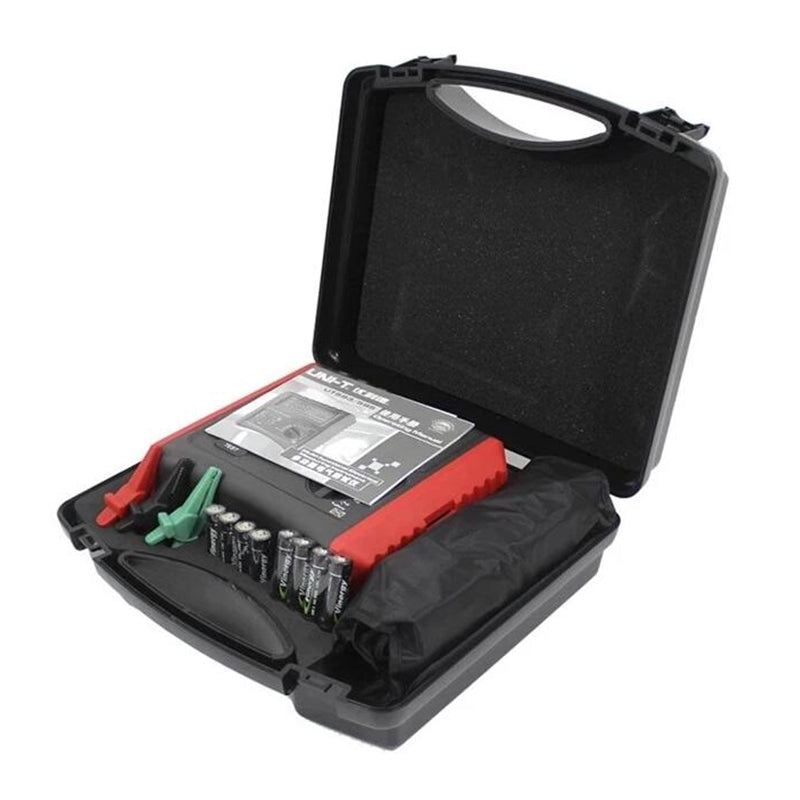

          Accessories

    Test leads(red,green, black), electrical lead,far-end test control lead, case.
