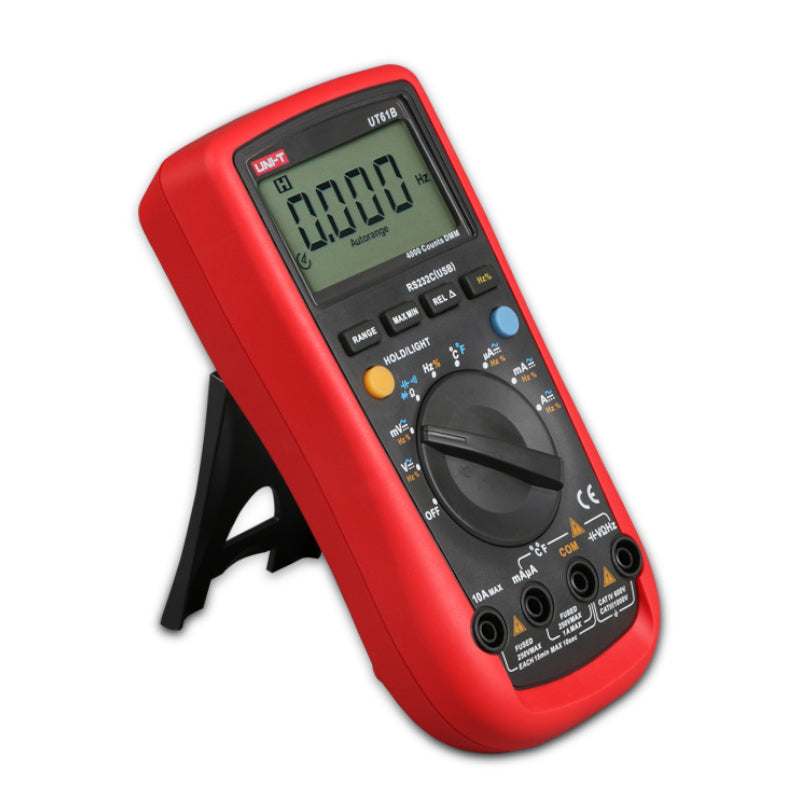

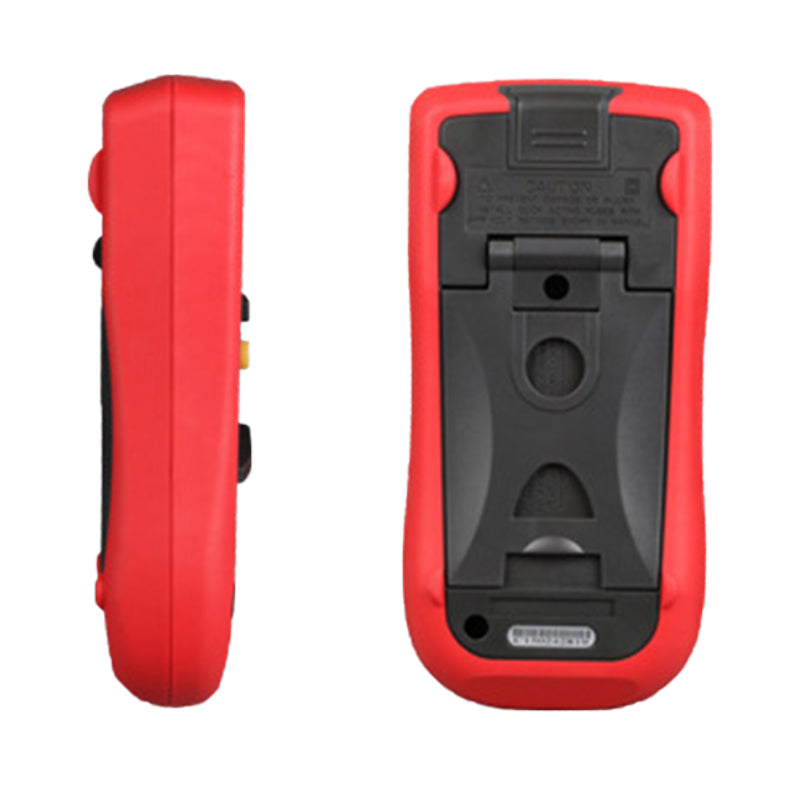

UNI-T UT-61B Modern Digital Multimeters UT61B AC DC Meter
UT61 series complies with CE, ETL, and GS standards. This series is all auto range with selectable True RMS models (UT61D/E). This series has an abundant of features and is combined with high safety rating of CAT IV 600V. It is suitable for advanced electronics and electrical users.
Features：
1. Auto Range
2. MAX/MIN/REL Mode
3. Auto Power Off
4. LCD Backlight
5. RS-232 and USB Interface
6. Analog Bar Graph
7. Low Battery Indication
8. K-type Temperature Probe
9. Diode/Continuity Buzzer
10. Data Hold
11. Input Protection
Specifications：
Basic Functions
Range
Best Accuracy
DC Voltage
40mV/400mV/4V/40V/400V/1000V
(0.5%+1)
AC Voltage
40mV/400mV/4V/40V/400V/750V
(1.0%+3)
AC Current
400mA/4000mA/40mA/400mA/4A/10A
(1.2%+5)
DC Current
400mA/4000mA/40mA/400mA/4A/10A
(1.0%+2)
Resistance
400W/4kW/40kW/400kW/4MW/40MW
(1.0%+2)
Capacitance
40nF/400nF/4mF/40mF/400mF/4000mF
(3.0%+5)
Frequency
10Hz-10MHz
(0.1%+4)
Frequency Response
0
45~400Hz
Duty Cycle
0.1%~99.9%
Temperature (°C)
-40°C~1000°C
(1.2%+3)
Temperature (°F)
-40°F~1832°F
(1.2%+4)
Special Functions
Auto/Manual Ranging
Diode
Continuity Buzzer
Data Hold
Max/Min Mode
Display Backlight
REL
Sleep Mode
Around 15 Minutes
Analogue Bar Graph
41
RS232
Input Protection
Input Impedance for DC Voltage Measurement
Around 10MW
Low Battery Display
≤7.5V
Max Display
4000
GENERAL CHARACTERISTICS
Power
9V Battery (6F22)
x 1 not included
LCD Size
65 x 43mm
Product Colour
Red and Grey
Product Net Weight
370g
Product Size
180 x 87 x 47mm
Standard Accessories
Test Lead, Manual, Multi-Purpose Socket
RS232 Interface Cable, Software, Point Contact Temperature Proble
Optional Accessories*
USB Interface Cable
