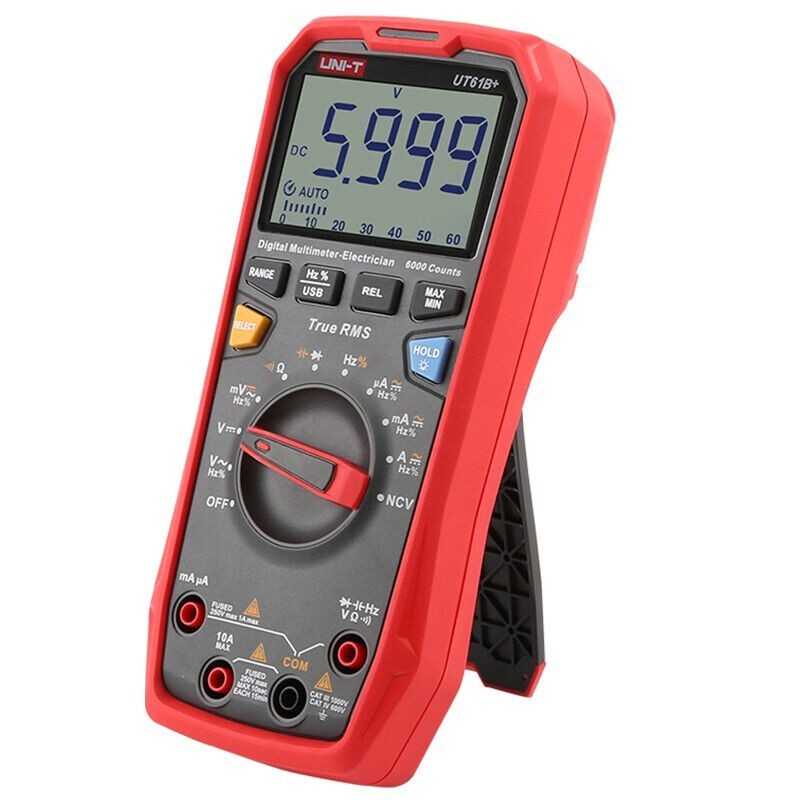

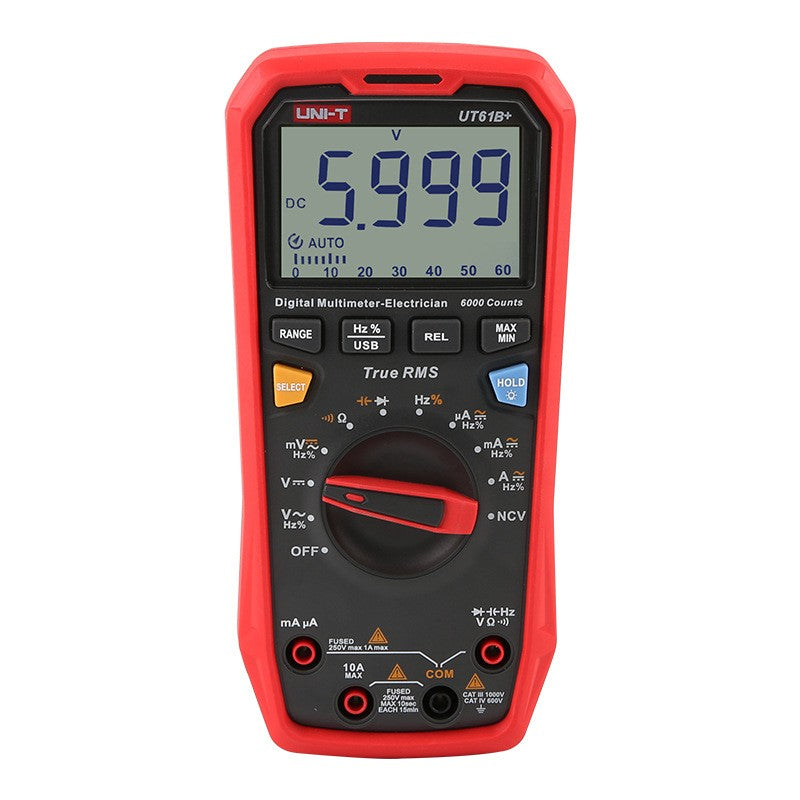

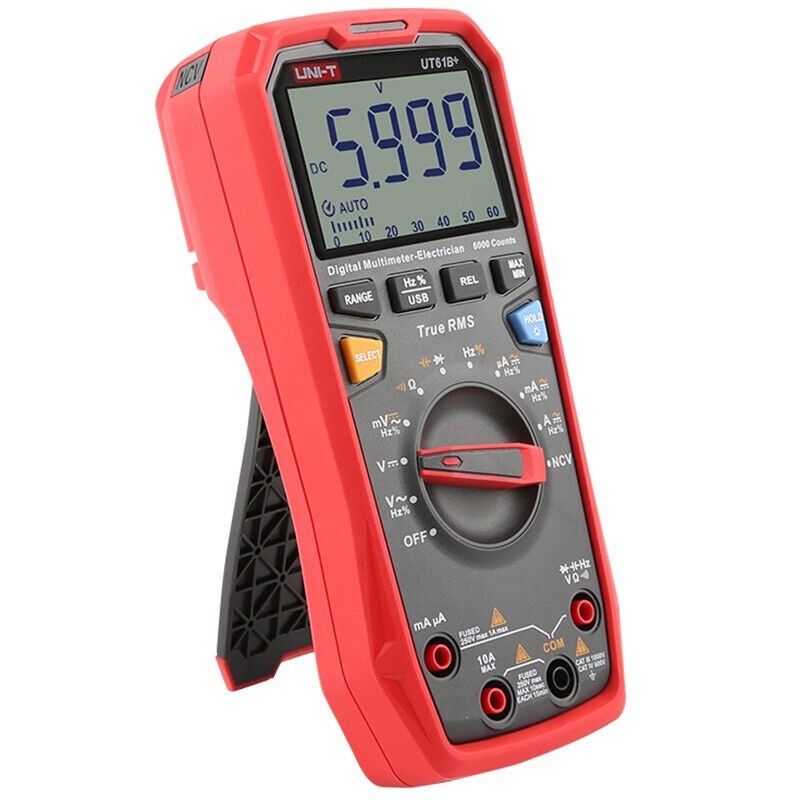

UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold
Models & Comparison:
Specifications
Range
UT61B+
UT61D+
UT61E+
Certifications
(UT161 Series only)
CE/RoHS/cETLus
Safety Ratings
CAT III 1000V/CAT IV 600V
AC Voltage (V)
1000V
±(1%＋3)
±(1%＋3)
±(0.8%＋10)
DC Voltage (V)
1000V
±(0.5%＋3)
±(0.5%＋3)
±(0.05%＋5)
AC Current (A)
10A
±(1.2%＋5)
20A
±(1.2%＋5)
±(0.8%＋10)
DC Current (A)
10A
±(1%＋2)
20A
±(1%＋2)
±(0.5%＋10)
Resistance (Ω)
60MΩ
±(1%＋2)
±(1%＋2)
220MΩ
±(0.5%＋10)
Capacitance (F)
60mF
±(3%＋5)
±(3%＋5)
220mF
±(3%＋5)
Frequency (Hz)
10MHz
±(0.1%＋4)
±(0.1%＋4)
220MHz
±(0.01%＋5)
Duty cycle (%)
0.1%~99.9%
±(2%＋5)
±(2%＋5)
±(2%＋5)
Temperature (℃/℉)
-40℃~1000℃
±(1%＋3)
-40℉~1832℉
±(1%＋6)
Display Count
6000
6000
22000
Bandwidth (Hz)
40Hz~500Hz
40Hz~1kHz
40~10kHz
LPF ACV
√
LoZ ACV
√
ACV+DCV
√
Transistor hFE
√
Peak Hold
√
√
Analog Bar
31
31
46
General Characteristics
Power
1.5V battery (R03) x 4Airline Restrictions do not Send
Product Net Weight
350g
Product Size
190mm x 90mm x 50mm

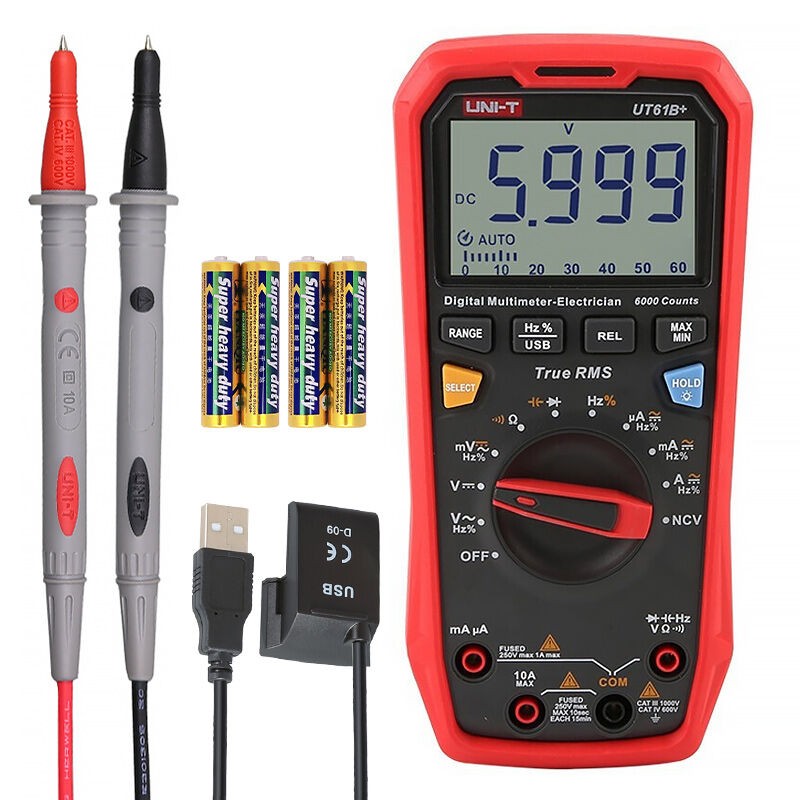

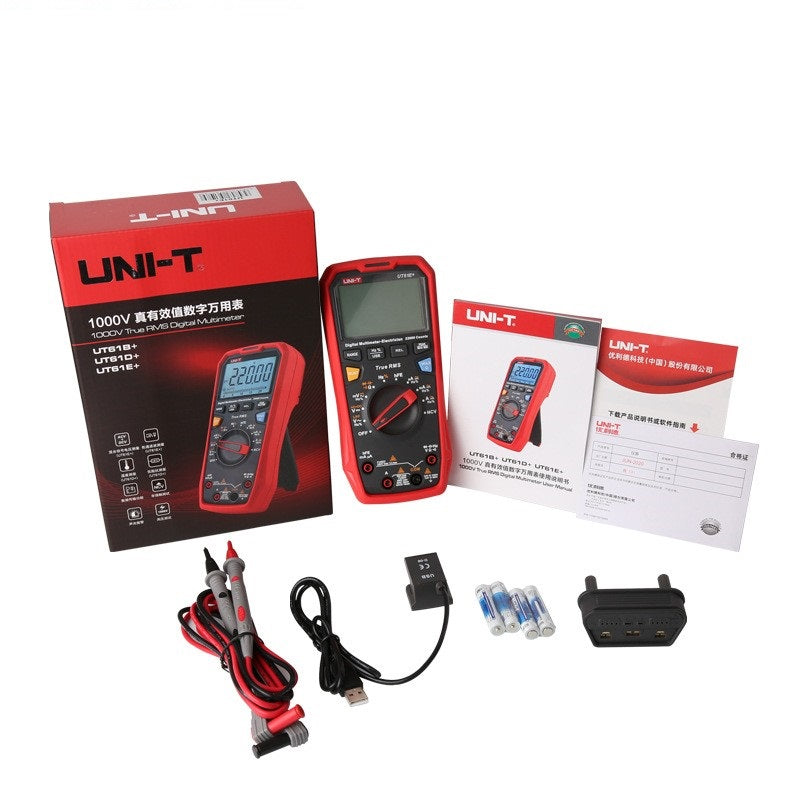

Standard Accessories
Battery, Gold Plated Test Leads, USB Cable, Temperature Probe (UT61D+/161D),
Multi-Purpose Socket (UT61E+/161E), English Manual
Standard
IndividualPacking
Gift box, Cloth Bag
Standard
Quantity Per Carton
20pcs
Standard Carton
Measurement
UT61+ series: 480mm x 370mm x 365mm; UT161 series: 480mm x 370mm x 325mm
Standard Carton
Gross Weight
UT61+ series: 15.2kg; UT161 series: 17.8kg
Optional Accessories
Bluetooth-compatible/APP
