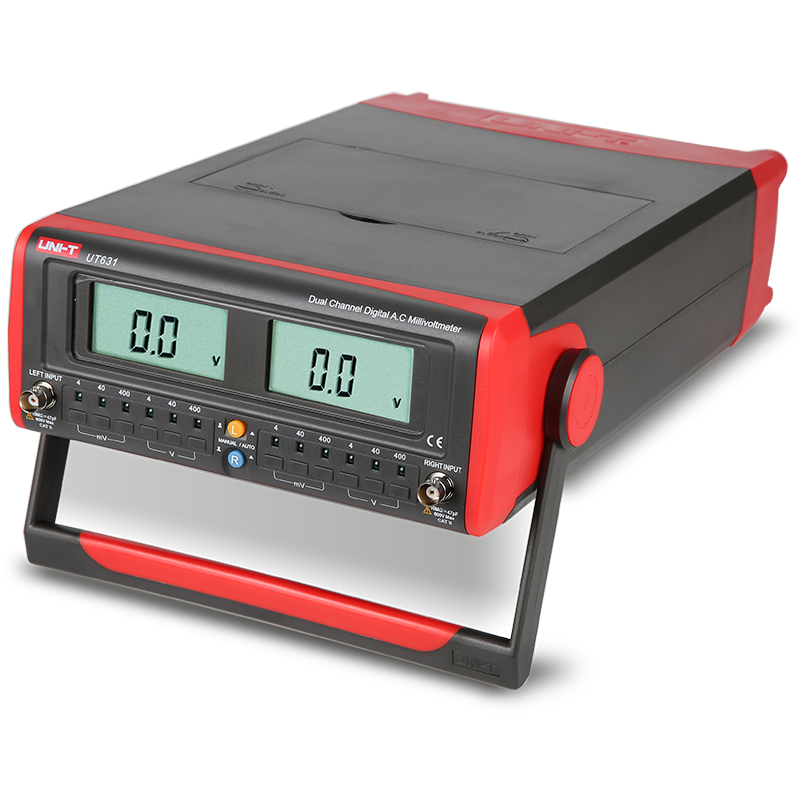

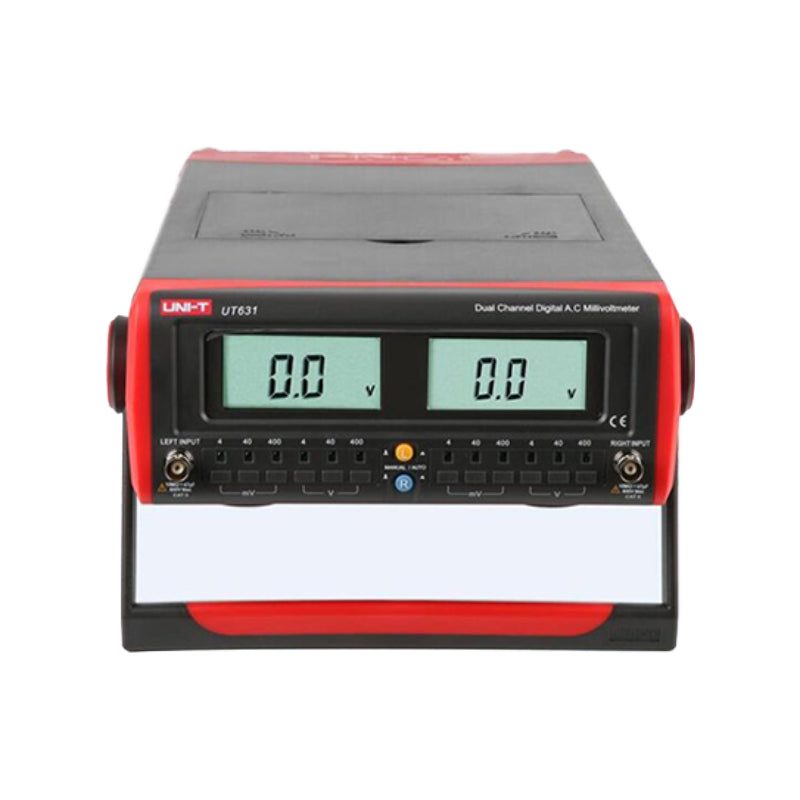

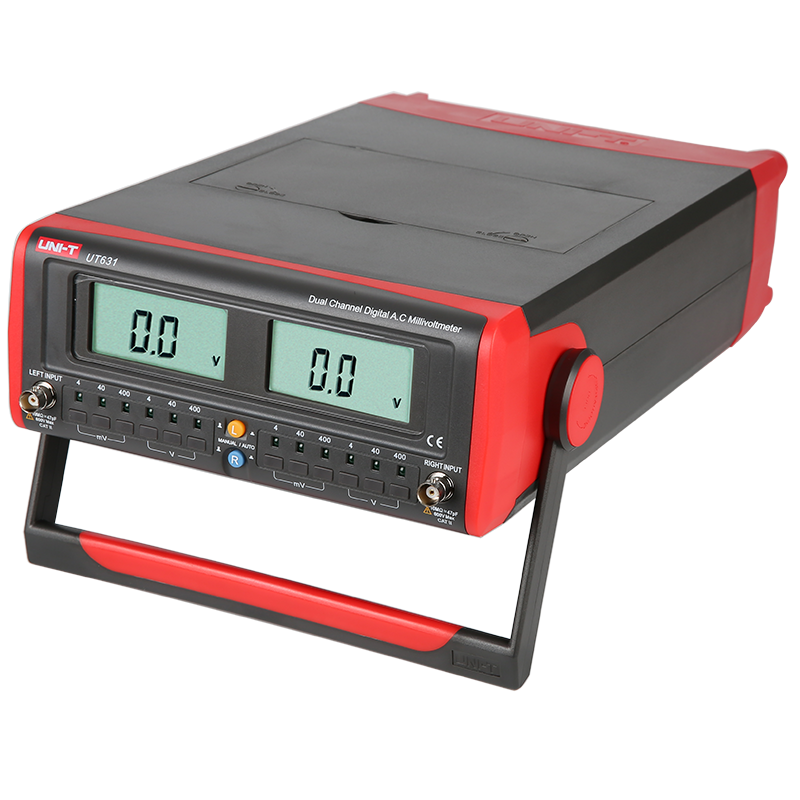

UNI-T UT631 Dual-Channel Digital AC Millivolts Meter
Specification
Range
Best Accuracy
Model
UT631
AC Voltage (V)
Frequency:
10Hz-200Hz
200Hz-500Hz
1kHz
500kHz-2MHz
4mV
(2%+0.1mV)
(1%+0.1mV)
(1%+15)
(2%+0.1mV)
40mV
(5%+20)
(3%+20)
(0.5%+15
(5%+20)
400mV
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
4V
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
40V
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
400V
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
Features
Display Count
4040
Auto Range
Bandwidth (Hz)
10Hz-2MHz
Noise Voltage
18Digits
Dual Channel
Input Impedance for DCV
R10M C47pF
General Characteristic
Power
220V10% or 110V10%(50Hz4%,7VA)
LCD Size
157mm X 36mm
Product Color
Red and Grey
Product Net Weight
3.0Kg
Product Size
370mm X 222mm X 106mm
Standard Accessories
Test Lead, Power Cord
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
4 PCs
Standard Carton Measurement
690mm X 455mm X 320mm (0.10 CBM Per Standard Carton)
Standard Carton Gross Weight
21Kg
Contrast:
Specification
Range
Best Accuracy
Model
UT631
UT632
AC Voltage (V)
Frequency:
10Hz-200Hz
200Hz-500Hz
1kHz
500kHz-2MHz
10Hz-200Hz
200Hz-500Hz
1kHz
500kHz-2MHz
4mV
(2%+0.1mV)
(1%+0.1mV)
(1%+15)
(2%+0.1mV)
(2%+0.1mV)
(1%+0.1mV)
(1%+15)
(2%+0.1mV)
40mV
(5%+20)
(3%+20)
(0.5%+15
(5%+20)
(5%+20)
(3%+20)
(0.5%+15
(5%+20)
400mV
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
4V
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
40V
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
400V
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
(5%+20)
(3%+20)
(0.5%+15)
(5%+20)
Features
Display Count
4040
4040
Auto Range
Bandwidth (Hz)
5Hz-2MHz
5Hz-2MHz
Noise Voltage
18Digits
18Digits
Dual Channel
USB Interface
Input Impedance for DCV
R10M C47pF
R10M C47pF
General Characteristic
Power
220V10% or 110V10%(50Hz4%,7VA)
LCD Size
157mm X 36mm
Product Color
Red and Grey
Product Net Weight
3.0Kg
Product Size
370mm X 222mm X 106mm
Standard Accessories
UT631-Test Lead, Power Cord,
UT632-Test Lead, Power Cord,USB Interface Cable, PC Software CD
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
4 PCs
Standard Carton Measurement
690mm X 455mm X 320mm (0.10 CBM Per Standard Carton)
Standard Carton Gross Weight
21Kg
