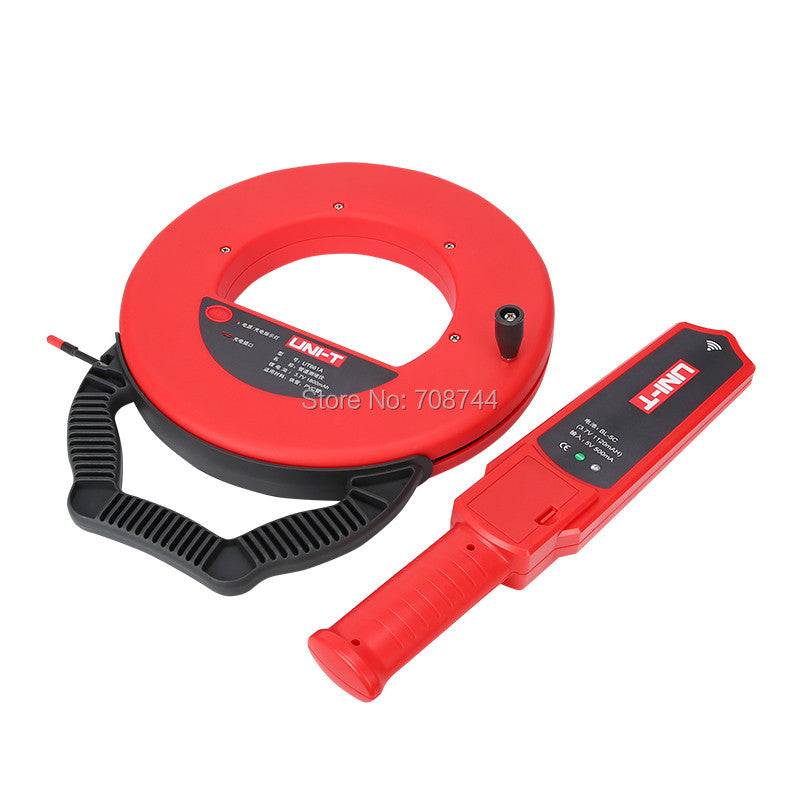

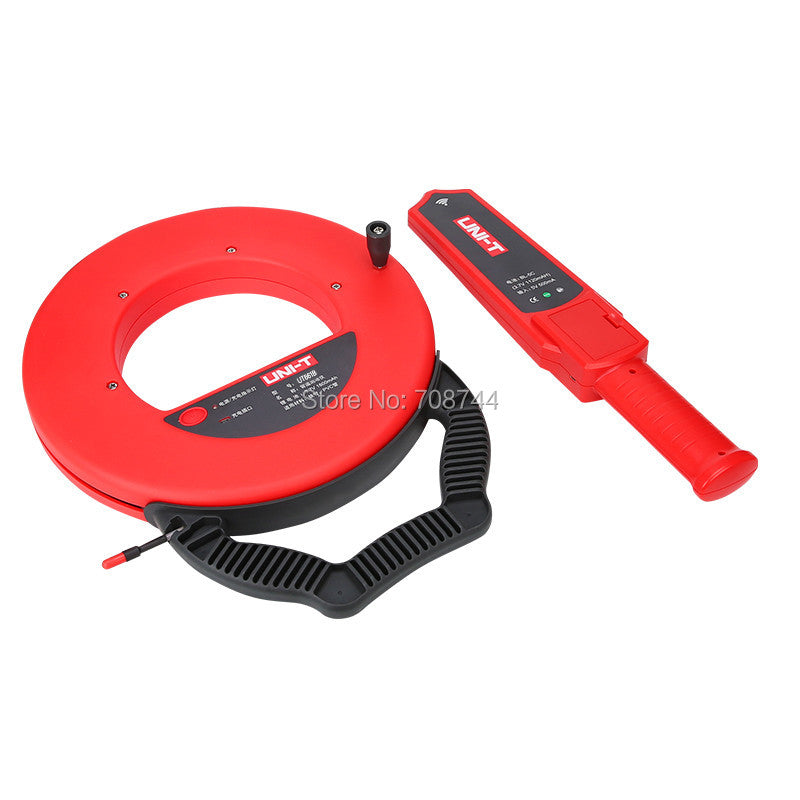

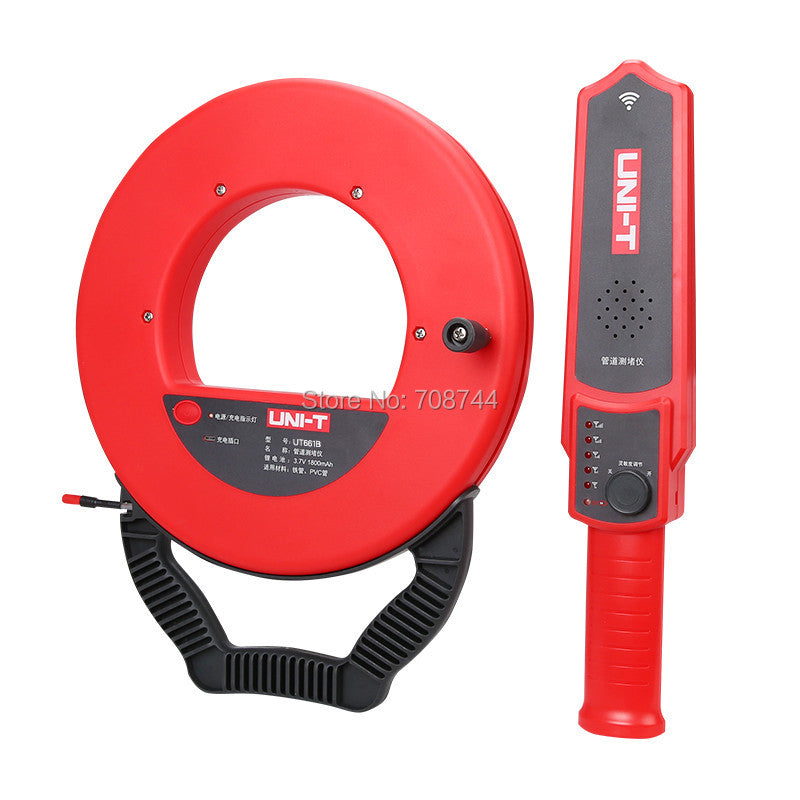

UNI-T UT661A UT661B Wall Pipe Blockage Detector Diagnostic-tool Wall Scanner Pipeline Blocking Clogging Scanner Plumbers
Features:
1.Can be detected in the pipeline blockage
2.Iron pipe / PVC pipe measurable
3.Maximum detection depth: 50 cm
4.Beep prompt
5.Flash tips
6.Low voltage display
7.Probe waterproof rating IP67
Specifications：
Features
UT661A
UT661B
Transmitter
√
√
Signal line length
20m
30m
Receiver
√
√
Measuring distance (depth)
>50cm
>50cm
Transmitter current
Shutdown current<2uA, Working current 230~310mA
Receiver current
Shutdown current <2uA, Standby current <40mA
Maximum operating current 150~450mA (distance 1cm)
Chargeable
√
√
Recharging current
450~550mA
1cm distance test output sound
>93dB
0.5m distance test output sound
>75dB
Special Features
Transmitter battery
Built-in lithium battery(3.7V1800mAh)
Receiver battery
lithium battery BL-5C(3.7V 1120mAh)
Usage time
About 10 hours
Operating temperature
-10C~50C10~80%RH
Storage temperature
-20C~50C10~70%RH
Measurable pipe material
Plastic, Metal
Dimensions
Transmitter Dimensions 386x303x42mm
Receiver Dimensions 385x75x44mm
Weight
Transmitter 1.10KG
Transmitter 1.28KG
Receiver 0.23KG
Receiver 0.23KG
