1. True RMS, duty cycle, continuity buzzer
2. MAX/MIN/REL modes; peak/data hold; analog bar graph
3. 45Hz~100kHz frequency response
4. LCD backlight; misplug alarm
5. Auto power off, low battery indication
6. Data logging
7. Auto and manual ranges selectable
8. USB interface, Bluetooth
9. Smart phone APP： iDMM
10. Works with UT-D07A Bluetooth adaptor
11. Download from Apple Store or Google Play Store
Due to aviation restrictions: the package is sent without batteries

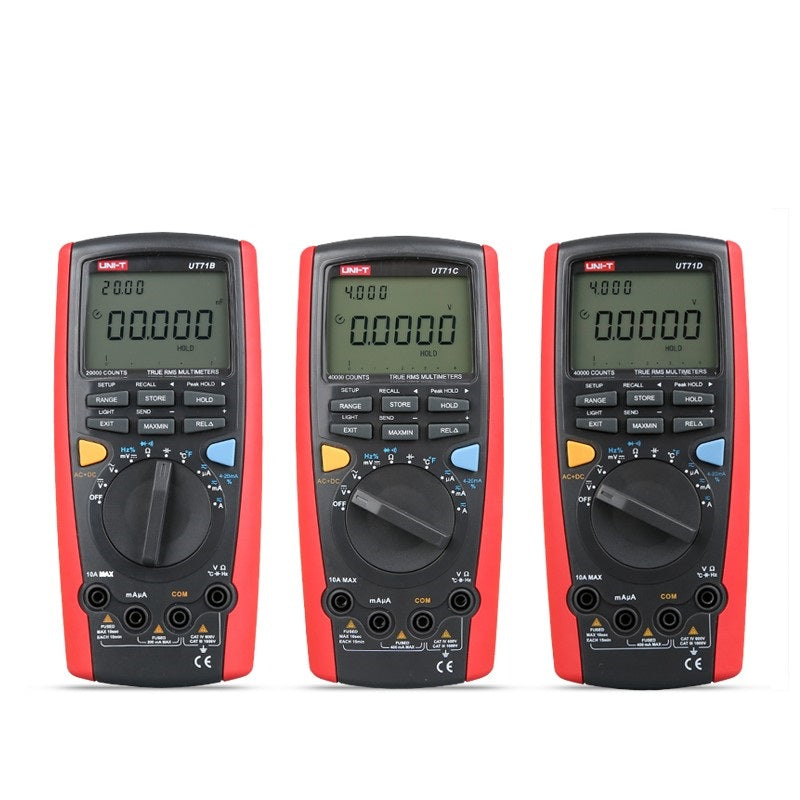

Models & Comparison
Specifications
Range
UT71A
UT71B
UT71C
UT71D
UT71E
DC voltage (V)
1000V
±(0.1%+8)
±(0.05%+5)
±(0.025%+5)
±(0.025%+5)
±(0.025%+5)
AC voltage (V)
1000V
±(0.8%+40)
±(0.6%+40)
±(0.4%+30)
±(0.4%+30)
±(0.4%+30)
DC current (A)
10A
±(0.2%+20)
±(0.15%+20)
±(0.1%+15)
±(0.1%+15)
±(0.1%+15)
AC current (A)
10A
±(1%+15)
±(0.8%+15)
±(0.7%+15)
±(0.7%+15)
±(0.7%+15)
Resistance (Ω)
20MΩ
±(0.5%+20)
±(0.4%+20)
40MΩ
±(0.3%+8)
±(0.3%+8)
±(0.3%+8)
Capacitance (F)
20mF
±(1.5%+20)
±(1.2%+20)
40mF
±(1%+20)
±(1%+20)
±(1%+20)
Frequency (Hz)
20Hz~200MHz
±(0.1%+15)
±(0.1%+15)
40Hz~400MHz
±(0.01%+8)
±(0.01%+8)
±(0.01%+8)
Temperature
-40°C~1000°C
±(1%+30)
±(1%+30)
±(1%+30)
±(1%+30)
-40°F~1832°F
±(1.5%+50)
±(1.5%+50)
±(1.5%+50)
±(1.5%+50)
Display count
20000
20000
40000
40000
40000
General Characteristics
Power
9V battery (6F22)
Display
73mm x 50mm
Product color
Red and grey
Product net weight
384g
Product size
200mm x 93mm x 40mm

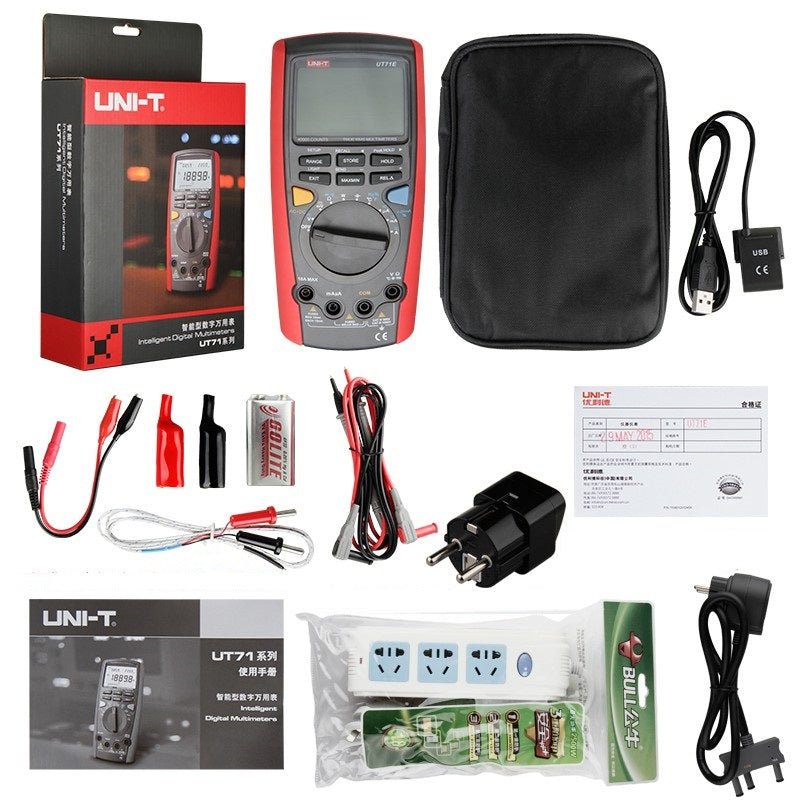

Standard accessories
Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe (UT71B/UT71C/UT71D/UT71E), power adaptor (UT71E)
Standard individual packing
Gift box, English manual
Standard quantity per carton
10pcs
Standard carton measurement
UT71A/UT71B/UT71C/UT71D: 515mm x 380mm x 205mm; UT71E: 540mm x 360mm x 275mm
Standard carton gross weight
UT71A/UT71B/UT71C/UT71D: 9kg; UT71E: 12.5kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
