Detailed

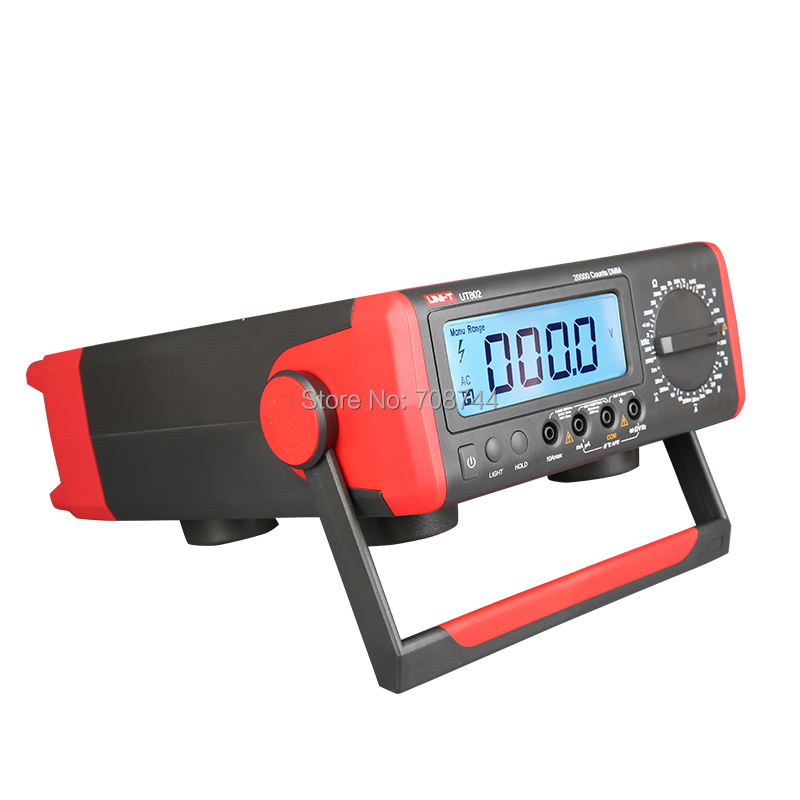

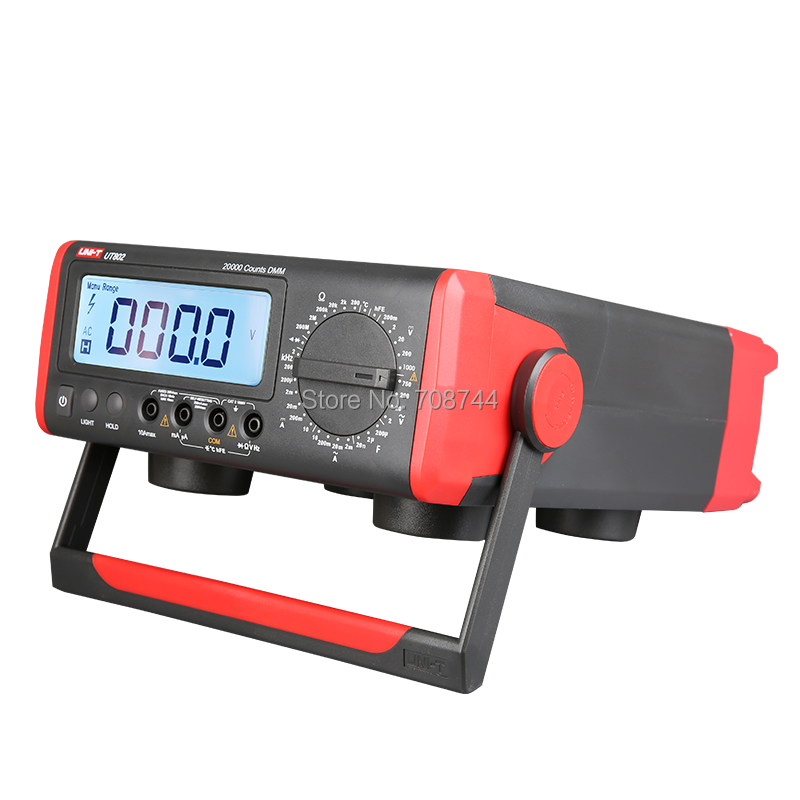

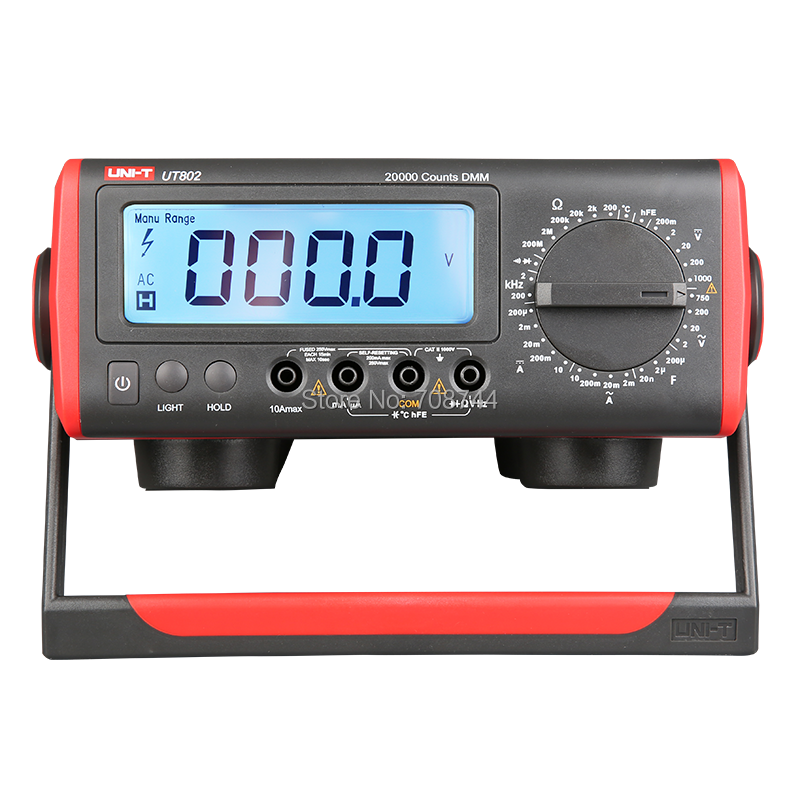

UT802 is a manual range digital bench-type multimeter with average value display, full function and
full range overload protection and a unique outlook design. It can be powered by AC 220V/50Hz or
1.5V batteries(R14)*6. It’s your ideal testing meter with superior performance.
UT802 is widely used in Industrial Production and Service, Technological Research and Design,
College Education (Laboratory, Courses), and Automotive Industry. The meter complies with
IEC61010-1 standard, CATII 1000V.
Contrast
Specifications
Range
Best Accuracy
Model
UT801
UT802
DC Voltage (V)
200mV/2V/20V/200V/1000V
±(0.5%+2)
±(0.1%+3)
AC Voltage (V)
2V/20V/200V/750V
±(0.8%+3)
±(0.5%+20)
DC Current (A)
200μA/2mA/20mA/200mA/10A
±(0.8%+2)
±(0.5%+20)
AC Current (A)
2mA/20mA/200mA/10A
±(1.0%+3)
±(0.8%+40)
Resistance (Ω)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
±(0.8%+3)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ
±(0.5%+10)
Capacitance (F)
20nF/2μF/200μF
±(4%+3)
±(4%+10)
Frequency (Hz)
2kHz/200kHz
±(1.5%+5)
±(1.2%+10)
Temperature (°C)
-40 °C~1000°C
±(1.2%+3)
±(1.2%+25)
Features
Display Count
2000
20000
Manual Range
√
√
Diode
√
√
Transistor
√
√
Continuity Buzzer
√
√
Low Battery Indication
√
√
Data Hold
√
√
LCD Backlight
√
√
Input Impedance for DCV
Around 10MΩ
√
√
Misuse Alarm
√
√
General Characteristic
Power
AC 220V/50Hz or 1.5V Batteries (R14)×6
LCD Size
108mm × 34.5mm
Product Color
Red and Grey
Product Net Weight
1650g
Product Size
300mm × 245mm × 105mm
Standard Accessories
Battery, Test Lead,Alligator Clip, Point Contact Temperature Probe,
Multi-Purpose Socket, AC 220V Power Cord, Power Adapter
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
4 PCs
Standard Carton Measurement
680mm×365mm×320mm(0.0794 CBM Per Standard Carton)
Standard Carton Gross Weight
11.7 Kg
Fitting
Battery, (not included package)
Test Lead,
Alligator Clip,
Point Contact Temperature Probe,
Multi-Purpose Socket,
AC 220V Power Cord,
Power Adaper
Logistics information
