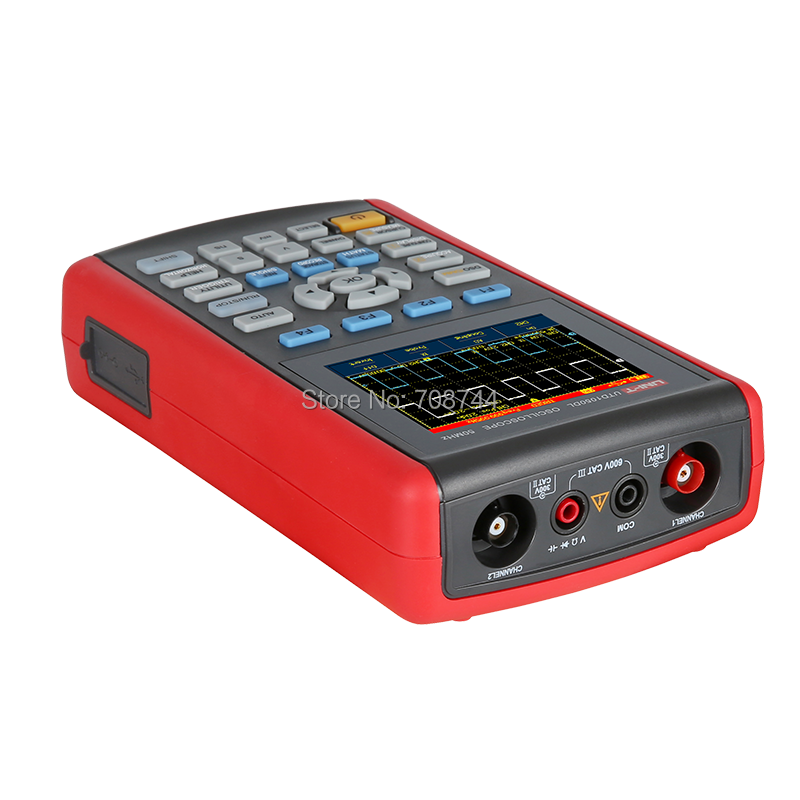

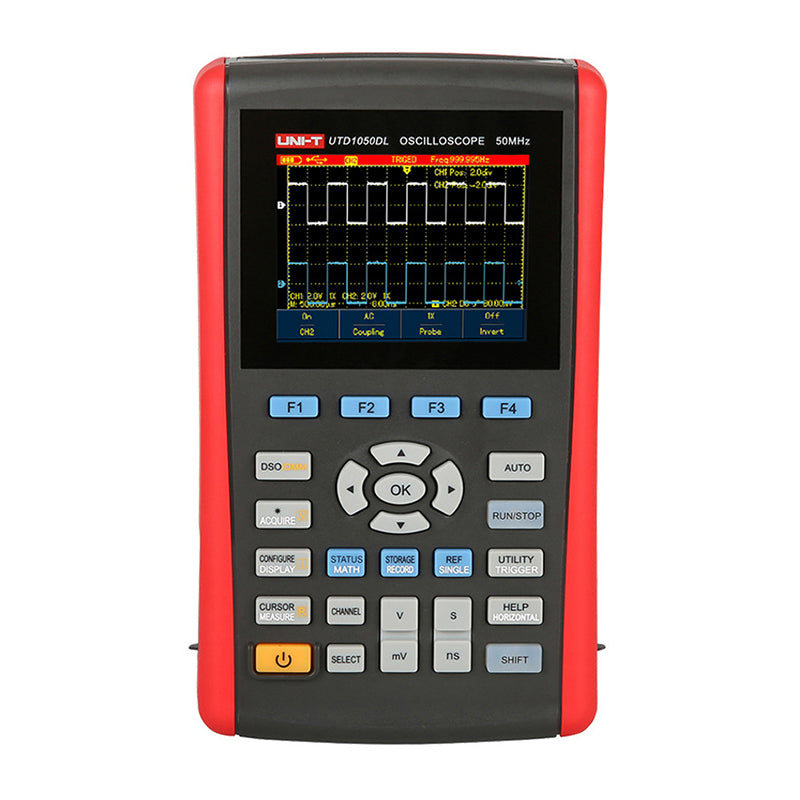

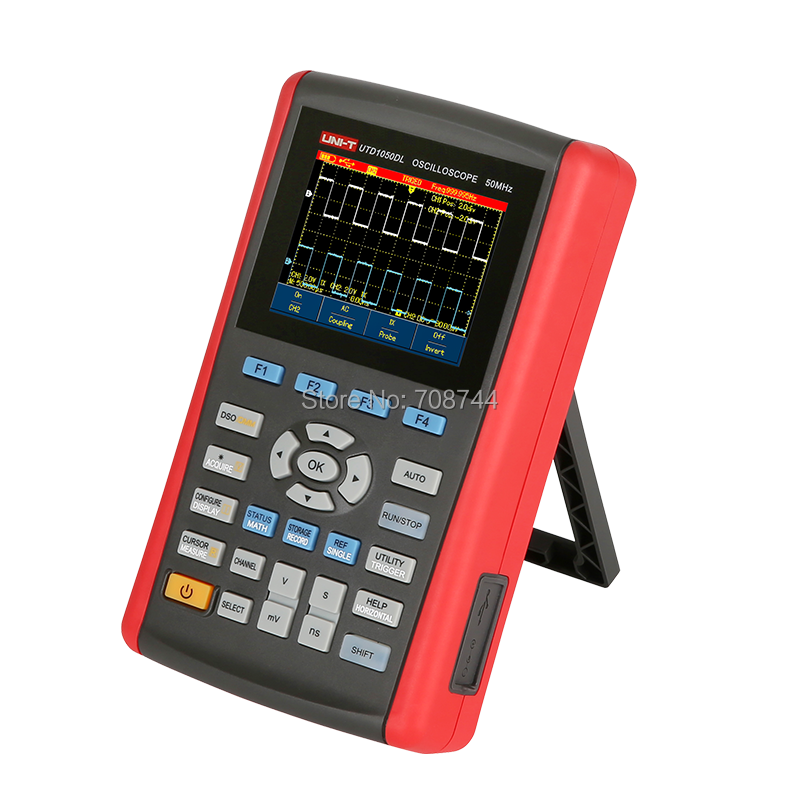

"LCD Digital Display Fully Auto Scale Oscilloscopes With Multimeter Handheld Digital Storage Oscilloscopes

 Product Features:

 1、 Fully Auto Scale;Vertical Scale and Time-base automatically adjusted with the signal and withoutany manual interference;

 2、 Unique and powerfulAuto Setup, quick and accurate to set up for signals with any DC component;

 3、 Wider voltagemeasuring range; Coupled with 10×probe with attenuation up to 200V/div;

 4、 Isolated USB formuch safer communication;

 5、 White and blackdisplay for your option, perfect for use outdoors with strong light;

 6、 Intelligent localor network software update

 7、 More than 6 hoursof continuous battery operation

          Specifications

    UTD1050DL

          Channels

    2

          Bandwidth

    50MHz

          Sample Rate

    250MS/s

          Rise Time

    ≤7ns

          Memory Depth

    12kpts

          Vertical Sensitivity (V/div)

    5mV/div～20V/div

          Time-Based Range(s/div)

    5ns/div～50s/div

          Storage

    Bitmap, Setup, Waveform

          Trigger Mode

    Edge, Pulse, Vedio, Slope

          Interfaces

    Mini USB

          Multimeter Specifications

    Range

    Best Accuracy

          DC Voltage (V)

    400.0mV/ 4.000V/40.00V/ 400.0V

    ±(1%+5)

          AC Voltage (V)

    400.0mV/ 4.000V/40.00V/ 400.0V

    ±(1.2%+5)

          DC Current (A)

    400.0μA/ 4000μA

    ±(1.2%+5)

          (external convertor)

    40.0mA/ 400mA

    ±(1%+5)

    4A

    ±(1.5%+5)

          AC Current (A)

    400.0μA/ 4000μA

    ±(2%+5)

          (45Hz～400Hz)

    40.0mA/ 400mA

    ±(1.5%+5)

          (external convertor)

    4A

    ±(2.5%+5)

          Resistance (Ω)

    400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ

    ±(1.2%+5)

    40.00MΩ

    ±(1.5%+5)

          Inductance (F)

    51.20nF/512.0nF/5.120μF/51.20μF/100μF

    ±(3%+5)

          Display Count

    3999

    √

          General Charateristics

          Power

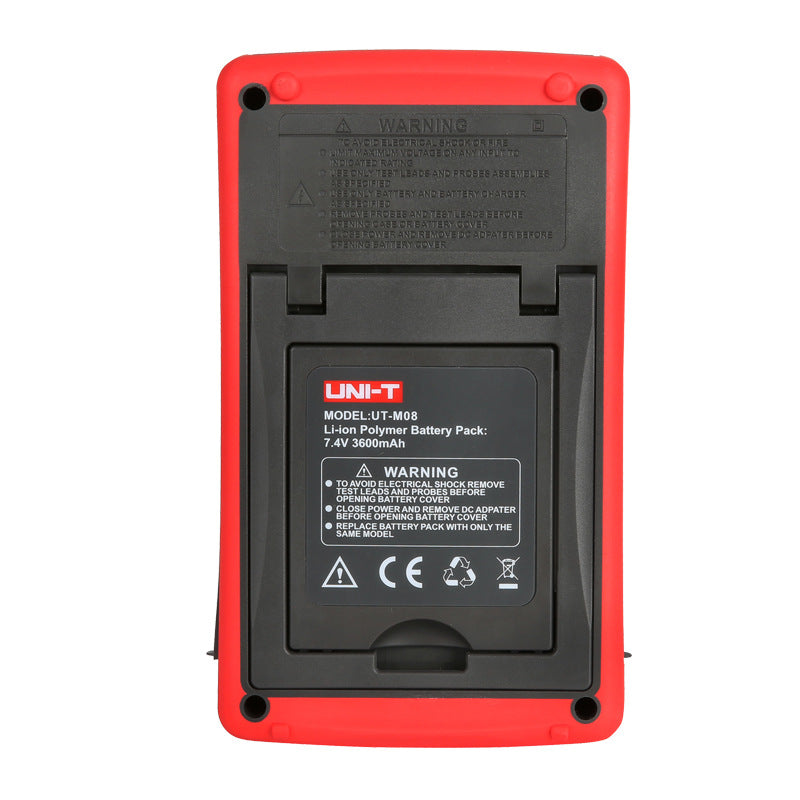

    Lithium Battery: 7.4V 3600mAh；

          DC Adapter: 100～240V 50/60Hz input, 9V/4A output

          LCD Size

    3.5 Inches 64K Color TFT LCD,320×240

          Product Color

    Red and Grey

          Product Weight

    0.9 kg

          Product Size (W×H×D)

    199mm × 118mm × 49mm

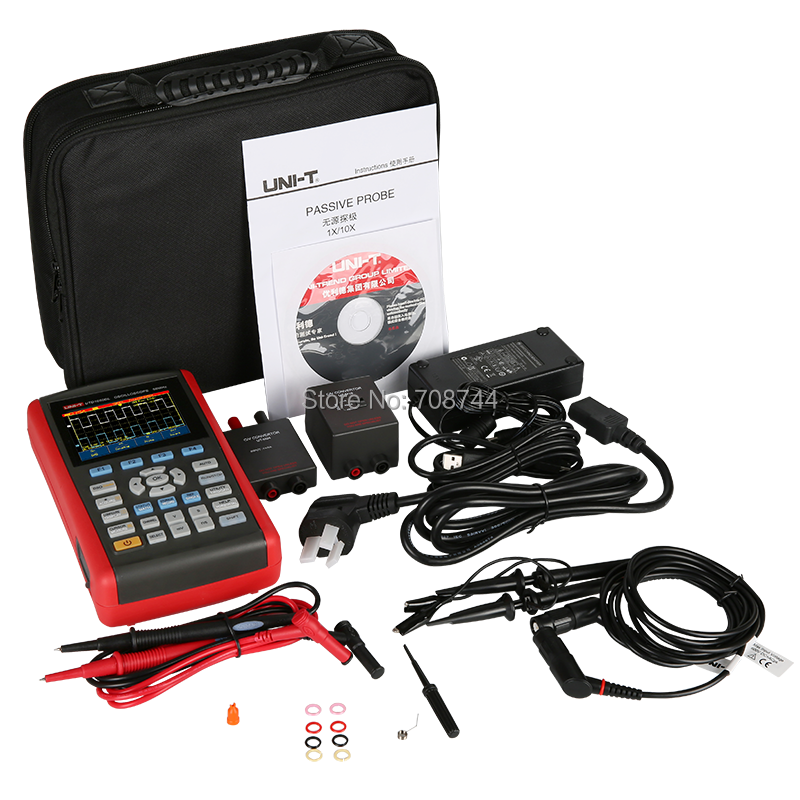

          Standard Accessories

    Adapter, Test Lead, Probe×2(1:1,10:1    switchable), Current/Voltage Convertor×2,

Power Cord, USE Cable, Software CD, Carrying Bag, English Manual
