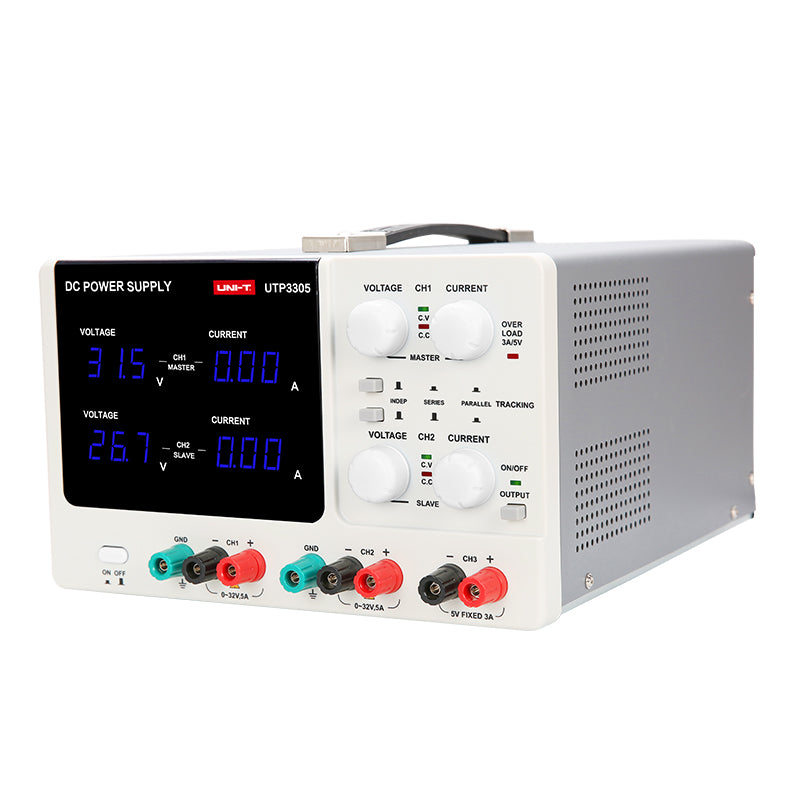

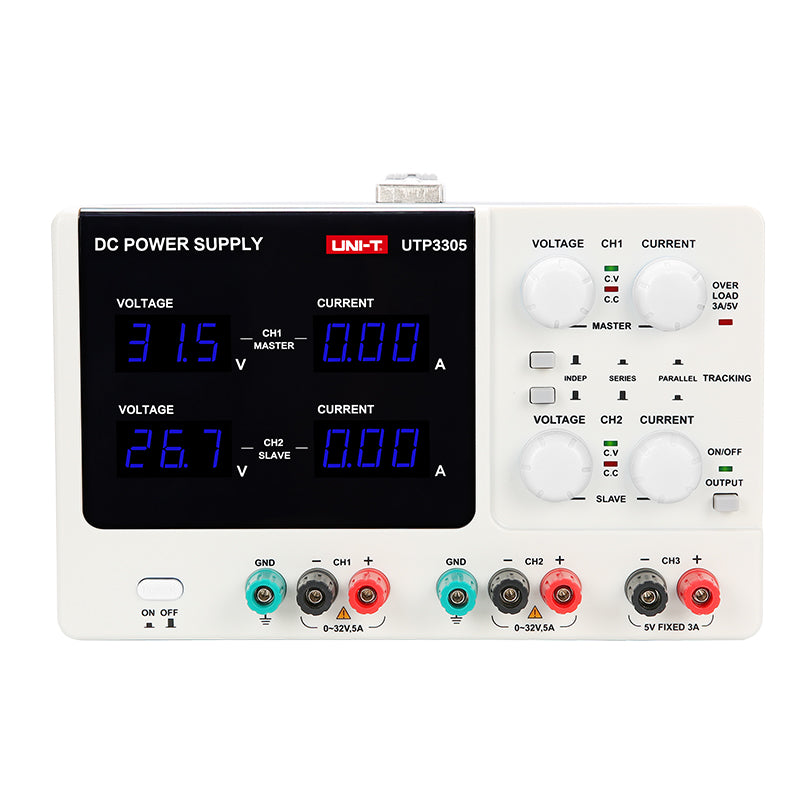

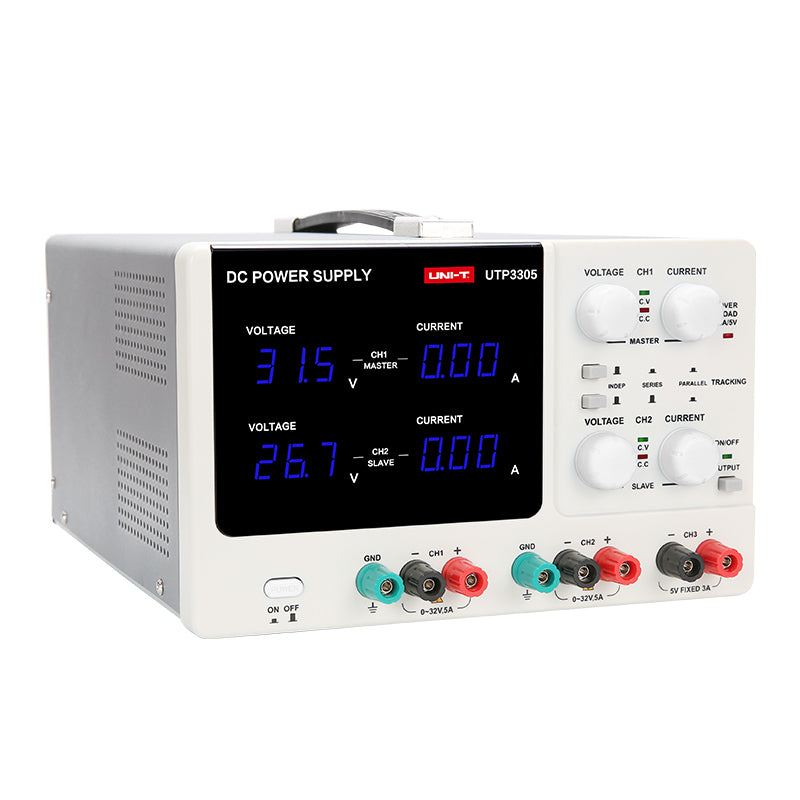

UNI-T UTP3305 DC power Precision Variable Adjustable Supply Digital Regulated Switching Power Notebook Mobile Phone Repair

 Features:

   1. Dual channel, two circuits of adjustableoutput voltage 0~32V and one circuit of fixed voltage 5V.

   2. Master-slave tracking, constant voltageand current, Ⅰ, Ⅱ circuit can be used for master-slave tracking and used in parallelor in series.

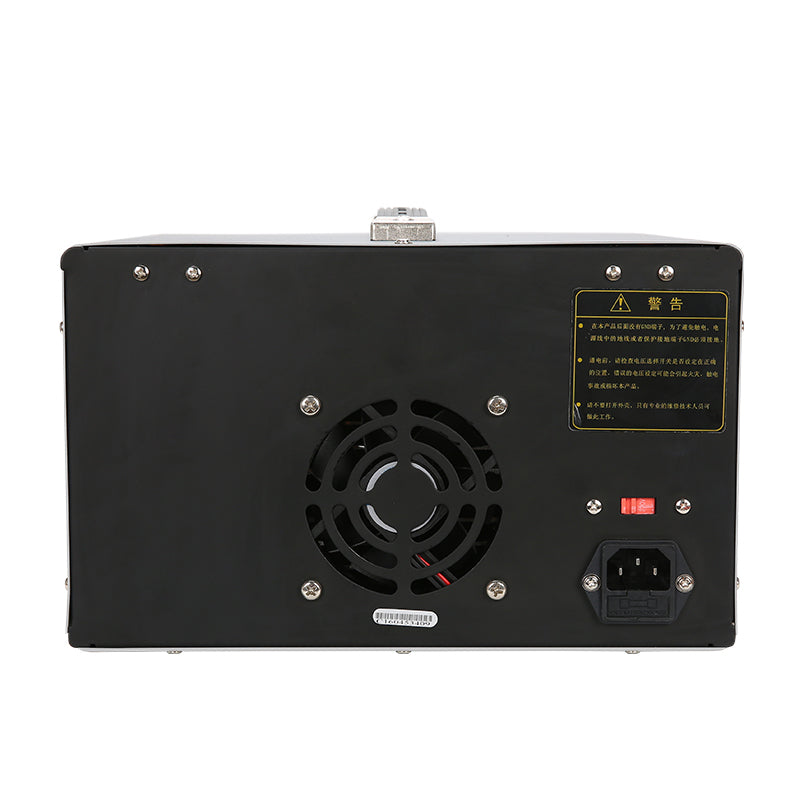

   3. Forced ventilation, temperature controlcooling system. When the temperature reaches 65℃, the device dissipatesheat automatically.

   4. Display mode: LED digital tube display,can show voltage and current simultaneously.

   5. Low ripple, low noise

   6. High regulation: 0.01%

   7. Output ON/OFF control

   8. Constant voltage and constant currentoperation

   9. Optional European standard outputterminal

   10. Overload protection, reverse polarityprotection

   Specification

          General Functions

          Type

    UTP3305

          Channels

    CH1

    CH2

    CH3

          Output Voltage

    0~32V

    5V Fixed

          Output Current

    0~5A

    5A Max

          Series Tracking

    0~64V

    -

          Parallel Tracking

    0~10A

    -

          Load Regulation

    Voltage

    ≤0.01%+3mV

    ≤3%+5mV

          Current

    ≤0.2%+3mA

    -

          Power Regulation

    Voltage

    ≤0.01%+3mV

    5mV

          Current

    ≤0.1%+3mA

    -

          Noise

    Voltage

    ≤1mVrms

    ≤2mVrms

          Current

    ≤3mArms

    -

          Tracking Operation（CH1、CH2)

          Tracking Bias

    Power Regulation

    Load Regulation

    Noise

          ≤0.5%+10mV(CH1)

    ≤0.01%+5mV

    ≤300mV

    ≤2mVrms,5Hz~1MHz

          Display Accuracy

    ≤±1%rdg+2digits

          Working Temperature

    0℃~ 40℃

          Constancy (MTBF)

    ≥2000h

          General Characteristics

          Power Supply

    Input voltage：220VAC/110VA；Frequency：50Hz/60Hz

          Product Color

    White+Grey

          Product Weight

    About 9 kg

          Product Size (W×H×D)

    260mm × 176mm × 317mm

          Standard Accessories

    National standard power cord, output cable

          Standard Package

    Gift box, user manual

          Standard Package Quantity

    1 pcs

          Standard Package Size (W×H×D)

    430mm × 400mm × 255mm

          Standard Package Gross Weight

    10 kg
