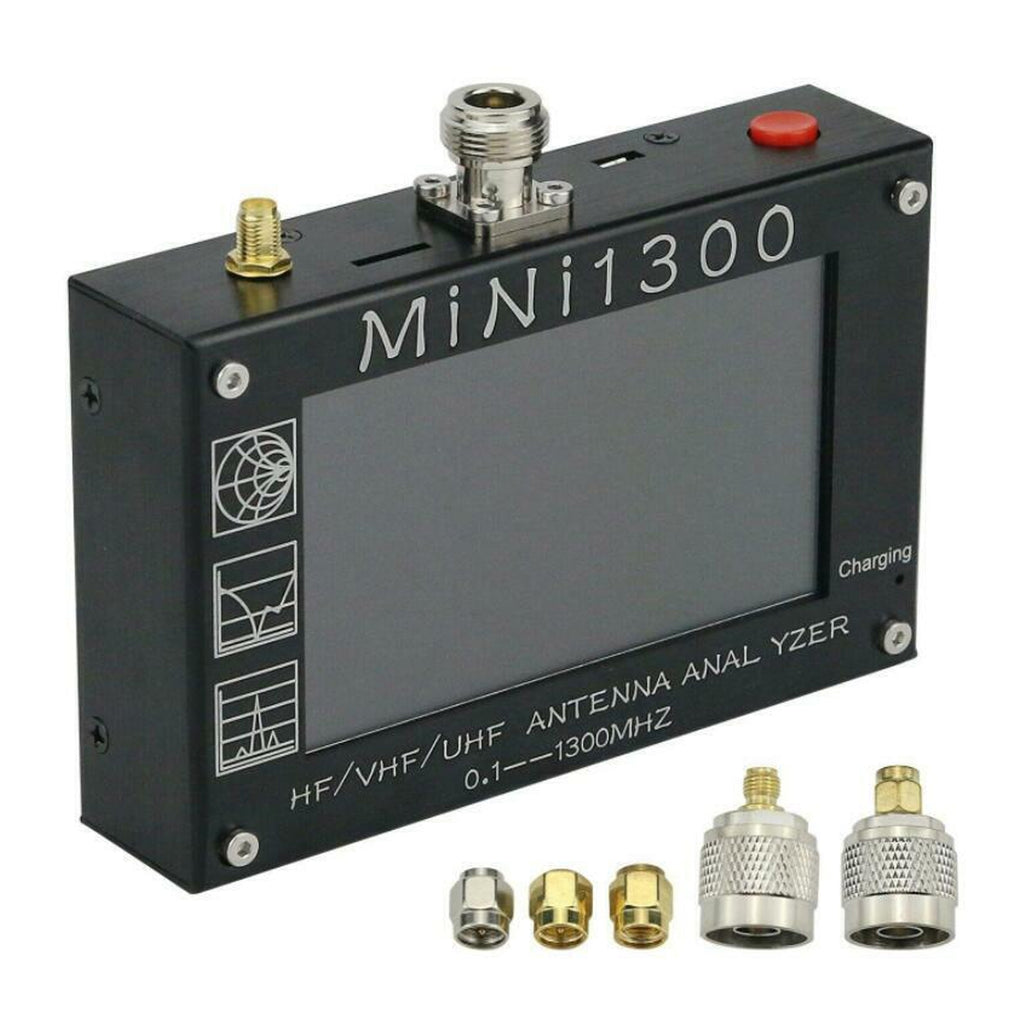

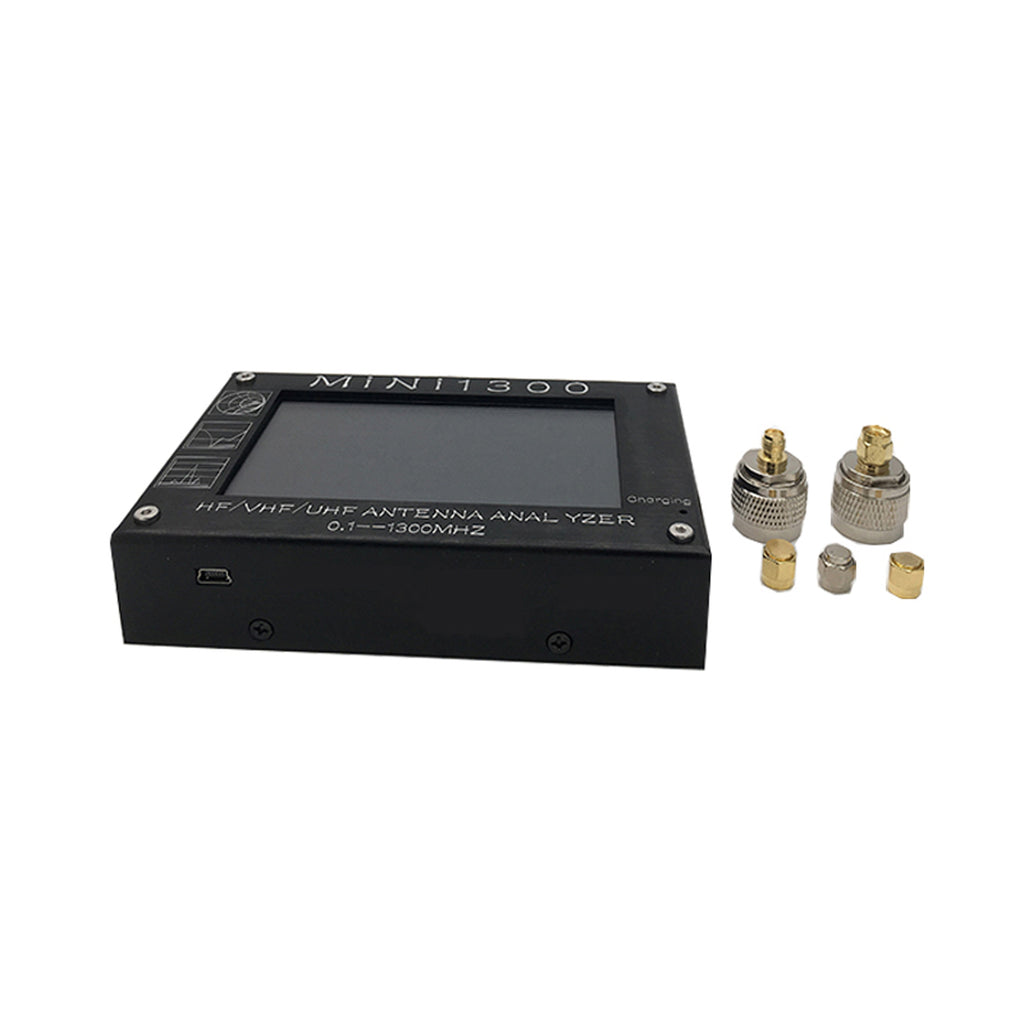

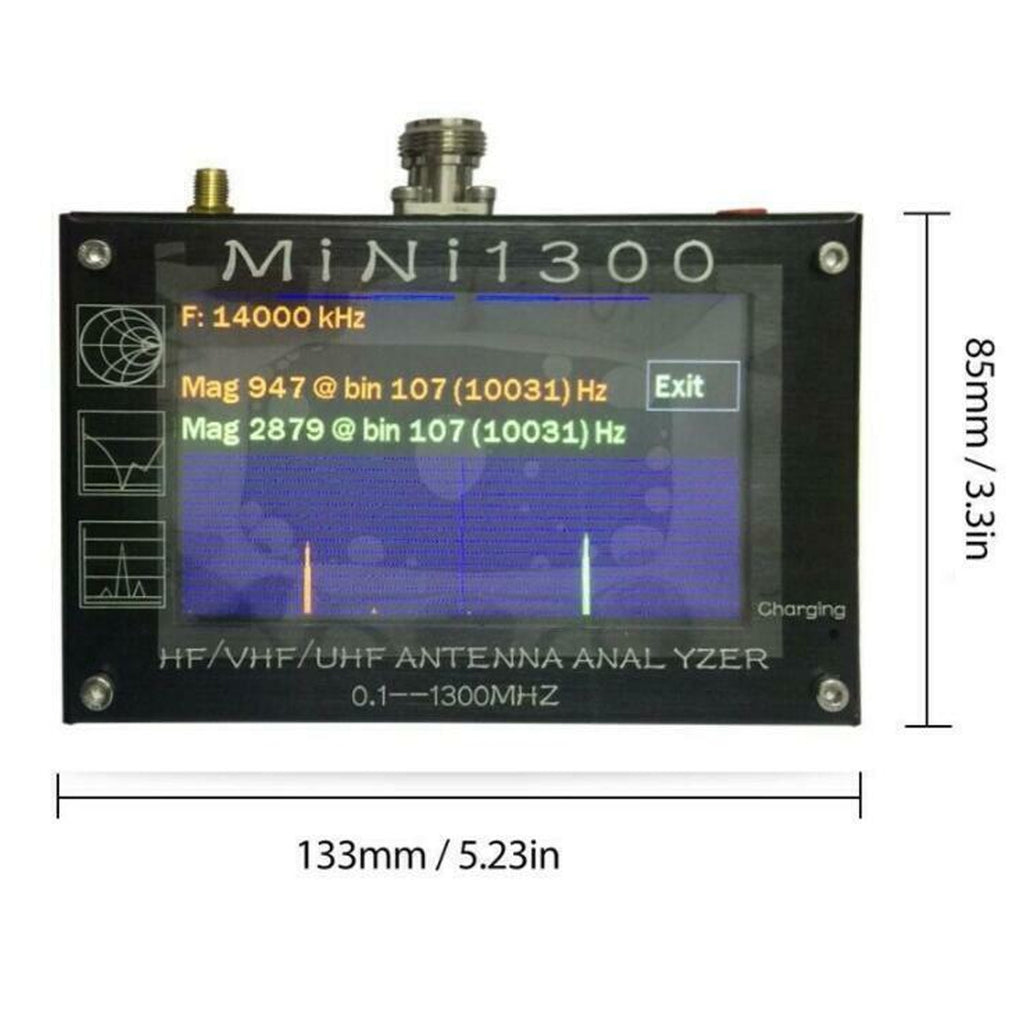

Specifications: - Frequency Range: 0.1-1300MHz - HF/VHF/UHF continuous coverage - In/Out Impedance: 50 ohms - Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss - Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode - SWR Measurement Range: 1.0-1999ï¼Single Point Mode), 1.0-20.0 (Scan Mode) - Display Modes: Numerical display, curve display, simith chart - Connector Type: UHF N-type connector - VNA: SMA - SMA OPEN-SHORT-LOAD Calibration Kit x 1 - LCD size: 480x272 4.3" TFT LCD display - Touch Screen Type: Capacitive - All capacitive touchscreen on the display – no buttons are needed - Power Source: USB or Internal Power Supply - Built-in charging circuitry and DC-DC booster - Maximum charging current: 5V/1.5A - External Storage Method: TF card - Dimensions: 133 x 85 x 29 mm (Not including the size of prominent ports) - Weight: 550g Package Included: - 1 x Set of Antenna Analyzer Note:
- If the product has parameter changes, the actual test will prevail.
- USB cable is not included.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
