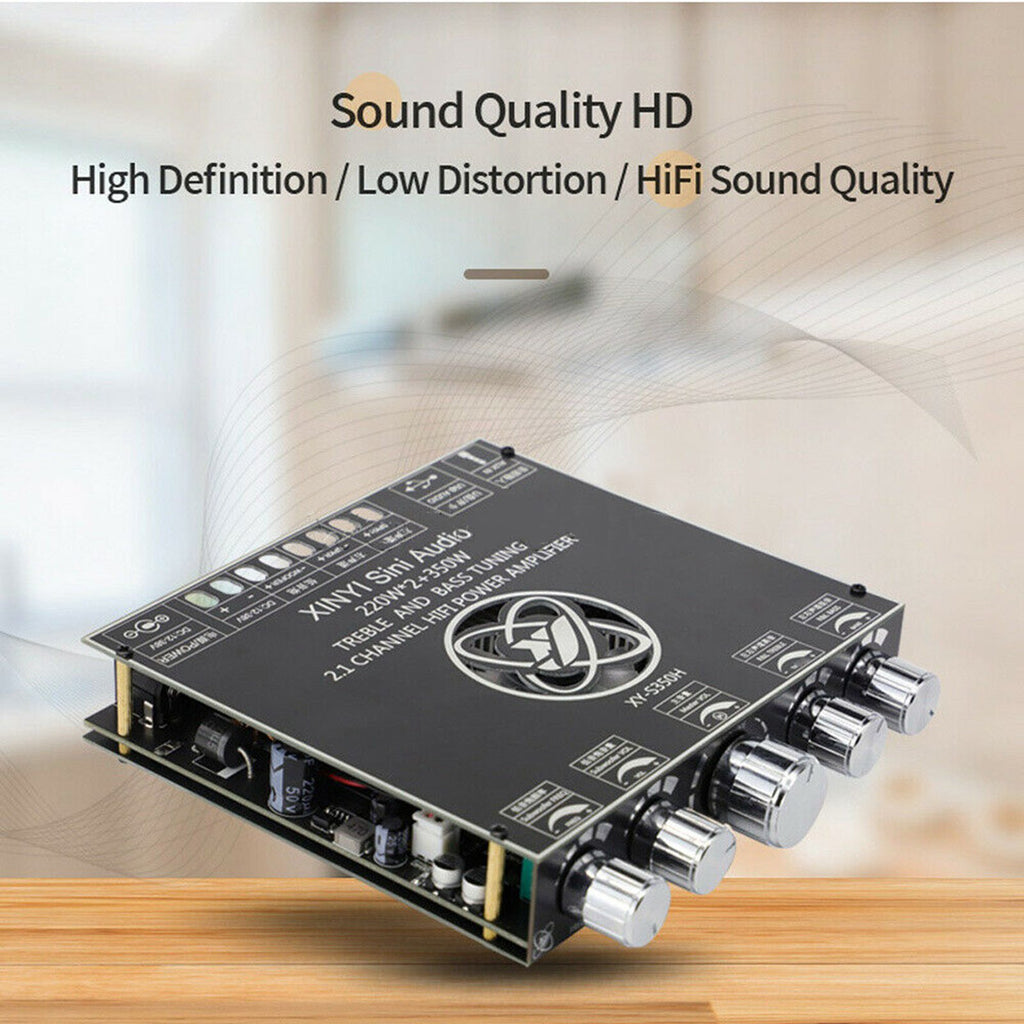

1: HD low distortion hifi sound quality
2: Cooling fin + fan cooling safety
3: Design of tpa3251d2 power amplifier chip
4: Volume adjustment: high-end encoder knob adjustment, smooth feel
5: Protection mechanism: overvoltage, undervoltage, clipping, short circuit, overheating and other protection
Product model: xy-s350h
Product Name: 2.1-channel Bluetooth audio power amplifier board
Power supply: dc12-38v / 10A or above Bluetooth version: 5.1
Audio channel: 2.1 channel audio input: Bluetooth + aux + USB flash disk + USB sound card
Audio output: left and right channels + subwoofer frequency range: 20Hz -- 20KHz
Volume adjustment: high-end encoder knob adjustment, smooth feel
The maximum of left and right channels is 220W / 3 Ω -- 36VDC
High output power: 175W / 4 Ω -- 36VDC 100W / 8 Ω -- 36VDC
Subwoofer Max 355w / 2 Ω -- 36VDC
Output power: 250W / 3 Ω -- 36VDC 195w / 4 Ω -- 36VDC
Protection mechanism: overvoltage, undervoltage, clipping, short circuit, overheating and other protection
Special function: support sinilink app to modify Bluetooth name and set Bluetooth password off / on prompt tone
Product size: 130mm * 116mm * 27mm product weight: 370g
Package list
1 * S350h TPA3251 Bluetooth Power Amplifier Board Module 1 Set
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
