Feature:

   1. [51MP and USB Interface] HD camera adopts 51MP CMOS sensor 1/2.9 inches, with HD Multimedia Interface USB interface.

2. [Aluminum Alloy] The microscope camera is made of high quality aluminum alloy material, it is durable and has a long service life.

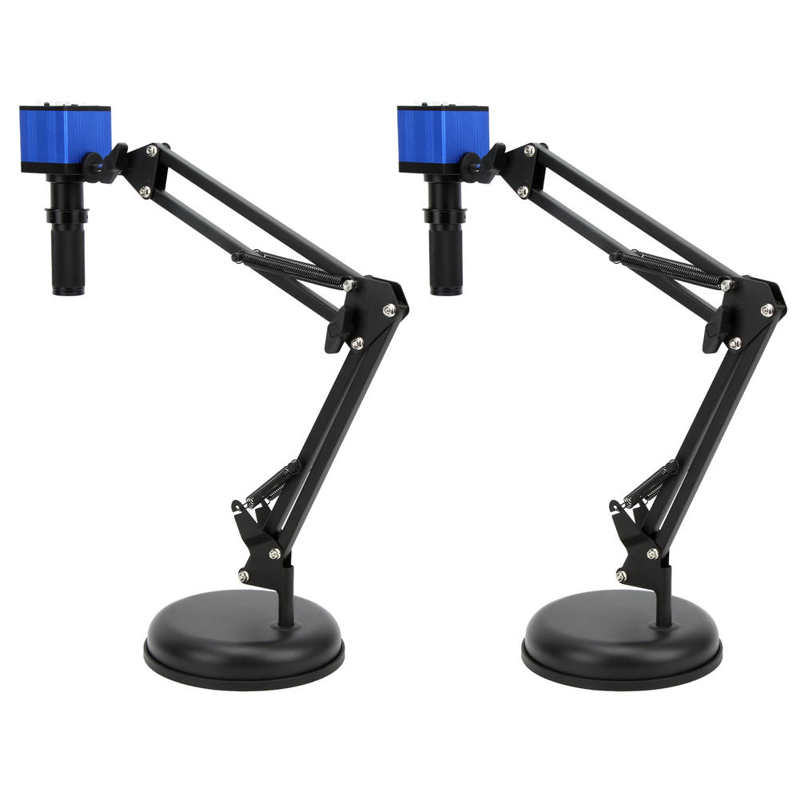

3. [With Adjustable Stand] Comes with adjustable stand, foldable for easy portability; Fully flexible to securely mount the microscope anywhere.

4. [Safe To Use] Strict quality control and quality assurance, high safety factor, can be used with confidence.

5. [Wide Use] Widely used in microelectronics, molds, jewelry, printing, mobile phone repair schools and other fields, especially suitable for observing the surface microstructure of large objects.

Specification:

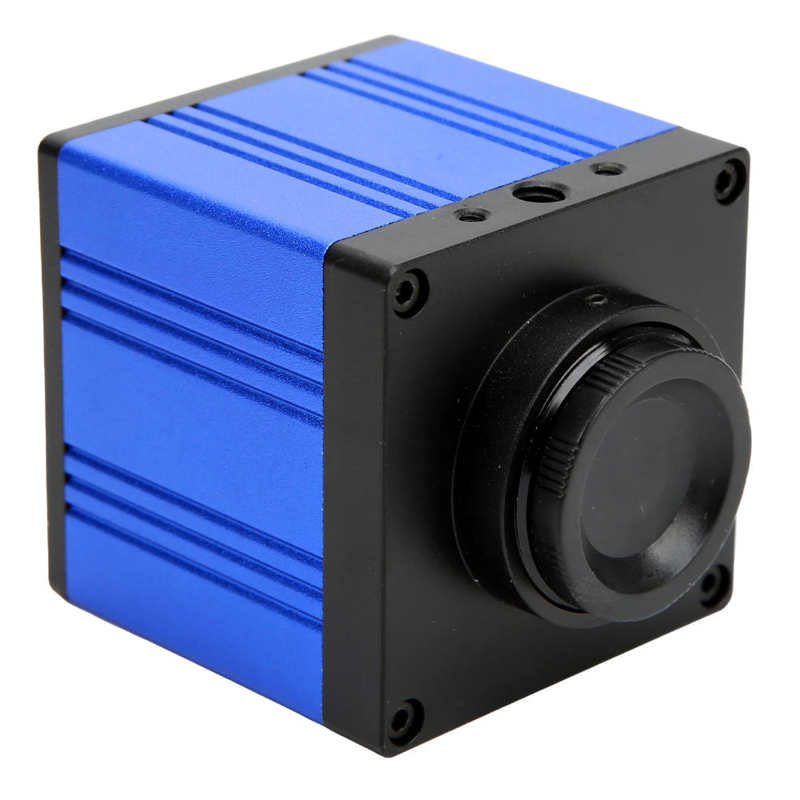

Item Type: USB Video Microscope Camera

Model: HY-2037D

Material: Aluminum Alloy

Uses: Widely used in microelectronics, molds, jewelry, printing, mobile phone repair schools and other fields

Sensor: 51MP CMOS

Optical Format: 1/2.9 inches

PX Size: 1.335μmx1.335μm

Interface: HD Multimedia Interface (Type A), USB (Type B), Small Memory Card

HD Multimedia Interface Image Resolution: 51MP

Video Resolution: 2K, 30FPS 1080p, 60FPS

HD Multimedia Interface Resolution: 1920 x 1080p 60FPS

HD Multimedia Interface Ratio: Support 4: 3, 16: 9, 16: 10 Screen

USB2.0 (Driver Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS

AWB: AWB Color Correction, Automatic, Manual, Independent R.G.B Value Setting

Exposure: Automatic, Manual, AE Value Can Be Set

Cross Line: 8 Lines, Color, Width and Position Can Be Set

Tick Marks: 2 Lines

Dotted Line: 2 Lines, Color, Width and Position Can Be Set

Sharpness Contrast Color Gain: Yes

Mono Negative: Support

Mirror: Horizontal and Vertical Mirroring

Languages: English, Simplified Chinese, French, Spanish, Japanese, German and Other Languages

Digital Zoom: Support

Infrared Remote Control: Support

Voltage Input: DC 12V

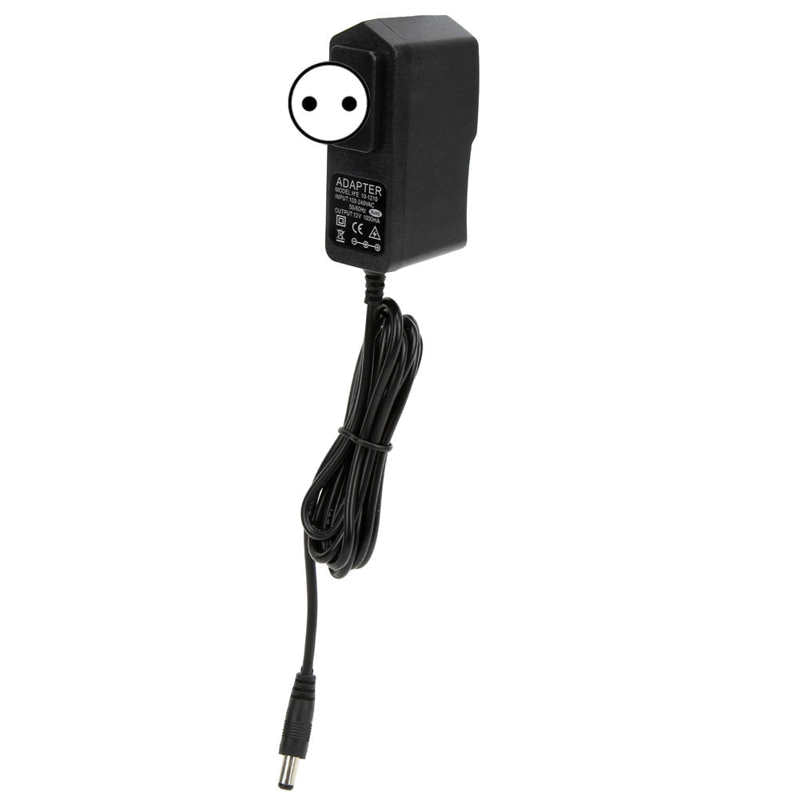

Power Supply Voltage: Input AC100-240V

Output: DC 12V

Power Consumption: Maximum 0.15W 12V, 0.12A

Lens Mount: C/CS Mount

Remote Control Battery: 1x CR2025 Button Battery (not included)

120x Lens

Magnification: 0.12 - 2X (Approx. 8X - 120X Display)

Field of View: 2.4mm-66mm / 0.01-2.6in

Zoom Ratio: 5:1

Size: 100mm(L) x 28mm(DIA) / 3.9in(L) x 1.1in(DIA)

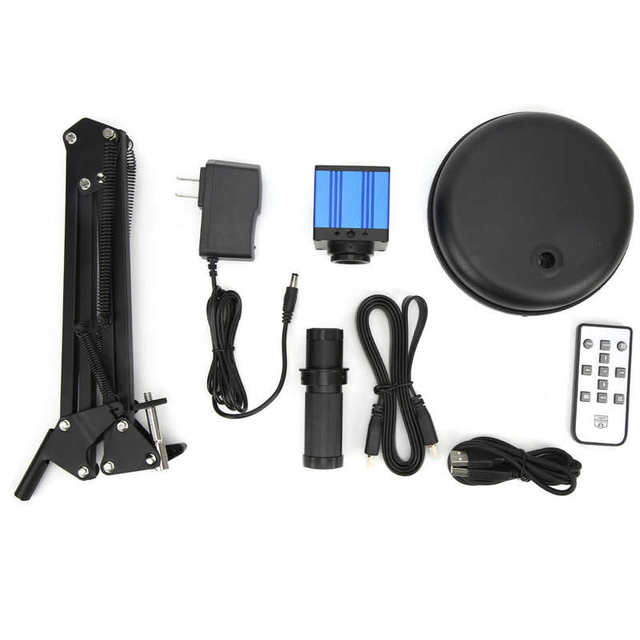

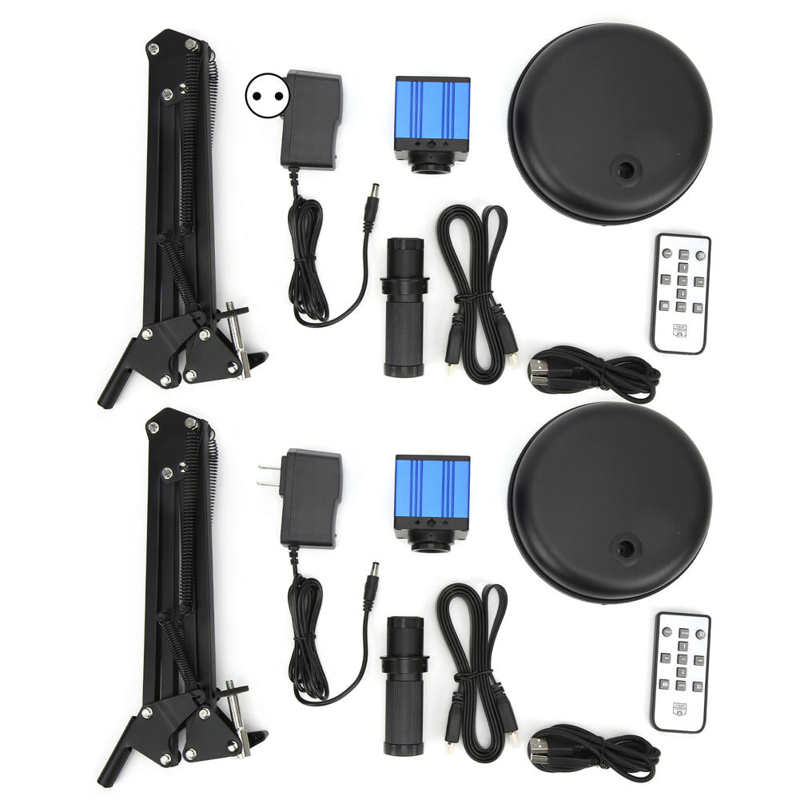

Package List:

1 x Camera

1 x Lens

1 x Software CD

1 x Remote Control (Battery Not Included)

1 x HD Multimedia Interface Cable

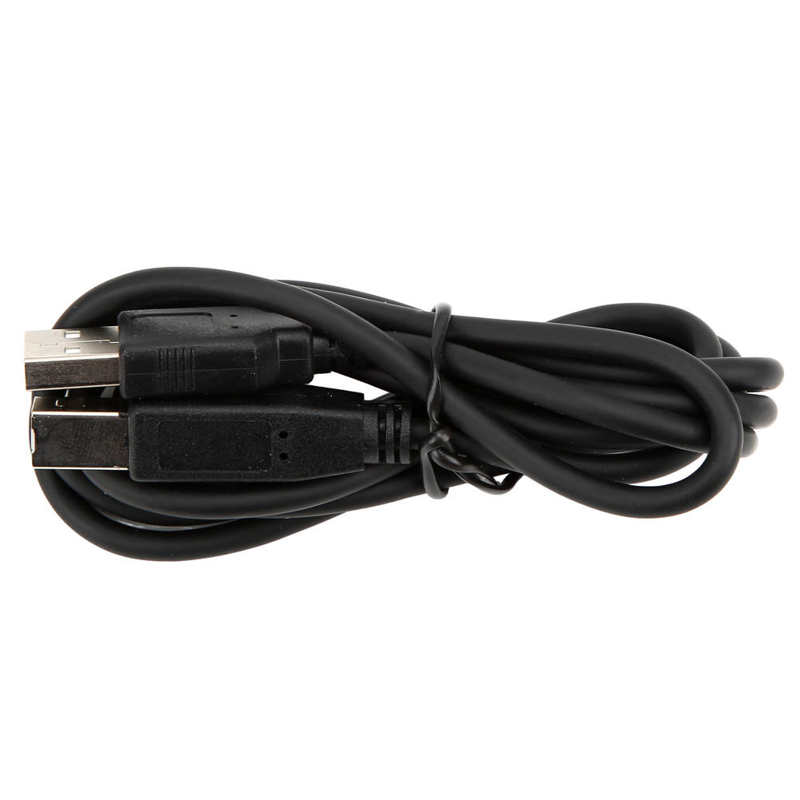

1 x USB Cable

1 x Plug

1 x Base

1 x Stand

1 x Manual

Note:

Please allow some errors due to manual measurement.
