Features:

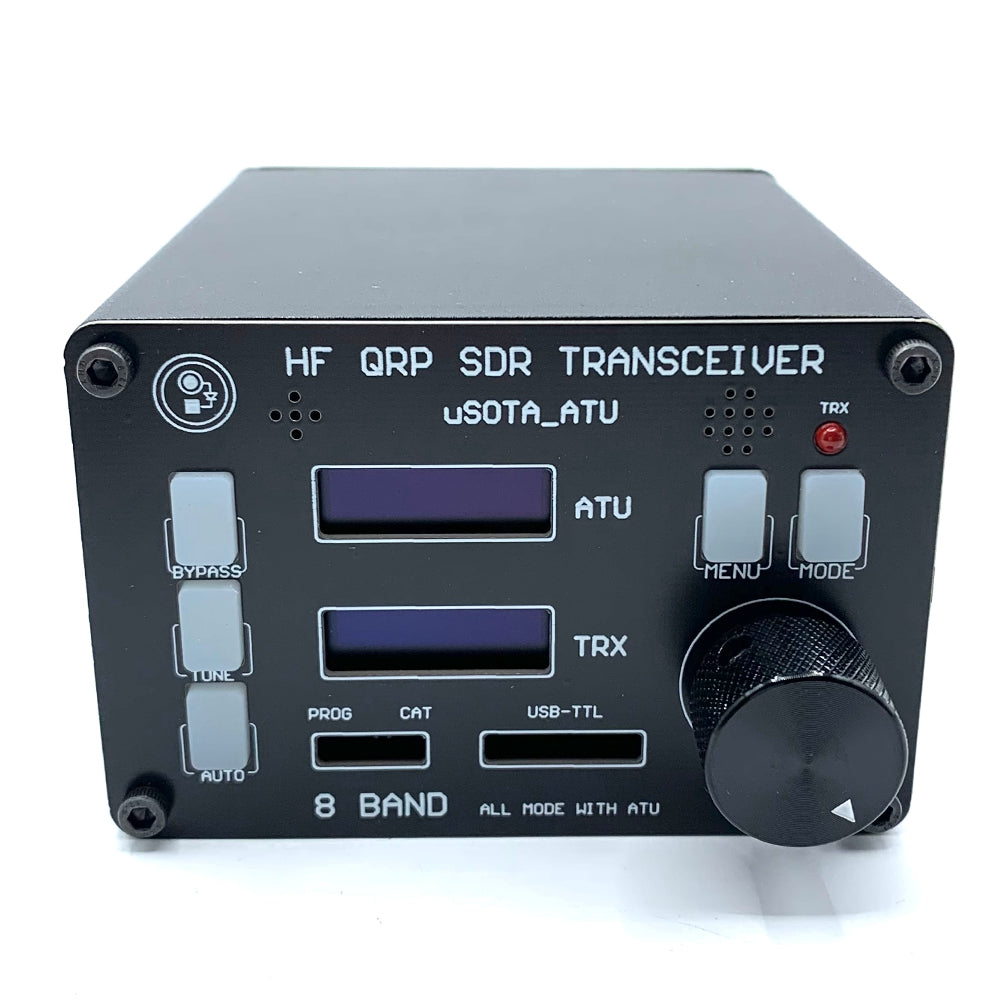

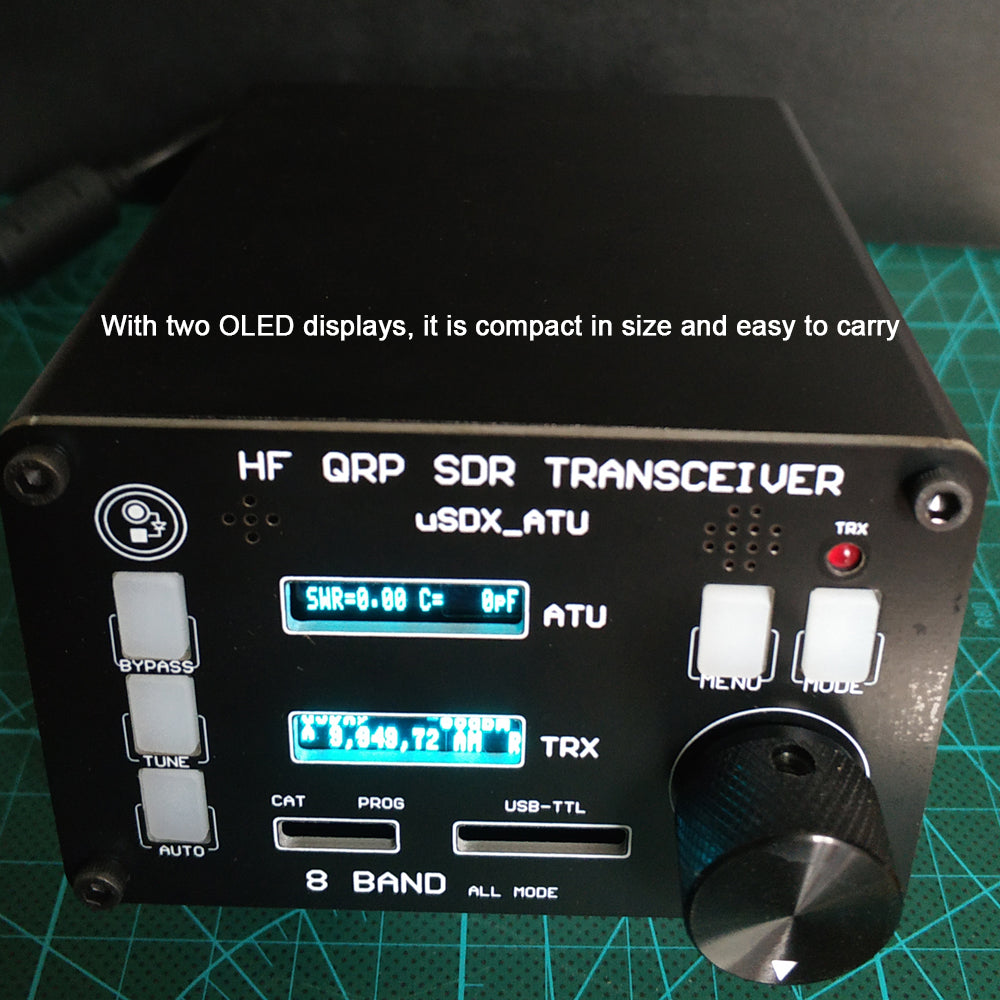

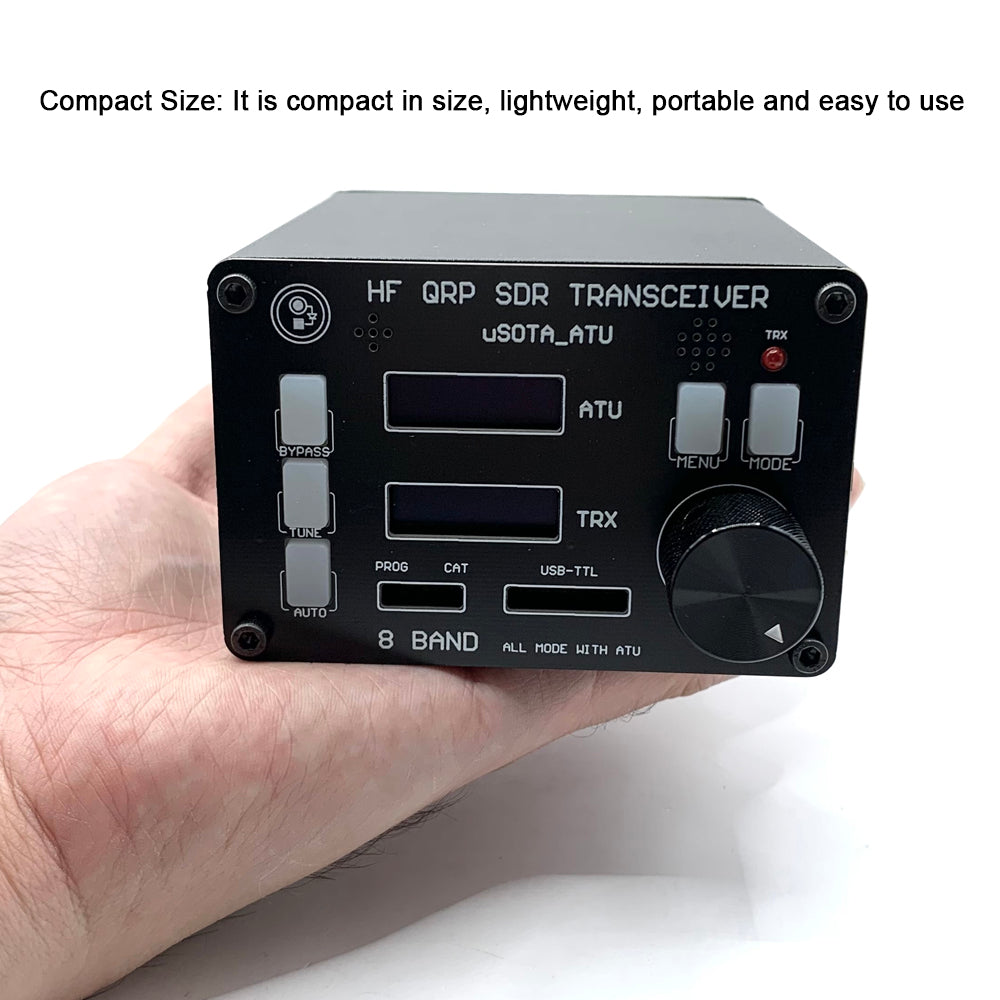

 Compact Size: It is compact in size, lightweight, portable and easy to use.

 8 Bands Design: 3.5MHz; 5.3MHz; 7MHz; 10MHz; 14MHz; 18MHz; 21MHz; 29MHz.

 Emission Efficiency: higher than 85% ( 3.5MHz; 5.3MHz; 7MHz; 10MHz; 14MHz); higher than 80% (18MHz and 21MHz); For 29MHz, it's over 70%.

 PC Connection: Connected to a PC, using the FT8, JS8, FT4 and other digital mode software controls, supports CW automatic decoding.

 Free Upgrade: It can reach 3-5W power in 8 bands and can freely upgrade the PA module (TO-220).

 Stable Performance: High precise TCXO for KDS, with frequency accuracy better than 1PPM and frequency stability better than 0.5PPM.

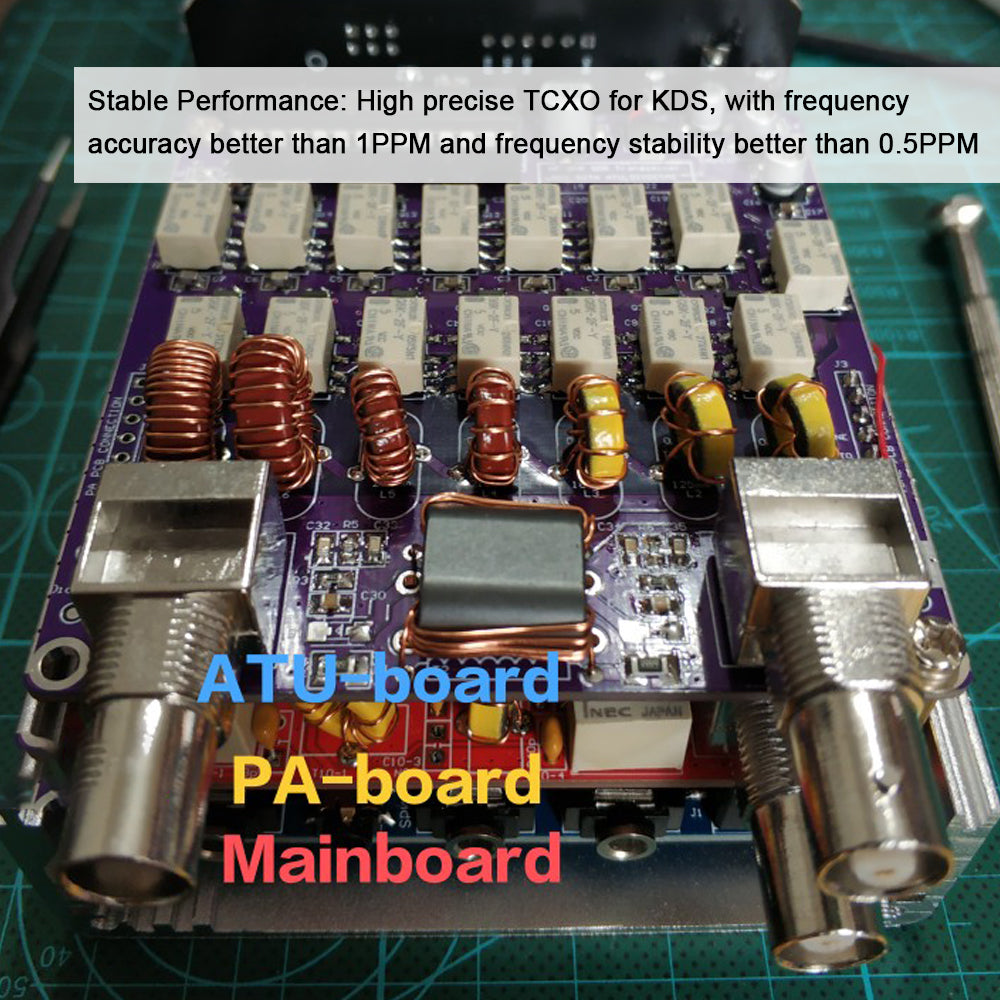

 Independent Design: Independent core board, RF PA board, and ATU board to avoids its own signal interference.

 Selected Parts: All LPF parts use 100V C0G/NP0 capacitors, or use a LM4562 or LM833 or LT6231 op amp chip.

 Rich Interfaces: There are HEADPHONE, PTT OUT, MIC/PTT, SPK/MIC BNC antenna interfaces (with BCN-SL16 adapter, easy matching antenna).

  Specifications:

 Name: Transceiver Antenna Tuner Set

 Material: printed circuit board

 ATU (Automatic Antenna Tuner Unit):

 Maximum tuning inductance: 8.42µH

 Minimum tuning inductance: 0.05μH

 Maximum tuning capacitance: 1869pF

 Minimum tuning capacitance: 10pF

 Package size: 200 * 100 * 50mm / 7.87 * 3.94 * 1.97in

 Package weight: 1200g / 2.65lb

  uSDX_ATU System Functions:

 Full mode support: USB, LSB, CW, AM, Frequency Modulation

 All-digital and software-based software defined radio receive channels

 All-digital and software-based SSB transmit channels

 Receive attenuator: 0dB, -13dB, -20dB, -33dB, -53dB, -60dB, and 73dB

 DSP filter bandwidths: 4000, 2500, 1700, 500, 200, 100, and 50 Hz

 Receiving background noise: -135dBm at 28MHz (BW=200Hz)

 Receiver Front-End selectivity: Tuning frequency -45dB/decade roll-off ±2kHz

 SSB/carrier suppression: transmit, better than 45dBc; receive, better than 50dBc

 DSP functions: Automatic Gain Control (AGC), Noise Reduction (NR), Voice Triggered Xmit (VOX), RX Attenuator (ATT), TX Noise Gate, TX Drive Control, Volumes Control, dBm/S meter

  Three-Layer PCB:

 ATU-board

 PA-board: 8 band

 Mainboard

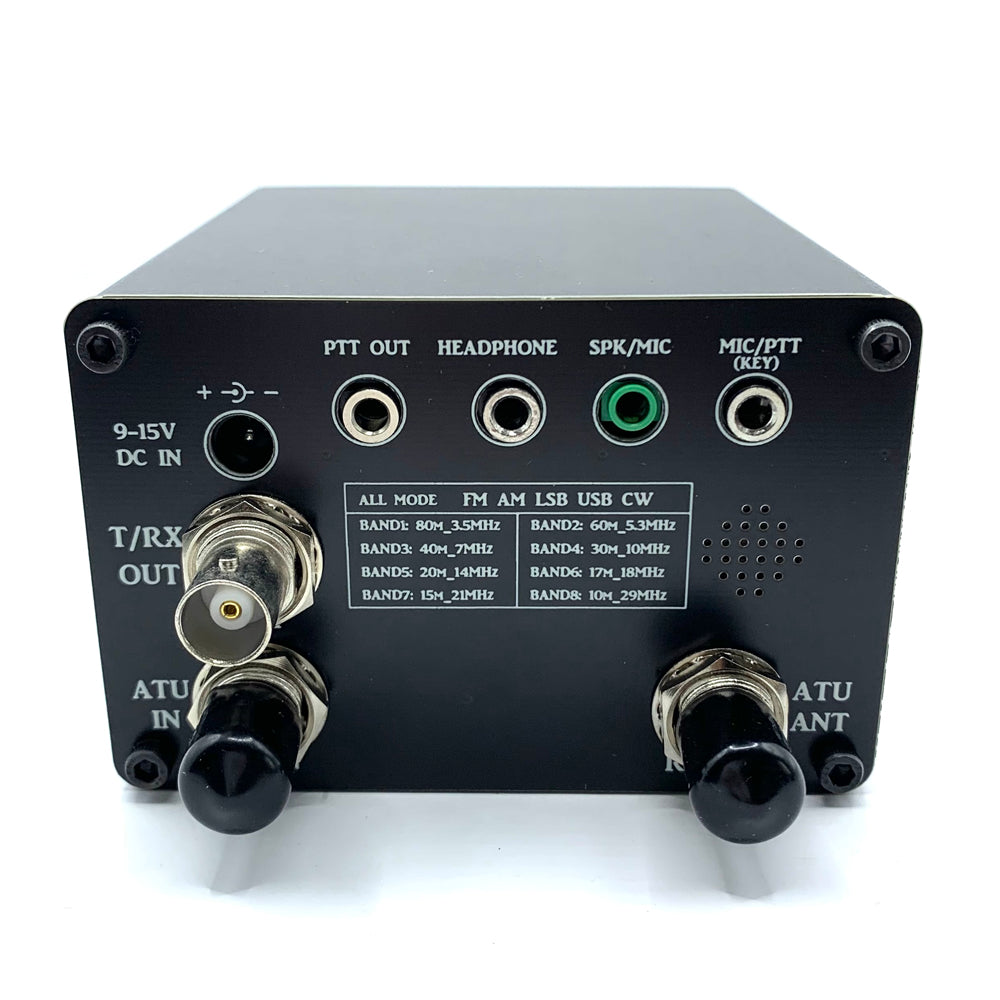

  Rear Panel Connector (JACK):

 1. Headphone Jack (3.5 mm):

 Tips–Audio out

 Rings–Audio out

 Sleep–GND

  2. MIC/PTT (Keys) Jack (3.5 mm):

 Tips–Mic input

 Rings–PTT

 Sleep–GND

  CW-KEYS INPUT MODE:

 Tips–DAH

 Rings–DIT

 Sleep–GND

  3. SPK/MIC Jack (3.5 mm):

 Tips: SPEAKER

 Rings 1: MIC

 Rings 2: PTT

 SLEEVE: GND

  4. PTT OUT Jack (3.5 mm):

 Tips–SSR output

 Rings–SSR output

 Sleep–GND

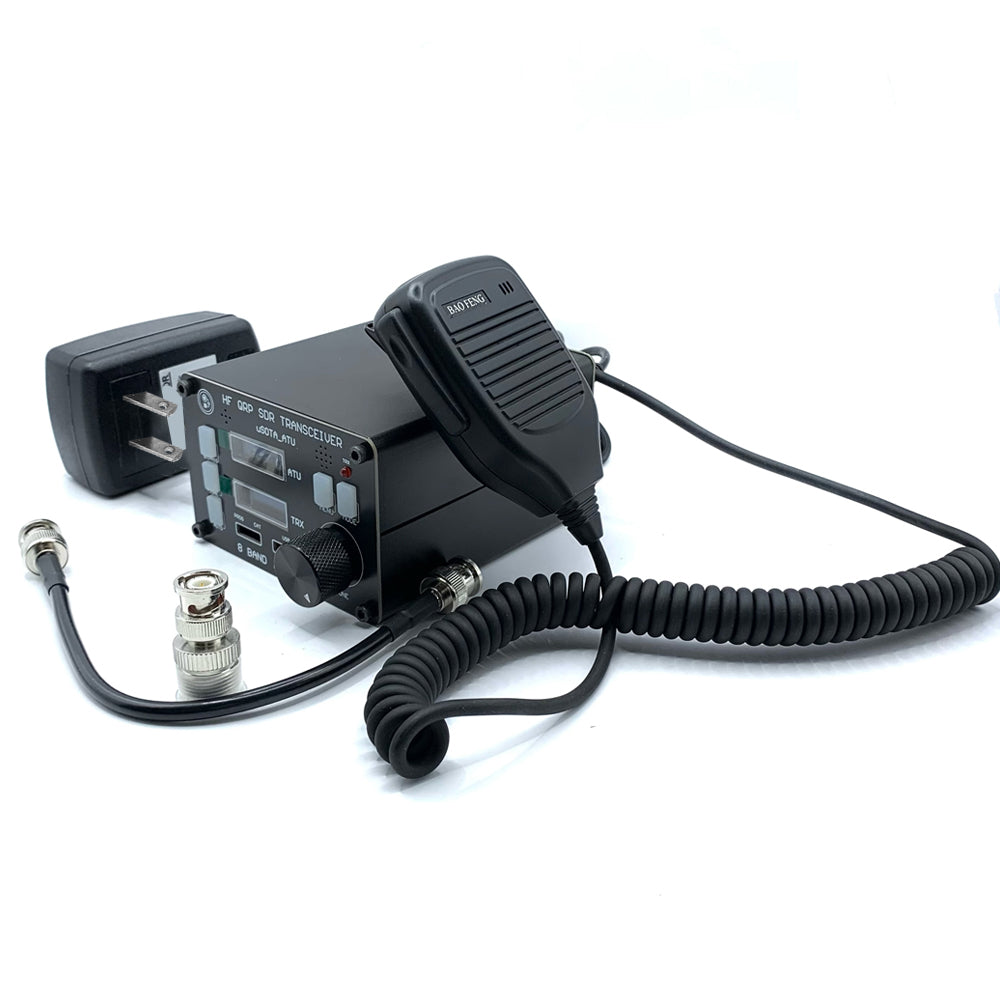

  Packing List:

 1 * Main Unit

 1 * 13.5VDC Power Adapter

 1 * BNC Adapter

 1 * BNC Cable

 1 * Handheld Microphone

 1 * Wrench

  Note:

 Note that there is no built-in battery or built-in speaker. External power supplys is required.
