Feature:
1. Long Last Durability: Adopt selected premium materials, very practical, and has long lasting durability, no need for frequent replacement.

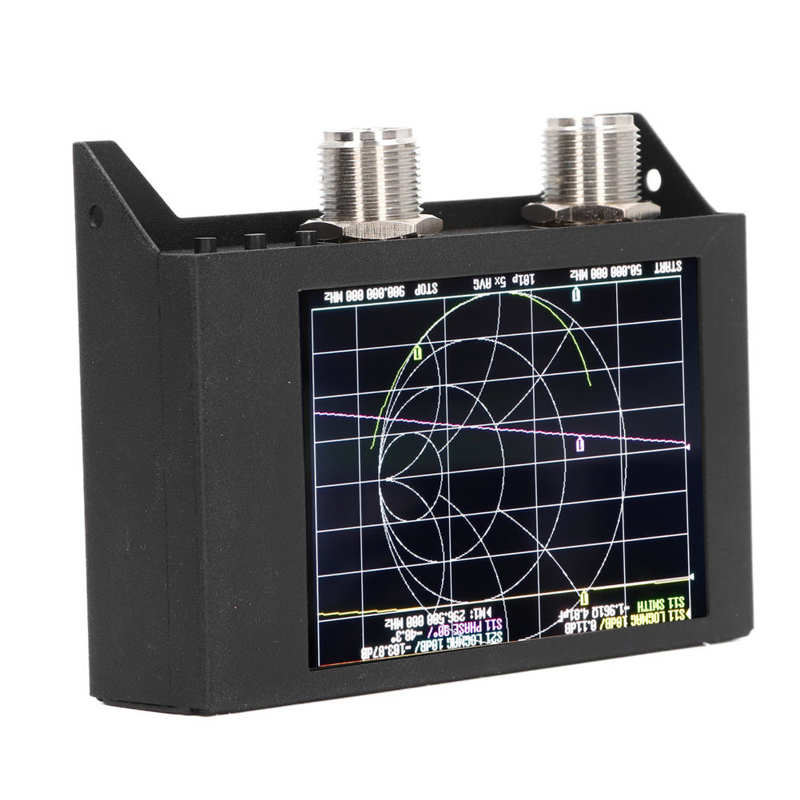

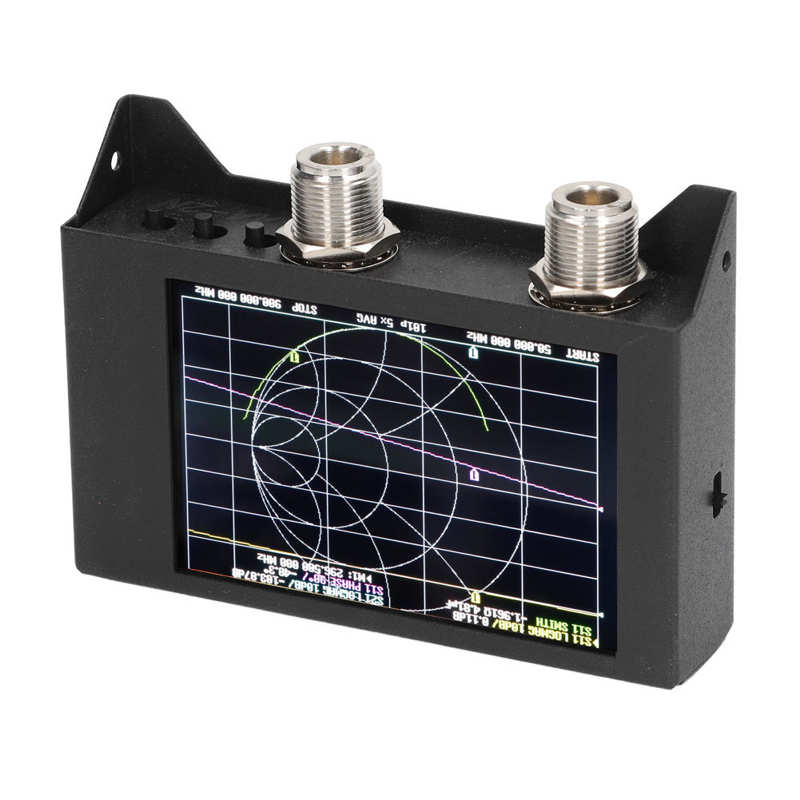

2. Touch Monitor: Equipped with 4in TFT LCD touch screen monitor, which is more convenient to operate, and displays data more clearly.
3. Wide Frequency Range: The measurement frequency range is 50KHz to 3GHz, which has a wide range of applications.
4. High Performance: Featuring high stability, sensitivity and accuracy, greatly improving the functional performance.
5. Lightweight and Portable: Designed in lightweight and compact size, built in battery, the analyzer is easy to carry out.
Specification:

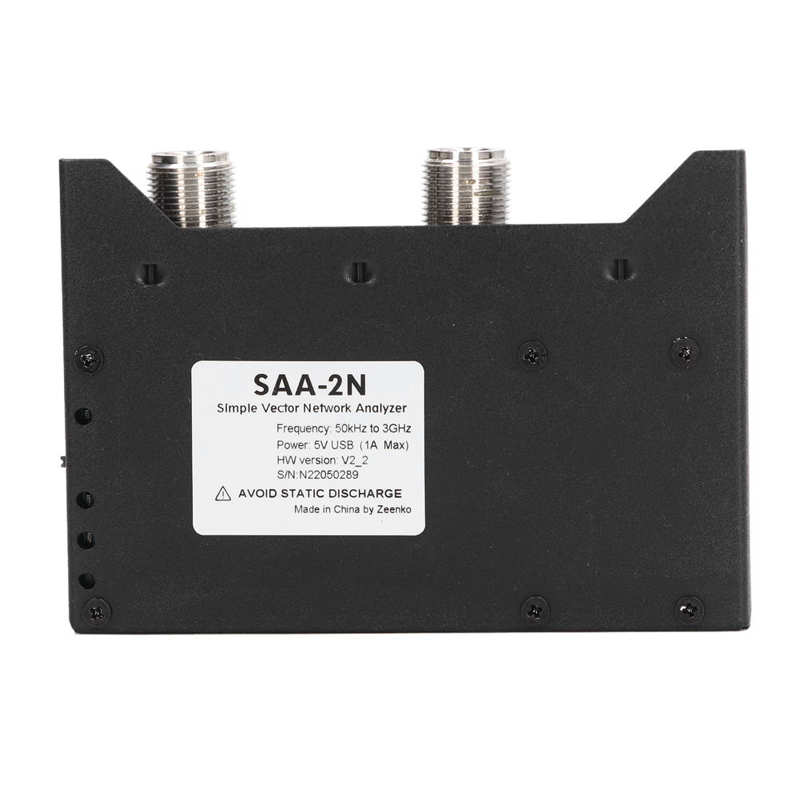

Item Type: 3G Vector Network Analyzer
Material: PCB, Iron
Battery: 1 x 18650 lithium battery 3000mAh (built in)
Purpose: Network Analysis
Basic Parameters:
Measurement Frequency Range: 50KHz-3GHz
Frequency Tolerance: <2ppm
Frequency Stability: <0.5ppm
System Dynamic Range (Calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 Noise Floor (Calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Cleaning Speed: 100 points per second
Maximum Scan Points (On Device): 201
Maximum Scan Point (USB): 1024
Port 2 Return Loss (1.5GHz): 20dB Typical
Port 2 Return Loss (3GHz): 13dB Minimum

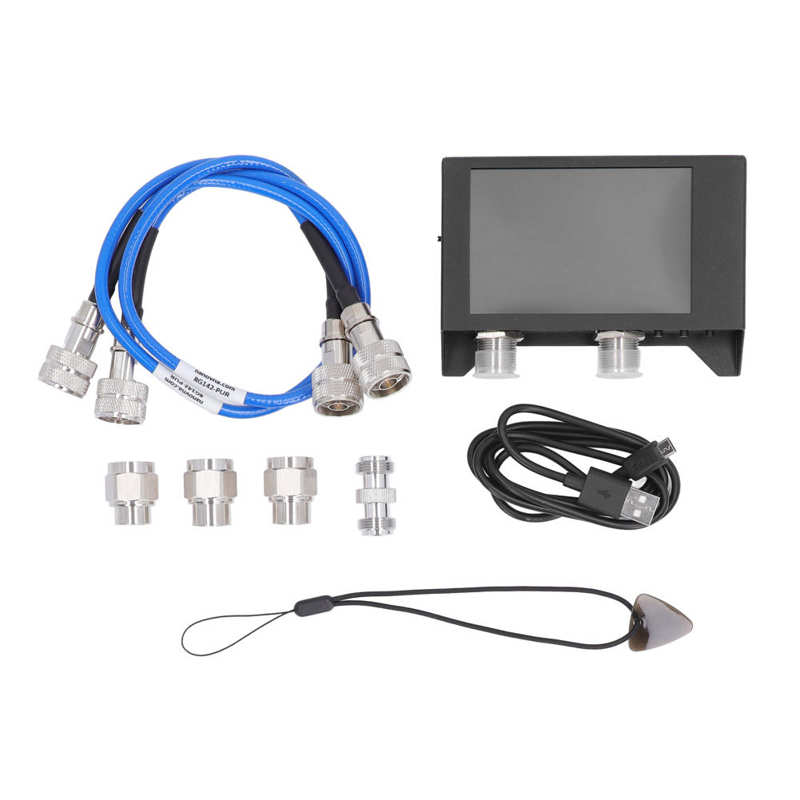

Package List:
1 x 3G Vector Network Analyzer
1 x Micro USB Data Cable
2 x 500mm N Type Male Thread to Male Thread RG142 PUR RF Cable
1 x N Type Male Thread Calibration Kit
1 x N Type Male Calibration Kit
1 x N Type Male Thread Calibration Kit
1 x N Type Female Thread to Female Thread Connector

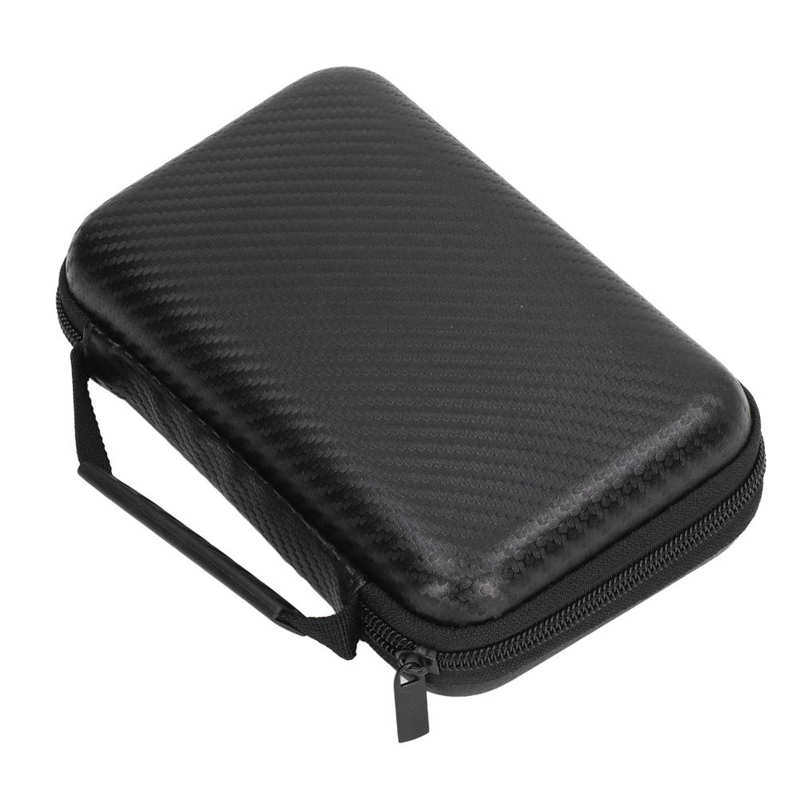

1 x Storage Bag
1 x Lanyard
1 x Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
