Applications：

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

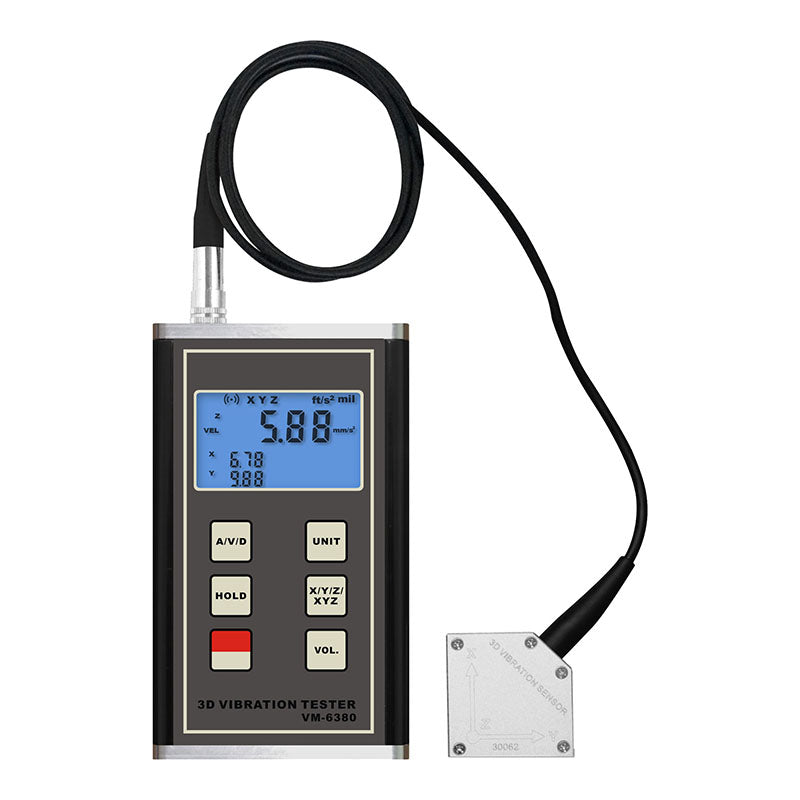

* VM-6380 can shown 3 same parameters in one display for 3 dimensional measurement.

* VM-6370 can display the parameters of Displacement,Velocity and Acceleration simultaneously.

Features:

* With the detection of 3 Dimensions, 3D Vibration Meter VM-6380 is the most scientific, comprehensive Vibration Meter in vibration detection field.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

* Individual high quality accelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* Optional headphones for use as electronic stethoscope.

* Use RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Specifications:

               Sensor

            Piezoelectric Transducer

                Measuring Range

            Acceleration

            0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak

                Velocity

            0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS

                Displacement

            0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak

                Frequency Range

            Acceleration

            10Hz~10kHz

                Velocity

            10Hz~1kHz

                Displacement

            10Hz~1kHz

                Accuracy

            5% of Reading+2 digits

                Operating Conditions

            Temperature

            0ºC~50ºC

                Humidity

            <90%RH

                Power Supply

            2x1.5V AA(UM-3)Battery

                Dimensions

            137mmx76mmx32mm

                Weight

            425g(Not Including Batteries)

                Standard Accessories

            Main Unit

                Piezoelectric Transducer

                Powerful Rare Earth Magnet

                Probe(Cone)&Probe(Spherical)

                Carrying Case(B04)

                Manual Book

                Optional Accessories

            Headset

                RS-232C Data Cable with Software

                Bluetooth Data Adapter with Software

Difference of VM-6370 and VM-6380

Vibration Standard:

      ISO/IS2373 Motor Quality Standard According As Vibration Velocity

       Quality Rank

   Rev(rpm)

   H:high of shaft(mm)

Maximum vibration velocity rms(mm/s)

       80<H<132

   132<H<225

   225<H<400

       Normal

   600~3600

   1.8

   2.8

   4.5

       Good(R)

   600~1800

   0.71

   1.12

   1.8

       1800~3600

   1.12

   1.8

   2.8

       Excellent(S)

   600~1800

   0.45

   0.71

   1.12

       1800~3600

   0.71

   1.12

   1.8
