Pre-sale Walksnail VRX 1080P/60FPS 4KM Distance with Avatar-1S Kit / Avatar-HD Micro Kit for FPV Freestyle Drone Quadcopter
Note:VRX is expected to be shipped on December 10th, please extend the shipping time to December 10 after the order payment.Thanks you
Specification
Camera
Model
Avatar-nano/Avatar-camera
Image Sensor
1/2.7”1nch
Resolution
1080P/60fps,720P/120fps,720P/60fps
Ratio
16/9 4/3
Lens
2.1mm
FOV
170°
Aperture
F2.0
Shutter
Rolling shutter
Min.Illumination
0.001Lux
Weight
3.5g/6g
Dimensions
14*14*17mm/19*19*22mm
Coaxial Cable
90mm/140mm
VTX
Model
Avatar-module
Communication Frequency
5.725-5.850GHz
Transmitter Power (EIRP)
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O Interface
JST1.0*6(Power in)JST1.0*4(USB)
Mounting Holes
25.5*25.5mm
Dimensions
33*33*9.5mm
Storage
8G
Recording
1080p/720p
Weight
16g
Operating Temperature
-20-40℃
Channels
8
Wide Power Input
6V-25.2V
Supported FC System
Betaflight
OSD
Canvas mode
Latency
Average delay 22ms
Antenna
2(IPEX)
Goggles Antenna
Model
Red bird
Polarization
LHCP
Bandwidth
5.6GHz-6.0GHZ
Average Gain
1.9dBi
Radiation Efficiency
≥97%
VSWR
≤1.3
Cross-Polar Rejection
-15to-30dB
Connector
RP-SMA
Dimension
H24.8mm*R15.3mm
Weight
4.2g

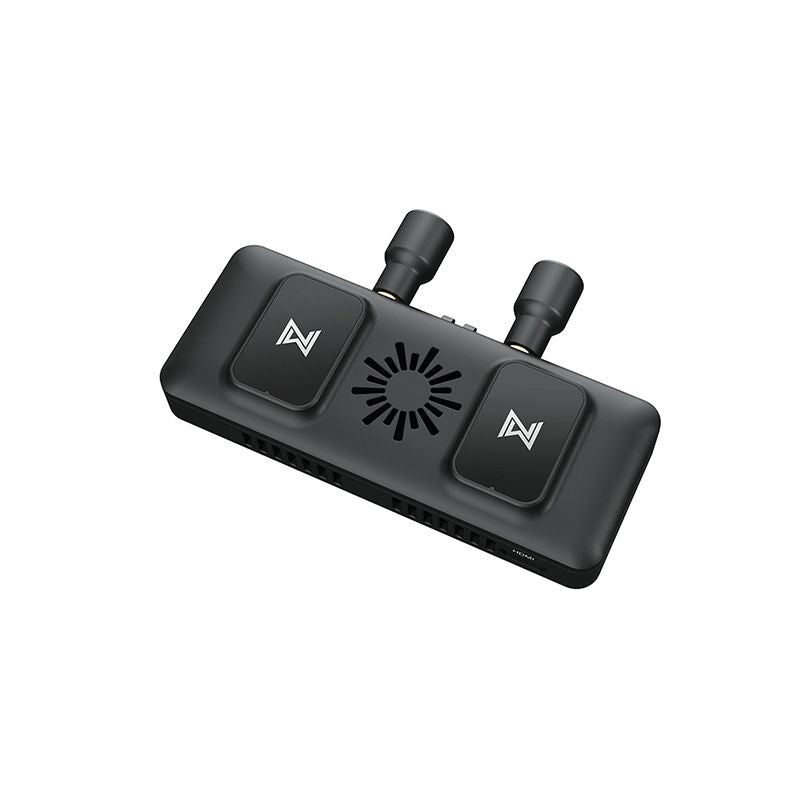

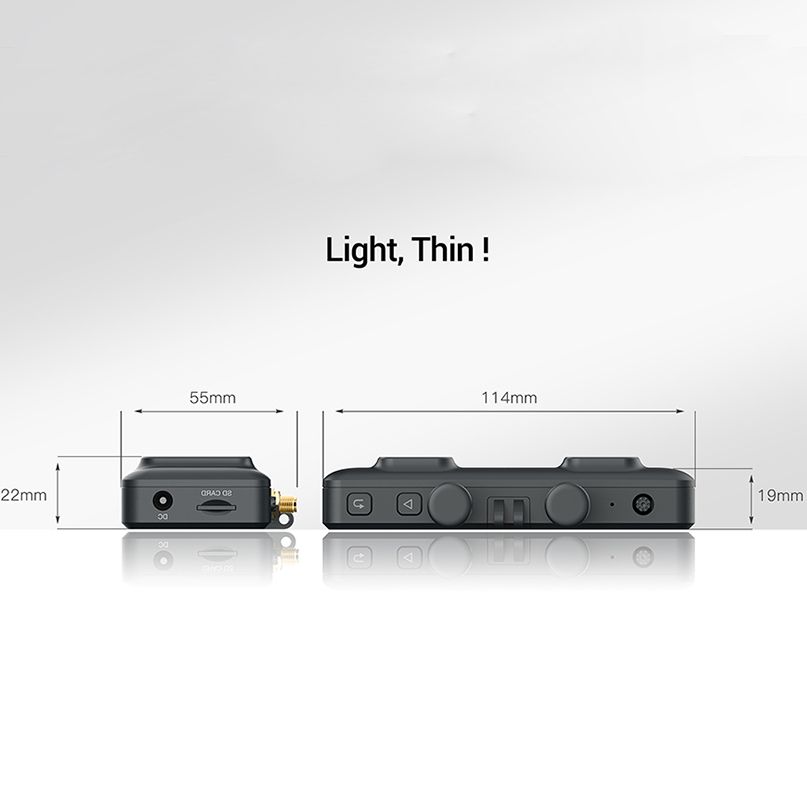

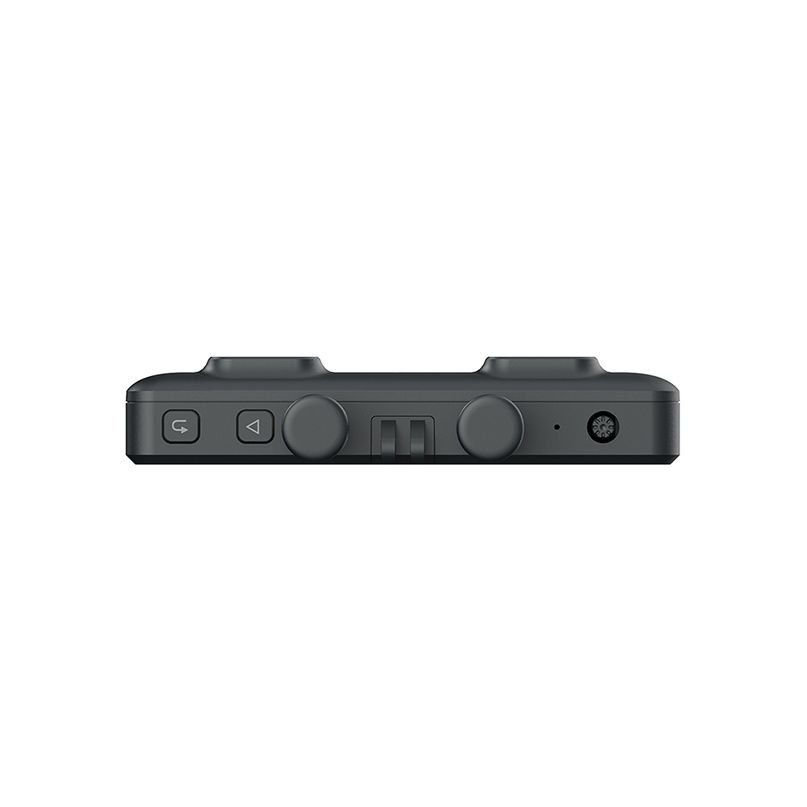

Avatar-HD VRX
Model
Avatar-HD VRX
CommunicationFrequency
5.725-5.850GHz
TransmitterPower(EIRP)
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/OInterface
HDMI,microSDcardslot,DC5.5*2.1mm
HDMIOutput
1080p60fps,720p100fps,720p60fps
PowerInput
7-21V(2S-5S)
SDCard
Support256G
System
Avatar-HD system
Packing List
Avatar-VRX
×1
RedBirdAntenna
×2
HDMICable
×1
2in1DCPowerCable
×1

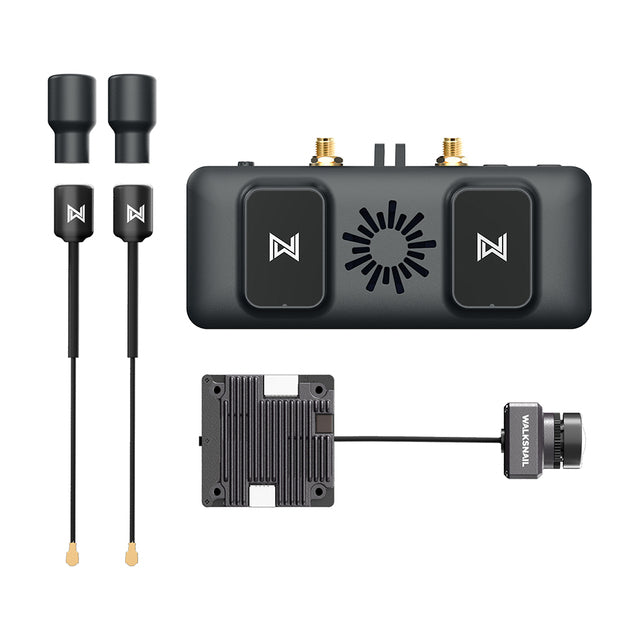

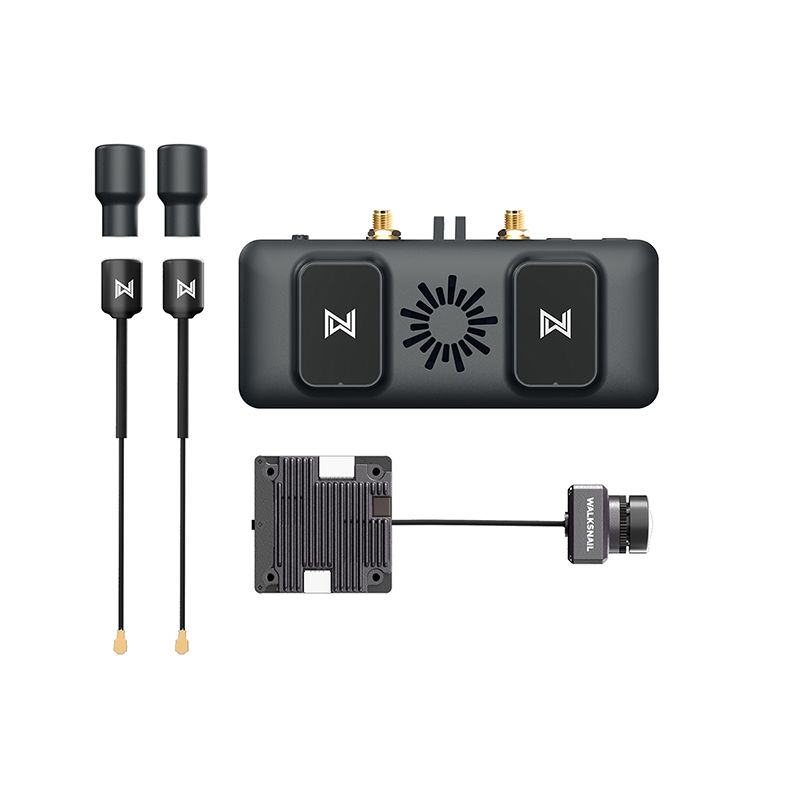

Avatar-HD KIT
X1
4 Pin USB Cable
X1
6 Pin Power Cable
X1
M2x3/4/5mm Screws
X4
M1.2x1.5mm Screws
X2
Avatar-HD Nano KIT
X1
4 Pin USB Cable
X1
6 Pin Power Cable
X1
M2x3/4/5mm Screws
X2
M1.2x1.5mm Screws
X2
14-19mm Bracket
X1

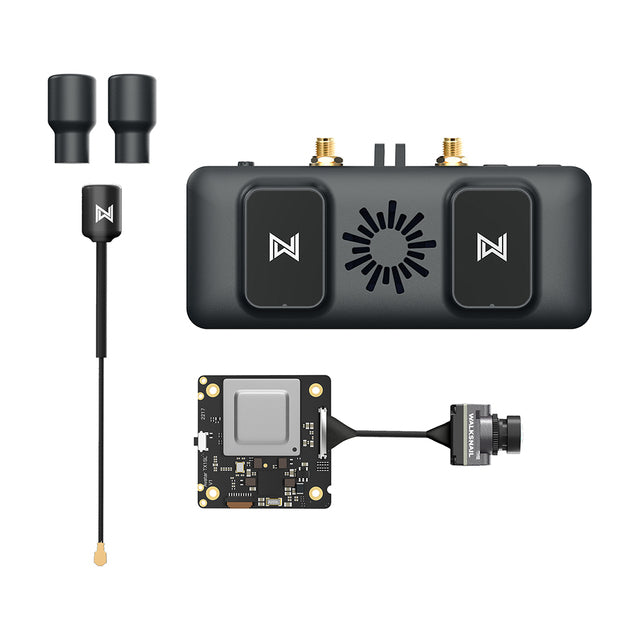

Avatar-Mini 1S KIT
X1
4 Pin USB Cable
X1
6 Pin Power Cable
X1
M2x3/4mm Screws
X2
M2x16mm Screws
X4
M2 Screw nut
X4
2.1x3.4x1mm Gasket
X5
Q&A
Q:Is VRX compatible with goggles from other products?
A:Compatible With Analog Goggles,HDMI Out(Our VRX module supports HDMI OUT, If you goggles support HDMI IN it will work fine)
Q:Do i need a set of goggles with a 1080p resolution or an 720p is enough?
A:VRX supports 720P\1080P
Q:Avatar-HD Micro kit come with a 140mm cable between the VTX and camera?
A: yes
Q:does the Pre-sale unit fit 20x20 mount?
A:Our vtx is 25*25
Q:the difference between all 3 of the walksnail kits? What is the Avatar-1s vs avatar-hd micro vs avatar-HD nano?
A:
mini 1s kit
350mw, Power Input: 3.1V-5V, VTX Weight 6.8g
avatar-HD micro/nano kit standard version
1200mw, Power Input: 6V-25.2V, VTX Weight: 16g
Q:Micro/Nano Camera difference?
A:
Weight：3.5g/6g
Dimensions：14*14*17mm/19*19*22mm
Coaxial Cable：90mm/140mm
Q:hdmi-Compatible type？
A:mini hdmi
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
