1. [7in IPS Screen] 7in LCD digital monitor, built in recorder. Real time recording, video playback.

2. [Multi Modes] Split mode, auto scan mode and single display mode available; Normal, mirror, FLIP, MIRROR‑FLIP viewing options available.

3. [HD 720P] 1280x720 resolution, better image, strong lens and long transmission distance, which will bring you a new driving experience.

4. [IP68 Waterproof] IP68 waterproof and 10G vibration rating. Built in SMART IR‑CUT filter image color and more real.

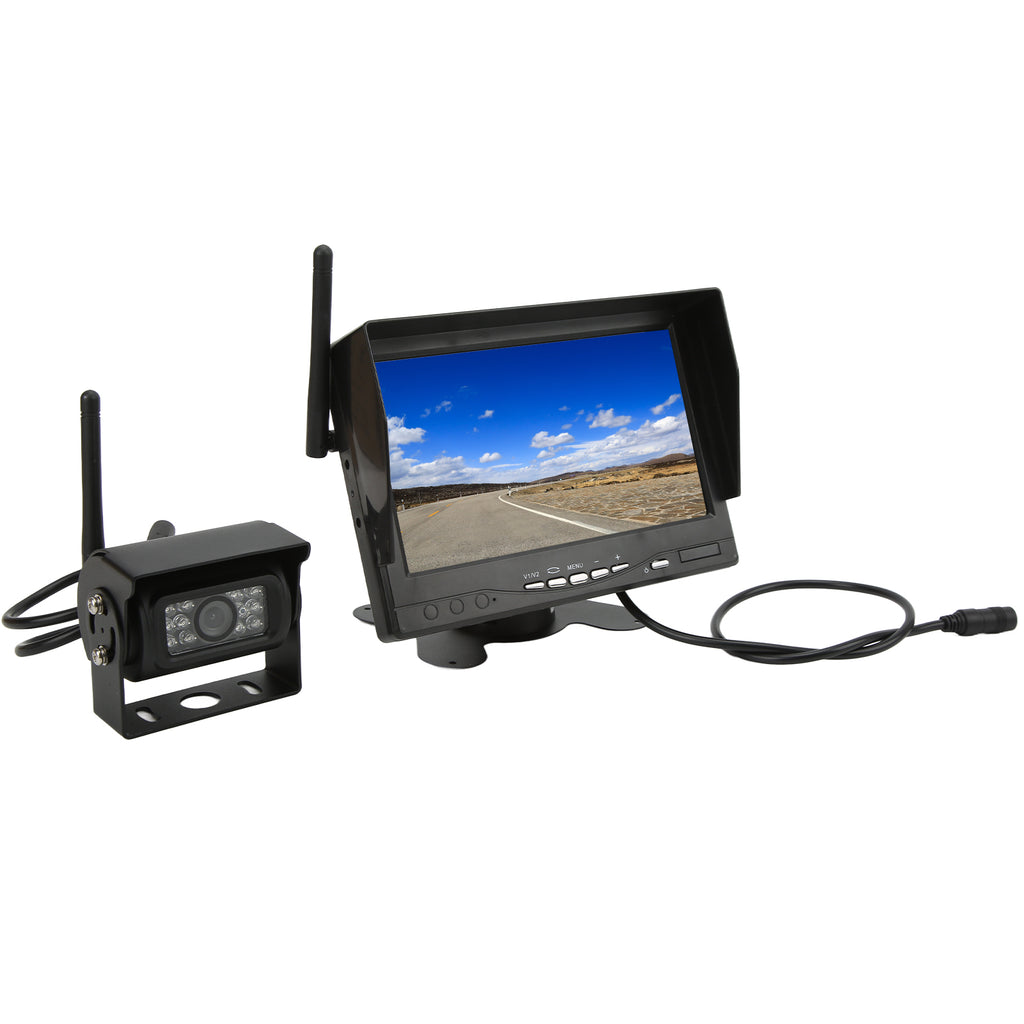

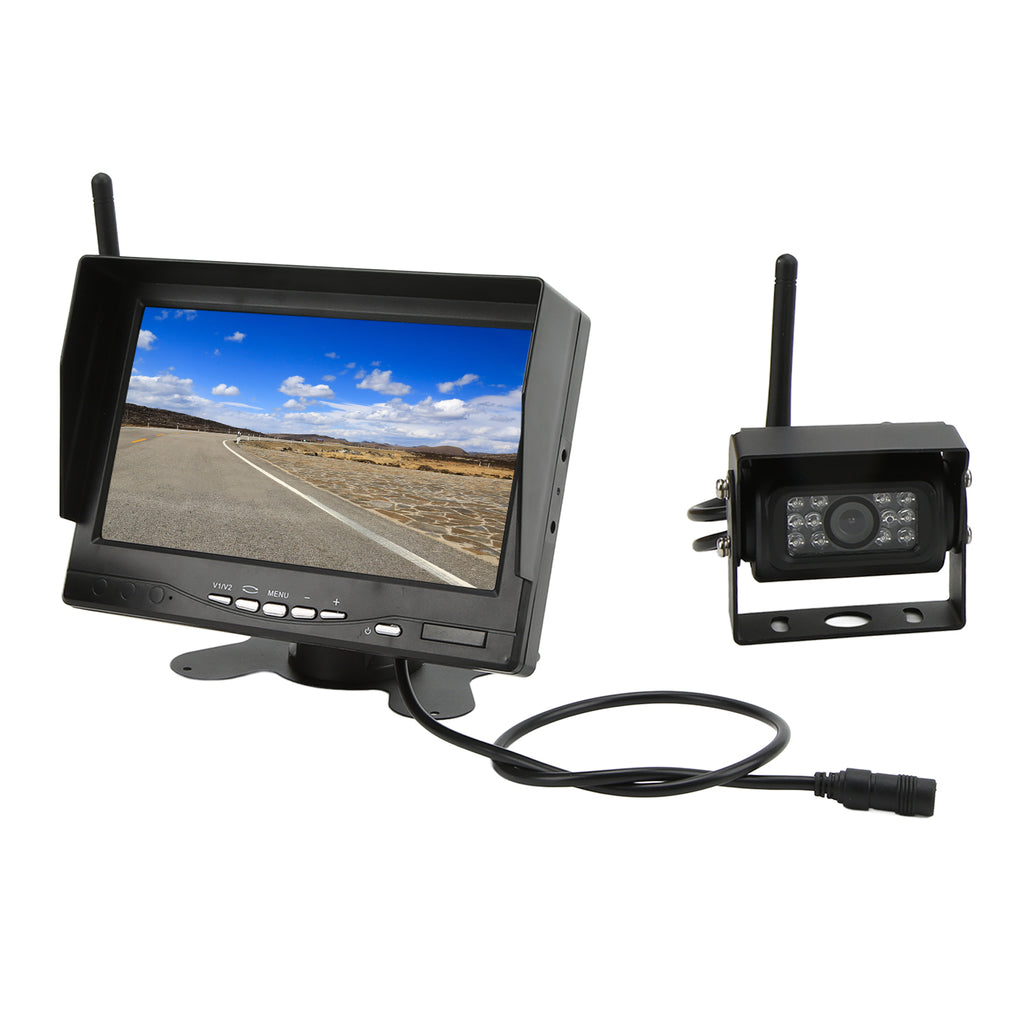

5. [Long Transmission Distance and 120° Wide Angle] DC 5‑40V input, support 4 wireless camera input, 120° wide viewing angle, wireless line of sight range up to 1500m / 4921ft. (This kit includes 1 monitor+ 1 camera)

    Specification:

Item Type: Wireless Backup Camera Kit

Material: ABS+Metal

Model: 2.4GHz wireless display

Screen Size: Approx. 17.8x11.8cm / 7x4.6in

Total Length: Approx. 15cm / 5.9in

Base Width: Approx. 12cm / 4.7in

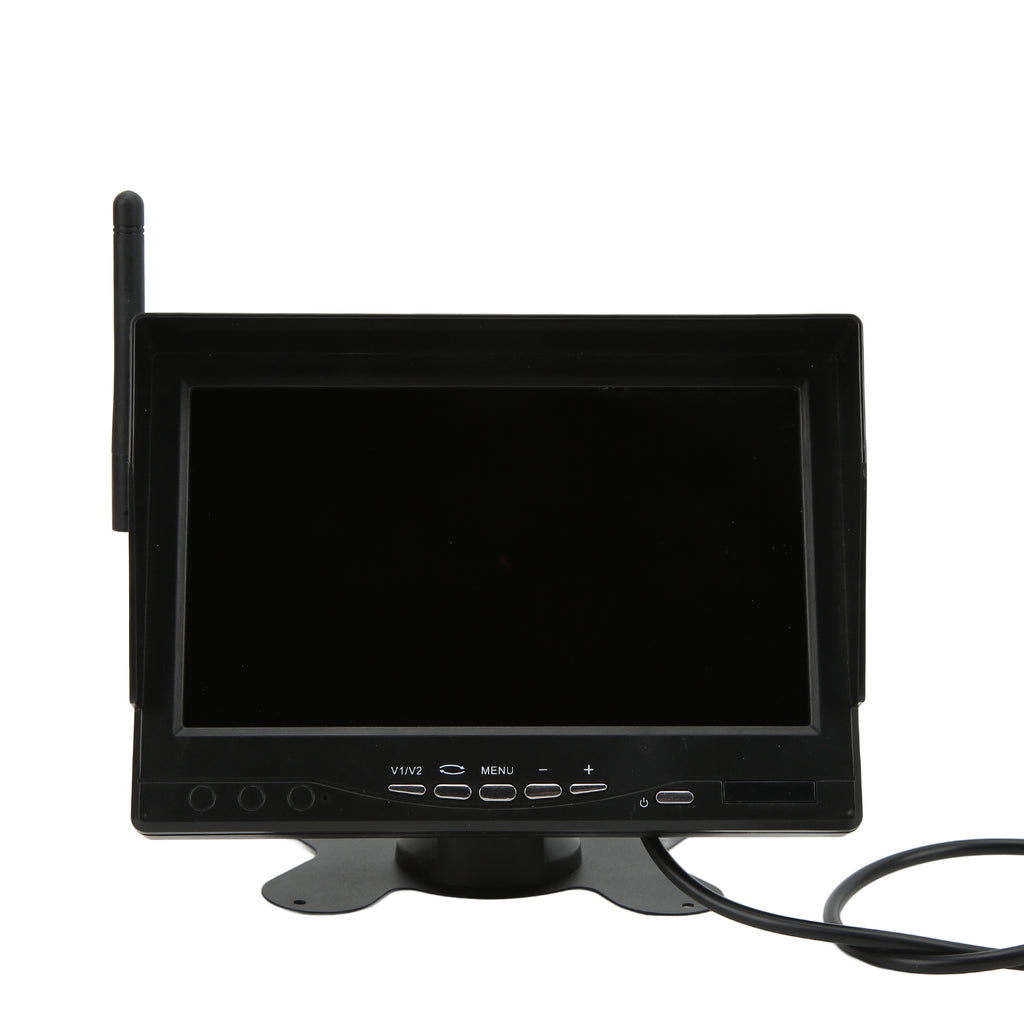

Display: 7in IPS screen

Resolution: 1280x720

Backlight Brightness: LED, 500cd/㎡

Contrast Ratio: 500:01:00

Viewing Angle: UP-50°, DOWN-70°, LEFT-70° RIGHT-70°

OSD: English

Video Screen Display: One way display (4 channels can be connected)

Storage: Storage card storage (support 128GB) (not included)

Working Voltage: DC 5-40V

Power Consumption: Maximum Current: Working Temperature: -10℃-60℃ / 14℉-140℉

Storage Temperature: -20℃-70℃ / -4℉-158℉

Shockproof Level: 7G

Wireless Transmission Distance: Approx.1500m / 4921ft (open distance)

Wireless Bandwidth Range: 2403-2480MHz

Electrical Performance Parameters Of Wireless Camera:

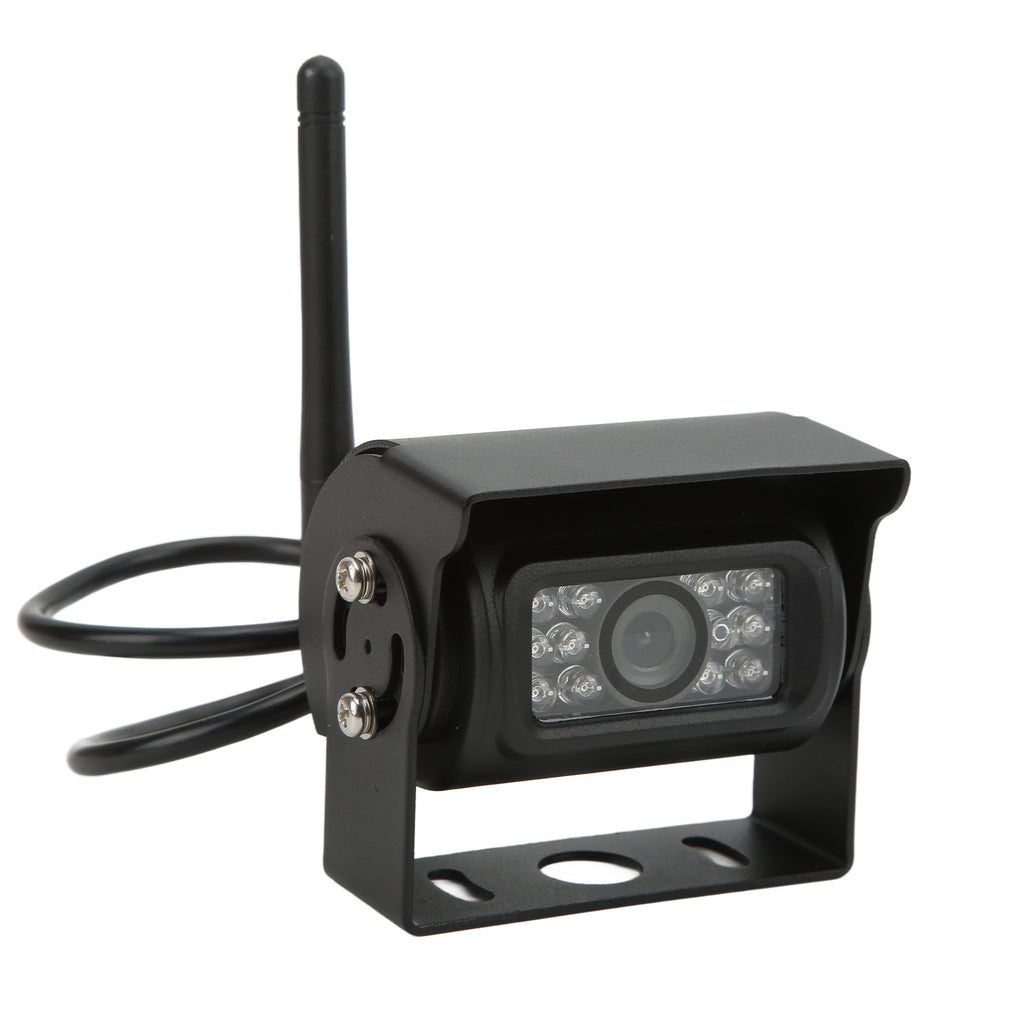

Model: Wireless Camera

Image Sensor: 1/3 CMOS H65

Resolution: 1292(H)x968(V)

Lens: Approx. 2.8mm / 0.11in

Low Illumination: 0.001 LX

Wide Angle Viewing Angle: 120°

Infrared Lamp Power Consumption: DC12V 100mA±5% 1W

IR Switcher Output Switching Power Consumption: DC3-5V 0.05A 1W

Shell: Metal

Standard: PAL, positive image

Scanning Method: 2:1 interlaced scan

Synchronization Method: Internal synchronization

Signal to Noise Ratio: ≥48dB

AWB: On Off

Infrared Light: 18 x ￠5(12mil) infrared light

Infrared Distance: Approx. 15m / 49ft

Infrared Switching: Automatic Switching

Auto Shutter: 1/50~1/100.000 sec.

Video Output: 1.0Vp-p 75 ohm

Connection Method: DC connector

Waterproof Rating: IP68

Shock Resistance Rating: 10G

Colour: Black

Applicability: For truck, trailer, RV, pickups, camping car, van, farm

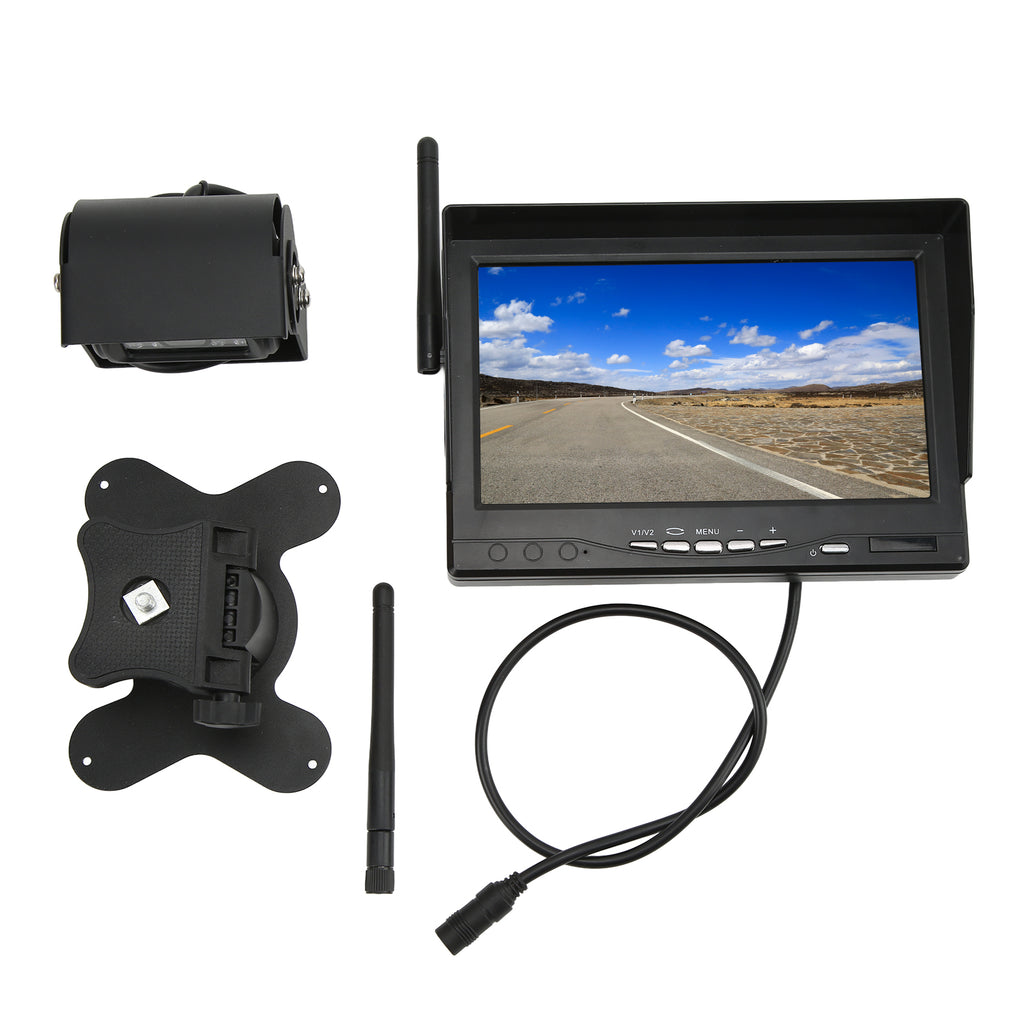

    Package List:

    1 x Backup Camera

    1 x Mounting Bracket

    1 x Wireless Camera

    1 x Antenna

    1 x Manual
