1. TATTOO TRANSFER MACHINE: High resolution, no need to replace parts and ink, fast transfer speed, low noise, stable performance, clear transfer pattern. Standard USB and interface, which can be connected to a PC or cell phone.

2. WIRELESS TATTOO PEN: All in one design, handle and battery using magnetic connection design, easy to install. Anti slip handle, comfortable grip, safe to use. Built in powerful motor, 4.2V‑12V adjustable voltage, suitable for liner and shader.

3. HIGH CAPACITY BATTERY: Transfer machine has a built in 1200mAh battery with a long battery life and a power reminder light for the tattoo artist to charge in time. Tattoo pen with built in 1500mAh battery, no need for tattoo power, tattoo foot pedal and tattoo clip cord.

4. WITH PROTECTIVE BAG: Transfer machine and tattoo pen are paired with a drawstring cloth bag to prevent the machine machine scratches, falls, better storage and protection of the machine, which is also easy to carry.

5. TATTOO TRANSFER MACHINE PEN KIT: Professional transfer machine and tattoo pen with ABS and aluminum alloy shell, light weight and compact, which can be carried around. Simplify the process of tattoo artists and improve the efficiency of tattooing.

    Specification:

Item Type: Thermal Tattoo Transfer Machine Pen Kit

Material: ABS, aluminum alloy, electronic components

1. Thermal Tattoo Transfer Machine

Color: Black

Battery: Lithium Battery 1200mAh(Included)

Input: 5V 2A

Interface: USB,

Machine Length: Approx. 262mm / 10.3in

Machine Width: Approx. 57mm / 2.2in

Machine Height: Approx. 29mm / 1.1in

Weight: Approx. 498g / 17.6oz

Print Density: 8 dots /mm (203dpi), 1728 dots/line

Printing speed: Maximum printing speed is 15mm/s

Effective Print Width: Approx. 216mm / 8.5in

Applicable Printer Paper: Standard A4 thermal printer paper or roll paper

Endurance: 12.5% coverage files can be printed about 200 sheets, and the actual measurement of pictures is about 80 sheets(in the case of medium concentration).

Print Head Life: 50km

Interface: TYPE C USB interface, Bluetooth5.0

Support Connected Devices: Mobile phone, for Windows7/8/10

Key Function:

Power lamp: High power display green; Medium power display red; Low power red blinking.

Charging light: Indicates the charging status of the printer. When the printer is in charging state, the indicator light is on. When the printer is fully charged, the indicator is off.

Status indicator: Indicates the real time status of the printer. When the printer is in normal state (with paper and print head down), the indicator is off. When the printer is in error state (lack of paper or cots raised), the indicator is blinking.

Paper feed key: Press the paper feed key for a distance. Long press for 3 seconds to produce paper about A4 length.

Open cover key: Press the open cover key to open the cover for cleansing and paper stuck processing

Power switch: Press "-" to start the system. Please turn off the power after use.

2. Wireless Tattoo Pen

Size: Approx. 149 x 25mm / 5.9 x 1in

Battery: Lithium Battery 1500mAh(Included)

Process: CNC Integrated Carving

Needle Stroke: 3.5mm / 0.14in

Battery Interface: Type C Interface (USB C)

Usage Time: 6-9 hours of continuous work

Charging Time: It can be full charged in 3-5 hours without power

Working Voltage Range: 4.2-12V;

Voltage Adjustment Accuracy: Short press: 0.3V

Speed: 12V 10000r/m

LCD Screen Display Content: 2 position system output voltage, remaining power

Suitable Needle: Most cartridge needles in the market

Needle Stroke Length: 0-4mm adjust

    How to Use:

         Thermal Tattoo Transfer Machine Operation Instruction:

         1. Mobile APP printing: Download the APP on the mobile terminal, turn on the printer, connect to select the image for printing.

         2.PC printing (for Windows7/8/10): Connect the printer to the computer with the data cable, and the printer is on, download and install the driver, you can select the picture to print.

         3.APP download: Scan the QR code at the bottom of the machine, refer to the instructions, refer to the website to download and install.

               Tattoo Pen Operation Instruction:

           Long press the power switch button to turn on/off the power; Press the power button to pause/restart; Press "+" "‑" button 0.3V to change the regulating voltage.

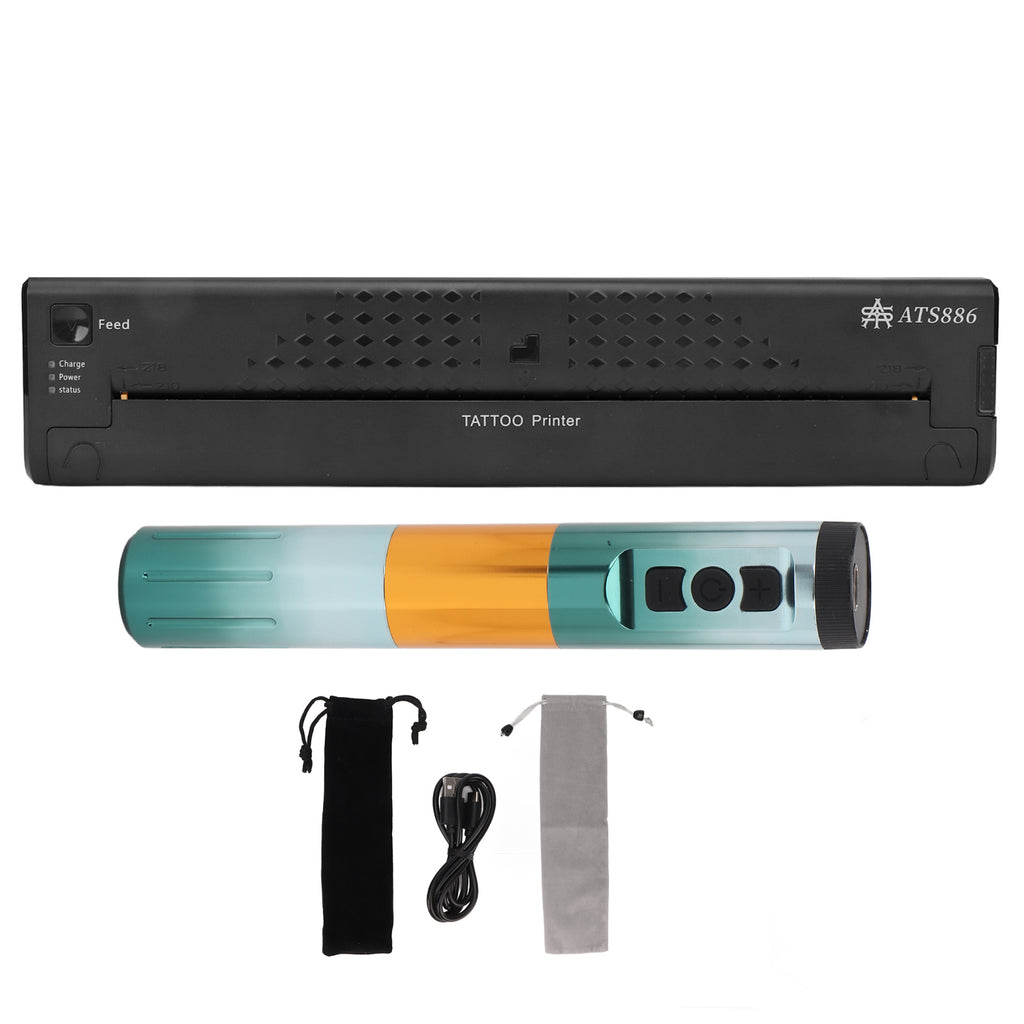

    Package List:

    1 x Thermal Tattoo Transfer Copier

    1 x Tattoo Transfer Copier USB Charging Cord

    1 x Tattoo Transfer Copier Cloth Bag

    1 x Instruction

    1 x Wireless Tattoo Pen

    1 x Tattoo Pen USB Charging Cord

    1 x Tattoo Pen Cloth Bag
