Description:

    WVC-1200 Using IP65 waterproof streamline design, can effectively prevent rainwater on the surface erosion, built-in high-performance, maximum power point tracking (MPPT) function, better able to track changes in the solar iuminosity and control different output power. Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, is one of our patented technology. The inverter output power can provide load priority use, extra electricity to the grid. Efficient use of the inverter to the power emitted. Electricity transmission rate of up to 99%.

    Communication using two modes. Between the inverter and collector using wireless communication signals. Collector with a PC or other devices to communicate using RS232 serial port/ WIFI wireless communication. Intelligent monitoring systems, the inverter can collect real-time data, inverter can be controlled startup / shutdown / power regulation.

    Features:

    1. High performance maximum power point tracking (MPPT).

    2. Reverse power transmission.

    3. Intelligent monitoring management.

    4. Input /output is fully isolated to protect the electrical safety.

    5. Multiple parallel stacking. Digital control system.

    6. Simplify maintenance (user serviceable). Operation and maintenance costs low.

    Specification:

    Condition: 100% Brand New

    Item Type: Photovoltaic Micro-inverte

    Material: Aluminum Alloy

    Color: Grey

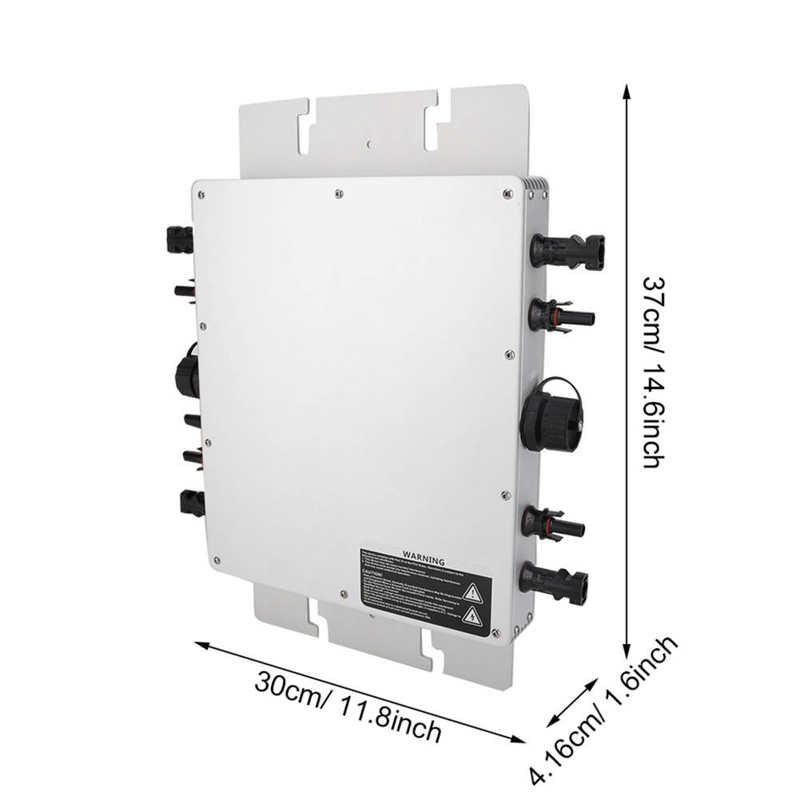

    Size: Approx. 37 x 30 x 4.16cm/ 14.6 x 11.8 x 1.6inch

     Weight: Approx. 3038g / 107.2oz

    Parameter:

    WVC-1200 (wireless) parameters

    Input Data KD-WVC-1200 (wireless)-120VAC / 230VAC

    Maximum Input Power: 1200W

    Solar Panel Power: 4 x 300W is recommended, open circuit voltage 36-50VOC

    Solar Panel Open Circuit Voltage Range: 36-50VOC

     Power Tracking Voltage: 22-50V

    Minimum / Maximum Starting Voltage: 22-50V

    Maximum DC Short Circuit Current: 80A

    Maximum Input Current: 54.4A

    Output Data: @ 120VAC @ 230VAC

     Power Output: 1200W

    Rated Output Power: 1150W

    Rated Output Current: 9.58A 5A

    Rated Voltage Range: 80-160VAC 180-260VAC

    Rated Frequency Range: 47-52.5Hz / 57-62.5Hz 47-52.5Hz / 57-62.5Hz

    Power Factor: > 99% > 99%

    Maximum Unit: 3PCS (single phase) 5PCS (single phase) per branch circuit

    Output Efficiency: @ 120VAC @ 230VAC

    Static MPPT Efficiency: 99.5% 99.5%

    Maximum Output Efficiency: 95% 95%

    Night Power Consumption: <1W <1W

     <5%<5%

    Operating Temperature Range: -40°C to + 60°C

    Waterproof Rating: IP65

    Cooling From Cold

    Communication Mode Wireless: 433MHz

    Power Transmission Mode Reverse Transmission, Load Priority

    Monitoring System is free for life

    Electromagnetic compatibility EN50081.part1 EN50082.part1

    Grid interference EN61000-3-2 safety EN62109

    Grid test DIN VDE 1026 UL1741

    Certificate CEC, CE national patent technology

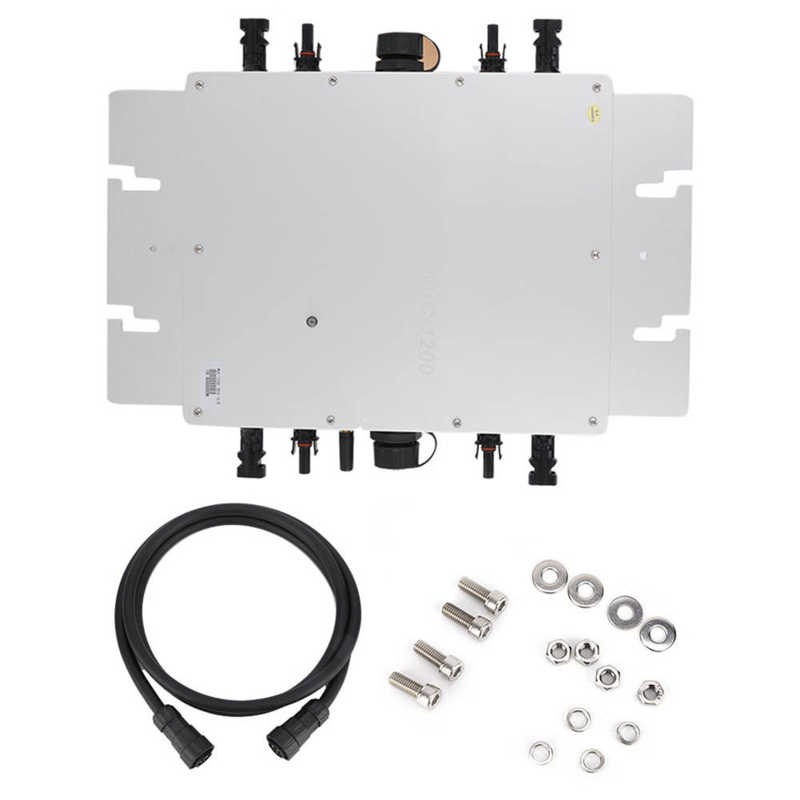

    Package list:

    1 x Inverter

    1 x Manual

    1 x Connecting Cable

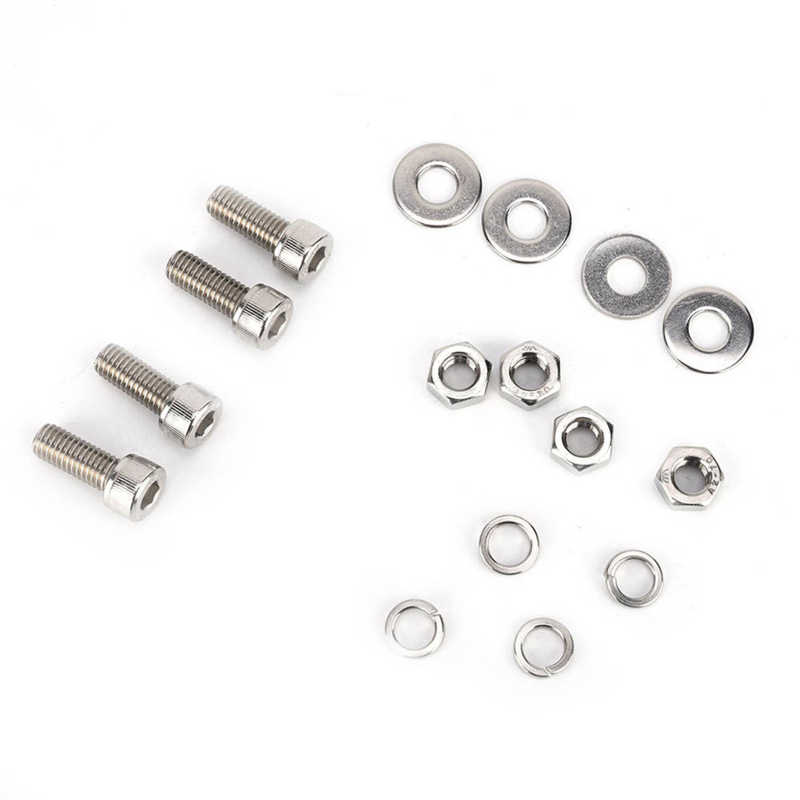

    2 x Nuts

    2 x Screws

    4 x Circular Rings
