Feature:
1. Maximum power point tracking, capable of reverse power transmission, I/O, and complete isolation
2. Multiple parallel stacks, adaptive voltage/frequency and voltage mode microgrid
3. Built‑in high‑accuracy electric meter, which is able to provide accurate readings
4. Can be used for 5G IoT platform management and application monitoring systems, etc.
5. Forward full bridge topology, no installation and no maintenance, simple to operate
Specification:

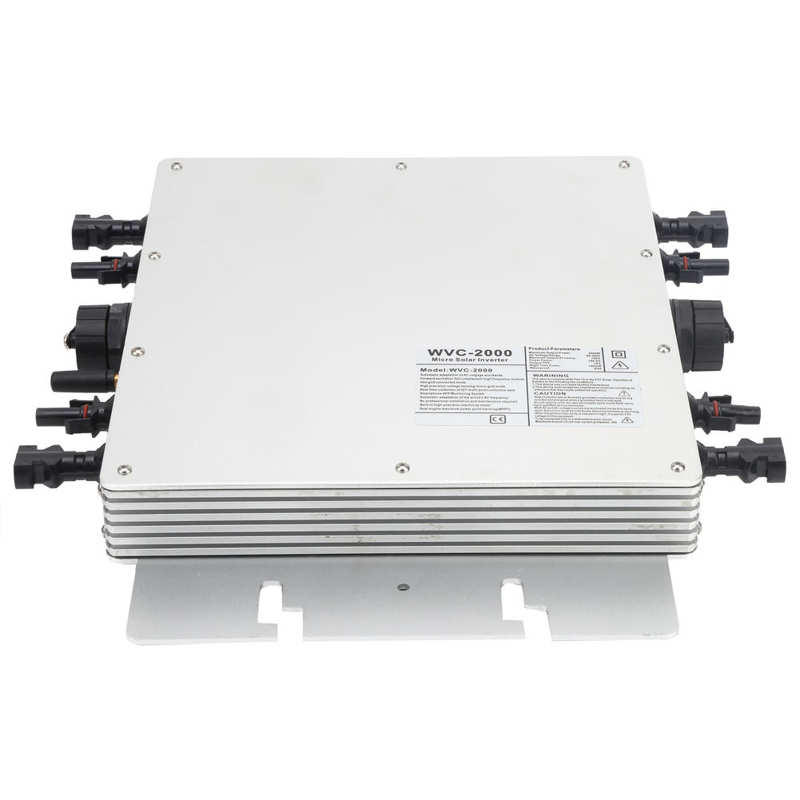

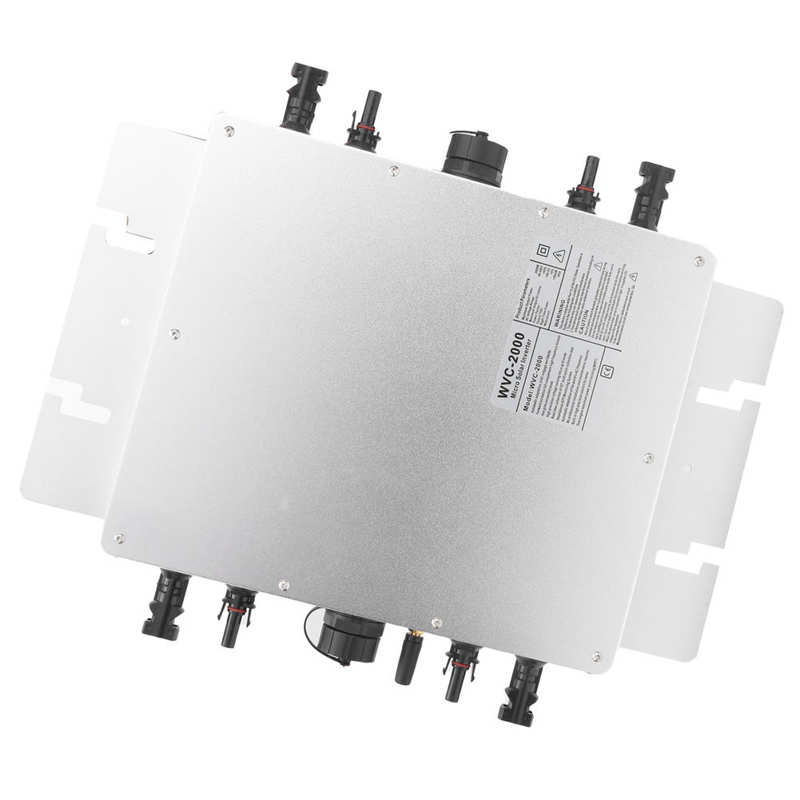

Item Type: Micro Inverter
Model: WVC-2000
AC Output Voltage: 120v/230v (automatic identification)
Rated Output Power: 2000w
Operating Temperature Range: -40℃ to +65℃
Monitoring System: Mobile APP
Waterproof Rating: IP65 NEMA3R
Cooling Method: Self-cooling
Rated Frequency Range: 48-51Hz/58-61Hz
Maximum Output Efficiency: 95%
How to Use:
1. Install and fix the inverter on the bracket of the photovoltaic panel with the screws attached to the machine
2. Connect the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter with positive and negative poles
3. Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug
4. Connect the AC output cable to the AC main cable
5. Repeat the first to third steps to install and connect all the inverters
6. Connect the AC main cable to the utility grid to start your green energy journey

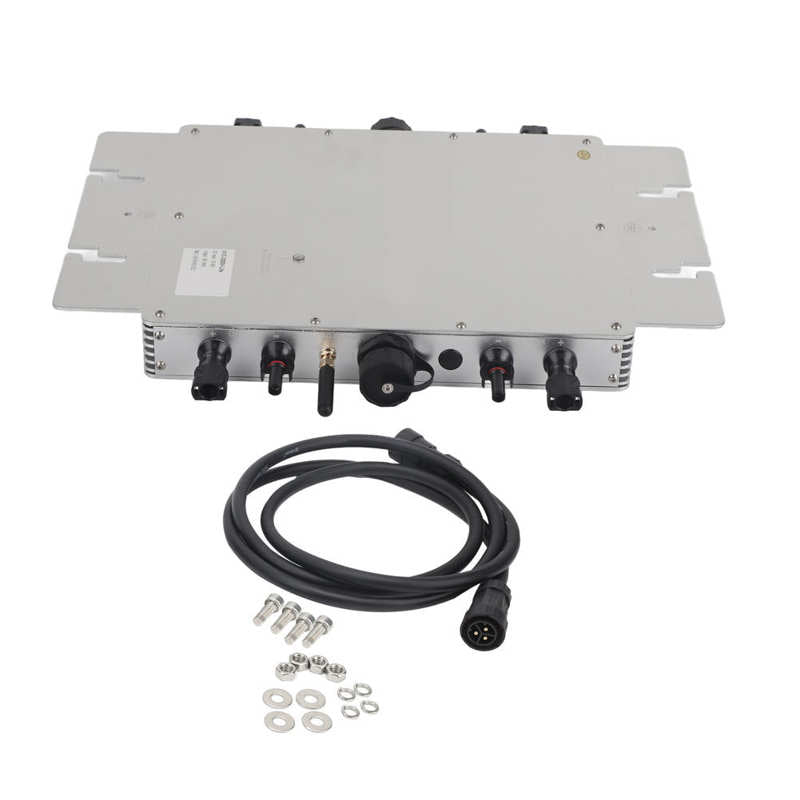

Package List:
1 x Inverter
1 x Installation User Manual

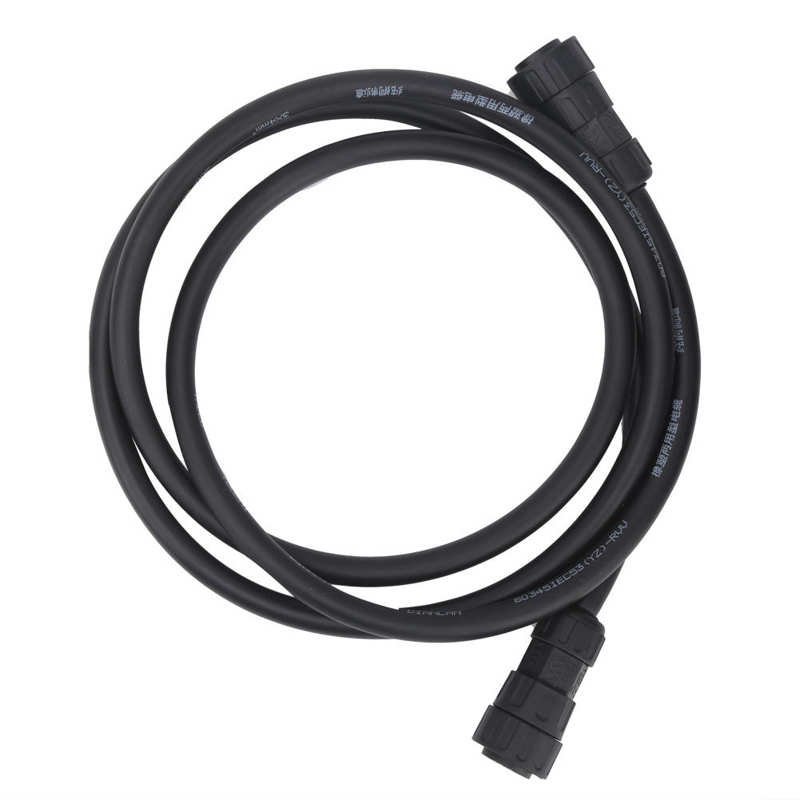

1 x AC Connection Line

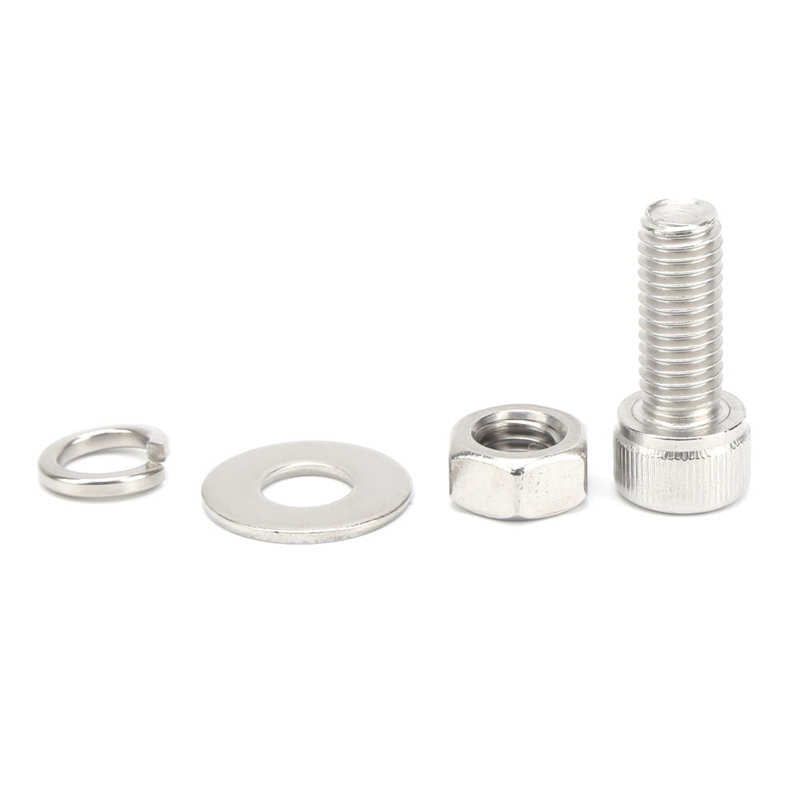

4 x Fixing Screw
4 x Fixing Nut
4 x Fixed Gasket
4 x Fixed Washer
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
