Feature:

 1. Working Mode of Micro Inverter: Solar grid tie micro inverter can electrically isolate the solar panels from each other, so a small amount of shading, breakage or obstruction on any one panel, or even an entire panel failure, will not reduce the output of the entire array too much. Each microinverter obtains optimal power by performing maximum power point tracking (MPPT) on its connected solar panels.

 2. Function of Micro Inverte: The micro inverter can achieve maximum power point tracking to maximize the overall output power. Built in high accuracy instrument, you can see the working status of each component.

 3. Multi Protective Functions: Over temperature protection, under voltage alarm, under voltage protection, over voltage protection, short circuit protection, overload protection functions.

 4. Independent and Safe: 600W solar grid tie microinverter can independently control each component in parallel, minimizing safety risks. Miniature, high frequency processing, smaller and lighter.

 5. Multiple Installation Methods: The 600W micro inverter can be installed directly behind the module or on the bracket for easy maintenance.

     Specification:

     Item Type: Solar Grid Tie Microinverter

 Product Material: Aluminum Alloy

 Weight: Approx. 2355g / 5.2lb

 Digital Display Plug Specification: EU Plug 230V

 AC Digital Display Test Voltage: 80-260V AC

 Maximum, Minimum Startup Voltage: 22-50V

 Inverter:

 Output Parameter: 230V

 Output Power: 600W

 Rated Output Power: 550W

 Rated Output Current: 2.39A

 Rated Voltage Range: 180-260V AC

 Rated Frequency Range: 47-52.5Hz

 Power Factor: >99%

 Number of Connected Units: 12 Units (Single Phase)

 Output Efficiency: 92%

 Static MPPT Efficiency: 99.5%

 Power Consumption at Night: <1W

 Plug Specification: EU Plug 230V (With Waterproof Connector)

 Output Power: 600W

 Maximum Input Operating Current: 27.2A

 Ambient Temperature Range: -40°C to +60°C

 Waterproof Grade: IP65

 Power Transmission Mode: Reverse Transmission, Load Priority

 Digital Display Function:

 Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor)

 Overload alarm function (over power alarm threshold, backlight and power flashing prompt)

 Power alarm threshold preset function (power alarm threshold can be set by yourself)

 Power button reset function

 Power down data saving function

 Large screen LCD screen with full display function

 Backlight function

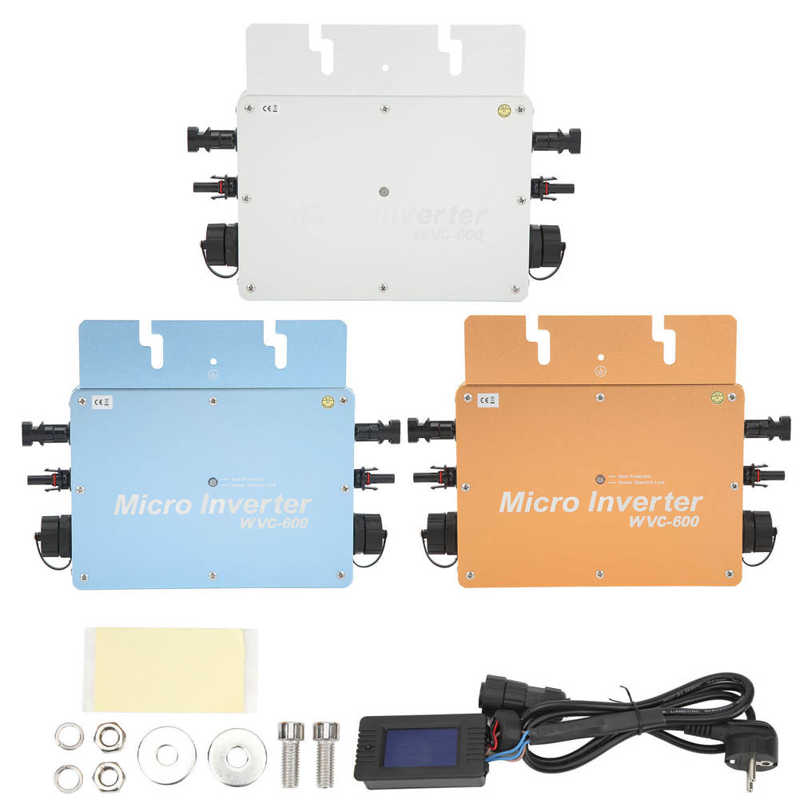

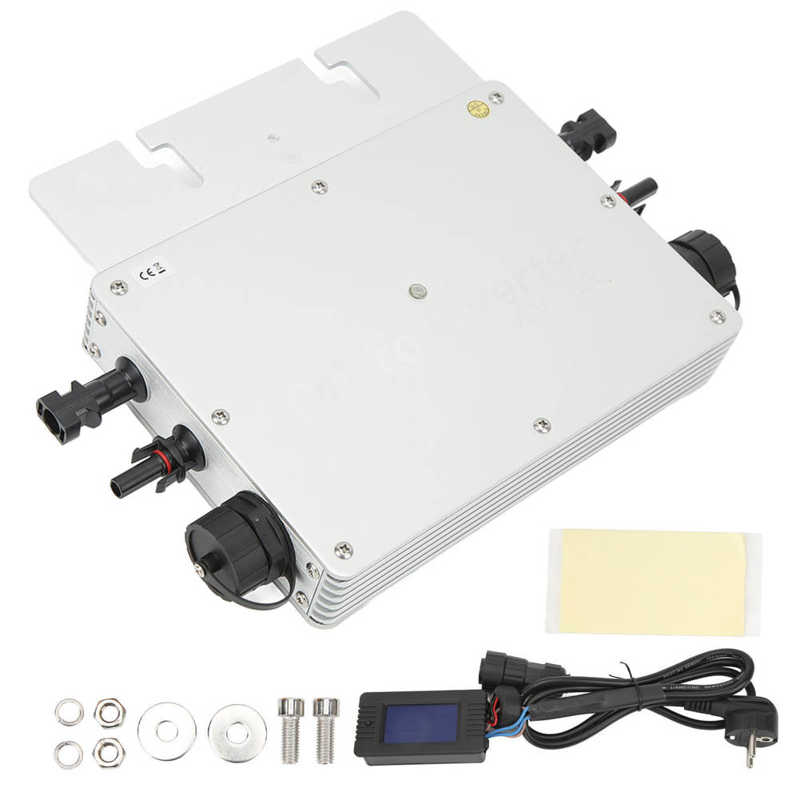

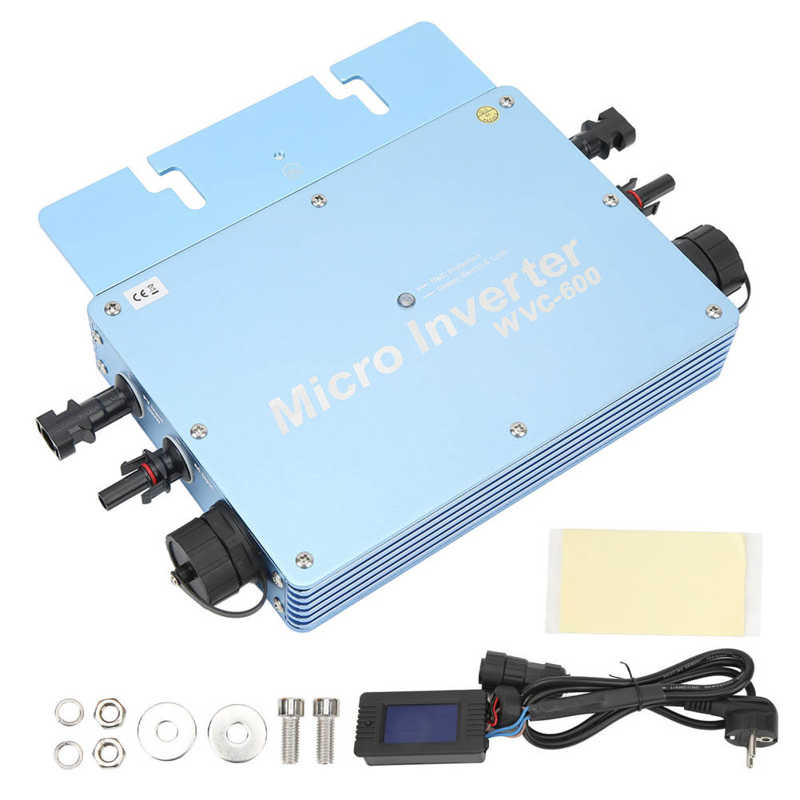

     Package List:

     1 x Digital Display Manual

     1 x Product Manual

     1 x Inverter

     1 x Cable

     2 x Fixing Screw

     2 x Fixing Nut

     2 x Fixed Gasket

     2 x Fixed Washer

     1 x Sticker
