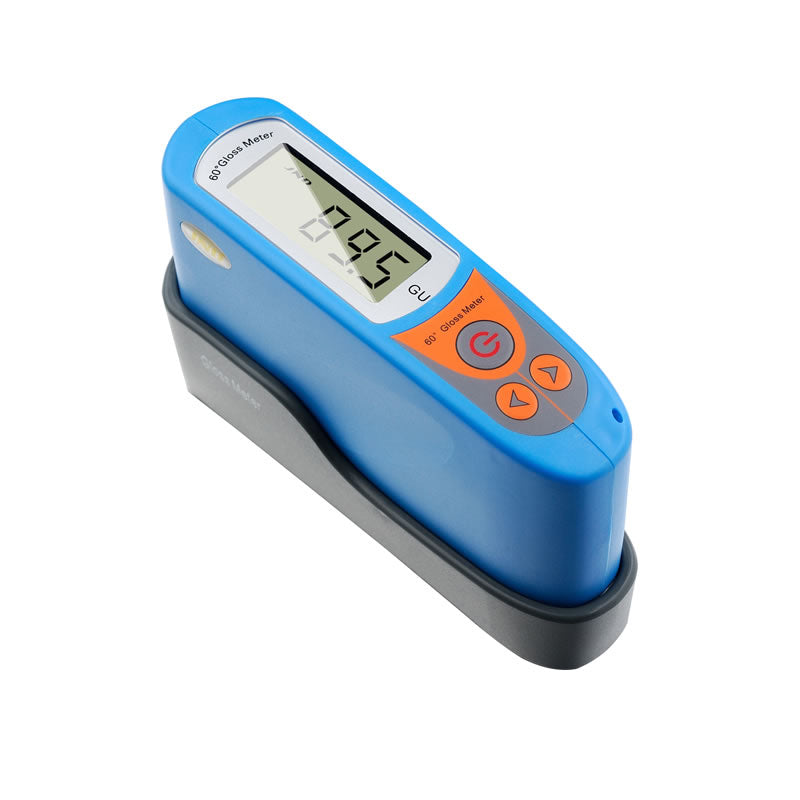

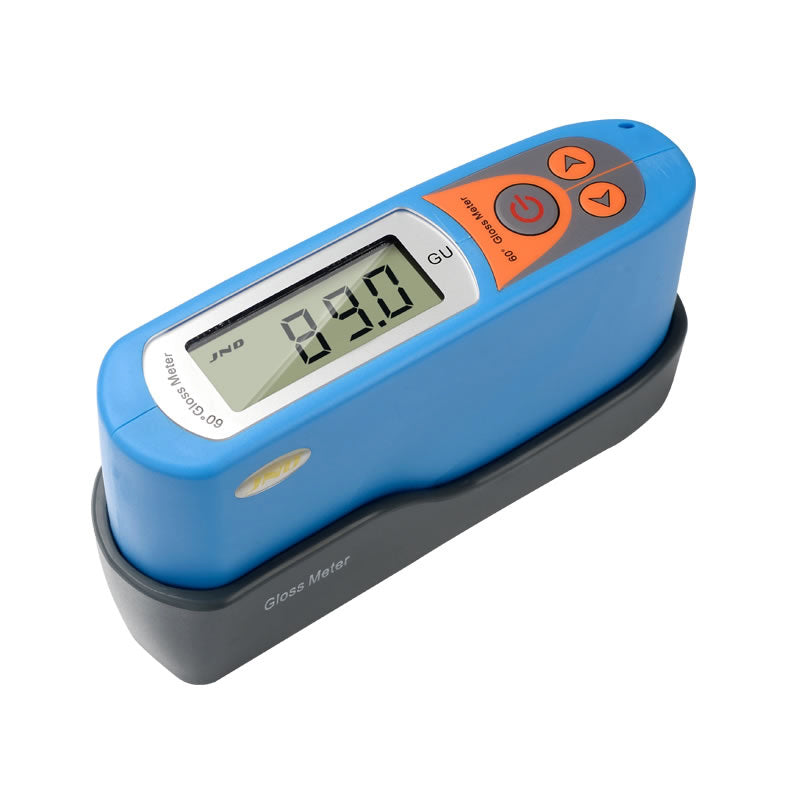

XA6 Gloss Meter High-Precision Small Aperture Measurement with Digital Paints

Production Description:

 XA6 Portable gloss meter Is in accordance with International standard ISO2813 and the Chinese national standard GB/T13891 GB9754 GB7706 GB8807 Design and manufacture Gloss Measuring instruments.The meters are also compatible with the standards of  ASTM D2457、ASTM D523. To meet the small area gloss measurement, this series uses small measurement spot and windows,The performance indicators have reached the national JJG696-2002<<Specular gloss meter And gloss plate>>Metrology and Verification The requirements of a working machine.

 The gloss values can be traced  to the those of the National Primary Standards in SIMT in the P.R.China.

 Main Applications:

 →All kinds of coating and finishing surfaces,such as paints,varnishes, printing ink, etc.

 →Plastic materials, wood products, leather products, paper film, etc.

 →Decoration materials、Ceramic tile、Rubber、Leather、Stone,metal surface polishing,   plating surface,Other non-metallic material surface gloss measurement.

 Advantages:

 1.Unique hole probe designed for uneven surfaces and small area surface gloss measurement.

 2.All intelligent high-precision、high stability、boot can be measured, simple operation.

 3.Measurement data for five consecutive years by the certification authority，Traceable to the "SIMT" national verification center.

 4.Intelligent error compensation device design,Users can easily adjust without Depot.

 5.The use of advanced optical design,Stable and reliable measurement data.

 6.Patented ergonomic housing design,using high-end one-time molding mold,anti-slip,lightweight,and resistant to a variety of solvents.

 7.Focus on the safe use of high-end non-conductive housing,high safety factor,to avoid electric shock occurs.

 8.The use of imported high-end power management chip, a single charge can achieve continuous measurement of 80h,achieve the industry's lowest power consumption.

 9.The use of imported non-mechanical three anti-power switch, long life, feel good.

 10.Oval corner,soft surface probe designed to prevent scratching the surface.

 Specifications:

      Technical parameters

       Technicalparameters

   Unit

   XA6

       Measuring Range

   GU

   0.0~199.5

       Zero-pointDeviation

   GU

   0

       Deviation

   GU

   ±1.0

       Stability

   GU

   1

       DifferentiateAccuracy

   GU

   0.5

       Measuring Area

   mm

   1.5×3

       Projection angle

   DEG

   60°

       Power Supply

   V

   One AA-size battery,1.2V~1.5V,

       Rechargeable or alkaline .

       Consumption

   H

   ＞80h

       Main size

   mm

   131(L)× 39(W)×81(H)

       Main Weight

   g

   186

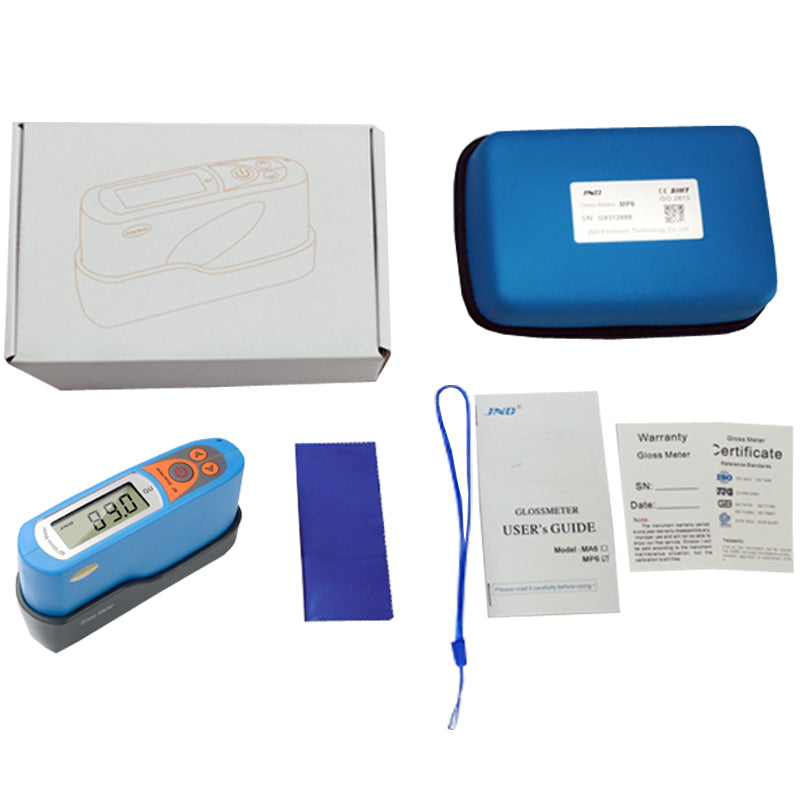

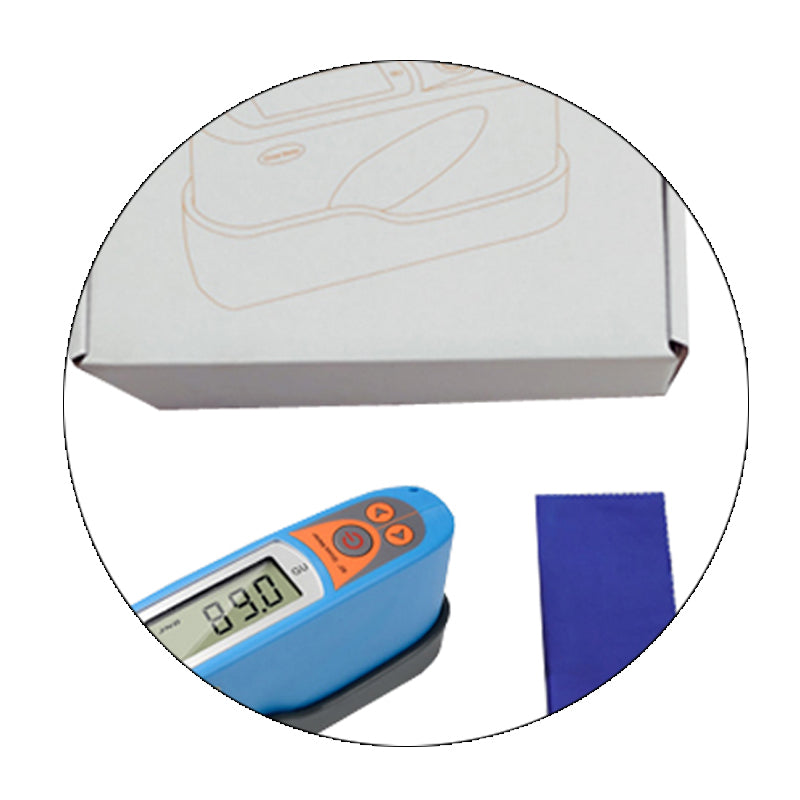

   Configuration Checklist：

   ◆Main  Model:XA6*1 Unit

   ◆Shockproof Instrument Package*1 Piece

   ◆Intelligent Calibration Base*1 Set

   ◆User's Guide*1 Piece

   ◆Certification Card*1 Piece

   ◆Warranty card*1 Piece

   ◆Lens cleaning cloth*1 Piece
