XH-W3001:
Function:
Automatic mode
Wide temperature control range
High temperature control accuracy
Reverse connection protection
Easy installation
Product parameters:

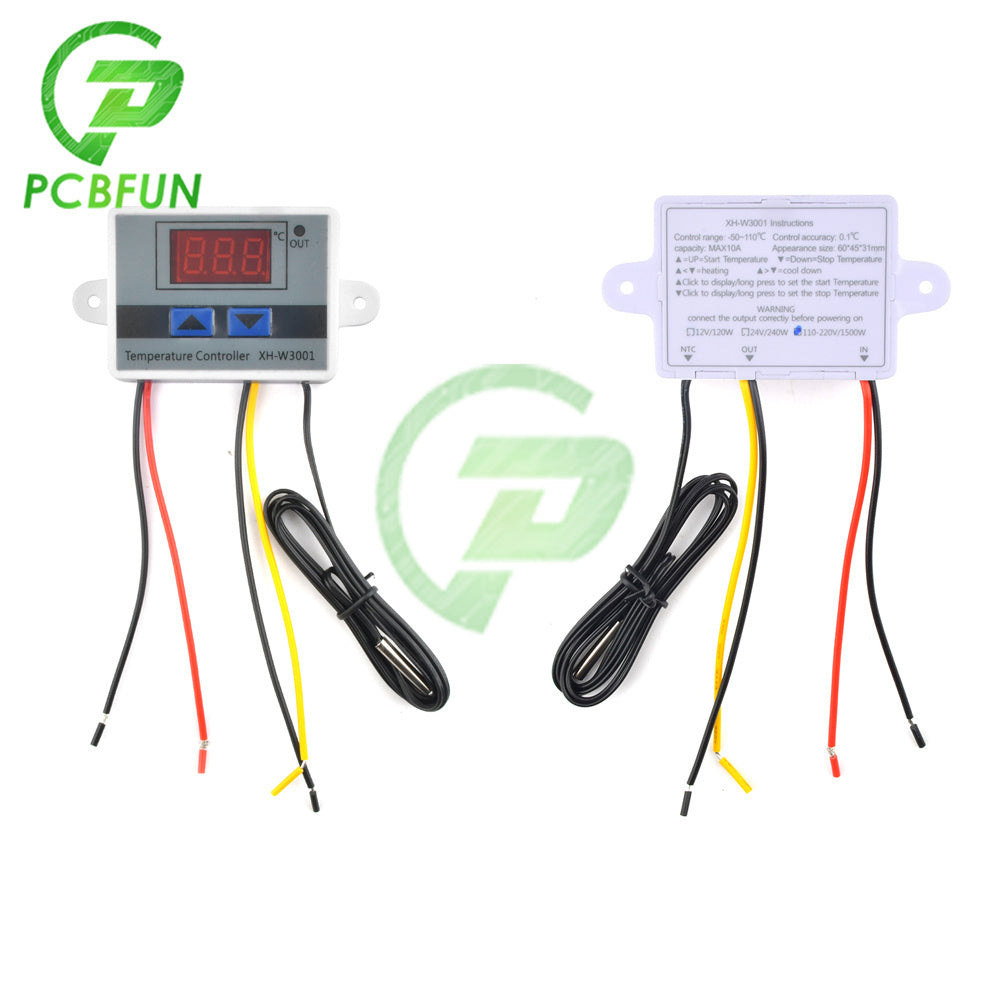

Product name: Microcomputer temperature controller
Product Model: XH-W3001

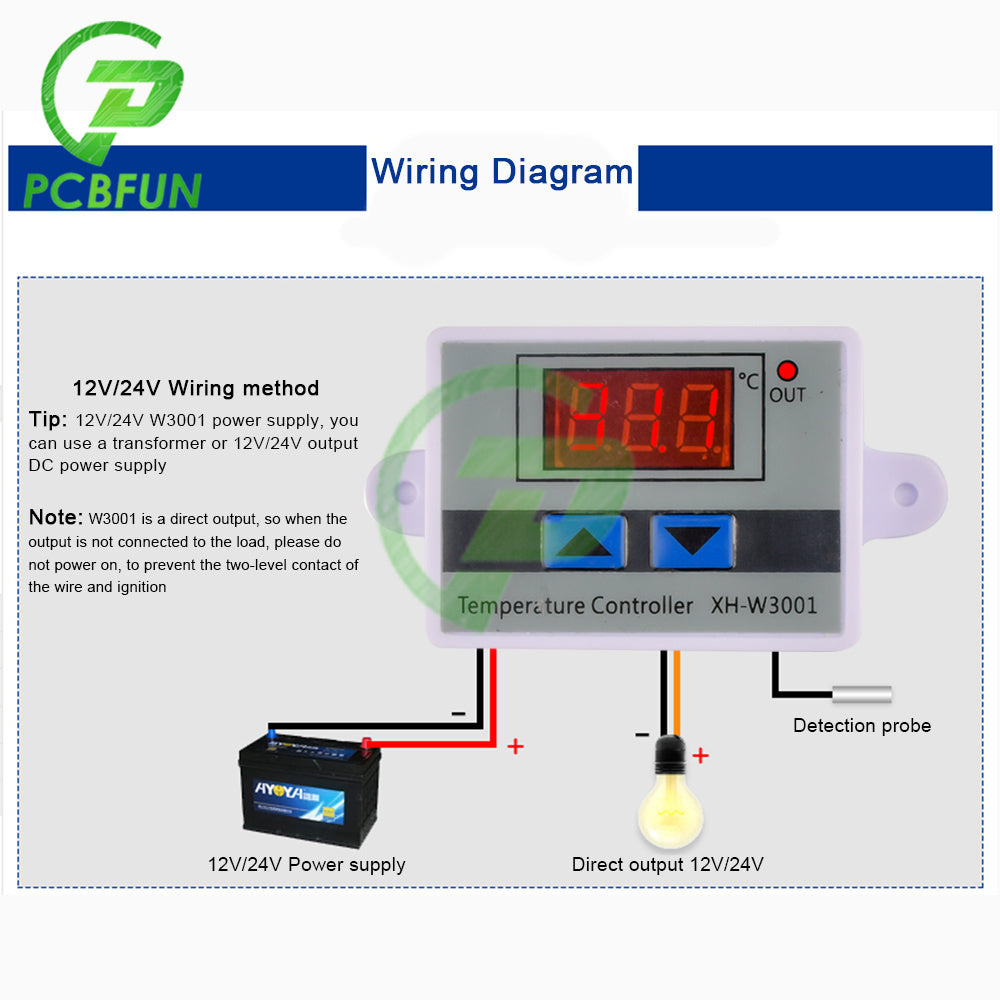

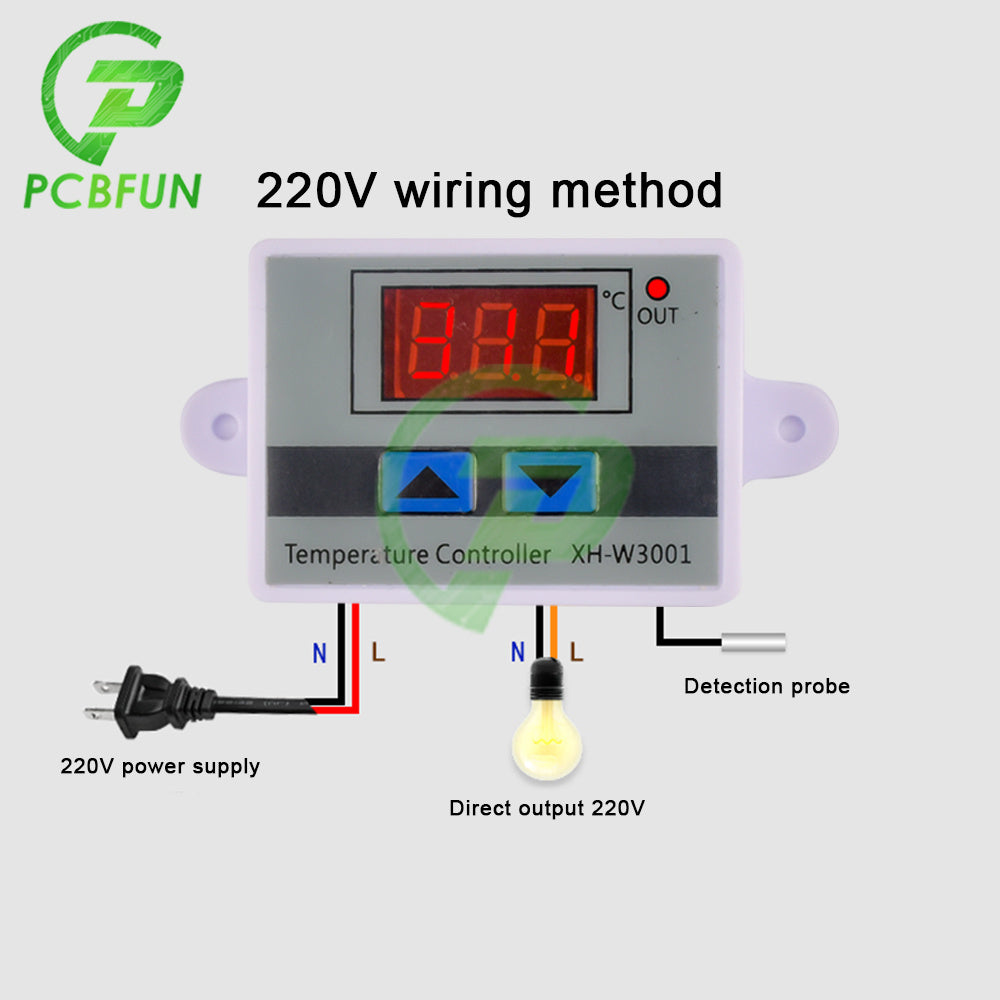

Supply voltage: 12/24/220V
Temperature measurement range: -50℃~110℃
Temperature control range: -50℃~110℃
Temperature control accuracy: 0.1℃
Load power: 120/240/1500W
Measurement input: NTC10K waterproof probe L=1 meter
output type: direct output
Output capacity: max 10A

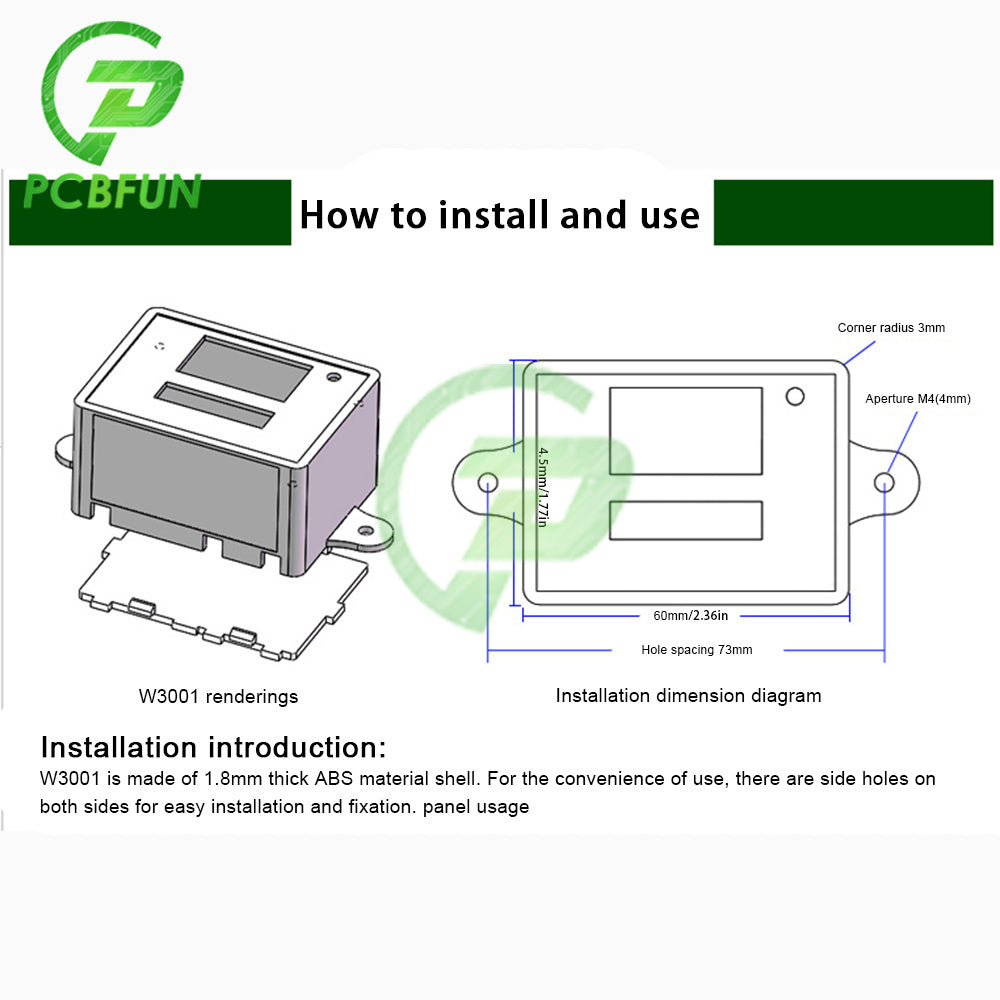

Installation hole distance: 73mm (diameter 4mm)
Appearance size: 60*45*31mm

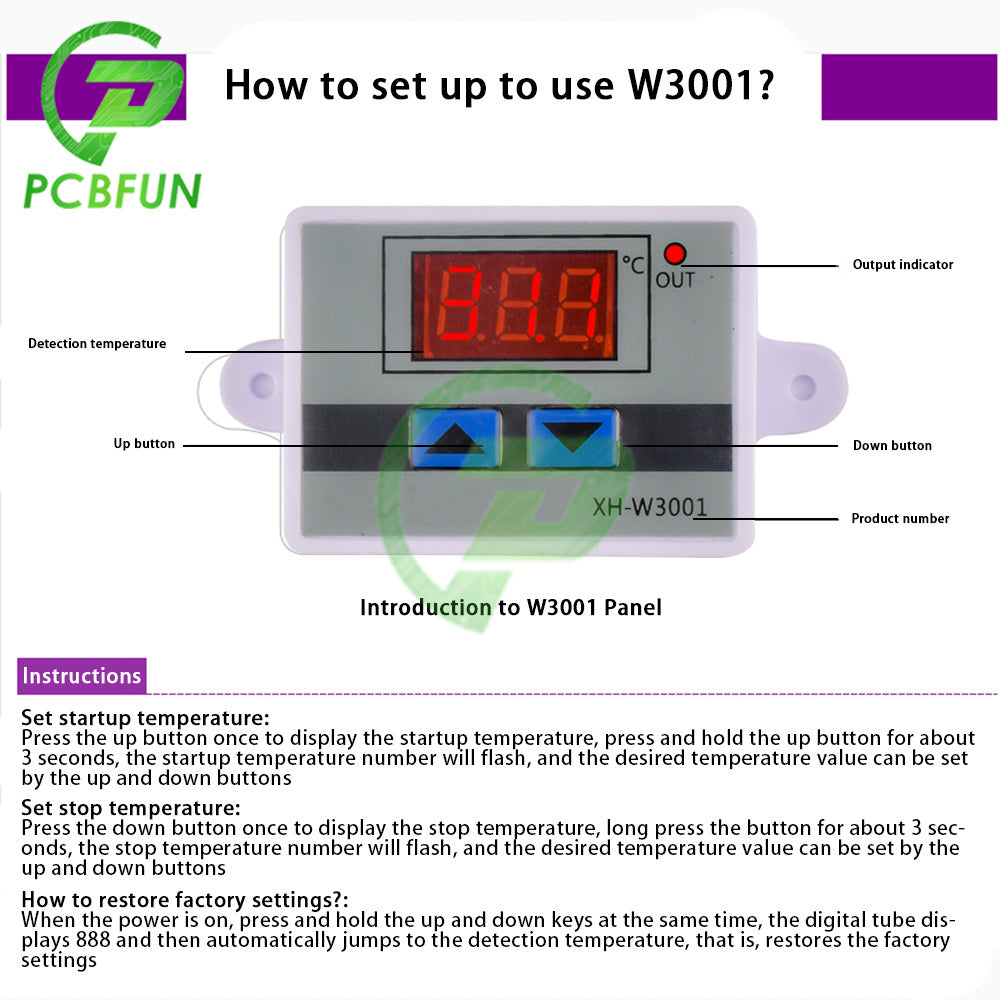

Explanation:
To set the startup temperature:
Press the up button once to display the startup temperature, press and hold the up button for about 3 seconds, the startup temperature number will flash, and the desired temperature value can be set by the up and down buttons
Set stop temperature:
Press the down button once to display the stop temperature, long press the button for about 3 seconds, the stop temperature number will flash, and the desired temperature value can be set by the up and down buttons
reset:
When the power is on, press and hold the up and down keys at the same time, the digital tube displays 888 and then automatically jumps to the detection temperature, that is, restores the factory settings
Package includes:
1* Thermostat
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
